Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#23469) — 174 parça

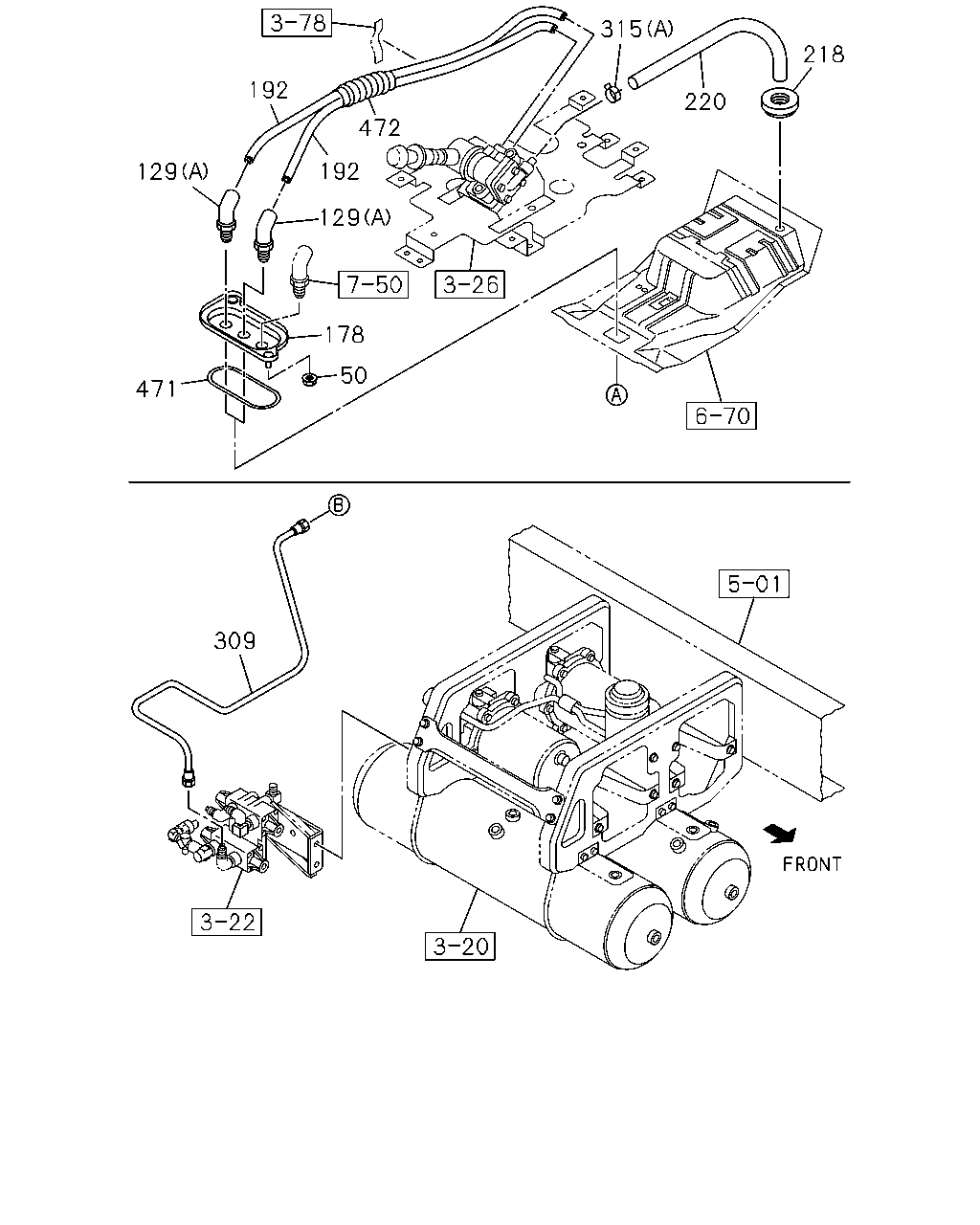

192 472 192 129 178 50 471 129 315 220 218 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT SOU	1-09660-875-0	02	1	1001-
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1001-
178	BRACKET; UNION	8-98017-054-1	01	1	1001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
218	GROMMET; VINYL HOSE OD=24 SOU	9-61166-007-0	01	1	1001-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000 SOU	9-09914-701-0	01	1	1001-
309	PIPE; AIR,MPV TO UNION BRAKE REGULATION ECE<TDV> L=1226 SERVICED BY L=1250	1-47428-876-0	01	1	1502-
309	PIPE; AIR,MPV TO UNION L=762 SERVICED BY L=800	1-47428-872-0	01	1	1001-1501
309	PIPE; AIR,MPV TO UNION EXC. BRAKE REGULATION ECE<TDV> L=762 SERVICED BY L=800	1-47428-872-0	01	1	1502-
315	CLIP (B) L=350	1-09707-183-0	01	1	1001-
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1001-
315	CLIP (A) ID=14 SOU	8-94238-572-0	01	1	1001-
471	SEAL; BRKT SOU	1-79738-832-0	01	1	1001-
472	TUBE; SPUTTER	8-98067-708-0	01	1	1001-

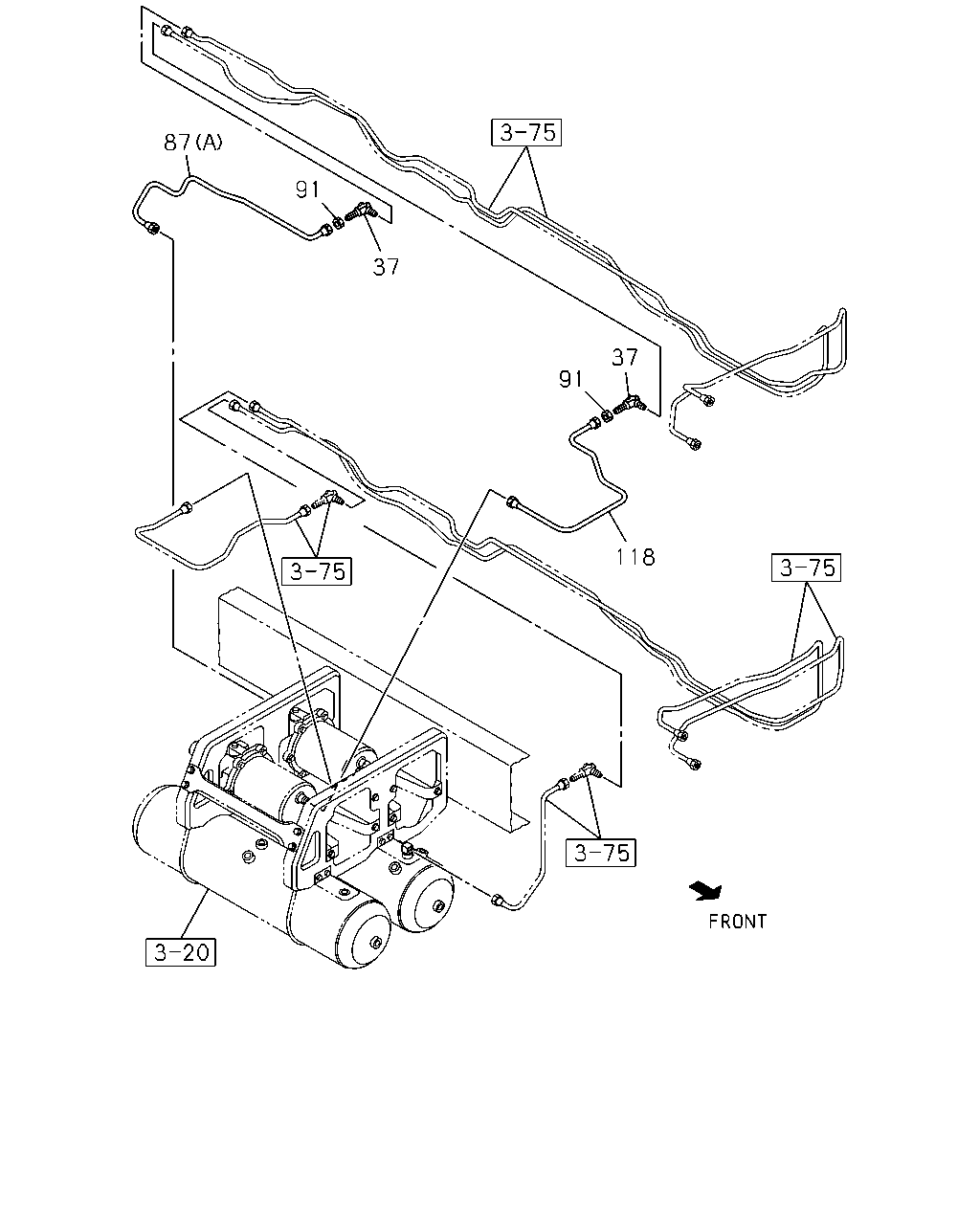

87 91 37 91 37 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (B) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1412-1501
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=434	8-98230-379-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1001-1411
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1412-
91	NUT; PIPE UNION M16 SOU	0-91111-516-0	02	1	1001-
118	PIPE; AIR,UNION TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ADR<TDU> L=688 SERVICED BY L=700	1-47428-870-0	01	1	1412-
118	PIPE; AIR,UNION TO AIR MASTER L=670 SERVICED BY L=700	1-47428-870-0	01	1	1001-1411
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU> EXC. ANTI LOCK BRAKE<JE5> L=670 SERVICED BY L=700	1-47428-870-0	01	1	1412-

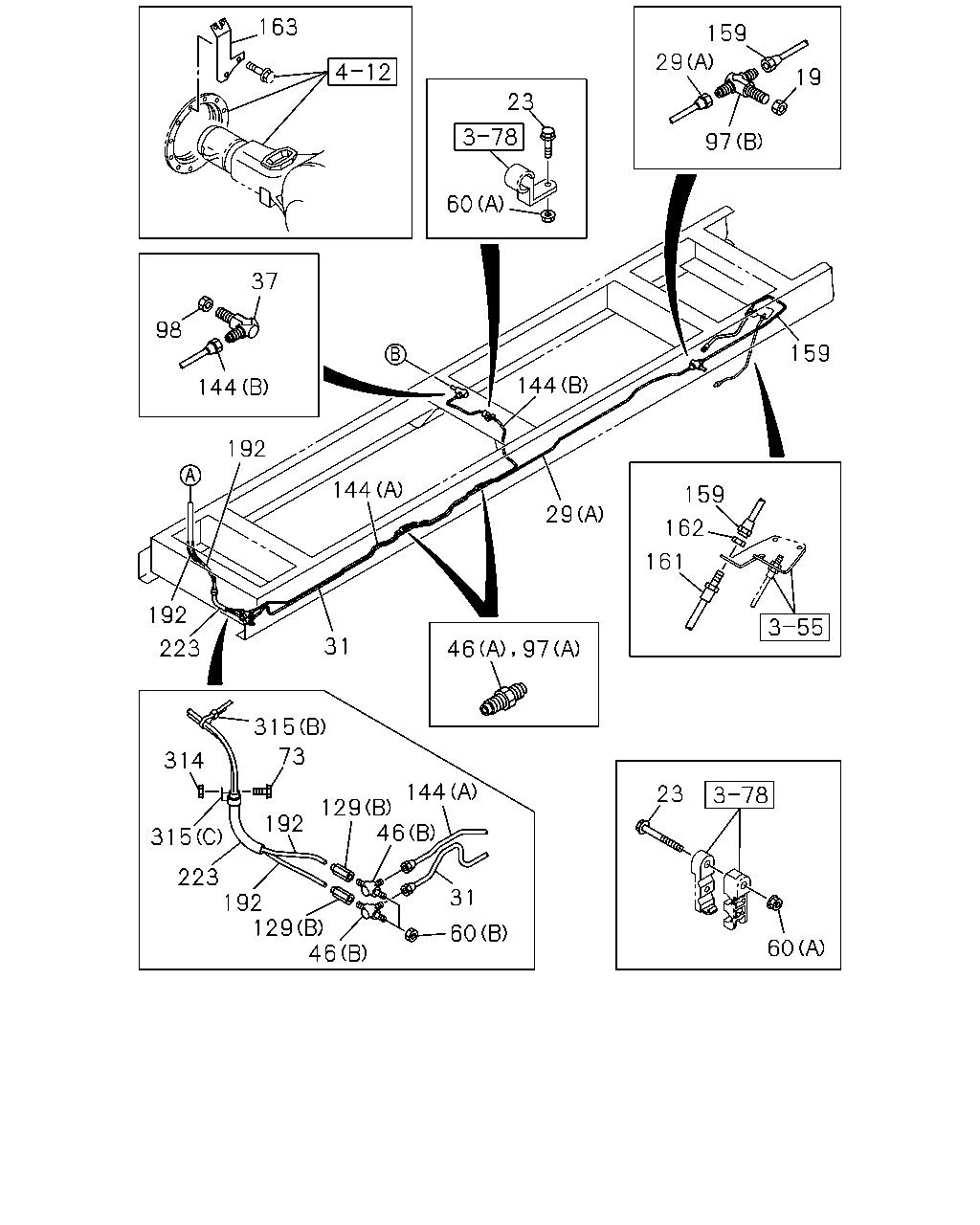

163 60 23 159 29 97 19 159 159 162 161 29 144 192 31 192 223 314 315 223 192 192 315 73 129 46 31 60 144 46 97 23 60 144 144 98 37 129 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	1001-
23	BOLT; UNION BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE SOU	0-28650-825-0	01	1	1502-
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	1001-1501
23	BOLT; UNION BRKT EXC. BRAKE REGULATION ECE<TDV> M8X50 FLANGE	0-28050-850-0	01	1	1502-
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	1001-1501
23	BOLT; UNION BRKT EXC. BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28650-820-0	01	1	1502-
29	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=1689 SERVICED BY L=1700	1-47428-880-0	01	1	1502-
29	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (B) L=2740 SERVICED BY L=2900	1-47428-885-0	01	1	1502-
29	PIPE; AIR,UNION TO UNION (A) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	1001-1012
29	PIPE; AIR,UNION TO UNION (A) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-1501
29	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> (A) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1502-
31	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> L=2351 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
31	PIPE; AIR,UNION TO UNION L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1001-1501
31	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
46	NIPPLE; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1001-
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	02	1	1001-
60	NUT; NIPPLE,AIR PIPE BRAKE REGULATION ECE<TDV> (A) M8 FLANGE SOU	0-91180-108-0	01	1	1502-
60	NUT; NIPPLE,AIR PIPE (B) M12	0-91111-512-0	02	1	1001-
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-1501
60	NUT; NIPPLE,AIR PIPE EXC. BRAKE REGULATION ECE<TDV> (A) M8 FLANGE SOU	0-91180-108-0	02	1	1502-
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1001-
97	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1502-
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1001-
97	UNION; AIR PIPE (B) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1001-
98	NUT; PIPE UNION M16 SOU	0-91111-516-0	01	1	1001-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT SOU	1-09660-875-0	02	1	1001-
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1001-
144	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=1049 SERVICED BY L=1100	1-47428-875-0	01	1	1502-
144	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (D) L=2302 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
144	PIPE; AIR,UNION TO UNION (A) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	1001-1501
144	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> (A) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	1502-
144	PIPE; AIR,UNION TO UNION (B) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1001-1501
144	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> (B) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	1001-
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	1001-
162	NUT; FLEX HOSE M16 SOU	0-91111-516-0	01	1	1001-
163	BRACKET; FLEX HOSE	8-98106-706-0	01	1	1001-
163	BRACKET; FLEX HOSE	8-98093-260-0	01	1	1001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1001-
314	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
315	CLIP (B) L=350	1-09707-183-0	01	1	1001-
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1001-
315	CLIP (A) ID=14 SOU	8-94238-572-0	01	1	1001-

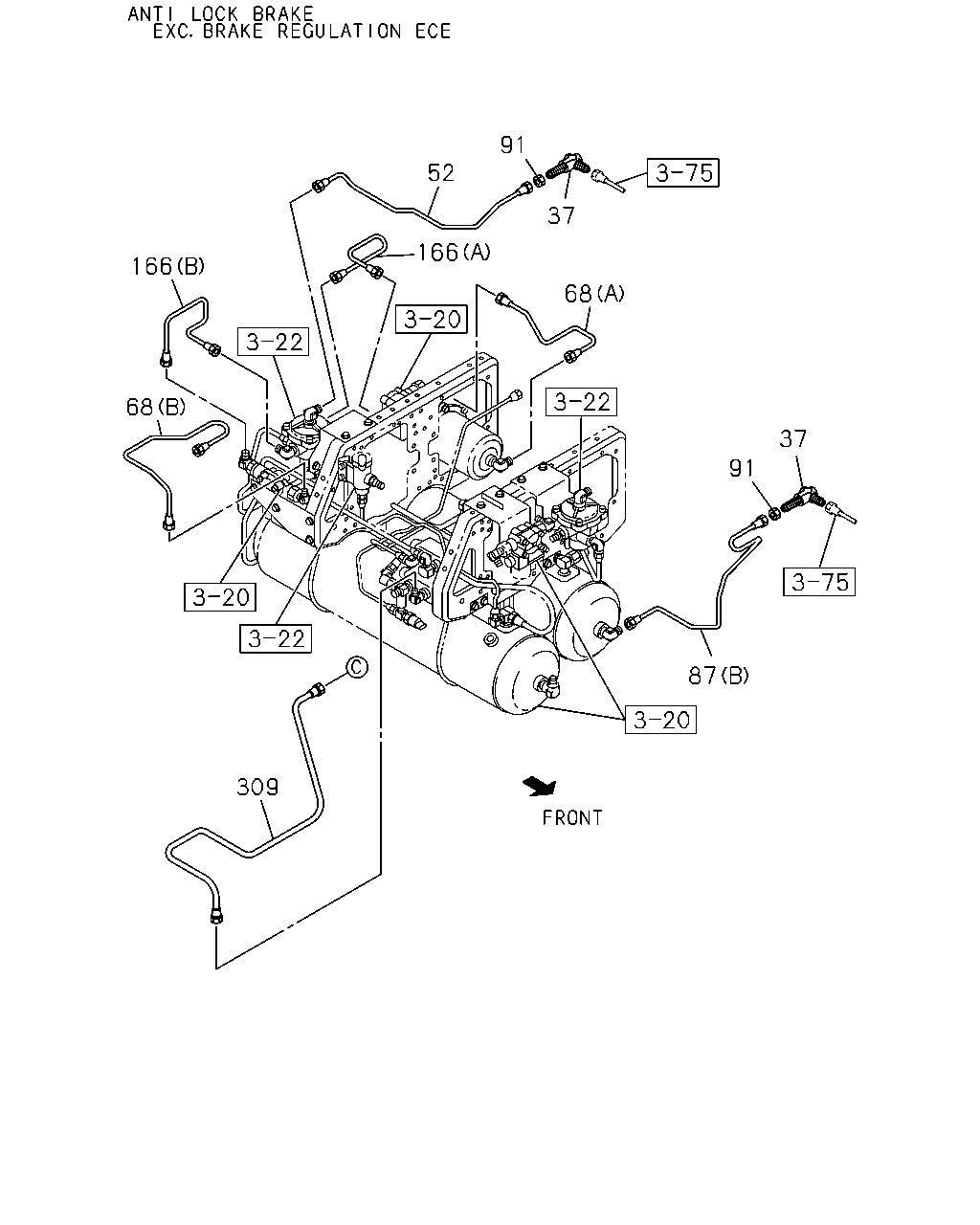

309 68 166 52 166 91 37 68 91 37 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
52	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> L=722 SERVICED BY L=730	1-47428-871-0	01	1	1412-1501
52	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> L=722 SERVICED BY L=730	1-47428-871-0	01	1	1502-
52	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> L=1024	8-98244-584-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (B)	8-98147-519-0	01	1	1412-1501
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98147-519-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (A)	8-98167-302-0	01	1	1412-1501
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-98167-302-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=468	8-98230-353-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=458	8-98236-971-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (B) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1412-1501
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=434	8-98230-379-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1001-1411
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1412-
91	NUT; PIPE UNION M16 SOU	0-91111-516-0	02	1	1001-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (A) L=345	8-98147-516-0	01	1	1412-1501
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) L=345	8-98147-516-0	01	1	1502-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (B) L=428	8-98147-517-0	01	1	1412-1501
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=428	8-98147-517-0	01	1	1502-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=380	8-98230-358-0	01	1	1502-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=395	8-98244-575-0	01	1	1502-
309	PIPE; AIR,MPV TO UNION BRAKE REGULATION ECE<TDV> L=1226 SERVICED BY L=1250	1-47428-876-0	01	1	1502-
309	PIPE; AIR,MPV TO UNION L=762 SERVICED BY L=800	1-47428-872-0	01	1	1001-1501
309	PIPE; AIR,MPV TO UNION EXC. BRAKE REGULATION ECE<TDV> L=762 SERVICED BY L=800	1-47428-872-0	01	1	1502-

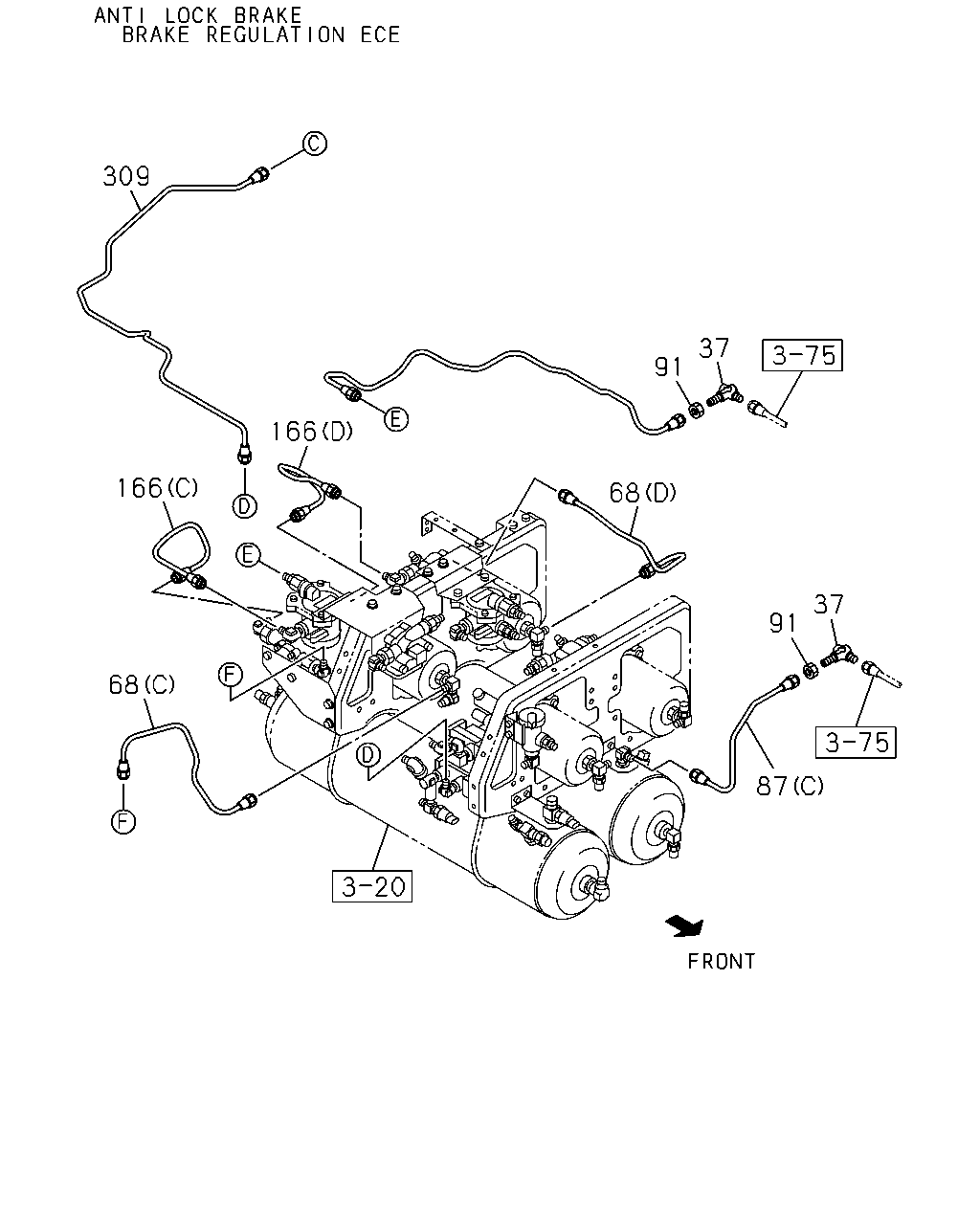

91 68 37 91 37 166 166 68 309 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (B)	8-98147-519-0	01	1	1412-1501
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98147-519-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (A)	8-98167-302-0	01	1	1412-1501
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-98167-302-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=468	8-98230-353-0	01	1	1502-
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=458	8-98236-971-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (B) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1412-1501
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=434	8-98230-379-0	01	1	1502-
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1001-1411
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1412-
91	NUT; PIPE UNION M16 SOU	0-91111-516-0	02	1	1001-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (A) L=345	8-98147-516-0	01	1	1412-1501
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) L=345	8-98147-516-0	01	1	1502-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (B) L=428	8-98147-517-0	01	1	1412-1501
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=428	8-98147-517-0	01	1	1502-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=380	8-98230-358-0	01	1	1502-
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=395	8-98244-575-0	01	1	1502-
309	PIPE; AIR,MPV TO UNION BRAKE REGULATION ECE<TDV> L=1226 SERVICED BY L=1250	1-47428-876-0	01	1	1502-
309	PIPE; AIR,MPV TO UNION L=762 SERVICED BY L=800	1-47428-872-0	01	1	1001-1501
309	PIPE; AIR,MPV TO UNION EXC. BRAKE REGULATION ECE<TDV> L=762 SERVICED BY L=800	1-47428-872-0	01	1	1502-

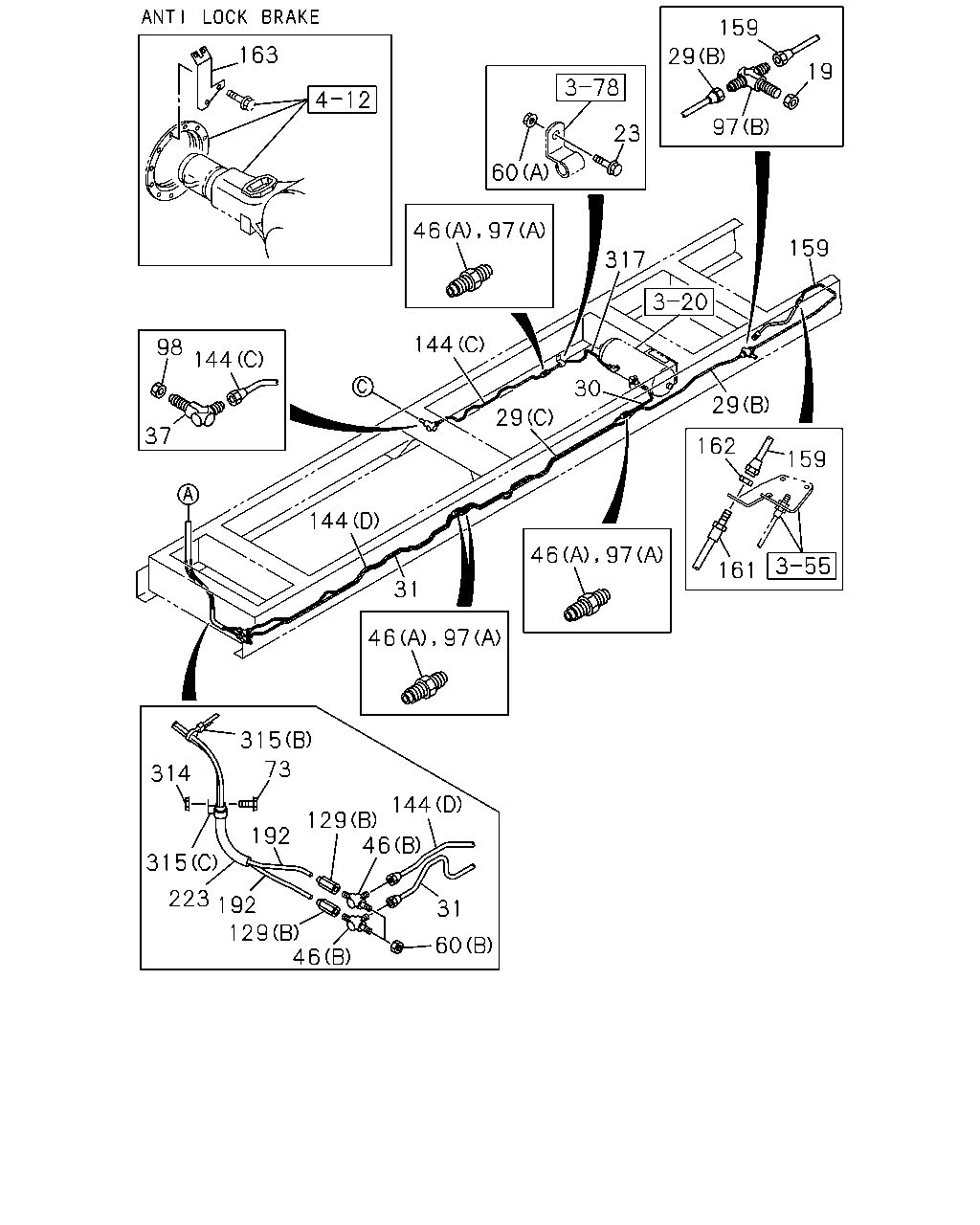

163 159 29 97 19 159 29 159 162 161 46 97 46 97 46 97 317 60 23 144 30 29 144 144 37 98 223 192 315 73 314 315 192 129 46 31 60 144 129 46 97 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	1001-
23	BOLT; UNION BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE SOU	0-28650-825-0	01	1	1502-
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	1001-1501
23	BOLT; UNION BRKT EXC. BRAKE REGULATION ECE<TDV> M8X50 FLANGE	0-28050-850-0	01	1	1502-
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	1001-1501
23	BOLT; UNION BRKT EXC. BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28650-820-0	01	1	1502-
29	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=1689 SERVICED BY L=1700	1-47428-880-0	01	1	1502-
29	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (B) L=2740 SERVICED BY L=2900	1-47428-885-0	01	1	1502-
29	PIPE; AIR,UNION TO UNION (A) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	1001-1012
29	PIPE; AIR,UNION TO UNION (A) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-1501
29	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> (A) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1502-
30	PIPE; AIR,AIR TANK TO JOINT BRAKE REGULATION ECE<TDV> L=519 SERVICED BY L=550	1-47428-867-0	01	1	1502-
31	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> L=2351 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
31	PIPE; AIR,UNION TO UNION L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1001-1501
31	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	01	1	1001-
46	NIPPLE; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1001-
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	02	1	1001-
60	NUT; NIPPLE,AIR PIPE BRAKE REGULATION ECE<TDV> (A) M8 FLANGE SOU	0-91180-108-0	01	1	1502-
60	NUT; NIPPLE,AIR PIPE (B) M12	0-91111-512-0	02	1	1001-
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-1501
60	NUT; NIPPLE,AIR PIPE EXC. BRAKE REGULATION ECE<TDV> (A) M8 FLANGE SOU	0-91180-108-0	02	1	1502-
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1001-
97	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1502-
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1001-
97	UNION; AIR PIPE (B) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1001-
98	NUT; PIPE UNION M16 SOU	0-91111-516-0	01	1	1001-
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT SOU	1-09660-875-0	02	1	1001-
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1001-
144	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=1049 SERVICED BY L=1100	1-47428-875-0	01	1	1502-
144	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (D) L=2302 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
144	PIPE; AIR,UNION TO UNION (A) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	1001-1501
144	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> (A) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	1502-
144	PIPE; AIR,UNION TO UNION (B) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1001-1501
144	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION ECE<TDV> (B) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	1001-
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	1001-
162	NUT; FLEX HOSE M16 SOU	0-91111-516-0	01	1	1001-
163	BRACKET; FLEX HOSE	8-98106-706-0	01	1	1001-
163	BRACKET; FLEX HOSE	8-98093-260-0	01	1	1001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1001-
314	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
315	CLIP (B) L=350	1-09707-183-0	01	1	1001-
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1001-
315	CLIP (A) ID=14 SOU	8-94238-572-0	01	1	1001-
317	PIPE; AIR,UNION,AIR TANK BRAKE REGULATION ECE<TDV> L=721 SERVICED BY L=730	1-47428-871-0	01	1	1502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
