3-75 — BRAKE PIPING; AIR,FRONT (#23468) — 120 parça

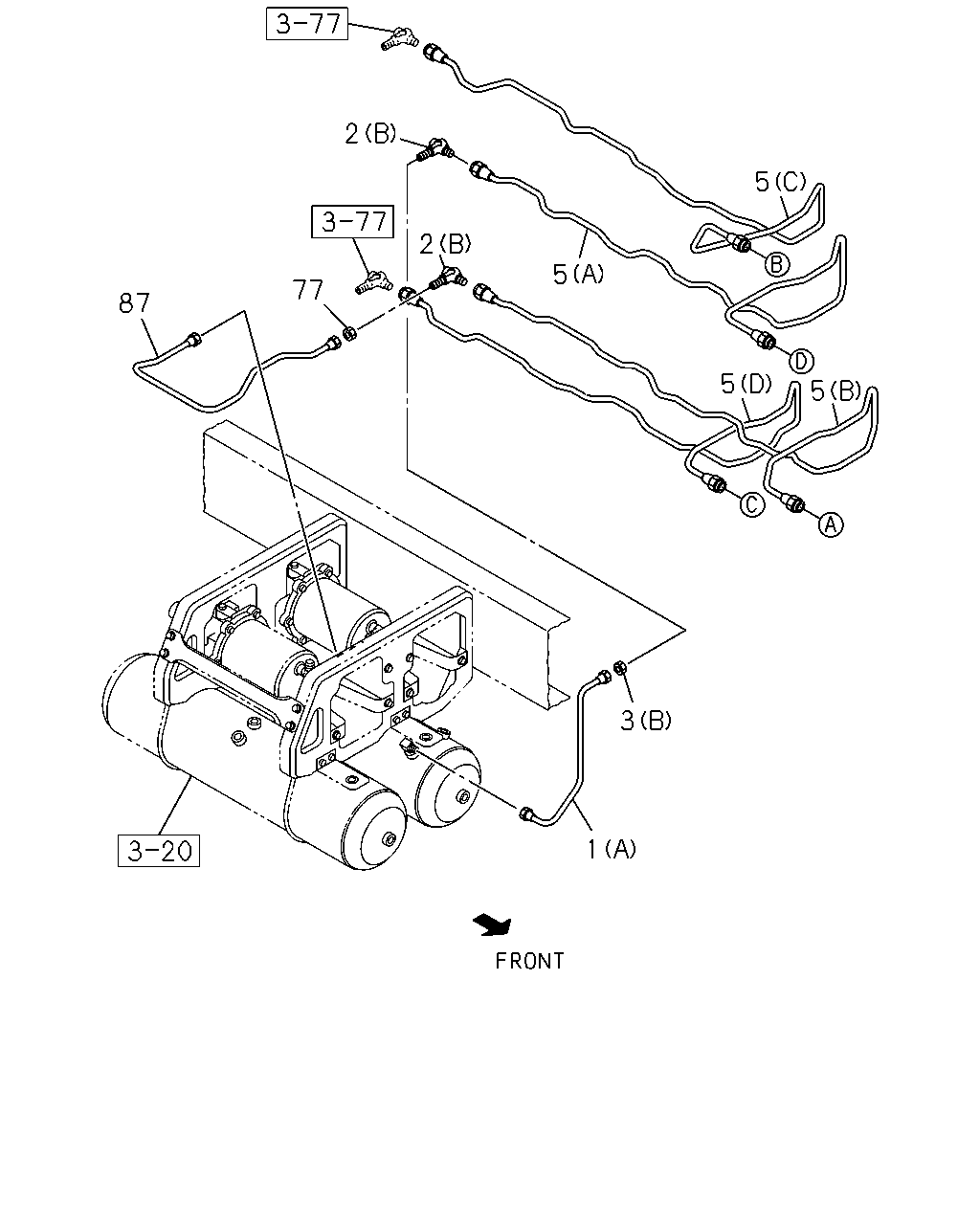

5 2 77 2 87 5 5 5 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (B) L=1385 SERVICED BY L=1400	1-47428-878-0	01	1	1412-1501
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=1385 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=1350 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
1	PIPE; AIR,AIR TANK TO UNION (A) L=568 SERVICED BY L=600	1-47428-868-0	01	1	1001-1411
1	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=568 SERVICED BY L=600	1-47428-868-0	01	1	1412-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (A) SOU	8-98057-394-1	01	1	1001-
3	NUT; PIPE UNION (B) M16 SOU	0-91111-516-0	01	1	1001-
3	NUT; PIPE UNION (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (A) L=3271 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (B) L=3061 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (C) L=2997 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (D) L=3188 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (C) L=3252 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (C) L=3252 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (D) L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (D) L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (A) L=3011 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=3011 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (B) L=3060 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (B) L=3060 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
77	NUT; PIPE UNION M16 SOU	0-91111-516-0	01	1	1001-
87	PIPE; AIR,UNION TO AIR MASTER L=661 SERVICED BY L=700	1-47428-870-0	01	1	1001-1411
87	PIPE; AIR,UNION TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> L=661 SERVICED BY L=700	1-47428-870-0	01	1	1412-

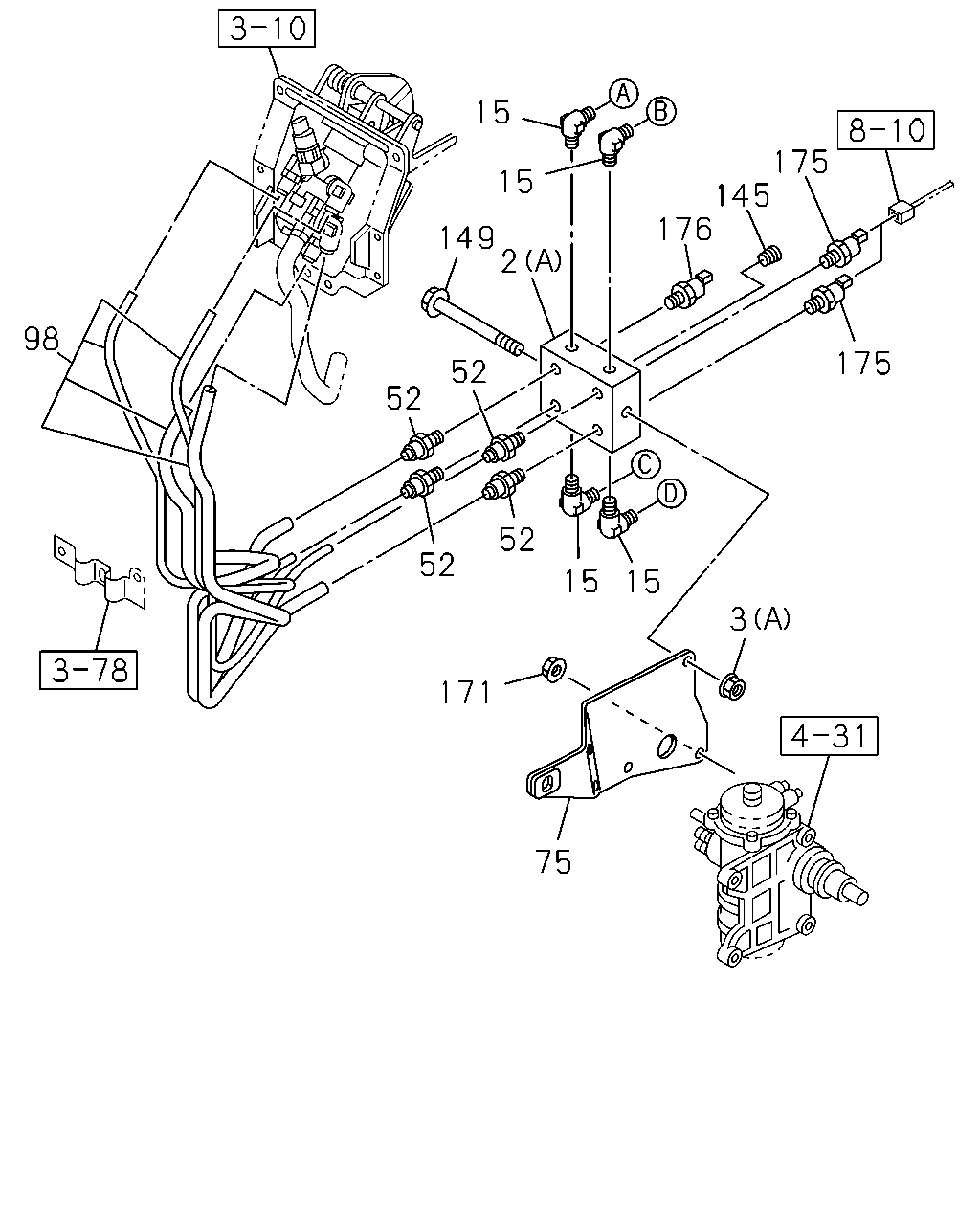

15 175 145 176 15 149 2 98 175 52 52 52 52 15 15 3 171 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (A) SOU	8-98057-394-1	01	1	1001-
3	NUT; PIPE UNION (B) M16 SOU	0-91111-516-0	01	1	1001-
3	NUT; PIPE UNION (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW SOU	0-92134-310-0	04	1	1001-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1001-
75	BRACKET; UNION	8-98099-485-1	01	1	1001-
98	TUBE; NYLON	8-97625-675-0	01	1	1001-
145	PLUG PT1/4	9-99204-513-0	01	1	1001-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1001-
171	NUT; BRACKET M10 FLANGE SOU	0-91180-210-0	02	1	1001-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1001-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1001-

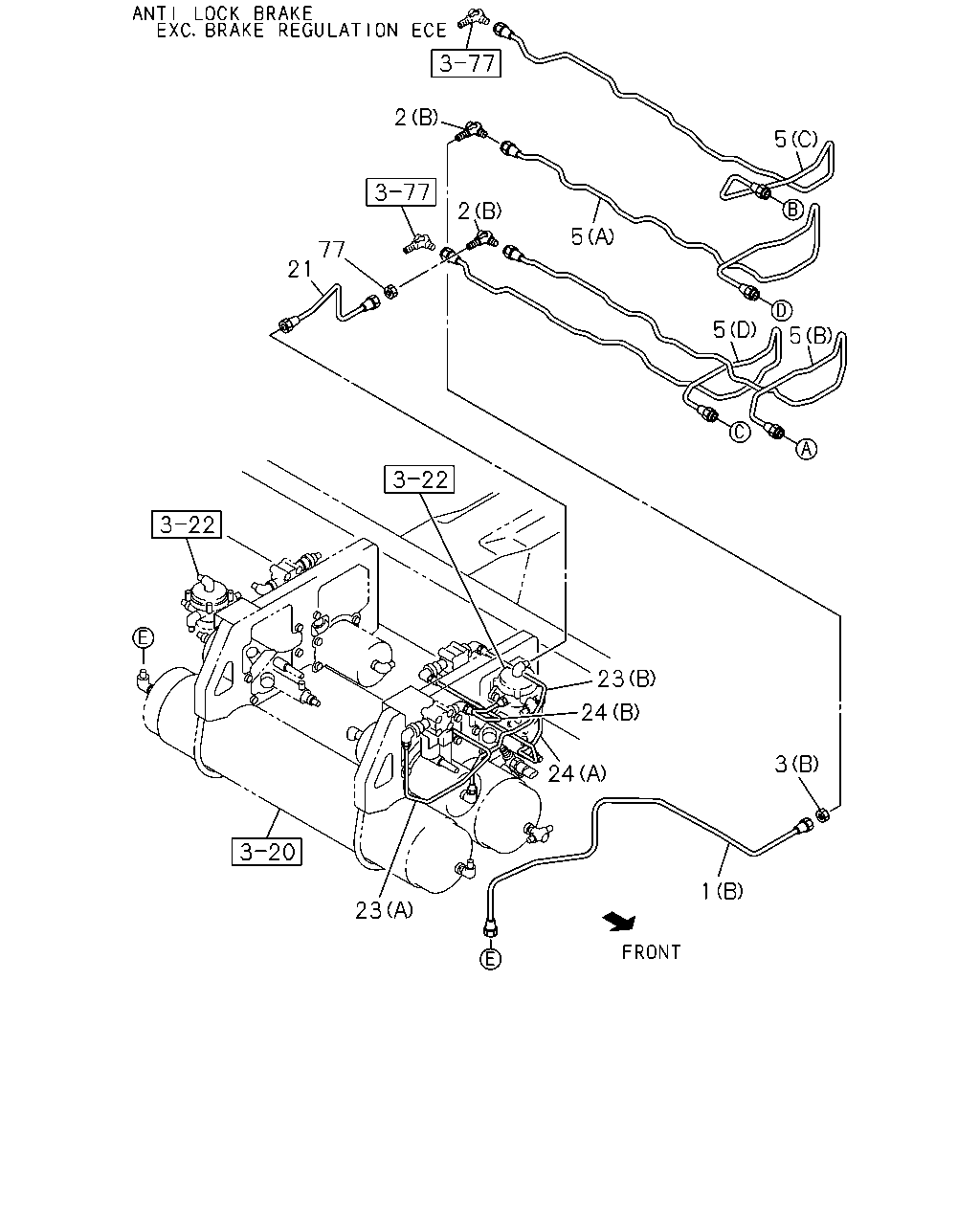

2 77 21 5 5 5 5 23 24 24 1 3 23 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (B) L=1385 SERVICED BY L=1400	1-47428-878-0	01	1	1412-1501
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=1385 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=1350 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
1	PIPE; AIR,AIR TANK TO UNION (A) L=568 SERVICED BY L=600	1-47428-868-0	01	1	1001-1411
1	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=568 SERVICED BY L=600	1-47428-868-0	01	1	1412-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (A) SOU	8-98057-394-1	01	1	1001-
3	NUT; PIPE UNION (B) M16 SOU	0-91111-516-0	01	1	1001-
3	NUT; PIPE UNION (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (A) L=3271 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (B) L=3061 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (C) L=2997 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (D) L=3188 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (C) L=3252 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (C) L=3252 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (D) L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (D) L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (A) L=3011 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=3011 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (B) L=3060 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (B) L=3060 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
21	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> L=275	8-98138-343-0	01	1	1412-1501
21	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> L=275	8-98138-343-0	01	1	1502-
21	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> L=468	8-98245-408-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-98157-076-0	01	1	1412-1501
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-98157-076-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98157-077-0	01	1	1412-1501
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-077-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=735 SERVICED BY L=800	1-47428-872-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=458	8-98230-351-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> (A) L=498	8-98140-418-0	01	1	1412-1501
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) L=498	8-98140-418-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> (B) L=435	8-98147-513-0	01	1	1412-1501
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=435	8-98147-513-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=392	8-98230-357-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=300	8-98236-977-0	01	1	1502-
77	NUT; PIPE UNION M16 SOU	0-91111-516-0	01	1	1001-

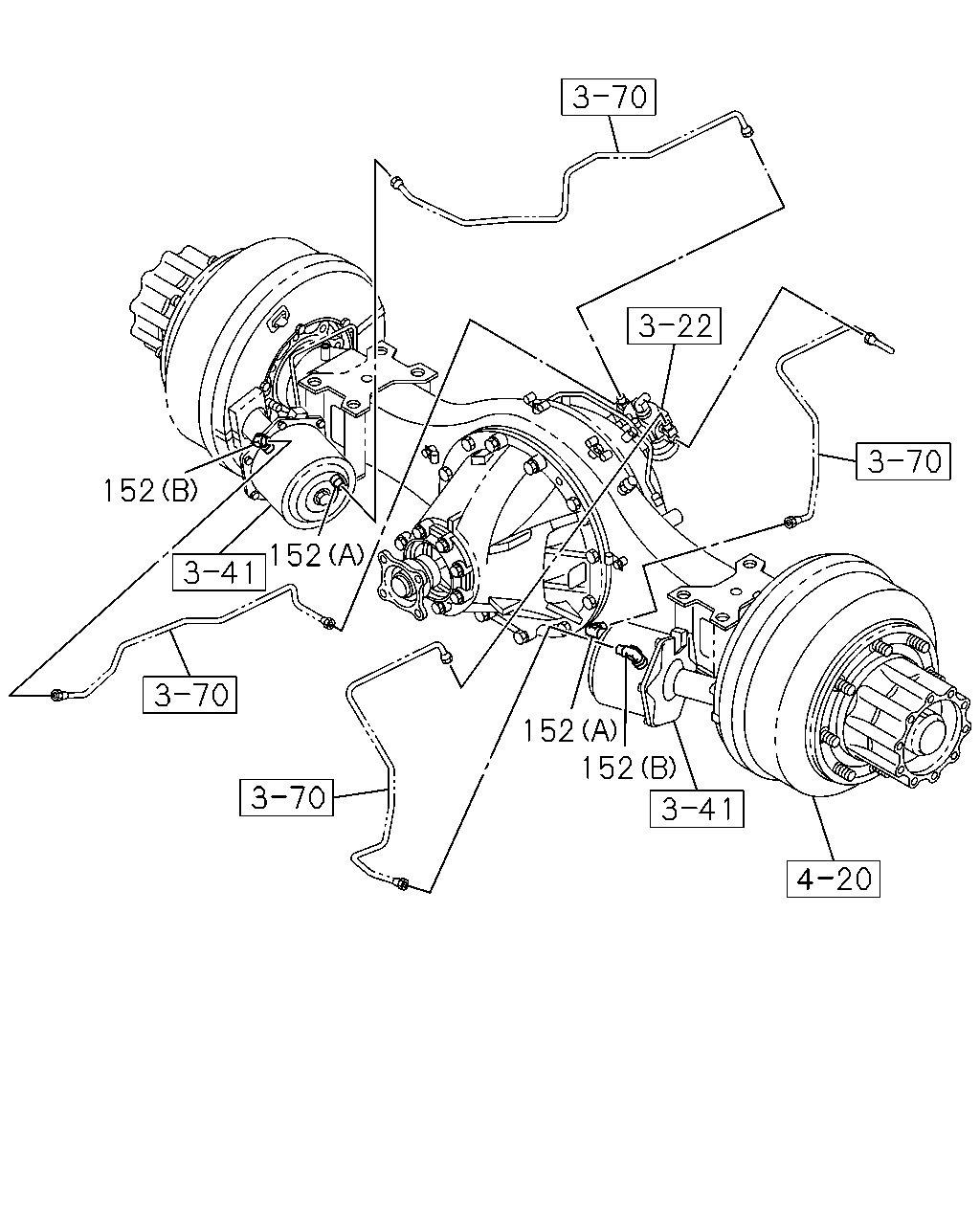

152 152 152 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
152	CONNECTOR; POWER CHAMBER ANTI LOCK BRAKE<JE5> (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	1412-
152	CONNECTOR; POWER CHAMBER ANTI LOCK BRAKE<JE5> (B)	8-98296-626-0	01	1	1412-
152	CONNECTOR; POWER CHAMBER (A) M14 & PT1/4 ELBOW	1-09650-432-0	02	1	1001-
152	CONNECTOR; POWER CHAMBER (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	1001-1411
152	CONNECTOR; POWER CHAMBER EXC. ANTI LOCK BRAKE<JE5> (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	1412-

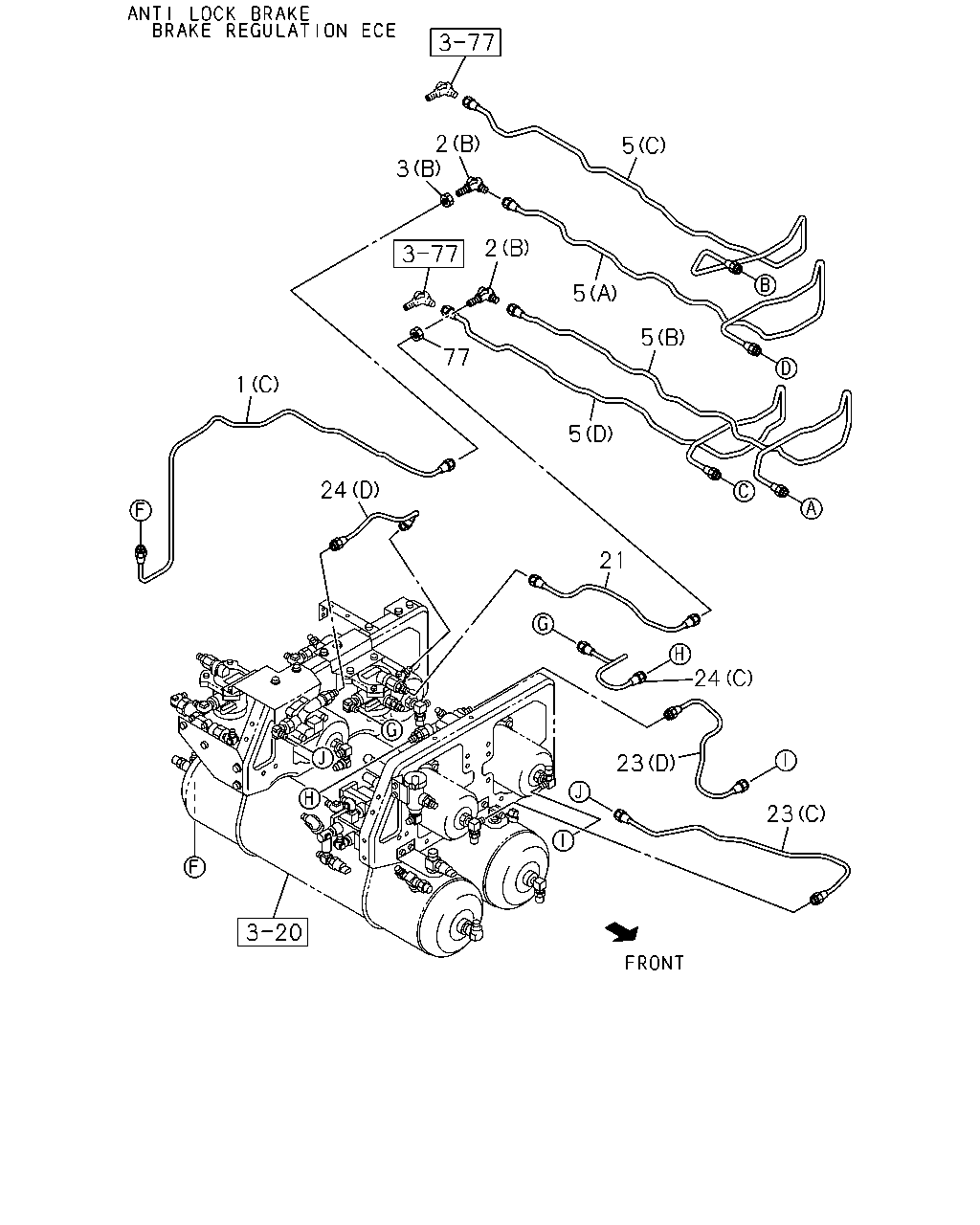

23 24 21 5 5 5 2 77 24 1 23 5 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (B) L=1385 SERVICED BY L=1400	1-47428-878-0	01	1	1412-1501
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=1385 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=1350 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
1	PIPE; AIR,AIR TANK TO UNION (A) L=568 SERVICED BY L=600	1-47428-868-0	01	1	1001-1411
1	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=568 SERVICED BY L=600	1-47428-868-0	01	1	1412-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1001-
2	UNION; AIR PIPE (A) SOU	8-98057-394-1	01	1	1001-
3	NUT; PIPE UNION (B) M16 SOU	0-91111-516-0	01	1	1001-
3	NUT; PIPE UNION (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (A) L=3271 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (B) L=3061 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (C) L=2997 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION ANTI LOCK BRAKE<JE5> (D) L=3188 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (C) L=3252 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (C) L=3252 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (D) L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (D) L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (A) L=3011 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=3011 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
5	PIPE; AIR,UNION TO UNION (B) L=3060 SERVICED BY L=3300	1-47428-886-0	01	1	1001-1501
5	PIPE; AIR,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> (B) L=3060 SERVICED BY L=3300	1-47428-886-0	01	1	1502-
21	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> L=275	8-98138-343-0	01	1	1412-1501
21	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> L=275	8-98138-343-0	01	1	1502-
21	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> L=468	8-98245-408-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-98157-076-0	01	1	1412-1501
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-98157-076-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98157-077-0	01	1	1412-1501
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-077-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=735 SERVICED BY L=800	1-47428-872-0	01	1	1502-
23	PIPE; AIR,MODULATOR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=458	8-98230-351-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> (A) L=498	8-98140-418-0	01	1	1412-1501
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) L=498	8-98140-418-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> (B) L=435	8-98147-513-0	01	1	1412-1501
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) L=435	8-98147-513-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=392	8-98230-357-0	01	1	1502-
24	PIPE; AIR,RELAY VLV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=300	8-98236-977-0	01	1	1502-
77	NUT; PIPE UNION M16 SOU	0-91111-516-0	01	1	1001-
