3-70 — BRAKE PIPING; AIR,AIR MASTER (#23467) — 422 parça

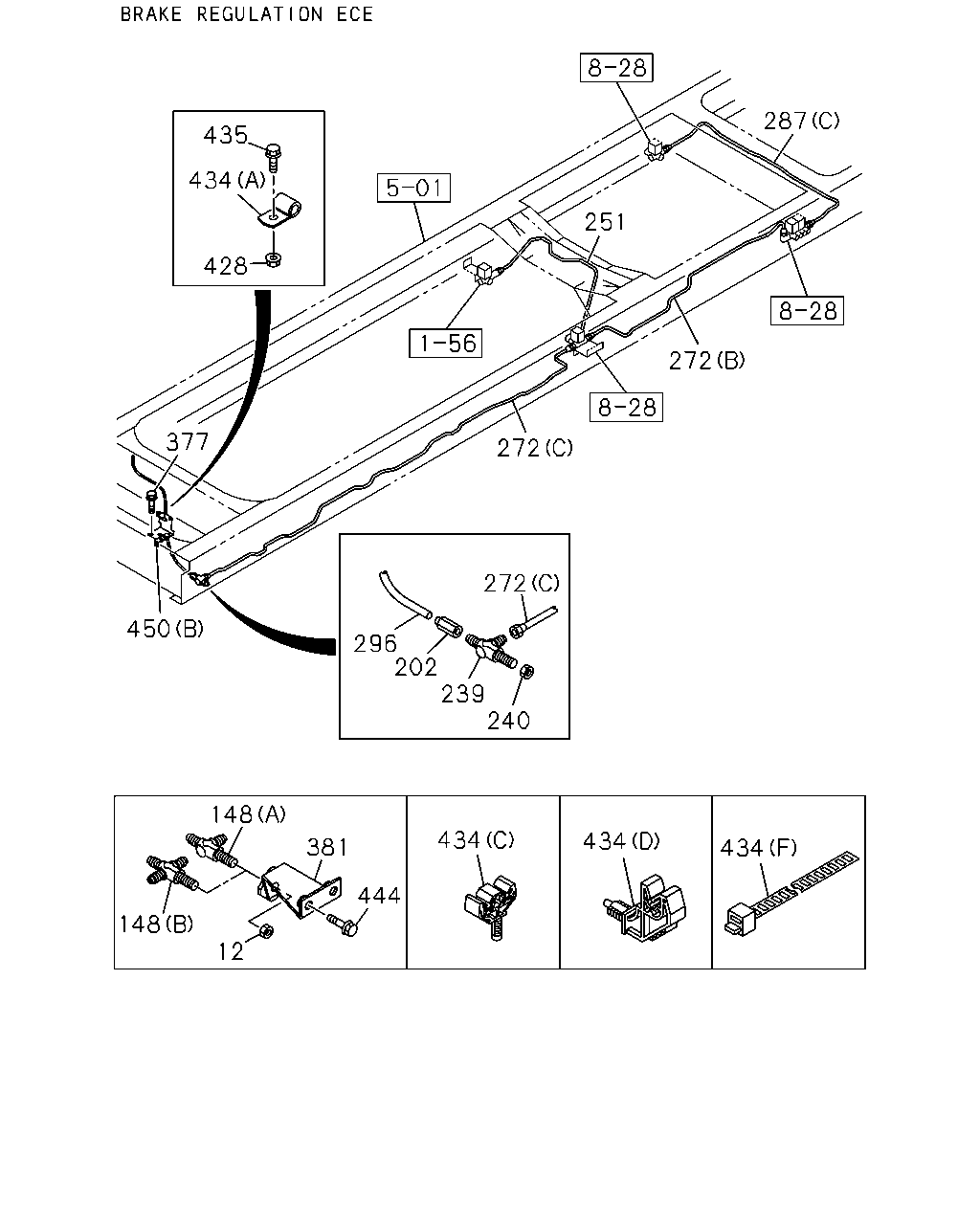

251 287 272 272 272 296 202 239 240 434 434 434 444 381 148 450 377 428 434 435 12 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1001-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 SOU	0-92138-306-0	01	1	1001-
148	CONNECTOR; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 2WAY SOU	1-09654-059-2	01	1	1001-
202	ADAPTER EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1001-
239	UNION; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12 2WAY SOU	1-09654-059-2	01	1	1001-
240	NUT; UNION,AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	1001-
251	PIPE; AIR,UNION TO MAG VLV EXC. BRAKE REGULATION ADR<TDU> L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1501
251	PIPE; AIR,UNION TO MAG VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
251	PIPE; AIR,UNION TO MAG VLV BRAKE REGULATION ECE<TDV> L=1170 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
251	PIPE; AIR,UNION TO MAG VLV L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	1001-1411
251	PIPE; AIR,UNION TO MAG VLV BRAKE REGULATION ADR<TDU> L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	1412-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> BRAKE REGULATION ECE<TDV> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2542 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION BRAKE REGULATION ECE<TDV> (B)	8-98298-730-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION BRAKE REGULATION ECE<TDV> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2608 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	1001-1501
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE<TDV> (A) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	1001-1501
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE<TDV> (A) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
287	PIPE; AIR,MAG VLV BRAKE REGULATION ECE<TDV> (C) L=1176 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	1001-1411
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	1412-
287	PIPE; AIR,MAG VLV (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	1001-1501
287	PIPE; AIR,MAG VLV EXC. BRAKE REGULATION ECE<TDV> (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	1502-
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
381	BRACKET EXC. PTO CONTROL<SV6> SOU	8-98131-569-0	01	1	1001-
428	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1502-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	1001-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	02	1	1502-
434	CLIP (F) L=600	1-09707-107-1	01	1	1001-
434	CLIP (F) L=250 SOU	5-09707-030-1	01	1	1001-
434	CLIP (C)	8-98012-254-1	01	1	1001-1411
434	CLIP (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1001-
434	CLIP EXC. AIR DRYER<PS7> (B) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1001-
444	BOLT; UNION EXC. PTO CONTROL<SV6> M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
450	BRACKET; CLIP BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (C)	8-98219-172-0	01	1	1502-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1001-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1001-1501
450	BRACKET; CLIP EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) L=115 B=25	1-47476-758-0	01	1	1502-

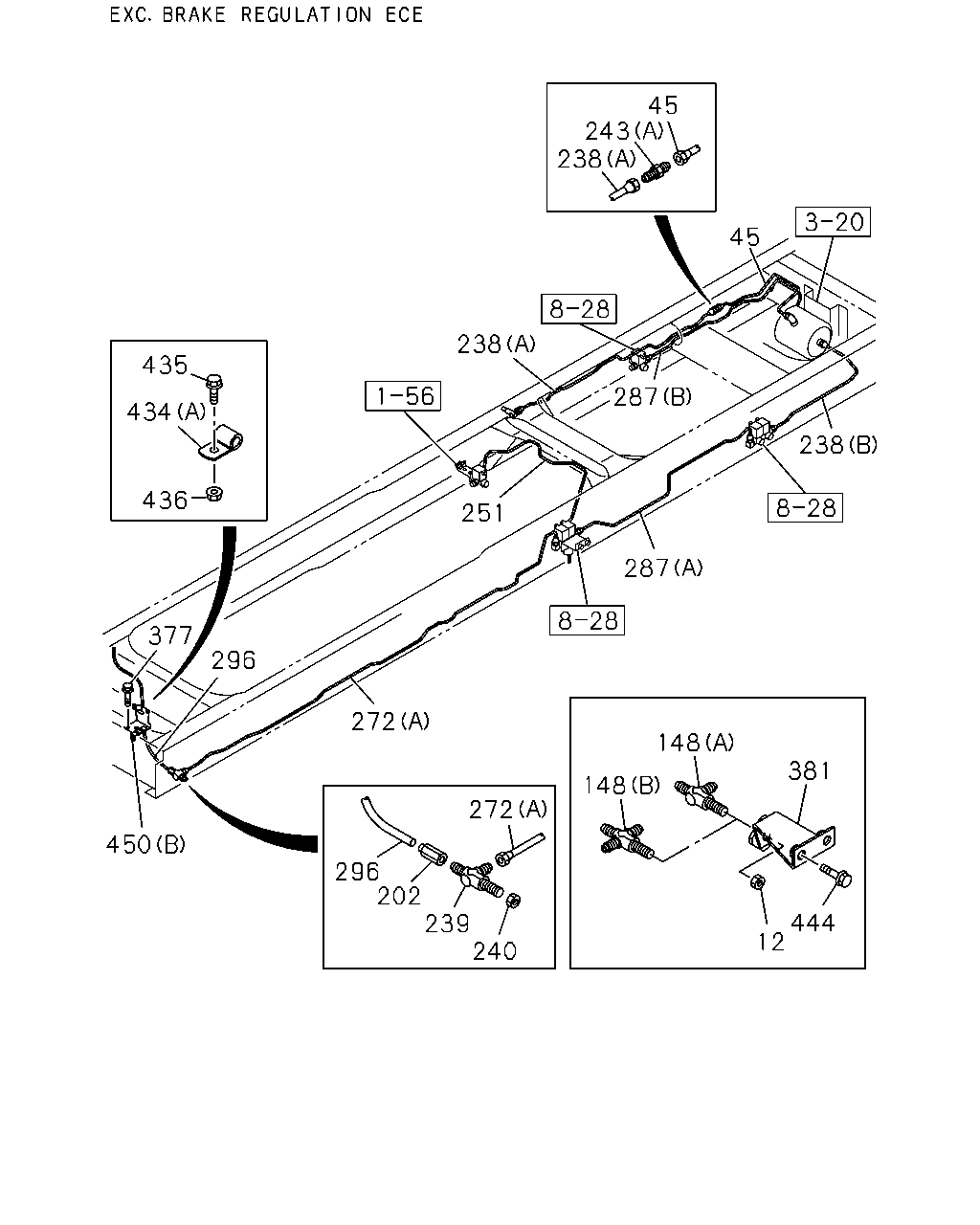

238 243 45 45 287 238 287 251 238 435 434 436 377 296 272 272 148 148 381 444 12 240 239 202 296 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1001-
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	1001-1411
45	PIPE; AIR,UNION TO AIR TANK BRAKE REGULATION ADR<TDU> L=810 SERVICED BY L=900	1-47428-813-0	01	1	1412-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 SOU	0-92138-306-0	01	1	1001-
148	CONNECTOR; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 2WAY SOU	1-09654-059-2	01	1	1001-
202	ADAPTER EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1001-
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=518 SERVICED BY L=550	1-47428-808-0	01	1	1502-
238	PIPE; AIR,UNION TO UNION (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	1001-1411
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	1412-
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	1001-1003
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-1411
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1412-
239	UNION; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12 2WAY SOU	1-09654-059-2	01	1	1001-
240	NUT; UNION,AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	1001-
243	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (C) M12 L=66.5	0-92113-306-0	01	1	1502-
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	1001-1411
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	1412-
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	1001-1501
243	UNION; AIR PIPE EXC. BRAKE REGULATION ECE<TDV> (B) M12 ELBOW	0-92125-206-0	01	1	1502-
251	PIPE; AIR,UNION TO MAG VLV EXC. BRAKE REGULATION ADR<TDU> L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1501
251	PIPE; AIR,UNION TO MAG VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
251	PIPE; AIR,UNION TO MAG VLV BRAKE REGULATION ECE<TDV> L=1170 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
251	PIPE; AIR,UNION TO MAG VLV L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	1001-1411
251	PIPE; AIR,UNION TO MAG VLV BRAKE REGULATION ADR<TDU> L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	1412-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> BRAKE REGULATION ECE<TDV> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2542 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION BRAKE REGULATION ECE<TDV> (B)	8-98298-730-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION BRAKE REGULATION ECE<TDV> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2608 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	1001-1501
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE<TDV> (A) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	1001-1501
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE<TDV> (A) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	1502-
287	PIPE; AIR,MAG VLV BRAKE REGULATION ECE<TDV> (C) L=1176 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	1001-1411
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	1412-
287	PIPE; AIR,MAG VLV (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	1001-1501
287	PIPE; AIR,MAG VLV EXC. BRAKE REGULATION ECE<TDV> (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	1502-
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
381	BRACKET EXC. PTO CONTROL<SV6> SOU	8-98131-569-0	01	1	1001-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1502-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	1001-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	02	1	1502-
434	CLIP (F) L=600	1-09707-107-1	01	1	1001-
434	CLIP (F) L=250 SOU	5-09707-030-1	01	1	1001-
434	CLIP (C)	8-98012-254-1	01	1	1001-1411
434	CLIP (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1001-
434	CLIP EXC. AIR DRYER<PS7> (B) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
444	BOLT; UNION EXC. PTO CONTROL<SV6> M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
450	BRACKET; CLIP BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (C)	8-98219-172-0	01	1	1502-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1001-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1001-1501
450	BRACKET; CLIP EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) L=115 B=25	1-47476-758-0	01	1	1502-

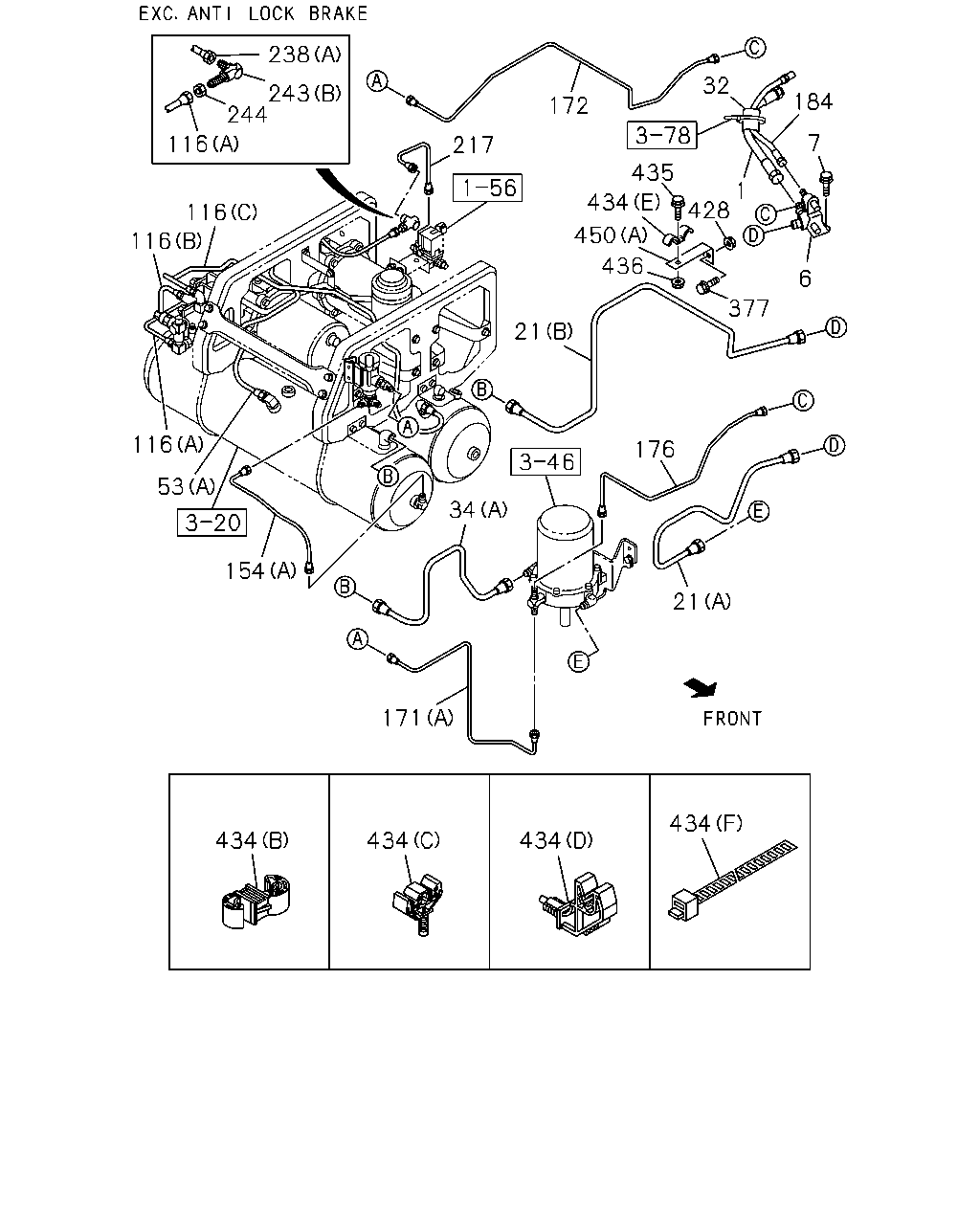

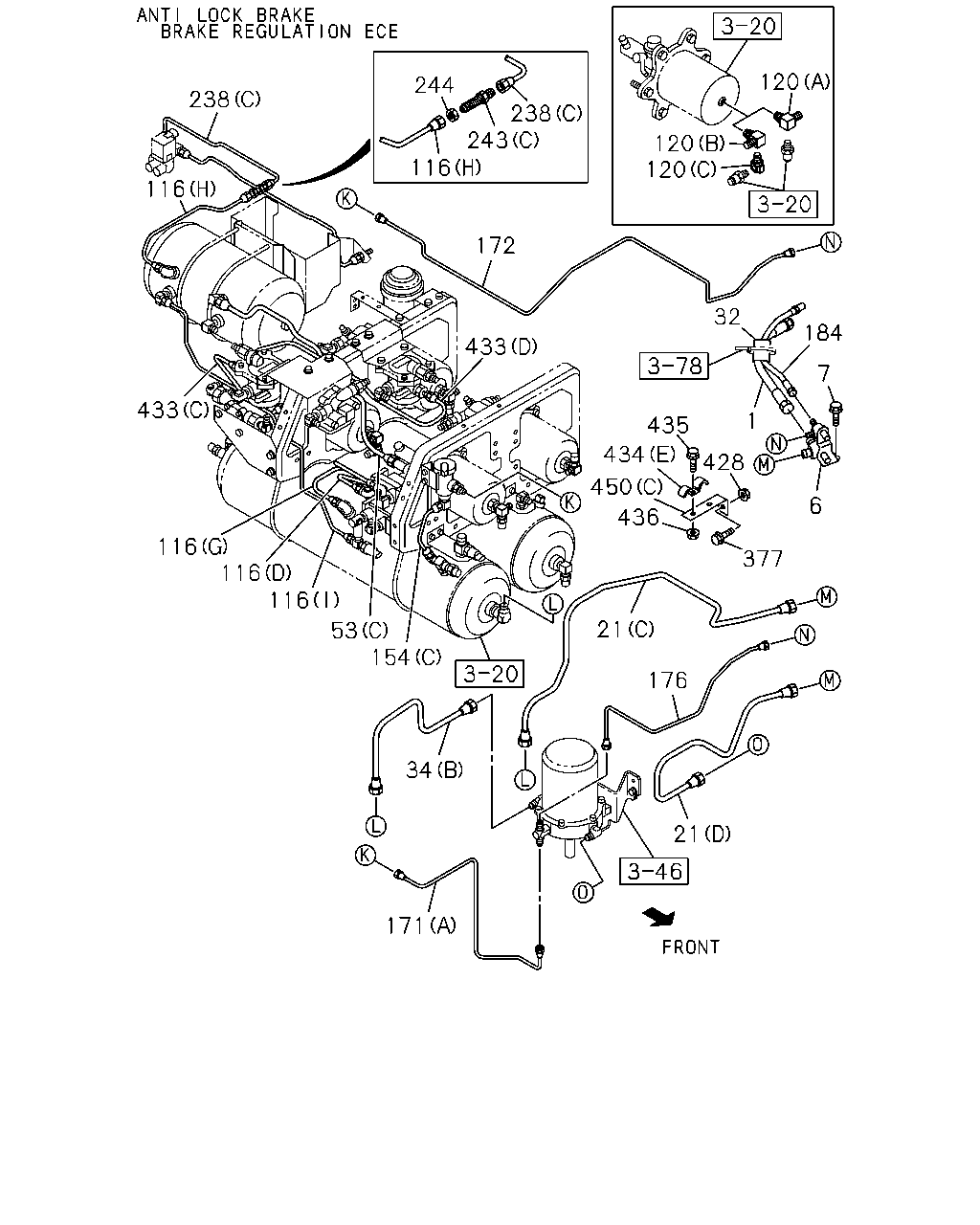

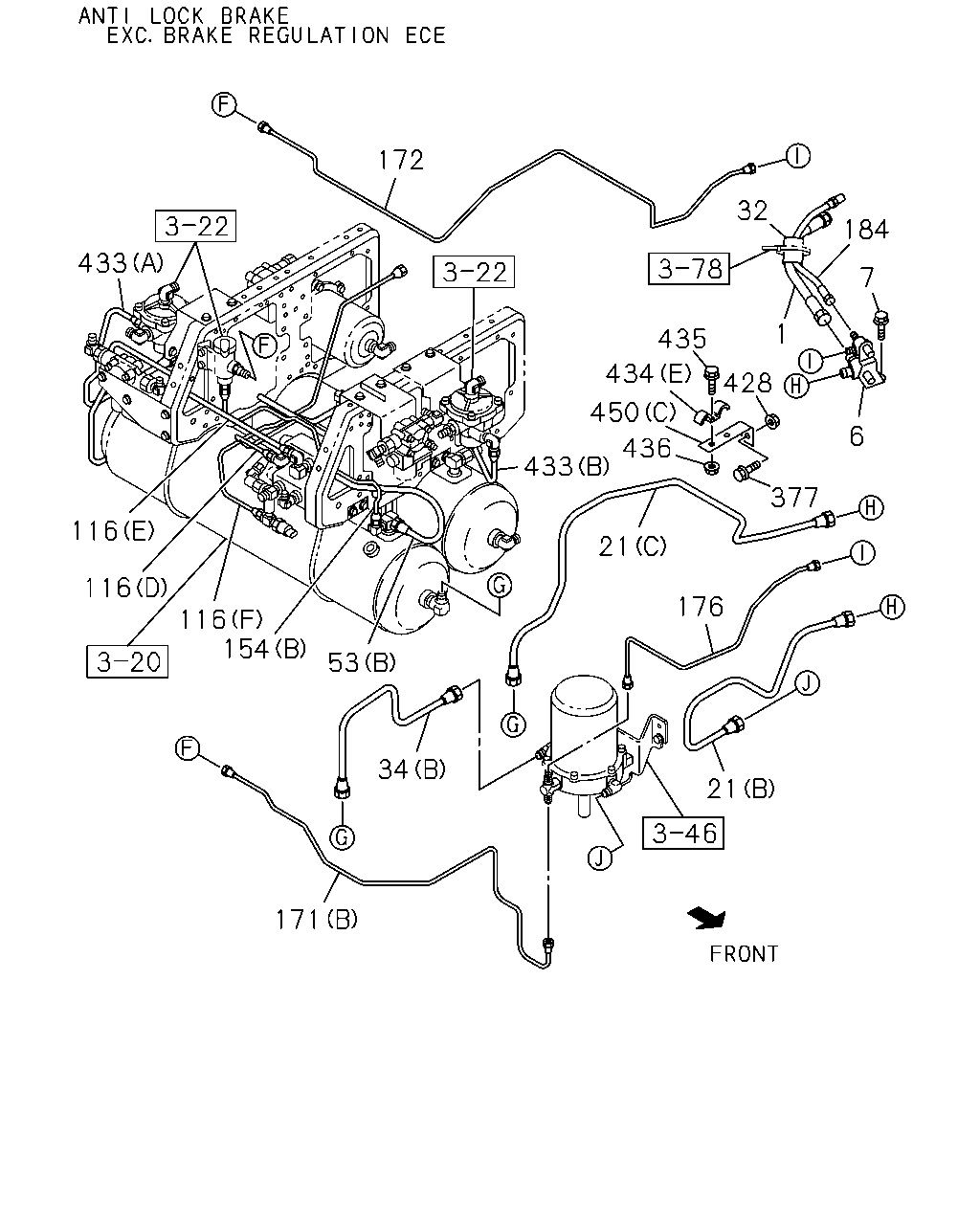

434 450 436 377 6 7 1 428 435 172 32 184 217 21 176 34 21 171 154 53 116 116 116 116 244 243 238 434 434 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98140-111-0	01	1	1001-
6	BRACKET; FLEX HOSE,AIR TANK	8-98133-392-0	01	1	1001-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7> (C) L=1188	8-98147-522-0	01	1	1412-1501
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (C) L=1188	8-98147-522-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (D) L=1229	8-98298-719-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (D) L=747	8-98218-225-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	1001-1501
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) L=751	8-98111-626-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1345	8-98130-957-0	01	1	1001-1003
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1004-1411
21	PIPE; AIR,UNION TO AIR DRYER EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1412-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	1001-
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (B) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1412-1501
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (B) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1502-
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (B) L=635 SERVICED BY L=660	1-49115-480-0	01	1	1502-
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1001-1411
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1412-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> (B)	8-98147-505-0	01	1	1412-1501
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98147-505-0	01	1	1502-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=718	8-98244-587-0	01	1	1502-
53	PIPE; AIR,AIR TANK TO VALVE (A) L=732	8-98108-559-0	01	1	1001-1411
53	PIPE; AIR,AIR TANK TO VALVE EXC. ANTI LOCK BRAKE<JE5> (A) L=732	8-98108-559-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (D)	8-98147-507-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (D)	8-98147-507-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (E)	8-98147-509-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (E)	8-98147-509-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (F) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (F) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (G) L=515	8-98230-363-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (H) L=427	8-98230-387-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=460	8-98236-892-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (I) L=915 SERVICED BY L=1000	1-47428-814-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV (B)	8-98108-561-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (B)	8-98108-561-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV (C)	8-98108-563-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (C)	8-98108-563-0	01	1	1412-
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> (B)	8-98157-080-0	01	1	1412-1501
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-080-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C)	8-98298-721-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV (A)	8-98152-813-0	01	1	1001-1411
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. ANTI LOCK BRAKE<JE5> (A)	8-98152-813-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1501
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1001-1411
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1412-1501
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1502-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ECE<TDV> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>	8-98148-026-0	01	1	1412-1501
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV>	8-98148-026-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7>	8-98299-272-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98131-481-0	01	1	1001-1003
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98164-600-0	01	1	1004-1411
172	PIPE; AIR,GOV TO UNION EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98164-600-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> L=730 SERVICED BY L=800	1-47428-812-0	01	1	1502-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1001-1501
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1502-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	1001-
217	PIPE; VAC,UNION TO MAG VLV EXC. BRAKE REGULATION ADR<TDU> L=268	8-98111-589-0	01	1	1412-1501
217	PIPE; VAC,UNION TO MAG VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> L=268	8-98111-589-0	01	1	1502-
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=518 SERVICED BY L=550	1-47428-808-0	01	1	1502-
238	PIPE; AIR,UNION TO UNION (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	1001-1411
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	1412-
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	1001-1003
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-1411
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1412-
243	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (C) M12 L=66.5	0-92113-306-0	01	1	1502-
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	1001-1411
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	1412-
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	1001-1501
243	UNION; AIR PIPE EXC. BRAKE REGULATION ECE<TDV> (B) M12 ELBOW	0-92125-206-0	01	1	1502-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
428	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1502-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	1001-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	02	1	1502-
434	CLIP (F) L=600	1-09707-107-1	01	1	1001-
434	CLIP (F) L=250 SOU	5-09707-030-1	01	1	1001-
434	CLIP (C)	8-98012-254-1	01	1	1001-1411
434	CLIP (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1001-
434	CLIP EXC. AIR DRYER<PS7> (B) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
450	BRACKET; CLIP BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (C)	8-98219-172-0	01	1	1502-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1001-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1001-1501
450	BRACKET; CLIP EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) L=115 B=25	1-47476-758-0	01	1	1502-

434 435 1 7 184 32 450 433 436 428 377 21 176 21 34 171 53 154 116 116 116 433 172 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98140-111-0	01	1	1001-
6	BRACKET; FLEX HOSE,AIR TANK	8-98133-392-0	01	1	1001-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7> (C) L=1188	8-98147-522-0	01	1	1412-1501
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (C) L=1188	8-98147-522-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (D) L=1229	8-98298-719-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (D) L=747	8-98218-225-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	1001-1501
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) L=751	8-98111-626-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1345	8-98130-957-0	01	1	1001-1003
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1004-1411
21	PIPE; AIR,UNION TO AIR DRYER EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1412-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	1001-
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (B) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1412-1501
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (B) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1502-
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (B) L=635 SERVICED BY L=660	1-49115-480-0	01	1	1502-
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1001-1411
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1412-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> (B)	8-98147-505-0	01	1	1412-1501
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98147-505-0	01	1	1502-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=718	8-98244-587-0	01	1	1502-
53	PIPE; AIR,AIR TANK TO VALVE (A) L=732	8-98108-559-0	01	1	1001-1411
53	PIPE; AIR,AIR TANK TO VALVE EXC. ANTI LOCK BRAKE<JE5> (A) L=732	8-98108-559-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (D)	8-98147-507-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (D)	8-98147-507-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (E)	8-98147-509-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (E)	8-98147-509-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (F) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (F) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (G) L=515	8-98230-363-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (H) L=427	8-98230-387-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=460	8-98236-892-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (I) L=915 SERVICED BY L=1000	1-47428-814-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV (B)	8-98108-561-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (B)	8-98108-561-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV (C)	8-98108-563-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (C)	8-98108-563-0	01	1	1412-
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> (B)	8-98157-080-0	01	1	1412-1501
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-080-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C)	8-98298-721-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV (A)	8-98152-813-0	01	1	1001-1411
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. ANTI LOCK BRAKE<JE5> (A)	8-98152-813-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1501
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1001-1411
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1412-1501
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1502-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ECE<TDV> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>	8-98148-026-0	01	1	1412-1501
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV>	8-98148-026-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7>	8-98299-272-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98131-481-0	01	1	1001-1003
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98164-600-0	01	1	1004-1411
172	PIPE; AIR,GOV TO UNION EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98164-600-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> L=730 SERVICED BY L=800	1-47428-812-0	01	1	1502-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1001-1501
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1502-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
428	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> (A)	8-98147-512-0	01	1	1412-1501
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-98147-512-0	01	1	1502-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> (B)	8-98157-079-0	01	1	1412-1501
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-079-0	01	1	1502-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=486	8-98236-978-0	01	1	1502-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=950	8-98244-370-0	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1502-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	1001-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	02	1	1502-
434	CLIP (F) L=600	1-09707-107-1	01	1	1001-
434	CLIP (F) L=250 SOU	5-09707-030-1	01	1	1001-
434	CLIP (C)	8-98012-254-1	01	1	1001-1411
434	CLIP (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1001-
434	CLIP EXC. AIR DRYER<PS7> (B) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
450	BRACKET; CLIP BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (C)	8-98219-172-0	01	1	1502-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1001-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1001-1501
450	BRACKET; CLIP EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) L=115 B=25	1-47476-758-0	01	1	1502-

172 243 116 238 244 238 116 433 116 116 116 53 154 34 434 435 450 433 120 120 120 184 32 7 1 428 6 377 436 21 176 21 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98140-111-0	01	1	1001-
6	BRACKET; FLEX HOSE,AIR TANK	8-98133-392-0	01	1	1001-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7> (C) L=1188	8-98147-522-0	01	1	1412-1501
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (C) L=1188	8-98147-522-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (D) L=1229	8-98298-719-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (D) L=747	8-98218-225-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	1001-1501
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (A) L=751	8-98111-626-0	01	1	1502-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1345	8-98130-957-0	01	1	1001-1003
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1004-1411
21	PIPE; AIR,UNION TO AIR DRYER EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1412-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	1001-
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (B) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1412-1501
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (B) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1502-
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (B) L=635 SERVICED BY L=660	1-49115-480-0	01	1	1502-
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1001-1411
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1412-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> (B)	8-98147-505-0	01	1	1412-1501
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98147-505-0	01	1	1502-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=718	8-98244-587-0	01	1	1502-
53	PIPE; AIR,AIR TANK TO VALVE (A) L=732	8-98108-559-0	01	1	1001-1411
53	PIPE; AIR,AIR TANK TO VALVE EXC. ANTI LOCK BRAKE<JE5> (A) L=732	8-98108-559-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (D)	8-98147-507-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (D)	8-98147-507-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (E)	8-98147-509-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (E)	8-98147-509-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (F) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1412-1501
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (F) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (G) L=515	8-98230-363-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (H) L=427	8-98230-387-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=460	8-98236-892-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (I) L=915 SERVICED BY L=1000	1-47428-814-0	01	1	1502-
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV (B)	8-98108-561-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (B)	8-98108-561-0	01	1	1412-
116	PIPE; AIR,PROTECTION VLV (C)	8-98108-563-0	01	1	1001-1411
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (C)	8-98108-563-0	01	1	1412-
120	CONNECTOR; AIR PIPE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	03	1	1502-
120	CONNECTOR; AIR PIPE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1502-
120	CONNECTOR; AIR PIPE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> (B)	8-98157-080-0	01	1	1412-1501
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-080-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C)	8-98298-721-0	01	1	1502-
154	PIPE; AIR,AIR TANK TO AIR GOV (A)	8-98152-813-0	01	1	1001-1411
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. ANTI LOCK BRAKE<JE5> (A)	8-98152-813-0	01	1	1412-
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1412-1501
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1502-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1001-1411
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1412-1501
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1502-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ECE<TDV> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>	8-98148-026-0	01	1	1412-1501
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV>	8-98148-026-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7>	8-98299-272-0	01	1	1502-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98131-481-0	01	1	1001-1003
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98164-600-0	01	1	1004-1411
172	PIPE; AIR,GOV TO UNION EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98164-600-0	01	1	1412-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> BRAKE REGULATION ECE<TDV> L=730 SERVICED BY L=800	1-47428-812-0	01	1	1502-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1001-1501
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1502-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	1001-
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (C) L=518 SERVICED BY L=550	1-47428-808-0	01	1	1502-
238	PIPE; AIR,UNION TO UNION (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	1001-1411
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	1412-
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	1001-1003
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-1411
238	PIPE; AIR,UNION TO UNION BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1412-
243	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (C) M12 L=66.5	0-92113-306-0	01	1	1502-
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	1001-1411
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	1412-
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	1001-1501
243	UNION; AIR PIPE EXC. BRAKE REGULATION ECE<TDV> (B) M12 ELBOW	0-92125-206-0	01	1	1502-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
428	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> (A)	8-98147-512-0	01	1	1412-1501
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-98147-512-0	01	1	1502-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> (B)	8-98157-079-0	01	1	1412-1501
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B)	8-98157-079-0	01	1	1502-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) L=486	8-98236-978-0	01	1	1502-
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (D) L=950	8-98244-370-0	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1502-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	1001-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) ID=6.35	1-09701-247-1	02	1	1502-
434	CLIP (F) L=600	1-09707-107-1	01	1	1001-
434	CLIP (F) L=250 SOU	5-09707-030-1	01	1	1001-
434	CLIP (C)	8-98012-254-1	01	1	1001-1411
434	CLIP (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1412-1501
434	CLIP EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. BRAKE REGULATION ECE<TDV> (C)	8-98012-254-1	01	1	1502-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1001-
434	CLIP EXC. AIR DRYER<PS7> (B) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
450	BRACKET; CLIP BRAKE REGULATION ECE<TDV> EXC. AIR DRYER<PS7> (C)	8-98219-172-0	01	1	1502-
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1001-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1001-1501
450	BRACKET; CLIP EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> (A) L=115 B=25	1-47476-758-0	01	1	1502-

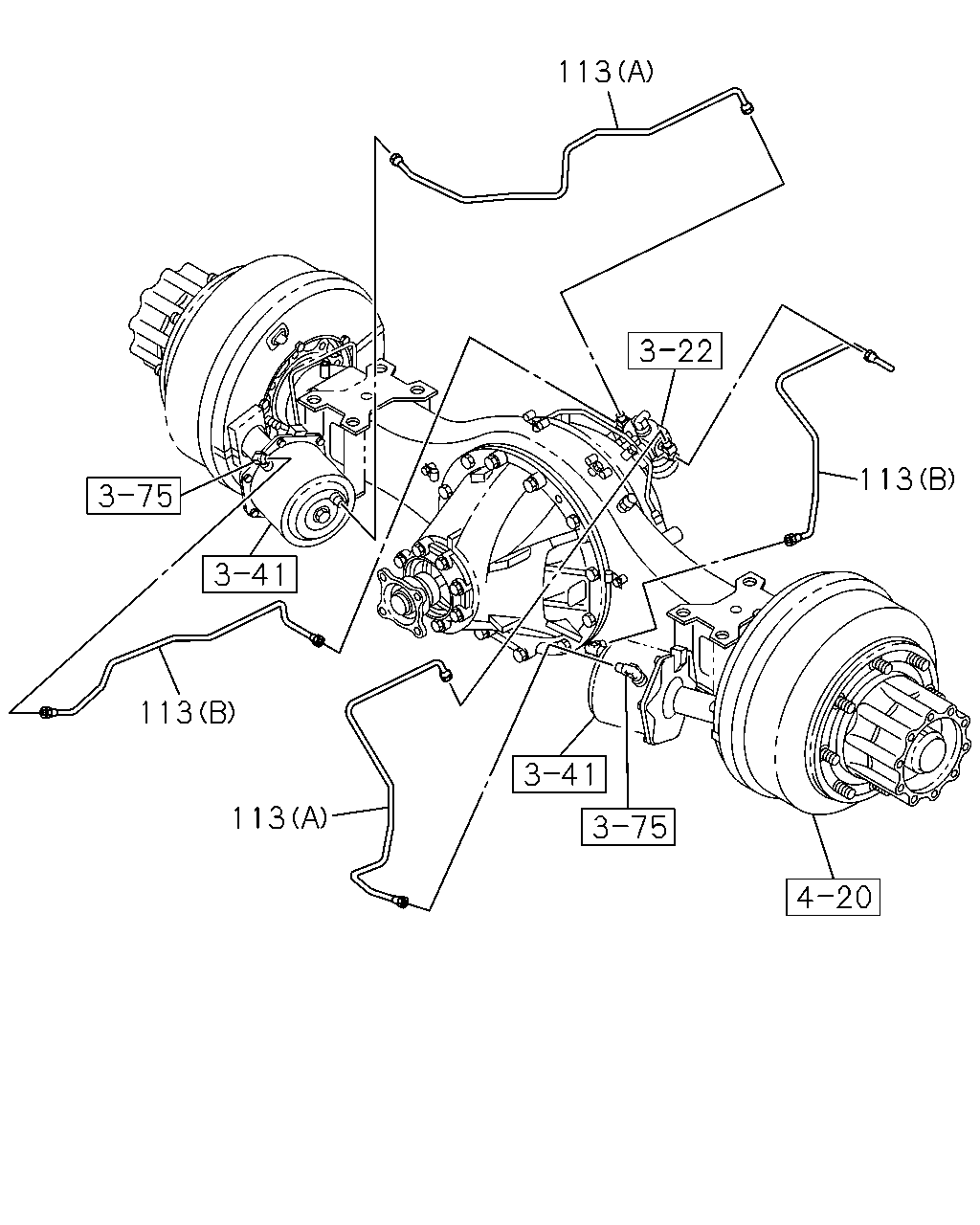

113 113 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=972	8-98088-417-0	01	1	1001-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-892-0	01	1	1001-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=1064	8-98088-416-0	01	1	1001-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-891-0	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
