◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11166 - FTS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#23466) — 39 parça

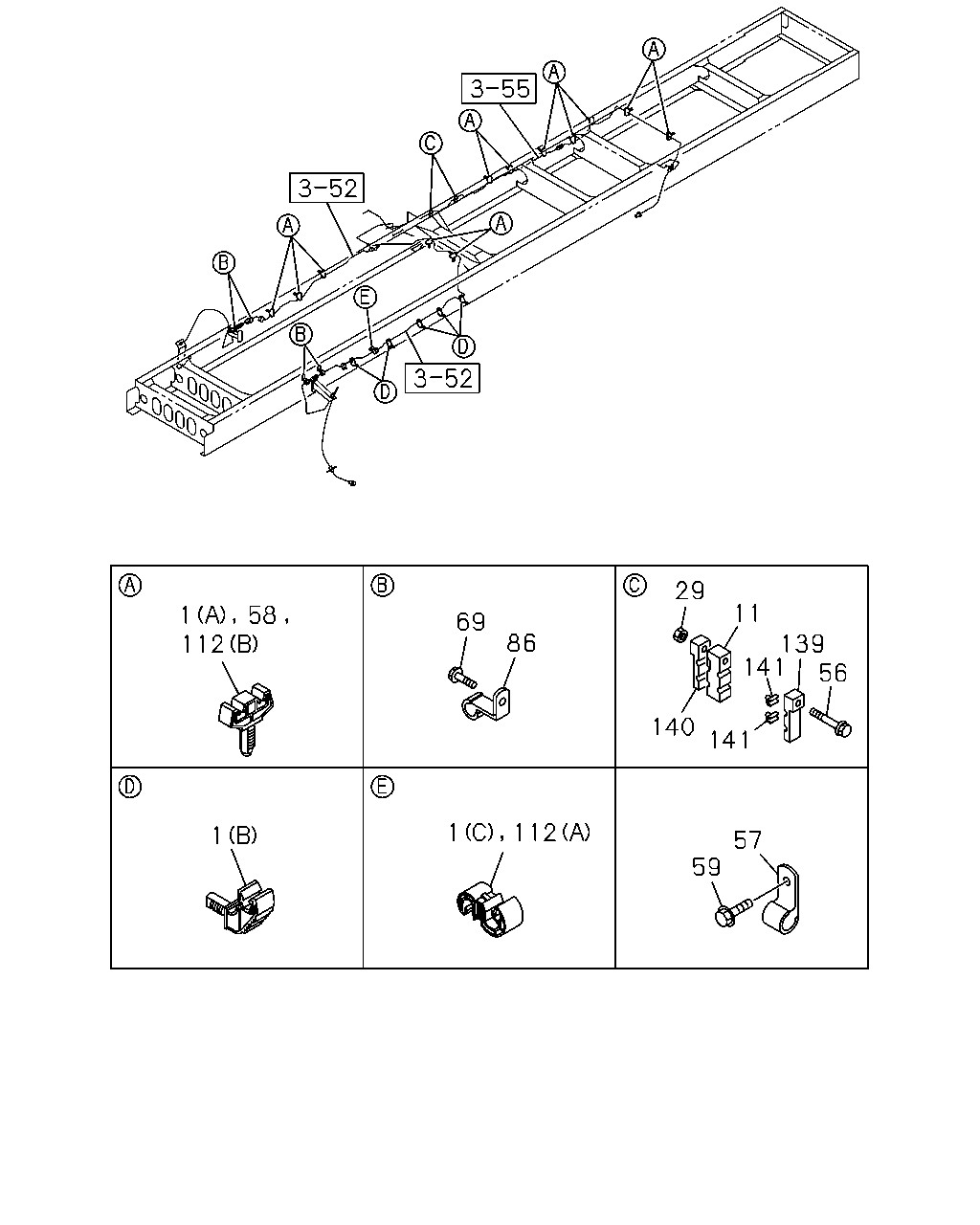

çizim 61652
29 11 112 69 86 139 141 56 140 141 1 112 1 57 59 1 58
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
EXC. BRAKE REGULATION ECE<TDV> (B) ID=6.35 		1-09701-247-1 05 1 1502-
1 CLIP; OIL PIPE TO BODY
EXC. BRAKE REGULATION ECE<TDV> (A) 		8-98012-254-1 02 1 1502-
1 CLIP; OIL PIPE TO BODY
EXC. BRAKE REGULATION ECE<TDV> (A) 		8-98012-254-1 03 1 1502-
1 CLIP; OIL PIPE TO BODY
(B) ID=6.35 		1-09701-247-1 05 1 1001-1501
1 CLIP; OIL PIPE TO BODY
BRAKE REGULATION ECE<TDV> (B) ID=6.35 		1-09701-247-1 04 1 1502-
1 CLIP; OIL PIPE TO BODY
(C) ID=6.35 & 6.35 		1-09709-273-1 01 1 1001-
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 02 1 1001-1501
1 CLIP; OIL PIPE TO BODY
BRAKE REGULATION ECE<TDV> (A) 		8-98012-254-1 04 1 1502-
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 1001-1501
1 CLIP; OIL PIPE TO BODY
BRAKE REGULATION ECE<TDV> (A) 		8-98012-254-1 05 1 1502-
11 CLIP; OIL PIPE
ID=10 SOU 		1-09709-242-0 02 1 1001-1411
11 CLIP; OIL PIPE
BRAKE REGULATION ADR<TDU> ID=10 SOU 		1-09709-242-0 02 1 1412-1501
11 CLIP; OIL PIPE
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> ID=10 SOU 		1-09709-242-0 02 1 1502-
29 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
56 BOLT; CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X50 FLANGE 		0-28050-850-0 02 1 1412-1501
56 BOLT; CLIP
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> M8X50 FLANGE 		0-28050-850-0 02 1 1502-
56 BOLT; CLIP
M8X70 FLANGE SOU 		0-28050-870-0 02 1 1001-1411
56 BOLT; CLIP
BRAKE REGULATION ADR<TDU> M8X70 FLANGE SOU 		0-28050-870-0 02 1 1412-1501
56 BOLT; CLIP
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> M8X70 FLANGE SOU 		0-28050-870-0 02 1 1502-
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 07 1 1001-
58 CLIP; OIL PIPE 8-98012-254-1 04 1 1001-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 07 1 1001-
69 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1001-1501
69 BOLT; CLIP
EXC. BRAKE REGULATION ECE<TDV> M8X25 FLANGE SOU 		0-28650-825-0 04 1 1502-
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 04 1 1001-1501
86 CLIP; OIL PIPE
EXC. BRAKE REGULATION ECE<TDV> ID=6 H=20 L=20 		1-09700-603-0 04 1 1502-
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1001-1411
112 CLIP; OIL PIPE
BRAKE REGULATION ADR<TDU> (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1412-1501
112 CLIP; OIL PIPE
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1502-
112 CLIP; OIL PIPE
(B) 		8-98012-254-1 03 1 1001-
139 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 02 1 1001-
140 CLIP; LWR
EXC. BRAKE REGULATION ADR<TDU> ID=6 & 6 		1-09709-244-0 02 1 1412-1501
140 CLIP; LWR
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> ID=6 & 6 		1-09709-244-0 02 1 1502-
140 CLIP; LWR
ID=10 & 10 SOU 		1-09709-241-0 02 1 1001-1411
140 CLIP; LWR
BRAKE REGULATION ADR<TDU> ID=10 & 10 SOU 		1-09709-241-0 02 1 1412-1501
140 CLIP; LWR
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> ID=10 & 10 SOU 		1-09709-241-0 02 1 1502-
141 COLLAR
BRAKE REGULATION ECE<TDV> ID=6 		1-47459-010-0 06 1 1502-
141 COLLAR
ID=6 		1-47459-010-0 08 1 1001-1411
141 COLLAR
BRAKE REGULATION ADR<TDU> ID=6 		1-47459-010-0 08 1 1412-
