Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#23458) — 169 parça

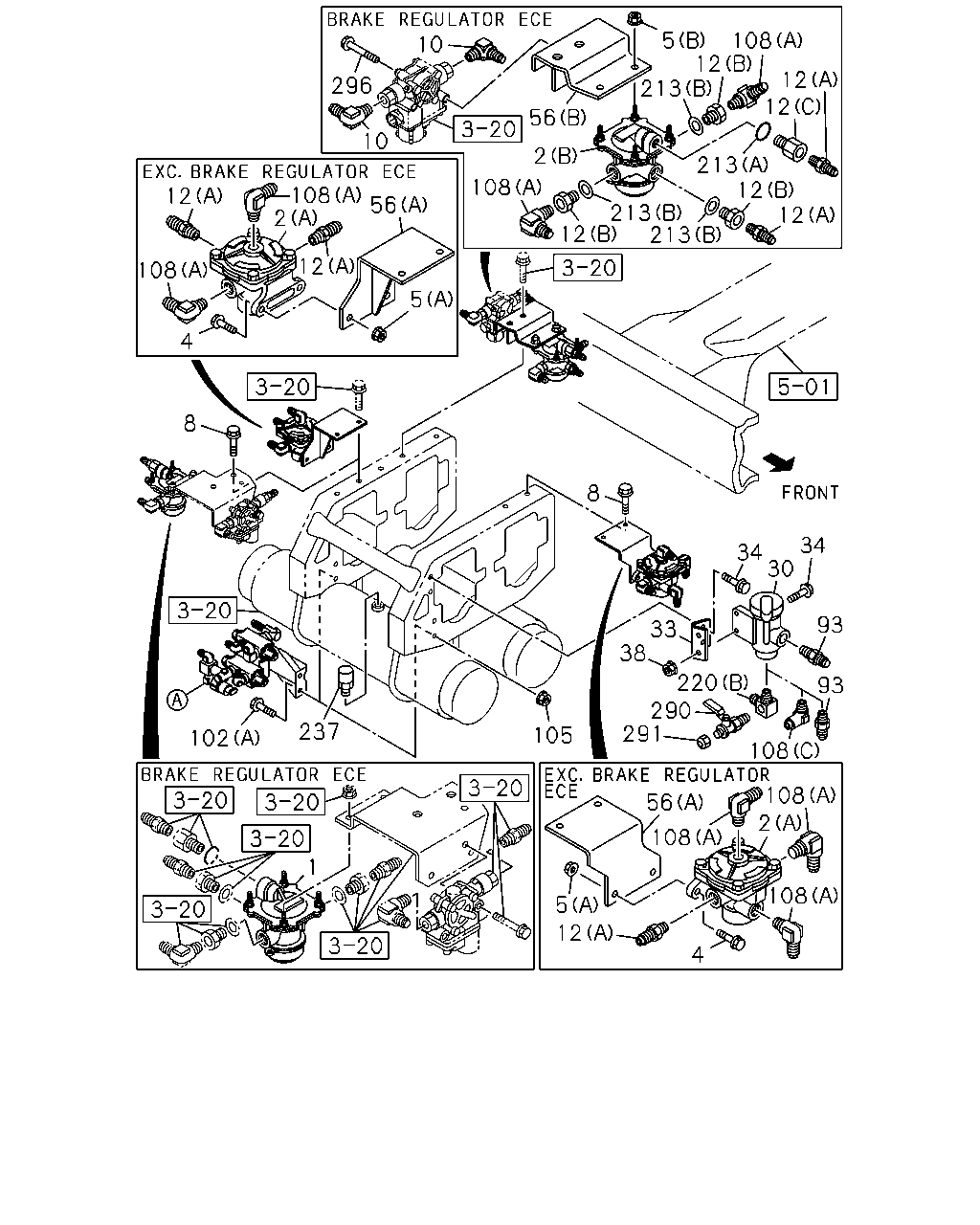

296 10 5 213 108 12 213 12 213 213 12 12 12 12 108 2 56 10 34 30 93 34 93 108 290 291 220 38 33 56 108 108 2 108 4 12 5 102 237 105 8 8 4 108 12 5 56 2 108 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> SOU	8-98292-212-0	01	1	1502-
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	02	1	1412-1501
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-875-0	02	1	1502-
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) SOU	8-98292-212-0	01	1	1502-
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> M10X30 FLANGE SOU	0-28651-030-0	04	1	1412-1501
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> M10X30 FLANGE SOU	0-28651-030-0	04	1	1502-
5	NUT ANTI LOCK BRAKE<JE5> (A) M10 FLANGE SOU	0-91180-210-0	04	1	1412-1501
5	NUT ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) M10 FLANGE SOU	0-91180-210-0	04	1	1502-
5	NUT ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) M8 FLANGE SOU	0-91180-108-0	02	1	1502-
8	BOLT; BRKT ANTI LOCK BRAKE<JE5> M10X25 FLANGE SOU	0-28651-025-0	02	1	1412-
10	CONNECTOR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1502-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 STRAIGHT SOU	1-09650-179-1	02	1	1502-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT SOU	1-09650-179-1	03	1	1412-1501
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 STRAIGHT SOU	1-09650-179-1	03	1	1502-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	03	1	1502-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (C) M16 & PT3/8 STRAIGHT SOU	1-09661-044-0	01	1	1502-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1001-
33	BRACKET; GOV,AIR CONT	8-98120-459-1	01	1	1001-
34	BOLT; BRKT,GOV M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
34	BOLT; BRKT,GOV M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
38	NUT; BRKT,GOV M8 FLANGE SOU	0-91180-108-0	02	1	1001-
38	NUT; BRKT,GOV M8 FLANGE SOU	0-91180-108-0	02	1	1001-
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5> (A)	8-97615-197-0	02	1	1412-1501
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	8-97615-197-0	02	1	1502-
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B)	8-98238-240-0	01	1	1502-
93	CONNECTOR; GOV EXC. ANTI LOCK BRAKE<JE5> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1412-1501
93	CONNECTOR; GOV TIRE INFLATOR DEVICE(SG4) EXC. ANTI LOCK BRAKE<JE5> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
93	CONNECTOR; GOV EXC. ANTI LOCK BRAKE<JE5>,TIRE INFLATOR DEVICE(SG4) ,BRAKE REGULATION ECE<TDV> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
93	CONNECTOR; GOV BRAKE REGULATION ECE<TDV> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1411
93	CONNECTOR; GOV ANTI LOCK BRAKE<JE5> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1412-1501
93	CONNECTOR; GOV ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1502-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1411
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1412-1501
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1412-1501
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1502-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1502-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
105	NUT; BRKT,VALVE ANTI LOCK BRAKE<JE5> M10 FLANGE SOU	0-91180-210-0	02	1	1412-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1502-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1502-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	05	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	05	1	1502-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1502-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (D)	1-09650-516-0	01	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (D)	1-09650-516-0	01	1	1502-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (D)	1-09650-516-0	01	1	1502-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E)	8-98148-475-0	01	1	1502-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1001-1411
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1412-1501
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1502-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1502-
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1501
108	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5>,TIRE INFLATOR DEVICE(SG4) ,BRAKE REGULATION ECE<TDV> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
213	GASKET ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) ID=16.2 OD=24	9-09571-416-0	01	1	1502-
213	GASKET ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) ID=22.5 SOU	9-09571-422-0	03	1	1502-
220	CONNECTOR; 3WAY TIRE INFLATOR DEVICE(SG4) EXC. ANTI LOCK BRAKE<JE5> (B) PT1/4 & M12 ELBOW SOU	1-09656-666-0	01	1	1412-
220	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> (C) SOU	8-98131-540-0	01	1	1412-1501
220	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (C) SOU	8-98131-540-0	01	1	1502-
220	CONNECTOR; 3WAY (A) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1001-1501
220	CONNECTOR; 3WAY EXC. BRAKE REGULATION ECE<TDV> (A) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1502-
237	VALVE; SAFETY	1-48320-012-2	01	1	1001-
290	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4) EXC. ANTI LOCK BRAKE<JE5> SOU	1-09680-099-0	01	1	1412-
291	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4) EXC. ANTI LOCK BRAKE<JE5> SOU	9-48319-102-0	01	1	1412-
296	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> M8X80 FLANGE SOU	0-28050-880-0	02	1	1502-

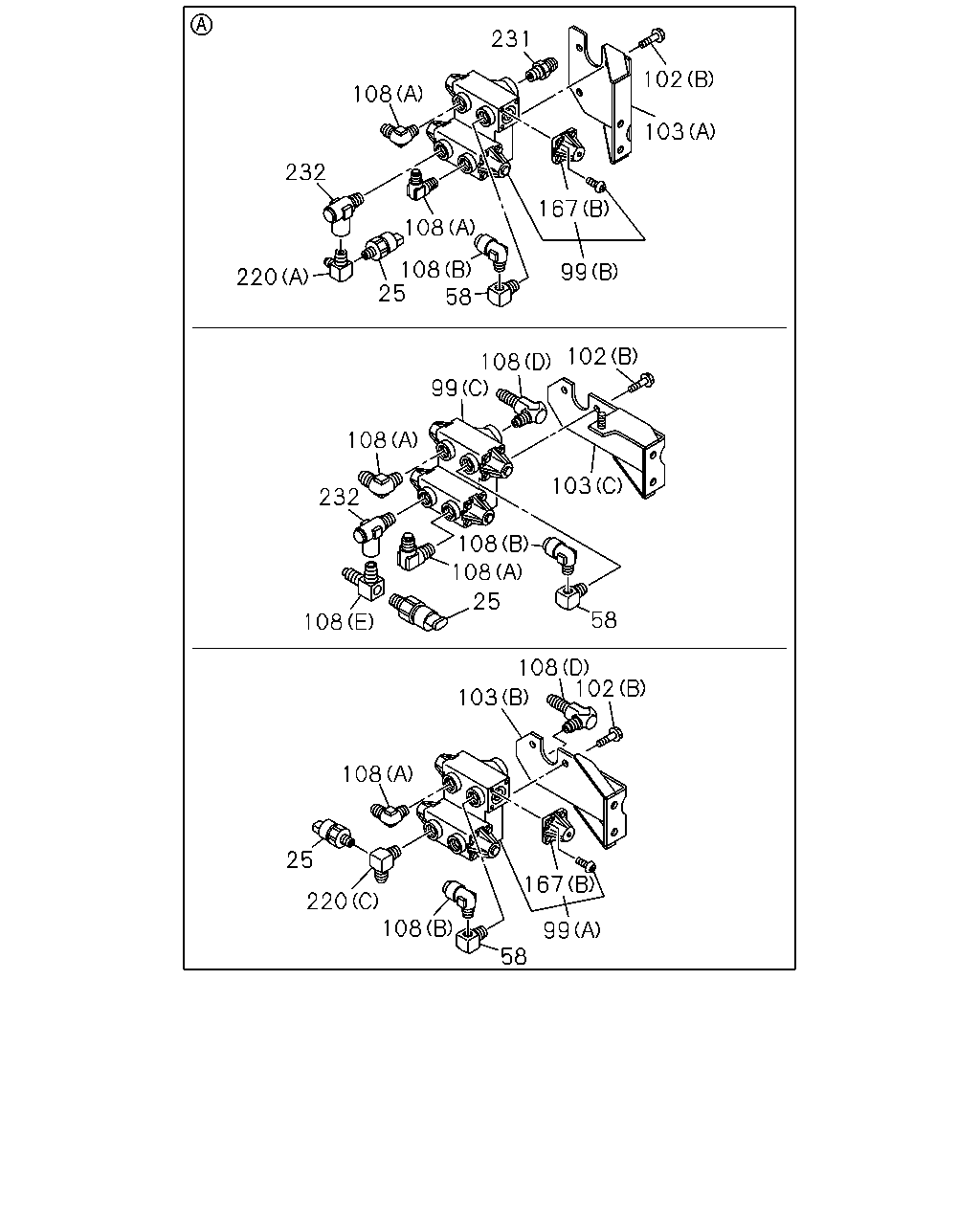

108 232 220 25 108 108 58 99 167 231 102 103 102 108 99 108 232 108 25 108 108 103 58 102 108 103 108 25 220 108 58 167 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE STAMP 5.5 SOU	8-97609-249-0	01	1	1001-1411
25	SWITCH; PRESSURE ANTI LOCK BRAKE<JE5> STAMP 5.5 SOU	8-97609-249-0	01	1	1412-1501
25	SWITCH; PRESSURE STAMP 5.5 SOU	8-97609-249-0	01	1	1412-1501
25	SWITCH; PRESSURE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> STAMP 5.5 SOU	8-97609-249-0	01	1	1502-
25	SWITCH; PRESSURE STAMP 5.5 SOU	8-97609-249-0	01	1	1502-
58	ADAPTER PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1001-1411
58	ADAPTER ANTI LOCK BRAKE<JE5> PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1412-1501
58	ADAPTER PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1412-1501
58	ADAPTER ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1502-
58	ADAPTER PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1502-
99	VALVE; PROTECTION ANTI LOCK BRAKE<JE5> (A) SOU	1-48110-287-2	01	1	1412-1501
99	VALVE; PROTECTION ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) SOU	1-48110-287-3	01	1	1502-
99	VALVE; PROTECTION EXC. BRAKE REGULATION ADR<TDU> (B) SOU	1-48110-288-2	01	1	1412-1501
99	VALVE; PROTECTION EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SOU	1-48110-288-3	01	1	1502-
99	VALVE; PROTECTION BRAKE REGULATION ECE<TDV> (C) SOU	1-48110-290-3	01	1	1502-
99	VALVE; PROTECTION (B) SOU	1-48110-294-3	01	1	1001-1411
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU> (B) SOU	1-48110-294-3	01	1	1412-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1411
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1412-1501
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1412-1501
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1502-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1502-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE<JE5> (B) SOU	8-97622-131-0	01	1	1412-1501
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) SOU	8-97622-131-0	01	1	1502-
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ECE<TDV> (C)	8-98236-814-0	01	1	1502-
103	BRACKET; PROTECTION VALVE (A) SOU	8-98111-527-1	01	1	1001-1501
103	BRACKET; PROTECTION VALVE EXC. BRAKE REGULATION ECE<TDV> (A) SOU	8-98111-527-1	01	1	1502-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1502-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1502-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	05	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	05	1	1502-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1502-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (D)	1-09650-516-0	01	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (D)	1-09650-516-0	01	1	1502-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (D)	1-09650-516-0	01	1	1502-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E)	8-98148-475-0	01	1	1502-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1001-1411
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1412-1501
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1412-1501
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1502-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1502-
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1501
108	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5>,TIRE INFLATOR DEVICE(SG4) ,BRAKE REGULATION ECE<TDV> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1001-
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (B) SOU	1-48119-625-0	03	1	1412-1501
167	COVER; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) SOU	1-48119-625-0	03	1	1502-
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	1412-1501
167	COVER; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	02	1	1502-
220	CONNECTOR; 3WAY TIRE INFLATOR DEVICE(SG4) EXC. ANTI LOCK BRAKE<JE5> (B) PT1/4 & M12 ELBOW SOU	1-09656-666-0	01	1	1412-
220	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> (C) SOU	8-98131-540-0	01	1	1412-1501
220	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (C) SOU	8-98131-540-0	01	1	1502-
220	CONNECTOR; 3WAY (A) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1001-1501
220	CONNECTOR; 3WAY EXC. BRAKE REGULATION ECE<TDV> (A) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1502-
231	CONNECTOR; NYLON TUBE M20 & PT1/2 STRAIGHT SOU	1-09650-249-1	01	1	1001-1501
231	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> M20 & PT1/2 STRAIGHT SOU	1-09650-249-1	01	1	1502-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1001-

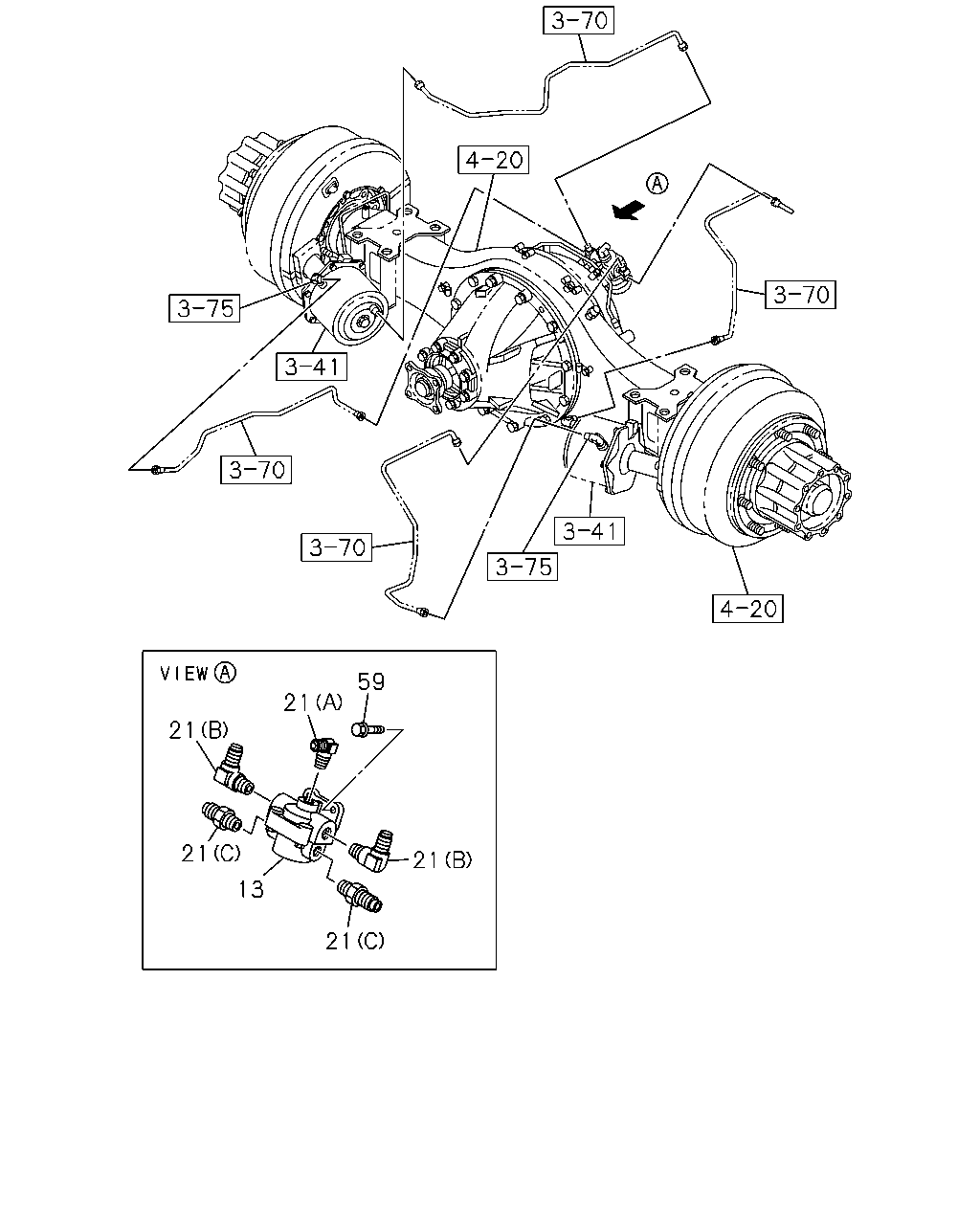

59 21 21 21 13 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-783-0	01	1	1001-
21	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	1001-
21	CONNECTOR; QUICK RELEASE VLV (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	1001-
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1001-
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	02	1	1001-

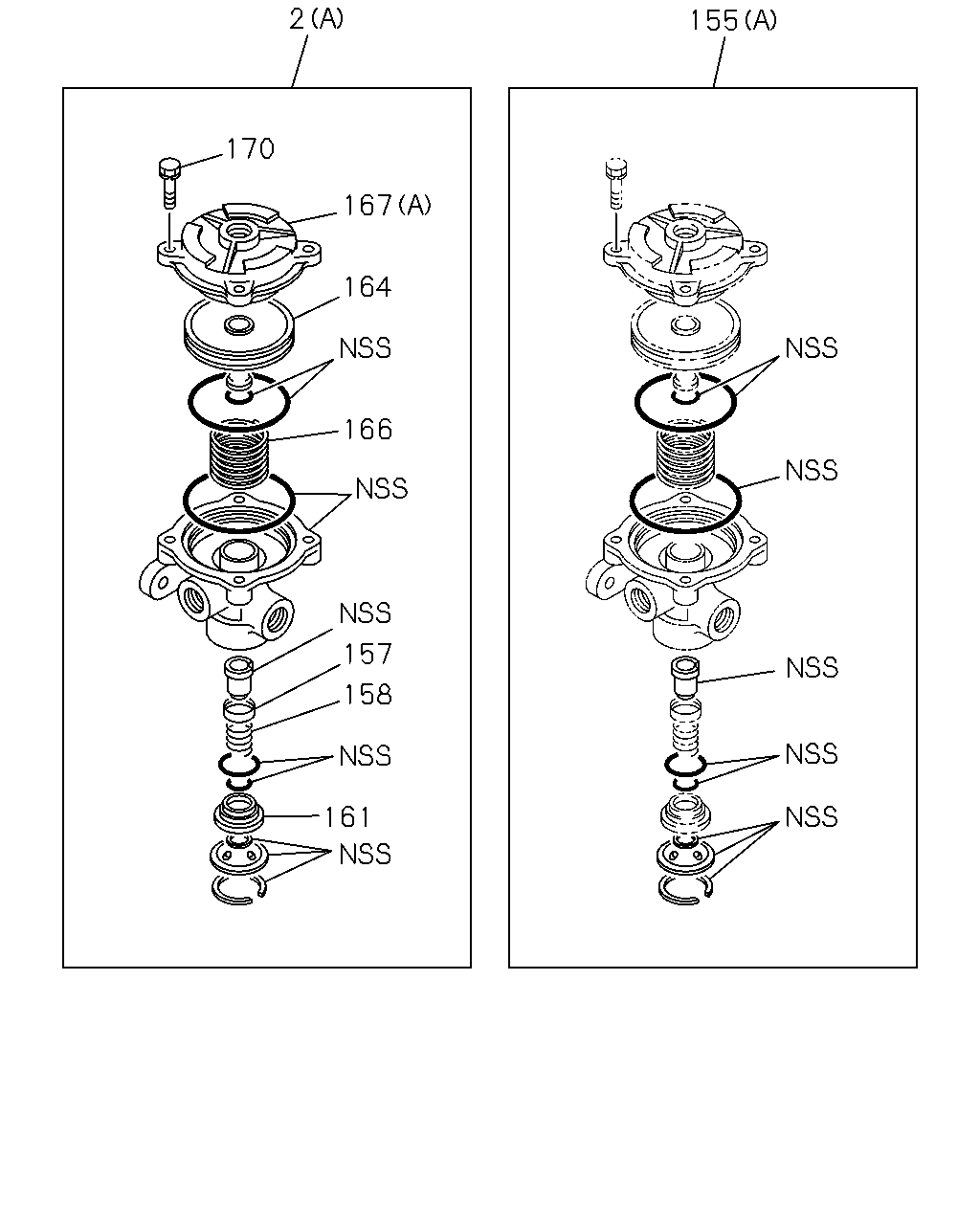

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	02	1	1412-1501
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-875-0	02	1	1502-
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) SOU	8-98292-212-0	01	1	1502-
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	02	1	1412-1501
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-85576-033-0	02	1	1502-
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B)	8-98165-977-0	02	1	1502-
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5>	1-48213-002-0	02	1	1412-1501
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	02	1	1502-
158	SPRING; VALVE ANTI LOCK BRAKE<JE5>	1-47819-089-0	02	1	1412-1501
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV>	1-47819-089-0	02	1	1502-
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5>	1-48129-014-0	02	1	1412-1501
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	02	1	1502-
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5>	1-48219-071-0	02	1	1412-1501
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV>	1-48219-071-0	02	1	1502-
166	SPRING; PISTON ANTI LOCK BRAKE<JE5>	1-47819-090-0	02	1	1412-1501
166	SPRING; PISTON ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV>	1-47819-090-0	02	1	1502-
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1001-
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (B) SOU	1-48119-625-0	03	1	1412-1501
167	COVER; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (B) SOU	1-48119-625-0	03	1	1502-
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	1412-1501
167	COVER; VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	02	1	1502-
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5> SOU	1-48219-039-0	08	1	1412-1501
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> SOU	1-48219-039-0	08	1	1502-

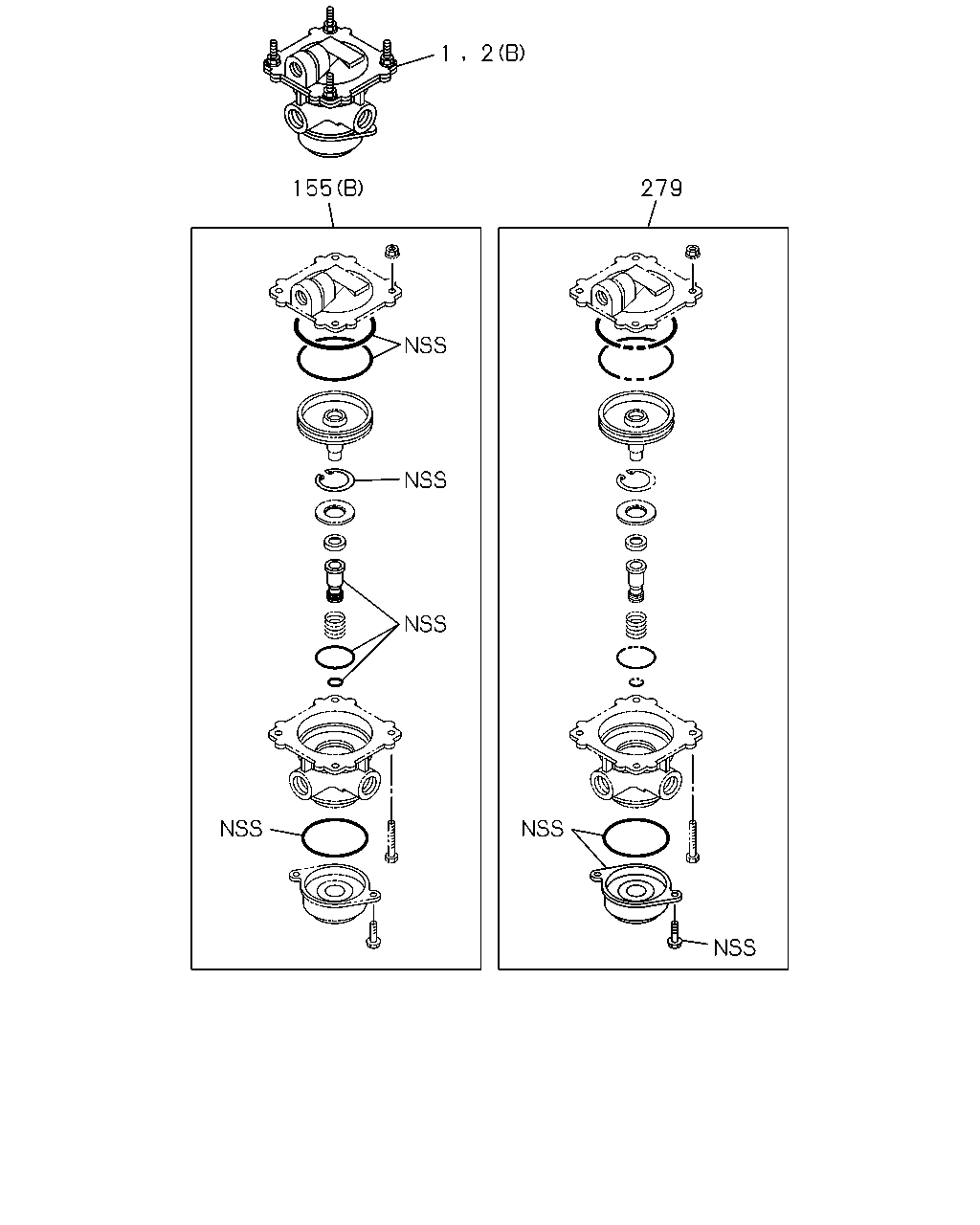

1 2 155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> SOU	8-98292-212-0	01	1	1502-
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> (A)	1-48210-875-0	02	1	1412-1501
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-875-0	02	1	1502-
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) SOU	8-98292-212-0	01	1	1502-
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	02	1	1412-1501
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A)	1-85576-033-0	02	1	1502-
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B)	8-98165-977-0	02	1	1502-
279	REPAIR KIT; SILENCER ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV>	8-98165-978-0	02	1	1502-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1001-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE SOU	1-85576-451-2	01	1	1001-
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE<JE5> SOU	1-85576-452-1	01	1	1412-1501
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> SOU	1-85576-452-2	01	1	1502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
