Isuzu WW
▶
TRUCKS
▶
FTS
▶
11166 - FTS(SOUTH AFRICA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-39 - POWER ASSISTOR
▶
2-39 — POWER ASSISTOR
(#23445) — 27 parça
Tümü
A - MZX6P M/T
B - MZW6P M/T
C - MLD6W M/T
◀

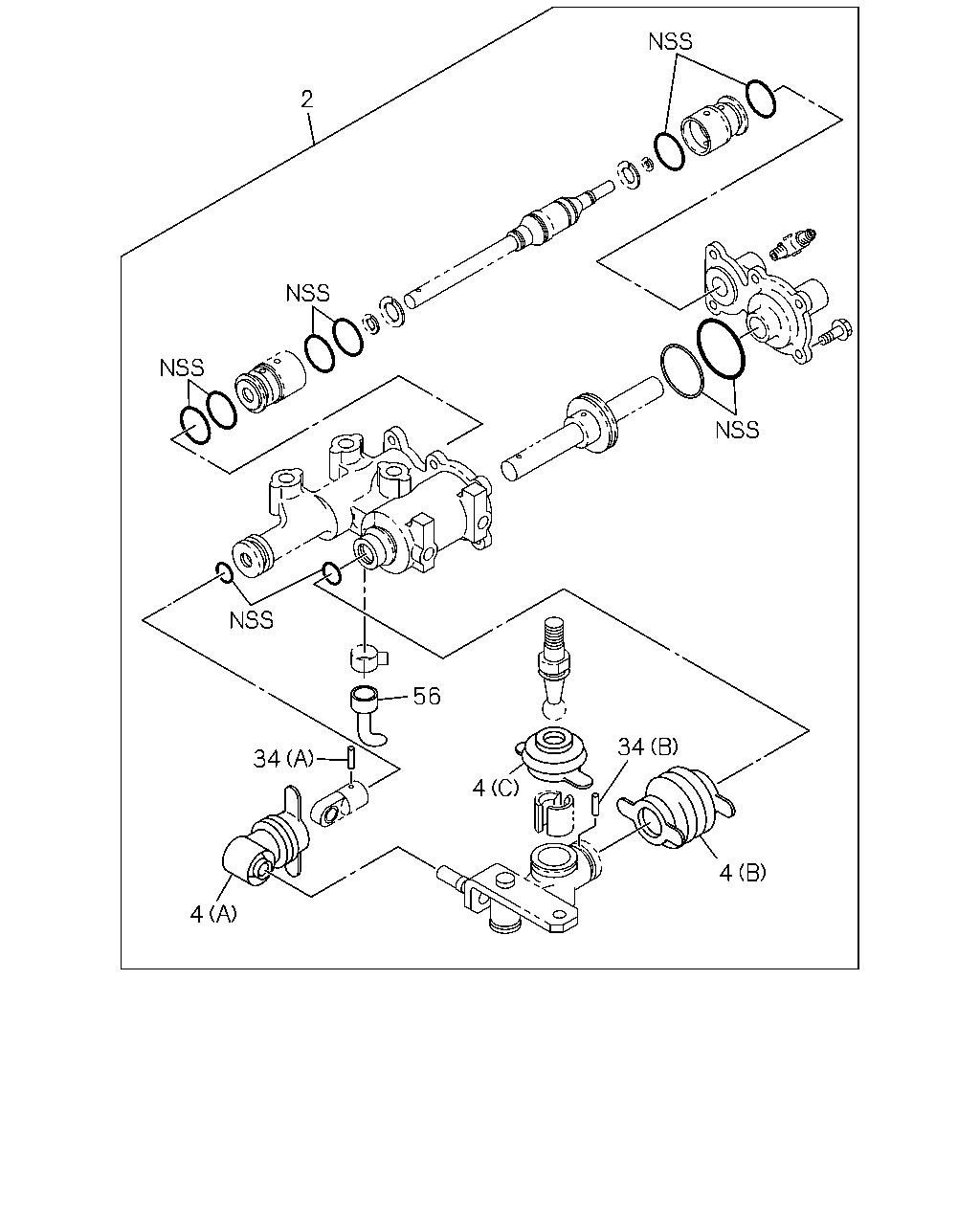

[239A] REPAIR KIT (7 parça)

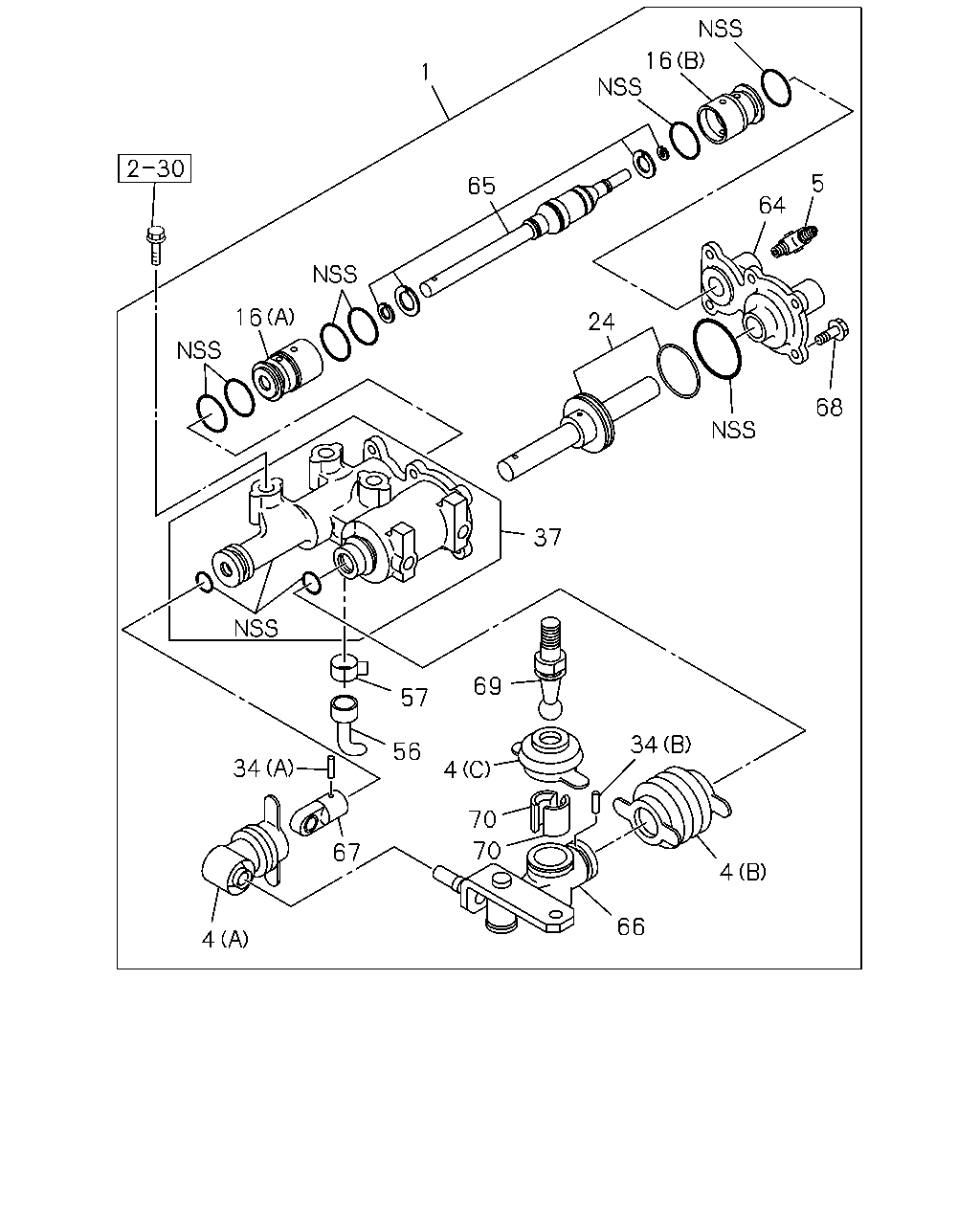

[239A] COMPONENT (20 parça)
▶
2
56
34
34
4
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33738-028-0
01
1
1001-
●
●
●
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-843-0
01
1
1001-
●
●
●
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-844-0
01
1
1001-
●
●
●
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C)
1-33739-847-0
01
1
1001-
●
●
●
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-885-0
01
1
1001-
●
●
●
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-974-0
01
1
1001-
●
●
●
56
HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-848-0
01
1
1001-
●
●
●
16
1
5
65
64
16
24
68
37
69
57
34
56
34
4
70
70
67
4
66
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8>
8-98022-843-0
01
1
1001-
●
●
●
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-843-0
01
1
1001-
●
●
●
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-844-0
01
1
1001-
●
●
●
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C)
1-33739-847-0
01
1
1001-
●
●
●
5
CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8
0-92124-306-0
01
1
1001-
●
●
●
16
SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A)
8-97388-032-0
01
1
1001-
●
●
●
16
SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B)
8-97388-033-0
01
1
1001-
●
●
●
24
PISTON
ASSISTOR SHIFT CONTROL<WX8>
1-33739-836-1
01
1
1001-
●
●
●
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-885-0
01
1
1001-
●
●
●
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-974-0
01
1
1001-
●
●
●
37
HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-969-0
01
1
1001-
●
●
●
56
HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-848-0
01
1
1001-
●
●
●
57
CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8>
1-33739-849-0
01
1
1001-
●
●
●
64
COVER; HOUSING
ASSISTOR SHIFT CONTROL<WX8>
1-33739-970-0
01
1
1001-
●
●
●
65
VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
8-97388-029-0
01
1
1001-
●
●
●
66
JOINT ASM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-972-0
01
1
1001-
●
●
●
67
JOINT; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-973-0
01
1
1001-
●
●
●
68
BOLT; COVER
ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE
1-33739-842-0
06
1
1001-
●
●
●
69
STUD; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-846-0
01
1
1001-
●
●
●
70
SEAT; BALL STUD
ASSISTOR SHIFT CONTROL<WX8>
1-33659-118-0
02
1
1001-
●
●
●
