1-56 — EXHAUST BRAKE SYSTEM (#23431) — 14 parça

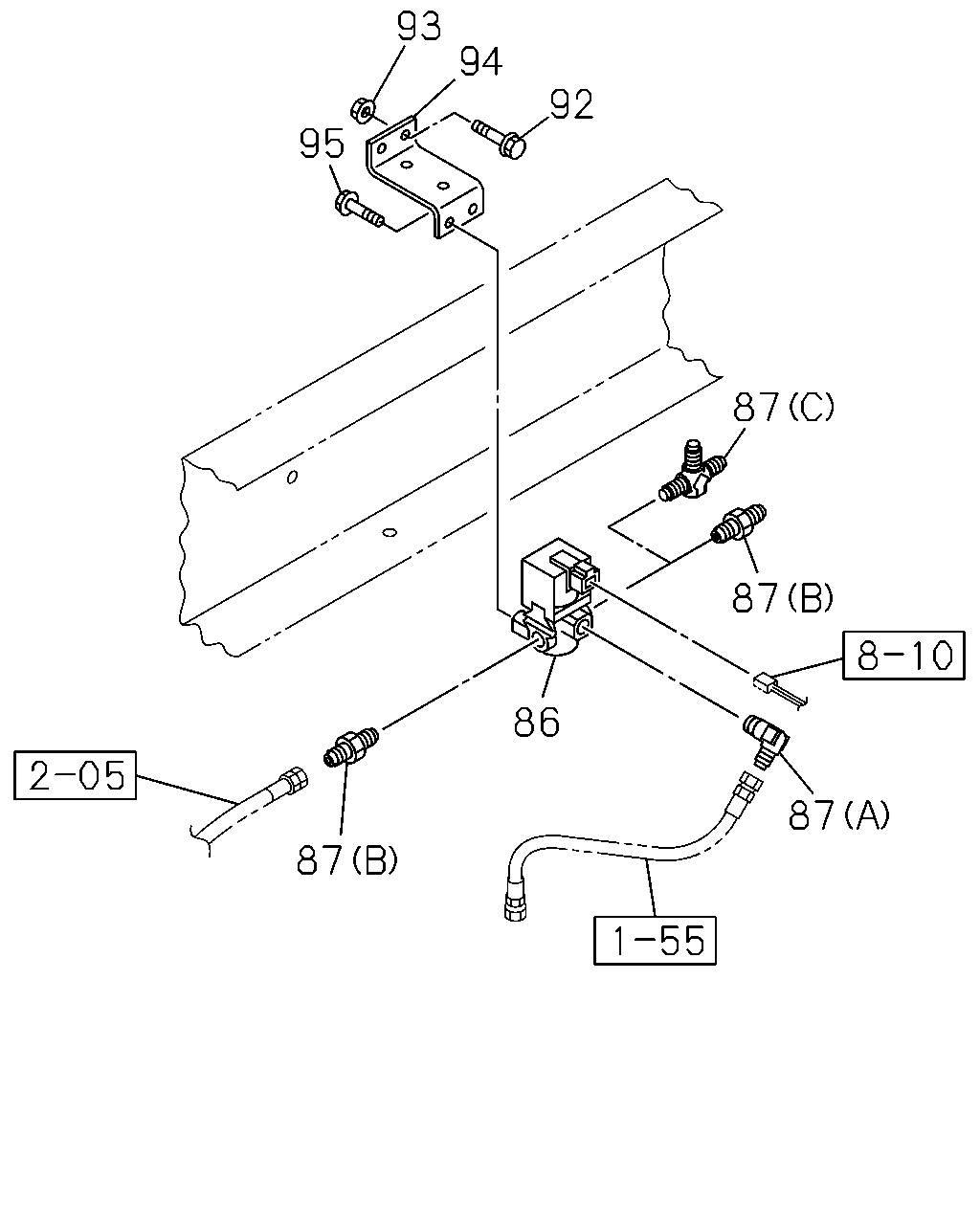

çizim 61476
87 86 87 87 87 92 94 93 95
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
SOU 		1-82563-871-2 01 1 1001-
87 CONNECTOR
EXC. BRAKE REGULATION ADR<TDU> (B) M12 & PT1/4 STRAIGHT SOU 		1-09650-074-1 01 1 1412-1501
87 CONNECTOR
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 STRAIGHT SOU 		1-09650-074-1 01 1 1502-
87 CONNECTOR
EXC. BRAKE REGULATION ADR<TDU> (C) M12X2 & PT1/4 3WAY SOU 		1-09656-230-1 01 1 1412-1501
87 CONNECTOR
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) M12X2 & PT1/4 3WAY SOU 		1-09656-230-1 01 1 1502-
87 CONNECTOR
(B) M12 & PT1/4 STRAIGHT SOU 		1-09650-074-1 02 1 1001-1411
87 CONNECTOR
BRAKE REGULATION ADR<TDU> (B) M12 & PT1/4 STRAIGHT SOU 		1-09650-074-1 02 1 1412-1501
87 CONNECTOR
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 STRAIGHT SOU 		1-09650-074-1 02 1 1502-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
93 NUT; MAG VLV
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
94 BRACKET; MAG VLV,EXH BRAKE
SOU 		1-47471-374-1 01 1 1001-1004
94 BRACKET; MAG VLV,EXH BRAKE
SOU 		8-98154-633-0 01 1 1005-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
