◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10B - RADIATOR ▶
1-10B — RADIATOR (#2343) — 82 parça

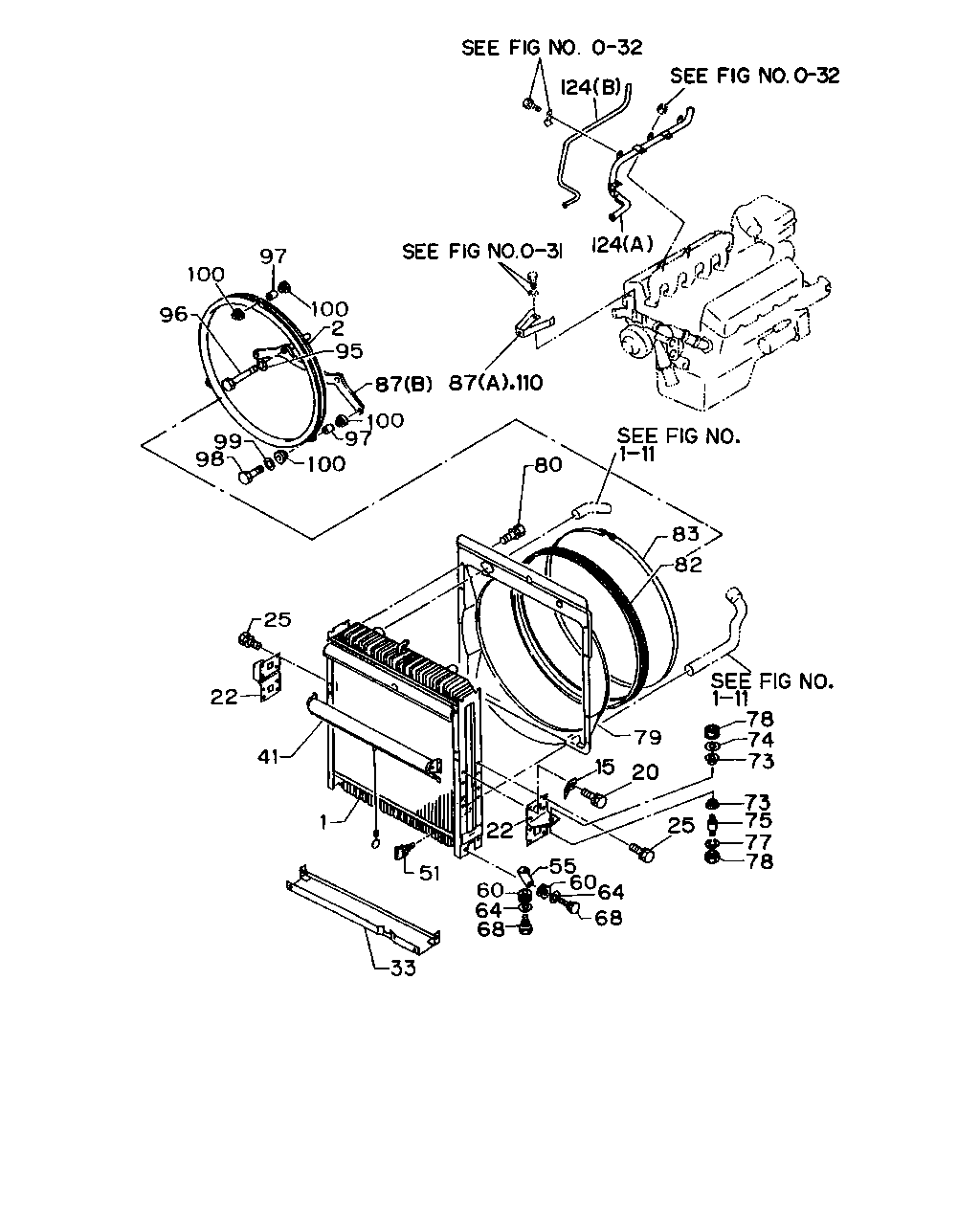

çizim 29457
124 124 110 87 80 87 95 2 100 97 100 96 99 98 100 100 97 25 22 41 1 51 33 22 55 60 64 68 68 60 64 15 78 74 73 79 20 25 82 83 73 75 77 78
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-641-0 01 1 9002-9306 ●
1 RADIATOR ASM 1-21410-569-0 01 1 9002- ●
1 RADIATOR ASM 1-21410-555-0 01 1 9307- ●
2 GUIDE; FAN 1-21551-235-3 01 1 9002- ● ●
2 GUIDE; FAN 1-21551-346-2 01 1 9002-9306 ●
15 BRACKET; PIPE,RAD 1-21464-283-0 01 1 9002-9405 ●
15 BRACKET; PIPE,RAD 1-21469-088-0 01 1 9406- ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9306 ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9307-9405 ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9406- ●
22 BRACKET; RAD MTG 1-21464-278-1 01 1 9307- ●
22 BRACKET; RAD MTG 1-21464-277-0 01 1 9307- ●
22 BRACKET; RAD MTG 1-21464-094-1 01 1 9002- ● ●
22 BRACKET; RAD MTG 1-21464-093-1 01 1 9002- ● ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 12 1 9002-9306 ●
25 BOLT; BRKT
RADIATOR CURTAIN<SK7> M8X18 W/LK&PL WASHER 		9-01970-818-0 01 1 9002-9306 ●
25 BOLT; BRKT
EXC. RADIATOR CURTAIN<SK7> M8X18 W/LK&PL WASHER 		9-01970-818-0 16 1 9002-9306 ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 15 1 9307-9405 ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		0-50140-818-0 15 1 9406- ●
25 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 16 1 9307- ●
33 PROTECTOR; RAD
L=120 		1-21419-030-2 01 1 9002- ● ●
33 PROTECTOR; RAD
L=76 		1-21419-043-0 01 1 9307- ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-090-1 01 1 9002-9306 ● ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-090-1 01 1 9307- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9002- ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-253-0 01 1 9307- ●
55 STAY; RAD TO UPR MBR 1-21464-252-0 01 1 9307- ●
55 STAY; RAD TO UPR MBR 1-21464-079-2 01 1 9002- ● ●
55 STAY; RAD TO UPR MBR 1-21464-078-2 01 1 9002- ● ●
60 GROMMET 1-09332-117-0 04 1 9002- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9002- ● ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 9002- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9002- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-1 02 1 9002- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12XM10X55 L=90 		1-21466-006-0 02 1 9002- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12XM10X52 L=82 		1-21466-005-0 02 1 9002- ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9002- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		5-09440-006-0 02 1 9002- ● ● ●
78 NUT; CUSHION RUBBER
M12 		9-99110-412-0 02 1 9002-9304 ● ●
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9305- ● ● ●
79 GUIDE; FAN,RAD 1-21551-218-3 01 1 9307- ●
79 GUIDE; FAN,RAD 1-21551-253-3 01 1 9002-9306 ●
79 GUIDE; FAN,RAD
EXZ&RHD(EX*5**) 		1-21551-313-0 01 1 9002-9405 ●
79 GUIDE; FAN,RAD 1-21551-313-0 01 1 9406- ●
79 GUIDE; FAN,RAD
EXZ&LHD(EX*6**) 		1-21551-246-4 01 1 9002-9405 ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 9002-9306 ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9002-9306 ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 9307-9405 ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		0-50140-816-0 17 1 9406- ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9307-9405 ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		0-50140-816-0 12 1 9406- ●
80 BOLT; FAN GUIDE
M8X14 		9-01960-814-0 12 1 9307- ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9002-9202 ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9203- ● ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 9203-9306 ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9002-9202 ● ●
83 CLIP; FAN COVER 1-09707-152-0 01 1 9203-9306 ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9203- ● ●
87 STAY; FAN GUIDE
(A) 		1-21559-233-0 01 1 9002-9306 ●
87 STAY; FAN GUIDE
(B) 		1-21559-284-0 01 1 9002-9306 ●
87 STAY; FAN GUIDE
(A) 		1-21559-104-2 01 1 9002- ●
87 STAY; FAN GUIDE
(B) 		1-21559-285-0 01 1 9002- ● ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9002- ● ● ●
96 BOLT; STAY FIX
M12X173 		1-09020-057-1 01 1 9002-9306 ●
96 BOLT; STAY FIX
M12X20 		9-02341-220-0 01 1 9002-9204 ● ●
96 BOLT; STAY FIX
M12X20 		0-23801-220-0 01 1 9205- ● ● ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 01 1 9002- ● ●
97 TUBE; DIST,FAN GUIDE 1-21559-071-0 03 1 9002-9310 ● ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 9311- ● ●
98 BOLT; RAD FAN GUIDE
M8X50 		9-01055-850-0 03 1 9002-9005 ● ●
98 BOLT; RAD FAN GUIDE
M8X50 		0-10805-850-0 03 1 9006-9310 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9311- ● ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9311- ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 06 1 9002-9310 ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9002- ● ● ●
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9307- ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-587-0 01 1 9002-9306 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-361-0 01 1 9002-9306 ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-479-1 01 1 9002- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-375-0 01 1 9002- ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-464-2 01 1 9307- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-352-0 01 1 9307- ●
