1-50 — EXHAUST PIPE AND SILENCER (#23429) — 77 parça

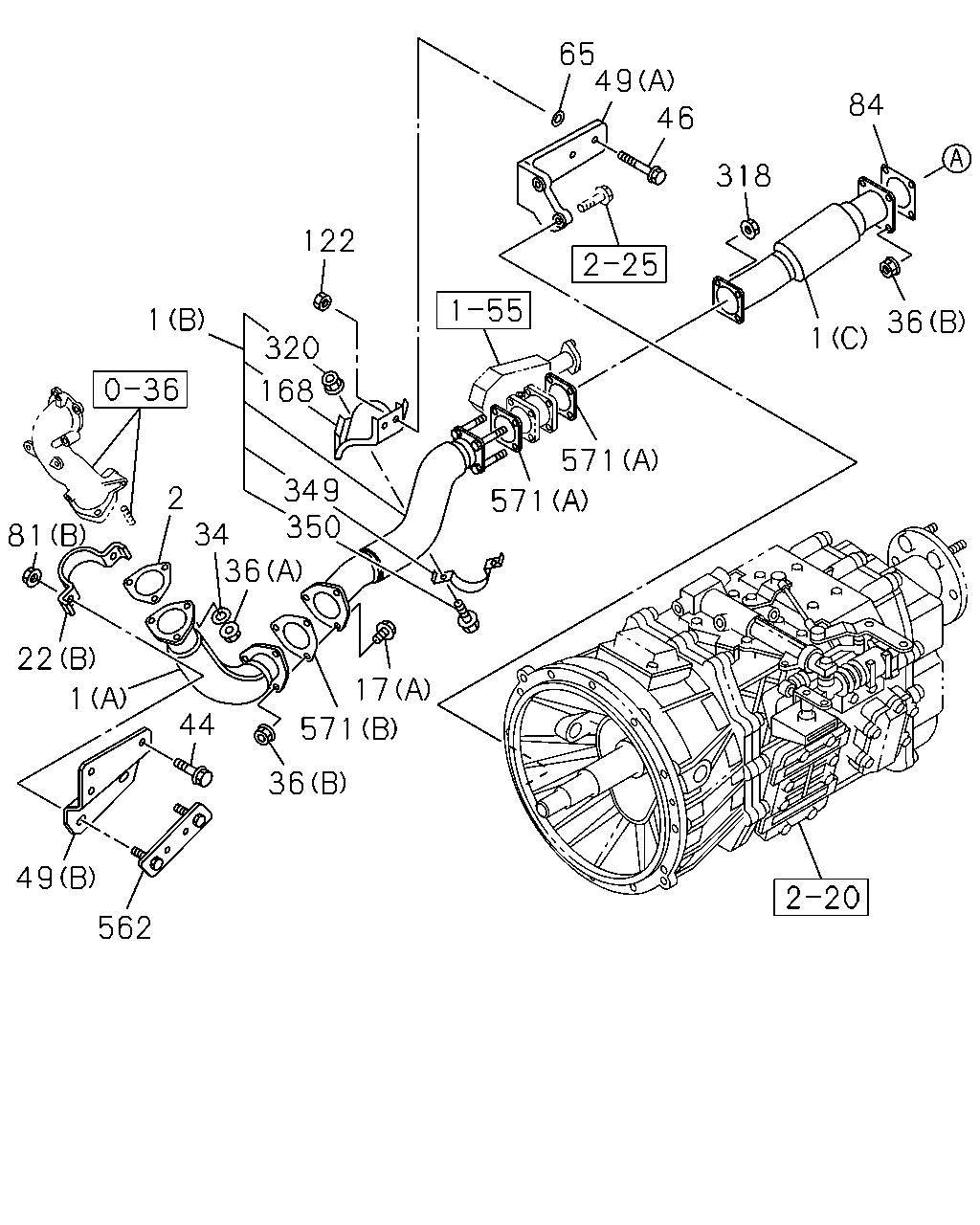

1 122 65 46 84 36 318 571 571 17 571 36 562 49 1 22 81 36 34 2 349 350 320 168 1 44 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	8-98073-006-3	01	1	1001-
1	PIPE; EXH (C)	8-98110-612-1	01	1	1001-
1	PIPE; EXH (B)	8-98119-515-0	01	1	1001-1209
1	PIPE; EXH (B)	8-98230-001-0	01	1	1210-1309
1	PIPE; EXH (B)	8-98245-502-0	01	1	1310-1406
1	PIPE; EXH (B)	8-98234-516-1	01	1	1407-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1001-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1001-
17	BOLT; EXH PIPE (B) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
22	CLAMP; EXH PIPE (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	04	1	1001-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1001-
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-
44	BOLT; BRKT M10X20 FLANGE	0-28751-020-0	03	1	1305-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1001-
49	BRACKET; EXH PIPE TO TRANS (B)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (A)	8-98113-012-0	01	1	1001-
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98120-493-0	01	1	1001-
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	1001-
81	NUT; BRKT (B) M10 FLANGE SOU	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	03	1	1001-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1304
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1304
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1305-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1001-
122	NUT; HANGER BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	1001-1209
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-
318	NUT; EXH PIPE,FRT M10 FLANGE SOU	0-91180-210-0	04	1	1001-
320	NUT; CLAMP,EXH PIPE M10 FLANGE SOU	0-91180-210-0	02	1	1001-
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	1001-
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
562	PLATE; STUD,BOLT	8-97615-333-1	01	1	1305-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1001-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1001-

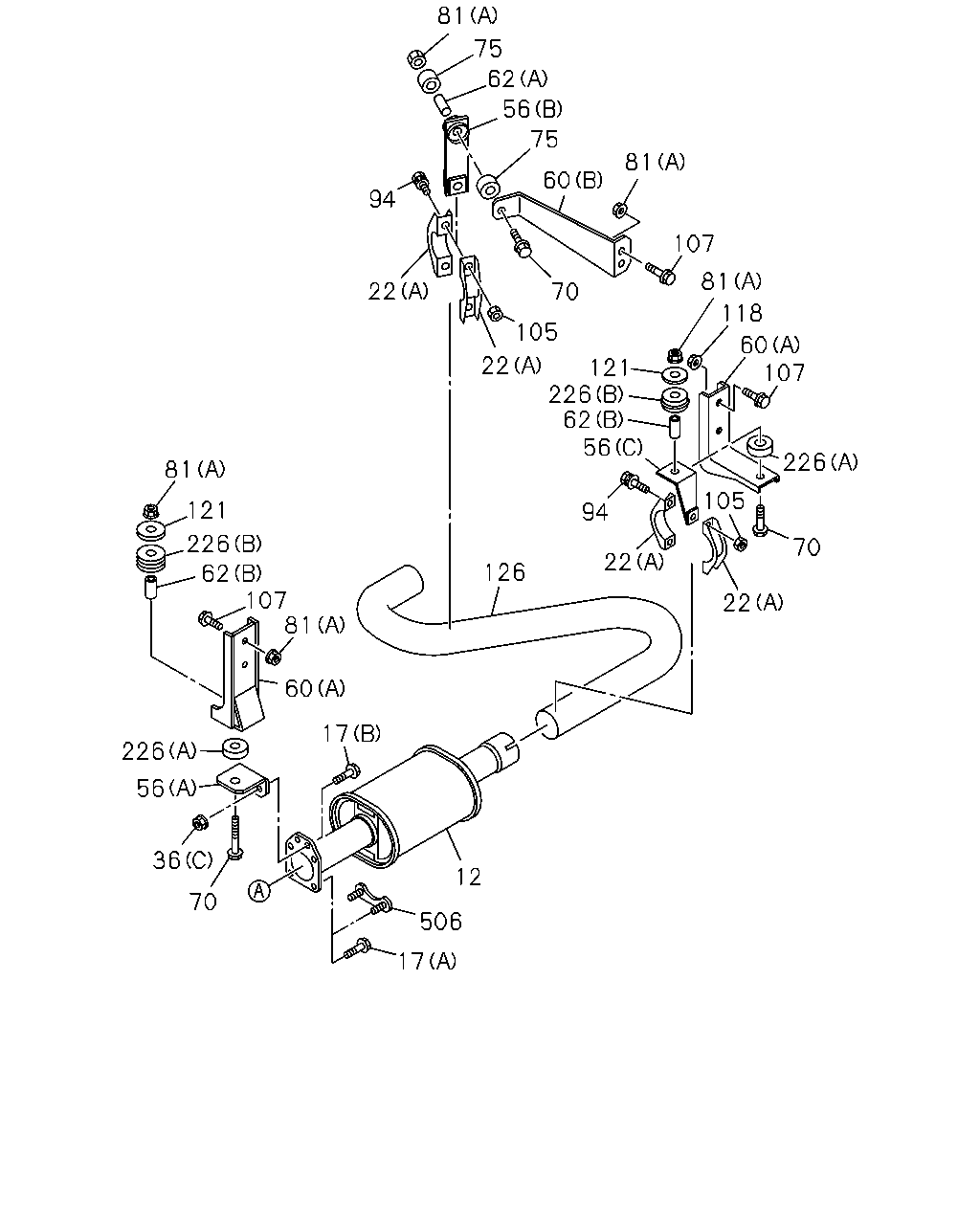

17 12 506 70 36 56 226 17 60 81 107 62 226 121 81 126 22 22 94 56 70 226 105 62 226 121 107 60 118 81 107 70 105 22 22 94 81 60 75 56 62 75 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98101-274-1	01	1	1001-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1001-
17	BOLT; EXH PIPE (B) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
22	CLAMP; EXH PIPE (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	04	1	1001-
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1001-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1001-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98101-361-0	01	1	1001-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-538-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1001-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	1001-
62	TUBE; DIST,BRKT (B) L=39 SOU	8-98060-852-0	02	1	1001-
62	TUBE; DIST,BRKT (A) L=22 SOU	9-22159-024-0	01	1	1001-
70	BOLT; BRKT M10X50 FLANGE SOU	0-28051-050-0	01	1	1001-
70	BOLT; BRKT M10X70 FLANGE SOU	0-28051-070-0	02	1	1001-
75	RUBBER; SUPPORT,BRKT OD=40 SOU	1-22159-193-0	02	1	1001-
81	NUT; BRKT (B) M10 FLANGE SOU	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	03	1	1001-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1304
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1304
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1305-
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	04	1	1001-
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	04	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
118	NUT; SILENCER MTG BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1001-
126	PIPE; EXH,RR	8-98069-920-0	01	1	1001-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1001-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1001-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1001-1203
