1-41 — FUEL PIPING; CHASSIS (#23427) — 119 parça

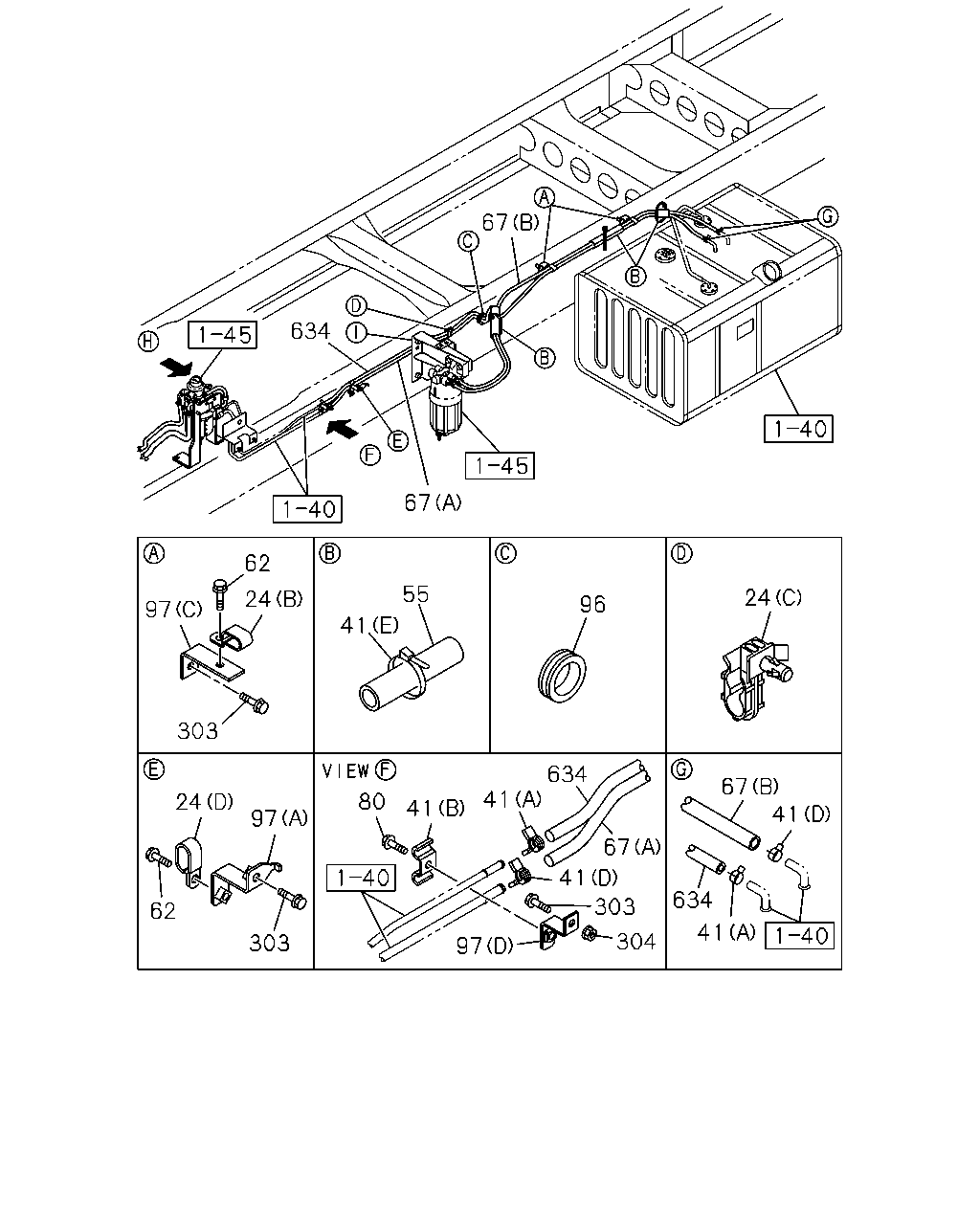

çizim 61475
67 634 67 62 97 24 303 41 55 96 24 67 41 41 634 67 634 41 41 303 304 97 41 80 97 24 62 303
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 1001-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 1001-1302
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 04 1 1303-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 04 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU 		5-09707-030-1 03 1 1001-1302
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU 		5-09707-030-1 02 1 1303-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 SOU 		8-94238-568-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1001-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1001-1302
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1303-
62 BOLT; CLIP FIX
M8X16 FLANGE SOU 		0-28050-816-0 03 1 1001-1302
62 BOLT; CLIP FIX
M8X16 FLANGE SOU 		0-28050-816-0 04 1 1303-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
67 HOSE; FUEL,DELIVERY
(A) L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-1302
67 HOSE; FUEL,DELIVERY
(A) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 1303-
67 HOSE; FUEL,DELIVERY
(B) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-1302
67 HOSE; FUEL,DELIVERY
(B) L=1900 SERVICED BY L=3000 		0-01260-300-0 01 1 1303-
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1001-
96 GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1001-
97 BRACKET; CLIP
(E) 		8-98204-698-0 01 1 1304-
97 BRACKET; CLIP
(D) 		1-47478-981-0 01 1 1001-
97 BRACKET; CLIP
(A) 		8-97623-325-0 02 1 1001-
97 BRACKET; CLIP
(C) 		8-98111-711-0 02 1 1001-
97 BRACKET; CLIP
(B) 		8-98115-316-1 01 1 1001-
303 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
303 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001-1303
303 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1304-
303 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1001
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1002-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1002-
634 HOSE; RUBBER RETURN
L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 1001-

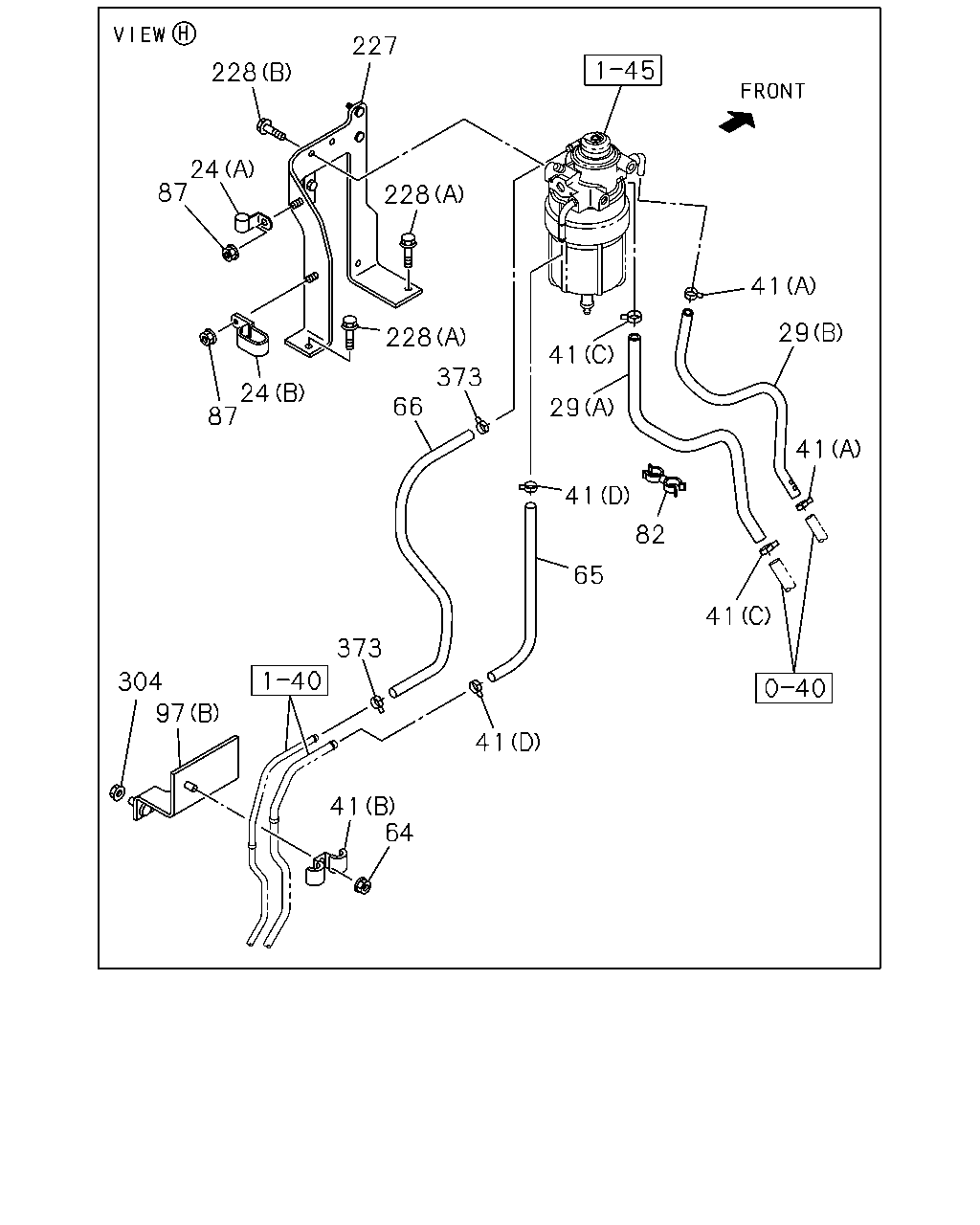

çizim 61515
227 228 24 87 228 41 29 228 41 373 24 87 66 29 41 41 82 65 41 373 304 97 41 41 64
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 1001-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 1001-1302
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 04 1 1303-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 1001-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1001-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 04 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU 		5-09707-030-1 03 1 1001-1302
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU 		5-09707-030-1 02 1 1303-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 SOU 		8-94238-568-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1001-
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1502-
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1302
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1303-
65 HOSE; FUEL,DELIVERY PIPE
L=260 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-
66 HOSE; FUEL,RETURN PIPE
L=450 SERVICED BY L=3000 		0-01558-300-0 01 1 1001-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1001-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
97 BRACKET; CLIP
(E) 		8-98204-698-0 01 1 1304-
97 BRACKET; CLIP
(D) 		1-47478-981-0 01 1 1001-
97 BRACKET; CLIP
(A) 		8-97623-325-0 02 1 1001-
97 BRACKET; CLIP
(C) 		8-98111-711-0 02 1 1001-
97 BRACKET; CLIP
(B) 		8-98115-316-1 01 1 1001-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1001-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE SOU 		0-28050-825-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE SOU 		0-28051-050-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1001
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1002-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1002-
373 CLAMP; HOSE,FUEL
ID=13 		8-94238-571-0 02 1 1001-

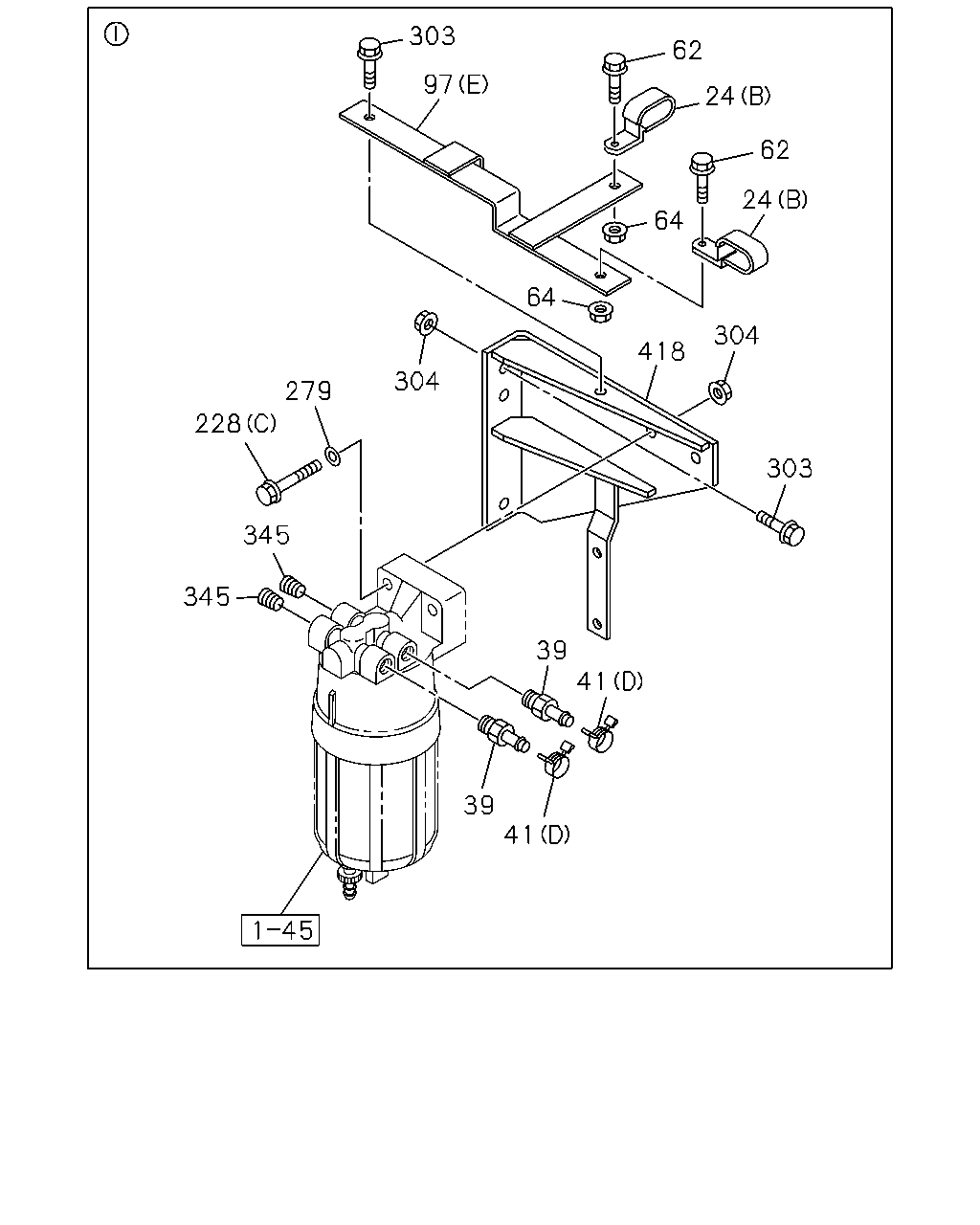

çizim 61537
303 418 304 24 62 24 62 97 303 64 304 228 279 345 345 39 41 41 39 64
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 1001-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 1001-1302
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 04 1 1303-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 1001-
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 04 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU 		5-09707-030-1 03 1 1001-1302
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU 		5-09707-030-1 02 1 1303-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 SOU 		8-94238-568-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1001-
62 BOLT; CLIP FIX
M8X16 FLANGE SOU 		0-28050-816-0 03 1 1001-1302
62 BOLT; CLIP FIX
M8X16 FLANGE SOU 		0-28050-816-0 04 1 1303-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1502-
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1302
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1303-
97 BRACKET; CLIP
(E) 		8-98204-698-0 01 1 1304-
97 BRACKET; CLIP
(D) 		1-47478-981-0 01 1 1001-
97 BRACKET; CLIP
(A) 		8-97623-325-0 02 1 1001-
97 BRACKET; CLIP
(C) 		8-98111-711-0 02 1 1001-
97 BRACKET; CLIP
(B) 		8-98115-316-1 01 1 1001-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE SOU 		0-28050-825-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE SOU 		0-28051-050-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1001-
303 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
303 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001-1303
303 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1304-
303 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1001
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1002-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1002-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1001-
418 BRACKET; PRE FUEL FILTER 8-98136-381-0 01 1 1001-
