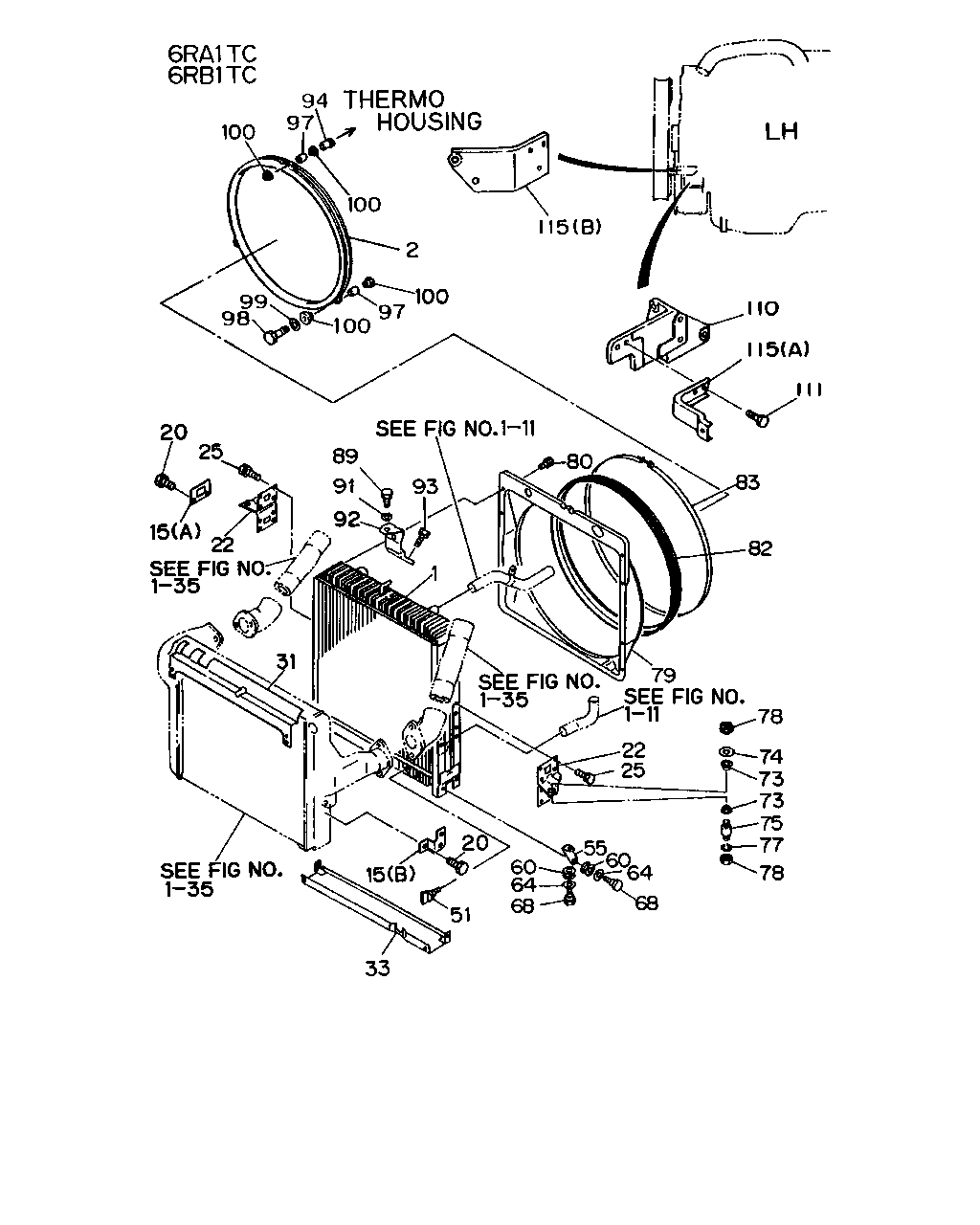

1-10A — RADIATOR (#2342) — 178 parça

33 15 51 20 68 60 64 68 64 60 55 25 78 22 77 78 74 73 73 75 79 82 83 80 111 115 110 115 2 100 94 97 100 99 98 100 97 100 20 25 89 1 31 22 15 92 91 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-531-2	01	1	9002-9306	●
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-634-0	01	1	9002-9306		●
1	RADIATOR ASM EXC. RADIATOR HEAVY DUTY<V05>	1-21410-501-1	01	1	9002-9306		●
1	RADIATOR ASM	1-21410-577-1	01	1	9002-			●
2	GUIDE; FAN	1-21551-235-3	01	1	9002-	●	●	●
15	BRACKET; PIPE,RAD (A)	1-21464-242-0	02	1	9002-	●		●
15	BRACKET; PIPE,RAD RADIATOR HEAVY DUTY<V05> (A)	1-21464-284-0	01	1	9002-9306		●
15	BRACKET; PIPE,RAD EXC. RADIATOR HEAVY DUTY<V05> (A)	1-21464-244-0	01	1	9002-9306		●
15	BRACKET; PIPE,RAD (B)	1-21464-211-0	01	1	9002-			●
20	BOLT; PIPE BRKT,RAD M10X16	9-02041-016-0	02	1	9002-	●		●
20	BOLT; PIPE BRKT,RAD RADIATOR HEAVY DUTY<V05> M8X20	9-01970-820-0	01	1	9002-9306		●
20	BOLT; PIPE BRKT,RAD EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9306		●
20	BOLT; PIPE BRKT,RAD M10X22	9-02041-022-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-096-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-095-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-115-1	01	1	9002-9306		●
22	BRACKET; RAD MTG	1-21464-114-1	01	1	9002-9306		●
22	BRACKET; RAD MTG	1-21464-182-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-181-0	01	1	9002-			●
25	BOLT; BRKT M8X22 W/LK&PL WASHER	9-01960-822-0	04	1	9002-9306	●
25	BOLT; BRKT RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01970-818-0	15	1	9002-9306		●
25	BOLT; BRKT EXC. RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01960-818-0	19	1	9002-9306		●
25	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	14	1	9002-			●
25	BOLT; BRKT M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-			●
31	BRACKET; UPR,RAD	1-21460-072-2	01	1	9002-9306	●
31	BRACKET; UPR,RAD RADIATOR HEAVY DUTY<V05>	1-21460-080-1	01	1	9002-9306		●
31	BRACKET; UPR,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21460-076-4	01	1	9002-9306		●
31	BRACKET; UPR,RAD	1-21460-081-0	01	1	9002-			●
33	PROTECTOR; RAD L=120	1-21419-030-2	01	1	9002-	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9002-	●	●	●
55	STAY; RAD TO UPR MBR	1-21464-081-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-081-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR	1-21464-080-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-080-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-113-1	01	1	9002-9306		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-112-1	01	1	9002-9306		●
60	GROMMET	1-09332-117-0	04	1	9002-	●	●	●
64	WASHER; STAY TO RAD ID=12.5 OD=26	9-09160-612-0	04	1	9002-	●	●	●
68	BOLT; STAY TO BRKT M8X30	1-09009-020-1	04	1	9002-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9002-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9002-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12XM10X55 L=90	1-21466-006-0	02	1	9002-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-412-0	02	1	9002-9304	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9305-	●	●	●
79	GUIDE; FAN,RAD	1-21551-275-0	01	1	9002-9306	●
79	GUIDE; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21551-216-1	01	1	9002-9306		●
79	GUIDE; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21551-242-1	01	1	9002-9306		●
79	GUIDE; FAN,RAD	1-21551-293-1	01	1	9002-			●
80	BOLT; FAN GUIDE RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	17	1	9002-9306		●
80	BOLT; FAN GUIDE EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9002-9306		●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9002-	●		●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9002-9202	●	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9203-	●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9002-9202	●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9203-	●	●	●
89	BOLT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●	●
89	BOLT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302	●	●	●
89	BOLT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
91	WASHER; PL ID=8.4 OD=22	9-09164-708-0	02	1	9002-	●	●	●
92	BRACKET; FAN GUIDE	1-21559-220-1	01	1	9002-	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
94	TUBE; DIST	1-11369-113-2	01	1	9002-	●	●	●
97	TUBE; DIST,FAN GUIDE	1-21559-183-0	03	1	9002-	●		●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9002-9306		●
98	BOLT; RAD FAN GUIDE M8X60	9-01055-860-0	02	1	9002-9005	●		●
98	BOLT; RAD FAN GUIDE M8X60	0-10805-860-0	02	1	9006-	●		●
98	BOLT; RAD FAN GUIDE M8X105	9-09801-346-1	01	1	9002-	●		●
98	BOLT; RAD FAN GUIDE M8X45	9-01055-845-0	02	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X45	0-10805-845-0	02	1	9006-9306		●
98	BOLT; RAD FAN GUIDE M8X85	9-01055-885-0	01	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X85	0-10805-885-0	01	1	9006-9306		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9002-9310	●	●	●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9311-			●
100	RUBBER; MTG	1-09337-017-0	06	1	9002-	●	●	●
110	STAY; FAN GUIDE	1-83571-391-0	01	1	9002-	●		●
110	STAY; FAN GUIDE	1-83571-318-1	01	1	9002-9306		●
111	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	02	1	9002-	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-210-0	01	1	9002-	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-219-1	01	1	9002-	●	●	●

115 94 97 100 100 2 97 100 100 99 98 89 110 115 111 80 83 82 91 92 93 31 25 22 71 62 66 41 3 1 85 51 33 68 68 20 64 60 55 60 64 15 25 22 78 79 73 74 73 75 77 78

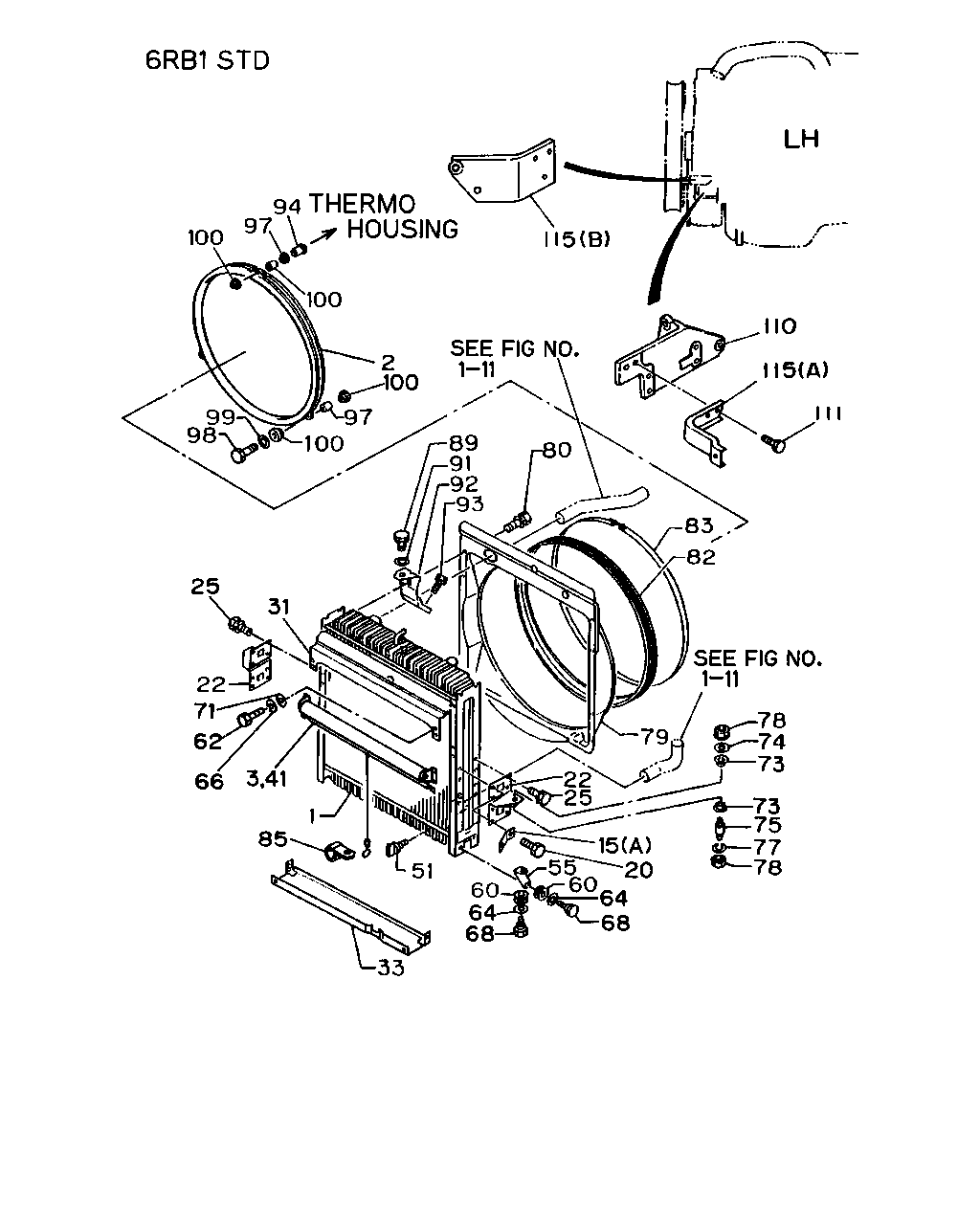

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-531-2	01	1	9002-9306	●
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-634-0	01	1	9002-9306		●
1	RADIATOR ASM EXC. RADIATOR HEAVY DUTY<V05>	1-21410-501-1	01	1	9002-9306		●
1	RADIATOR ASM	1-21410-577-1	01	1	9002-			●
2	GUIDE; FAN	1-21551-235-3	01	1	9002-	●	●	●
3	COVER; RAD RADIATOR CURTAIN<SK7> EXC. RADIATOR HEAVY DUTY<V05>	1-21511-090-1	01	1	9002-9306		●
15	BRACKET; PIPE,RAD (A)	1-21464-242-0	02	1	9002-	●		●
15	BRACKET; PIPE,RAD RADIATOR HEAVY DUTY<V05> (A)	1-21464-284-0	01	1	9002-9306		●
15	BRACKET; PIPE,RAD EXC. RADIATOR HEAVY DUTY<V05> (A)	1-21464-244-0	01	1	9002-9306		●
15	BRACKET; PIPE,RAD (B)	1-21464-211-0	01	1	9002-			●
20	BOLT; PIPE BRKT,RAD M10X16	9-02041-016-0	02	1	9002-	●		●
20	BOLT; PIPE BRKT,RAD RADIATOR HEAVY DUTY<V05> M8X20	9-01970-820-0	01	1	9002-9306		●
20	BOLT; PIPE BRKT,RAD EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9306		●
20	BOLT; PIPE BRKT,RAD M10X22	9-02041-022-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-096-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-095-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-115-1	01	1	9002-9306		●
22	BRACKET; RAD MTG	1-21464-114-1	01	1	9002-9306		●
22	BRACKET; RAD MTG	1-21464-182-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-181-0	01	1	9002-			●
25	BOLT; BRKT M8X22 W/LK&PL WASHER	9-01960-822-0	04	1	9002-9306	●
25	BOLT; BRKT RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01970-818-0	15	1	9002-9306		●
25	BOLT; BRKT EXC. RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01960-818-0	19	1	9002-9306		●
25	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	14	1	9002-			●
25	BOLT; BRKT M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-			●
31	BRACKET; UPR,RAD	1-21460-072-2	01	1	9002-9306	●
31	BRACKET; UPR,RAD RADIATOR HEAVY DUTY<V05>	1-21460-080-1	01	1	9002-9306		●
31	BRACKET; UPR,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21460-076-4	01	1	9002-9306		●
31	BRACKET; UPR,RAD	1-21460-081-0	01	1	9002-			●
33	PROTECTOR; RAD L=120	1-21419-030-2	01	1	9002-	●	●	●
41	SHUTTER ASM; RAD RADIATOR CURTAIN<SK7> RADIATOR HEAVY DUTY<V05>	1-21511-090-1	01	1	9002-9306		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9002-	●	●	●
55	STAY; RAD TO UPR MBR	1-21464-081-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-081-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR	1-21464-080-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-080-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-113-1	01	1	9002-9306		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-112-1	01	1	9002-9306		●
60	GROMMET	1-09332-117-0	04	1	9002-	●	●	●
62	BOLT; STAY RADIATOR HEAVY DUTY<V05> M10X20	9-02041-020-0	04	1	9002-9306		●
64	WASHER; STAY TO RAD ID=12.5 OD=26	9-09160-612-0	04	1	9002-	●	●	●
66	WASHER; LK,STAY RADIATOR HEAVY DUTY<V05> ID=10.2	9-09150-510-0	04	1	9002-9306		●
68	BOLT; STAY TO BRKT M8X30	1-09009-020-1	04	1	9002-	●	●	●
71	WASHER; PL,STAY RADIATOR HEAVY DUTY<V05> ID=10.5 OD=22	9-09160-610-0	04	1	9002-9306		●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9002-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9002-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12XM10X55 L=90	1-21466-006-0	02	1	9002-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-412-0	02	1	9002-9304	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9305-	●	●	●
79	GUIDE; FAN,RAD	1-21551-275-0	01	1	9002-9306	●
79	GUIDE; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21551-216-1	01	1	9002-9306		●
79	GUIDE; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21551-242-1	01	1	9002-9306		●
79	GUIDE; FAN,RAD	1-21551-293-1	01	1	9002-			●
80	BOLT; FAN GUIDE RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	17	1	9002-9306		●
80	BOLT; FAN GUIDE EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9002-9306		●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9002-	●		●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9002-9202	●	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9203-	●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9002-9202	●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9203-	●	●	●
85	CLIP RADIATOR CURTAIN<SK7> EXC. RADIATOR HEAVY DUTY<V05>	9-09520-835-0	01	1	9002-9306		●
89	BOLT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●	●
89	BOLT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302	●	●	●
89	BOLT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
91	WASHER; PL ID=8.4 OD=22	9-09164-708-0	02	1	9002-	●	●	●
92	BRACKET; FAN GUIDE	1-21559-220-1	01	1	9002-	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
94	TUBE; DIST	1-11369-113-2	01	1	9002-	●	●	●
97	TUBE; DIST,FAN GUIDE	1-21559-183-0	03	1	9002-	●		●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9002-9306		●
98	BOLT; RAD FAN GUIDE M8X60	9-01055-860-0	02	1	9002-9005	●		●
98	BOLT; RAD FAN GUIDE M8X60	0-10805-860-0	02	1	9006-	●		●
98	BOLT; RAD FAN GUIDE M8X105	9-09801-346-1	01	1	9002-	●		●
98	BOLT; RAD FAN GUIDE M8X45	9-01055-845-0	02	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X45	0-10805-845-0	02	1	9006-9306		●
98	BOLT; RAD FAN GUIDE M8X85	9-01055-885-0	01	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X85	0-10805-885-0	01	1	9006-9306		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9002-9310	●	●	●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9311-			●
100	RUBBER; MTG	1-09337-017-0	06	1	9002-	●	●	●
110	STAY; FAN GUIDE	1-83571-391-0	01	1	9002-	●		●
110	STAY; FAN GUIDE	1-83571-318-1	01	1	9002-9306		●
111	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	02	1	9002-	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-210-0	01	1	9002-	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-219-1	01	1	9002-	●	●	●
