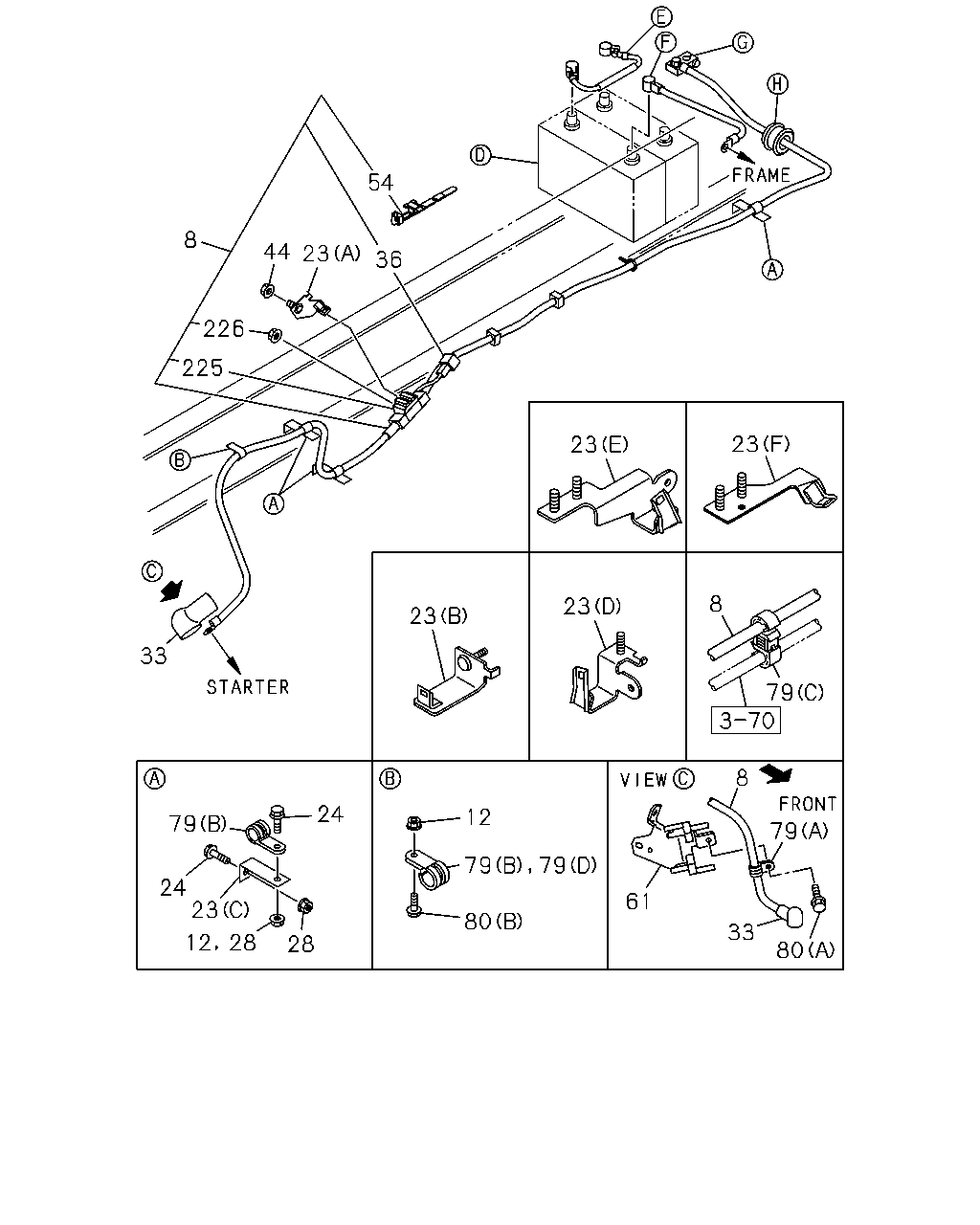

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#23417) — 73 parça

36 54 23 44 226 225 8 23 23 23 8 79 23 12 79 80 79 61 33 80 79 8 28 28 12 24 79 24 33 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ANTI LOCK BRAKE<JE5>	8-98295-548-0	01	1	1502-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. ANTI LOCK BRAKE<JE5>	8-98295-549-0	01	1	1502-
8	CABLE; BATTERY,STARTER ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98296-281-0	01	1	1502-
8	CABLE; BATTERY,STARTER ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA>	8-98296-280-0	01	1	1502-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98126-538-0	01	1	1001-1004
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98159-450-0	01	1	1005-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98126-537-0	01	1	1001-1004
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-449-0	01	1	1005-1502
12	NUT; BATTERY CABLE CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
12	NUT; BATTERY CABLE CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME ANTI LOCK BRAKE<JE5> (C) L=95	1-82699-085-0	05	1	1502-
23	BRACKET; CABLE CLIP TO FRAME ANTI LOCK BRAKE<JE5> (F)	8-98201-147-0	01	1	1503-
23	BRACKET; CABLE CLIP TO FRAME ANTI LOCK BRAKE<JE5> (C) L=55	1-47475-304-0	01	1	1502-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	1001-1501
23	BRACKET; CABLE CLIP TO FRAME EXC. ANTI LOCK BRAKE<JE5> (C) L=95	1-82699-085-0	03	1	1502-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98091-358-0	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98092-593-0	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98126-541-0	01	1	1001-1111
23	BRACKET; CABLE CLIP TO FRAME (E)	8-98195-170-0	01	1	1112-1502
23	BRACKET; CABLE CLIP TO FRAME EXC. ANTI LOCK BRAKE<JE5> (E)	8-98195-170-0	01	1	1503-
24	BOLT; BRKT TO FRAME ANTI LOCK BRAKE<JE5> M8X30 FLANGE	0-28650-830-0	03	1	1502-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1001-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1001-
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	01	1	1001-1111
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	03	1	1001-1501
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	03	1	1502-
28	NUT; BRKT TO FRAME ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	03	1	1502-
28	NUT; BRKT TO FRAME M10 FLANGE SOU	0-91180-210-0	01	1	1001-
33	CAP; INSULATOR	1-82699-431-0	01	1	1001-
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1502-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1001-1502
44	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	1001-1004
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1001-
79	CLIP; BATTERY CABLE ANTI LOCK BRAKE<JE5> (D) ID=19 L=24 H=21	1-09700-109-1	01	1	1503-
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	1001-1004
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-
79	CLIP; BATTERY CABLE (C) ID=10 & 10	1-09709-277-1	01	1	1001-
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	1001-1502
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	1001-1502
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	1503-
79	CLIP; BATTERY CABLE EXC. ANTI LOCK BRAKE<JE5> (B) ID=21 L=24	8-98019-191-0	01	1	1503-
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1502-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1001-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1502-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1001-1502

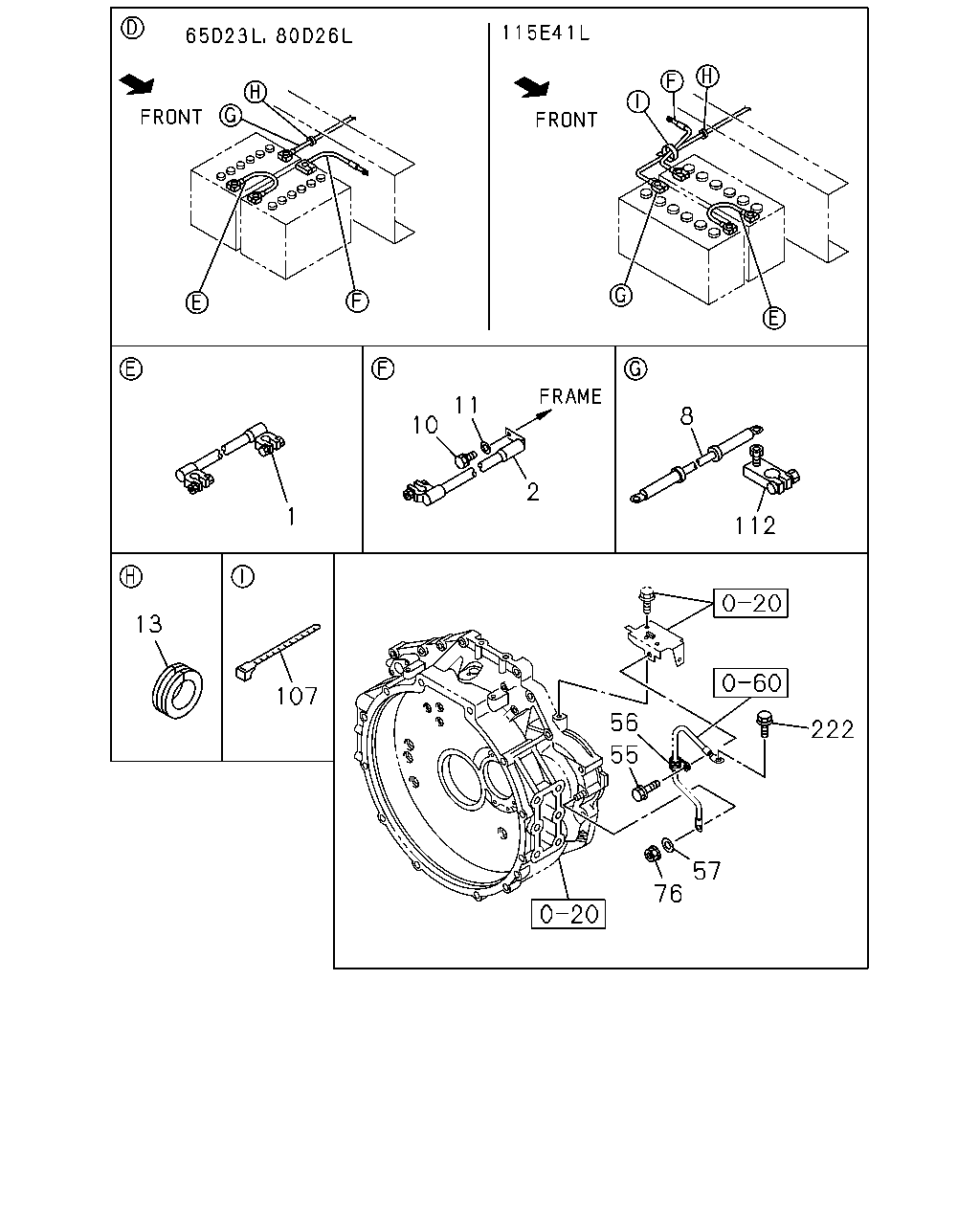

11 8 10 2 1 112 13 107 56 222 55 57 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1001-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	1001-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1001-
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ANTI LOCK BRAKE<JE5>	8-98295-548-0	01	1	1502-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. ANTI LOCK BRAKE<JE5>	8-98295-549-0	01	1	1502-
8	CABLE; BATTERY,STARTER ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98296-281-0	01	1	1502-
8	CABLE; BATTERY,STARTER ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA>	8-98296-280-0	01	1	1502-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98126-538-0	01	1	1001-1004
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98159-450-0	01	1	1005-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98126-537-0	01	1	1001-1004
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-449-0	01	1	1005-1502
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1001-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1001-
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1001-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1001-
76	NUT; BATTERY CABLE M10 FLANGE SOU	0-91180-210-0	01	1	1001-
107	CLIP; BAND L=140 SOU	5-09707-031-1	01	1	1001-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1001-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1001-
