Sayfa 1-01B - Isuzu EPC

1-01B — ACCELERATOR PEDAL AND CONTROL (#2341) — 246 parça

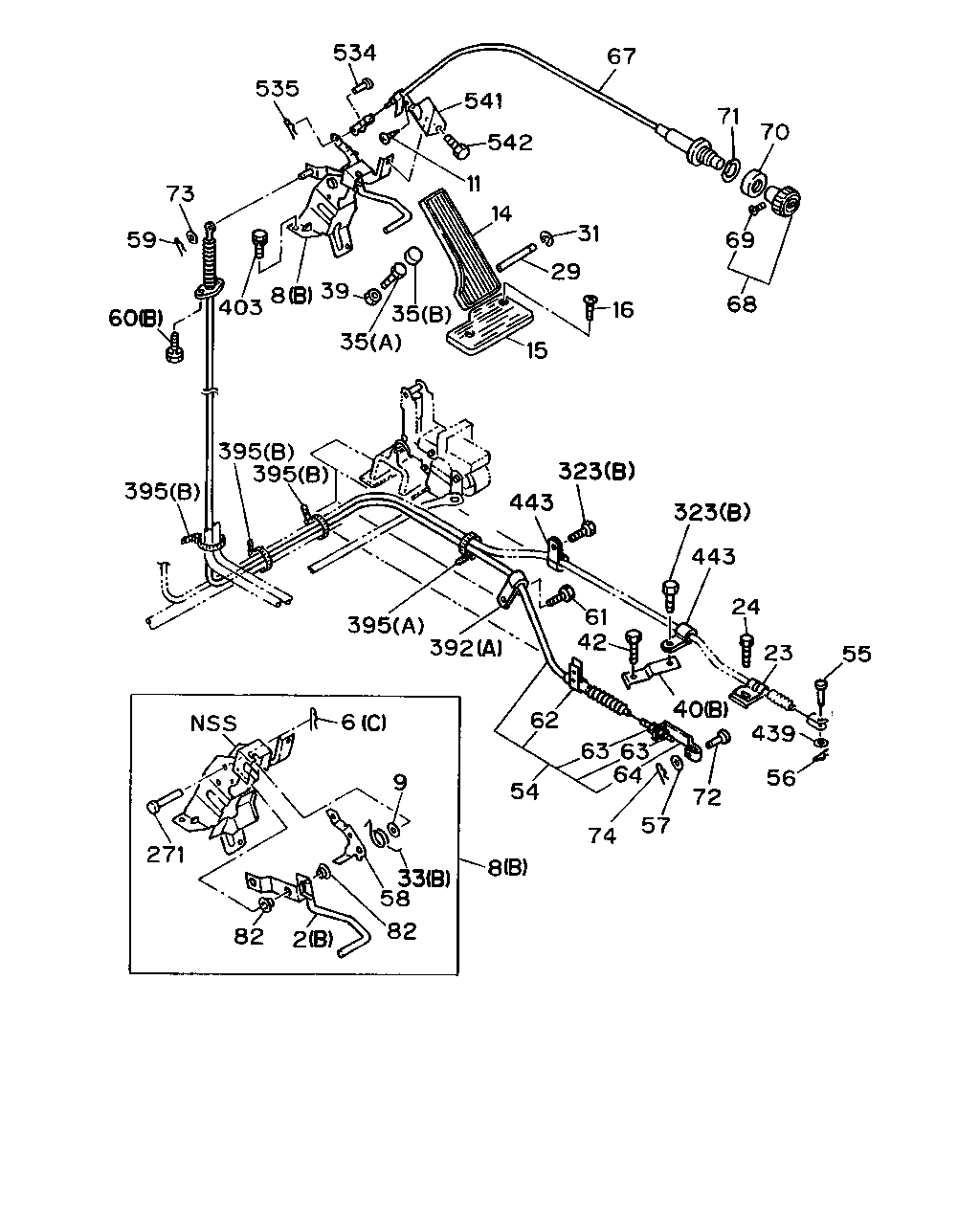

271 82 2 82 58 9 6 33 8 54 62 392 395 63 63 64 74 57 56 72 40 439 55 23 24 443 323 323 443 61 42 15 16 68 69 70 71 67 541 11 542 14 31 29 35 35 39 8 403 395 395 395 60 59 73 535 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT EXZ&RHD(EX5*) (A)	1-73997-904-1	01	1	9002-	●
2	LEVER; ENG CONT (A)	1-73997-904-1	01	1	9002-		●
2	LEVER; ENG CONT (B)	1-73997-796-5	01	1	9002-			●
2	LEVER; ENG CONT EXZ&LHD(EX6*) (B)	1-73997-796-5	01	1	9002-	●
6	RING; SNAP,LINK TO LINK EXZ&RHD(EX5*) (A) ID=6	9-09185-406-0	01	1	9002-	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9002-		●
6	RING; SNAP,LINK TO LINK EXZ&RHD(EX5*) (B) ID=9	9-09185-409-0	01	1	9002-9307	●
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	9002-9307		●
6	RING; SNAP,LINK TO LINK EXZ&RHD(EX5*) (B) ID=8	9-09185-408-0	01	1	9308-	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9308-		●
6	RING; SNAP,LINK TO LINK (C) L=27.7	8-94202-777-0	01	1	9002-			●
6	RING; SNAP,LINK TO LINK EXZ&LHD(EX6*) (C) L=27.7	8-94202-777-0	01	1	9002-	●
8	LINK ASM; ENG CONT EXZ&RHD(EX5*) (A)	1-23240-067-2	01	1	9002-	●
8	LINK ASM; ENG CONT (A)	1-23240-067-2	01	1	9002-		●
8	LINK ASM; ENG CONT (B)	1-23240-050-7	01	1	9002-			●
8	LINK ASM; ENG CONT EXZ&LHD(EX6*) (B)	1-23240-050-7	01	1	9002-	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9002-	●	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●	●
15	STAND; HEEL,ACCEL PEDAL EXZ&RHD(EX5*)	1-73997-675-3	01	1	9002-9305	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9002-9305		●
15	STAND; HEEL,ACCEL PEDAL EXZ&RHD(EX5*)	1-73907-266-2	01	1	9306-	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-		●
15	STAND; HEEL,ACCEL PEDAL	1-73997-770-1	01	1	9002-			●
15	STAND; HEEL,ACCEL PEDAL EXZ&LHD(EX6*)	1-73997-770-1	01	1	9002-	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●	●
33	SPRING; IDLING CONT LEVER EXZ&RHD(EX5*) (A)	1-73997-906-0	01	1	9002-	●
33	SPRING; IDLING CONT LEVER (A)	1-73997-906-0	01	1	9002-		●
33	SPRING; IDLING CONT LEVER (B)	1-73997-824-0	01	1	9002-			●
33	SPRING; IDLING CONT LEVER EXZ&LHD(EX6*) (B)	1-73997-824-0	01	1	9002-	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●	●
35	STOPPER; ACCEL PEDAL (B)	1-23249-009-0	01	1	9002-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●	●
40	BRACKET; ENG CONT CABLE EXZ&RHD(EX5*) (A)	1-73997-632-1	01	1	9002-	●
40	BRACKET; ENG CONT CABLE (A)	1-73997-632-1	01	1	9002-		●
40	BRACKET; ENG CONT CABLE (B)	1-47476-527-0	01	1	9002-			●
40	BRACKET; ENG CONT CABLE EXZ&LHD(EX6*) (B)	1-47476-527-0	01	1	9002-	●
40	BRACKET; ENG CONT CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> (C)	1-15779-372-0	01	1	9411-	●
42	BOLT; BRKT,ENG CONT CABLE EXZ&RHD(EX5*) M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301		●
42	BOLT; BRKT,ENG CONT CABLE EXZ&RHD(EX5*) M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-		●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> M8X20 FLANGE	0-28080-820-0	02	1	9411-	●
54	CABLE; ENG CONT L=1945	1-23210-750-7	01	1	9002-9306			●
54	CABLE; ENG CONT EXZ&RHD(EX5*) L=1610	1-23210-700-9	01	1	9002-	●
54	CABLE; ENG CONT EXZ&LHD(EX6*) L=1995	1-23210-748-6	01	1	9002-	●
54	CABLE; ENG CONT L=2361	1-79997-364-1	01	1	9307-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
58	LEVER; IDLING CONT EXZ&RHD(EX5*)	1-73997-905-1	01	1	9002-	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9002-		●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9002-			●
58	LEVER; IDLING CONT EXZ&LHD(EX6*)	1-73997-781-2	01	1	9002-	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9002-	●	●	●
60	BOLT; CABLE EXZ&RHD(EX5*) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9002-	●
60	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9002-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X16 FLANGE	0-28080-616-0	02	1	9307-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9302	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-508-0	02	1	9002-9306	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9307-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●	●
67	CABLE ASM; IDLE CONT EXZ&RHD(EX5*) L=422	1-73997-647-0	01	1	9002-	●
67	CABLE ASM; IDLE CONT L=422	1-73997-647-0	01	1	9002-		●
67	CABLE ASM; IDLE CONT L=347	1-73997-789-0	01	1	9002-			●
67	CABLE ASM; IDLE CONT EXZ&LHD(EX6*) L=347	1-73997-789-0	01	1	9002-	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●	●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9002-			●
271	SHAFT; ENG CONT EXZ&LHD(EX6*)	1-09987-081-0	01	1	9002-	●
323	BOLT; CLIP EXZ&RHD(EX5*) (A) M8X20 FLANGE	0-28080-820-0	01	1	9307-9410	●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9307-9410		●
323	BOLT; CLIP EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-	●
323	BOLT; CLIP EXZ&RHD(EX5*) (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-	●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-		●
323	BOLT; CLIP (B) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●		●
323	BOLT; CLIP (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●		●
323	BOLT; CLIP (B) M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-	●	●	●
395	CLIP; BAND,ACCEL CONT CABLE (B) L=250	5-09707-030-0	03	1	9002-			●
395	CLIP; BAND,ACCEL CONT CABLE EXZ&LHD(EX6*) (B) L=250	5-09707-030-0	03	1	9002-	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	01	1	9307-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●	●
443	CLIP; CABLE EXZ&RHD(EX5*) EXC. AUTO ENG SHUTOFF<KB6> ID=9 L=20	9-09524-835-0	01	1	9307-	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	01	1	9307-		●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9002-9306	●		●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF<KB6> ID=9 L=20	9-09524-835-0	02	1	9307-	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9307-		●
443	CLIP; CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	02	1	9307-9410	●
443	CLIP; CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	03	1	9411-	●
443	CLIP; CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	01	1	9307-	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●	●
541	BRACKET; IDLING CONT CABLE	1-73997-797-1	01	1	9002-			●
541	BRACKET; IDLING CONT CABLE EXZ&LHD(EX6*)	1-73997-797-1	01	1	9002-	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204			●
542	BOLT; BRKT,IDLING CONT CABLE EXZ&LHD(EX6*) M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-			●
542	BOLT; BRKT,IDLING CONT CABLE EXZ&LHD(EX6*) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●

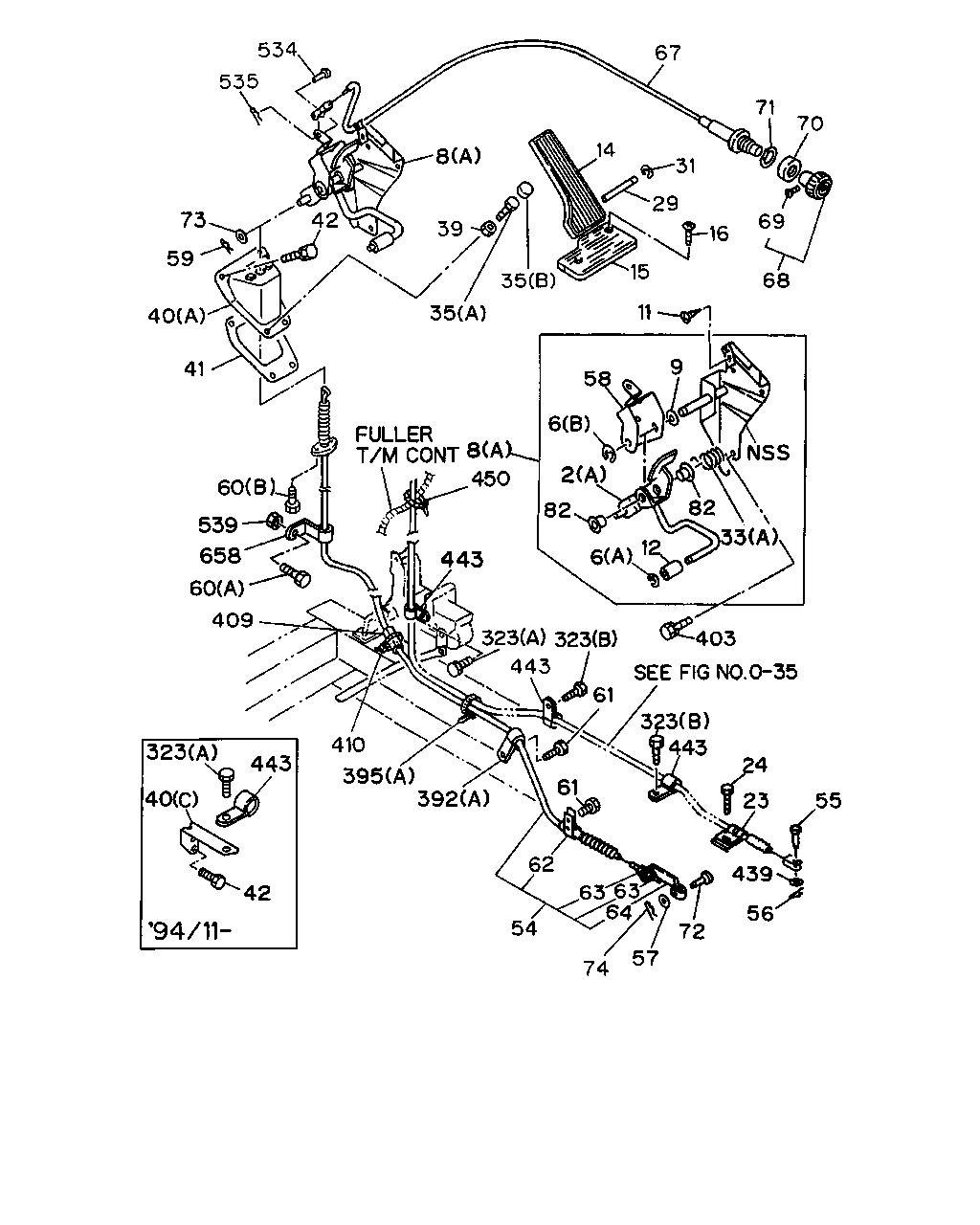

40 42 443 323 409 60 658 539 60 410 395 392 62 54 74 63 63 64 57 439 72 56 55 23 443 61 24 323 61 443 323 323 403 33 82 12 6 443 450 2 82 6 58 9 68 69 16 11 15 29 31 14 70 71 67 8 35 35 39 8 42 41 40 59 73 535 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT EXZ&RHD(EX5*) (A)	1-73997-904-1	01	1	9002-	●
2	LEVER; ENG CONT (A)	1-73997-904-1	01	1	9002-		●
2	LEVER; ENG CONT (B)	1-73997-796-5	01	1	9002-			●
2	LEVER; ENG CONT EXZ&LHD(EX6*) (B)	1-73997-796-5	01	1	9002-	●
6	RING; SNAP,LINK TO LINK EXZ&RHD(EX5*) (A) ID=6	9-09185-406-0	01	1	9002-	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9002-		●
6	RING; SNAP,LINK TO LINK EXZ&RHD(EX5*) (B) ID=9	9-09185-409-0	01	1	9002-9307	●
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	9002-9307		●
6	RING; SNAP,LINK TO LINK EXZ&RHD(EX5*) (B) ID=8	9-09185-408-0	01	1	9308-	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9308-		●
6	RING; SNAP,LINK TO LINK (C) L=27.7	8-94202-777-0	01	1	9002-			●
6	RING; SNAP,LINK TO LINK EXZ&LHD(EX6*) (C) L=27.7	8-94202-777-0	01	1	9002-	●
8	LINK ASM; ENG CONT EXZ&RHD(EX5*) (A)	1-23240-067-2	01	1	9002-	●
8	LINK ASM; ENG CONT (A)	1-23240-067-2	01	1	9002-		●
8	LINK ASM; ENG CONT (B)	1-23240-050-7	01	1	9002-			●
8	LINK ASM; ENG CONT EXZ&LHD(EX6*) (B)	1-23240-050-7	01	1	9002-	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9002-	●	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●	●
12	ROLLER; ENG CONT LEVER EXZ&RHD(EX5*)	1-09989-007-0	01	1	9002-	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9002-		●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●	●
15	STAND; HEEL,ACCEL PEDAL EXZ&RHD(EX5*)	1-73997-675-3	01	1	9002-9305	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9002-9305		●
15	STAND; HEEL,ACCEL PEDAL EXZ&RHD(EX5*)	1-73907-266-2	01	1	9306-	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-		●
15	STAND; HEEL,ACCEL PEDAL	1-73997-770-1	01	1	9002-			●
15	STAND; HEEL,ACCEL PEDAL EXZ&LHD(EX6*)	1-73997-770-1	01	1	9002-	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●	●
33	SPRING; IDLING CONT LEVER EXZ&RHD(EX5*) (A)	1-73997-906-0	01	1	9002-	●
33	SPRING; IDLING CONT LEVER (A)	1-73997-906-0	01	1	9002-		●
33	SPRING; IDLING CONT LEVER (B)	1-73997-824-0	01	1	9002-			●
33	SPRING; IDLING CONT LEVER EXZ&LHD(EX6*) (B)	1-73997-824-0	01	1	9002-	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●	●
35	STOPPER; ACCEL PEDAL (B)	1-23249-009-0	01	1	9002-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●	●
40	BRACKET; ENG CONT CABLE EXZ&RHD(EX5*) (A)	1-73997-632-1	01	1	9002-	●
40	BRACKET; ENG CONT CABLE (A)	1-73997-632-1	01	1	9002-		●
40	BRACKET; ENG CONT CABLE (B)	1-47476-527-0	01	1	9002-			●
40	BRACKET; ENG CONT CABLE EXZ&LHD(EX6*) (B)	1-47476-527-0	01	1	9002-	●
40	BRACKET; ENG CONT CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> (C)	1-15779-372-0	01	1	9411-	●
41	SEAL; BRKT,ENG CONT CABLE EXZ&RHD(EX5*)	1-73998-451-0	01	1	9002-	●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	9002-		●
42	BOLT; BRKT,ENG CONT CABLE EXZ&RHD(EX5*) M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301		●
42	BOLT; BRKT,ENG CONT CABLE EXZ&RHD(EX5*) M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-		●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> M8X20 FLANGE	0-28080-820-0	02	1	9411-	●
54	CABLE; ENG CONT L=1945	1-23210-750-7	01	1	9002-9306			●
54	CABLE; ENG CONT EXZ&RHD(EX5*) L=1610	1-23210-700-9	01	1	9002-	●
54	CABLE; ENG CONT EXZ&LHD(EX6*) L=1995	1-23210-748-6	01	1	9002-	●
54	CABLE; ENG CONT L=2361	1-79997-364-1	01	1	9307-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
58	LEVER; IDLING CONT EXZ&RHD(EX5*)	1-73997-905-1	01	1	9002-	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9002-		●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9002-			●
58	LEVER; IDLING CONT EXZ&LHD(EX6*)	1-73997-781-2	01	1	9002-	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9002-	●	●	●
60	BOLT; CABLE EXZ&RHD(EX5*) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9002-	●
60	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9002-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X16 FLANGE	0-28080-616-0	02	1	9307-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9302	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-508-0	02	1	9002-9306	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9307-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●	●
67	CABLE ASM; IDLE CONT EXZ&RHD(EX5*) L=422	1-73997-647-0	01	1	9002-	●
67	CABLE ASM; IDLE CONT L=422	1-73997-647-0	01	1	9002-		●
67	CABLE ASM; IDLE CONT L=347	1-73997-789-0	01	1	9002-			●
67	CABLE ASM; IDLE CONT EXZ&LHD(EX6*) L=347	1-73997-789-0	01	1	9002-	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●	●
323	BOLT; CLIP EXZ&RHD(EX5*) (A) M8X20 FLANGE	0-28080-820-0	01	1	9307-9410	●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9307-9410		●
323	BOLT; CLIP EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-	●
323	BOLT; CLIP EXZ&RHD(EX5*) (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-	●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9411-		●
323	BOLT; CLIP (B) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●		●
323	BOLT; CLIP (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●		●
323	BOLT; CLIP (B) M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-	●	●	●
395	CLIP; BAND,ACCEL CONT CABLE (B) L=250	5-09707-030-0	03	1	9002-			●
395	CLIP; BAND,ACCEL CONT CABLE EXZ&LHD(EX6*) (B) L=250	5-09707-030-0	03	1	9002-	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	01	1	9307-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●	●
409	SLEEVE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=12.5 OD=15.5 L=30	9-09714-002-0	01	1	9307-9410	●
410	CLIP; BAND EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> L=100	5-09707-036-0	01	1	9307-9410	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●	●
443	CLIP; CABLE EXZ&RHD(EX5*) EXC. AUTO ENG SHUTOFF<KB6> ID=9 L=20	9-09524-835-0	01	1	9307-	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	01	1	9307-		●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9002-9306	●		●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF<KB6> ID=9 L=20	9-09524-835-0	02	1	9307-	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9307-		●
443	CLIP; CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	02	1	9307-9410	●
443	CLIP; CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	03	1	9411-	●
443	CLIP; CABLE EXZ&RHD(EX5*) AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	01	1	9307-	●
450	CLIP; BAND EXZ&RHD(EX5*) FULLER M/T<X9B> L=140	5-09707-031-0	01	1	9008-	●
450	CLIP; BAND FULLER M/T<X9B> L=140	5-09707-031-0	01	1	9008-		●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●	●
539	NUT; CLIP EXZ&RHD(EX5*) M6 FLANGE	1-09984-141-0	01	1	9002-	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	9002-		●
658	CLIP; ENG CONT CABLE EXZ&RHD(EX5*) ID=13 H=24 L=20	9-09527-012-0	02	1	9002-	●
658	CLIP; ENG CONT CABLE ID=13 H=24 L=20	9-09527-012-0	02	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
