1-01A — ACCELERATOR PEDAL AND CONTROL (#2340) — 175 parça

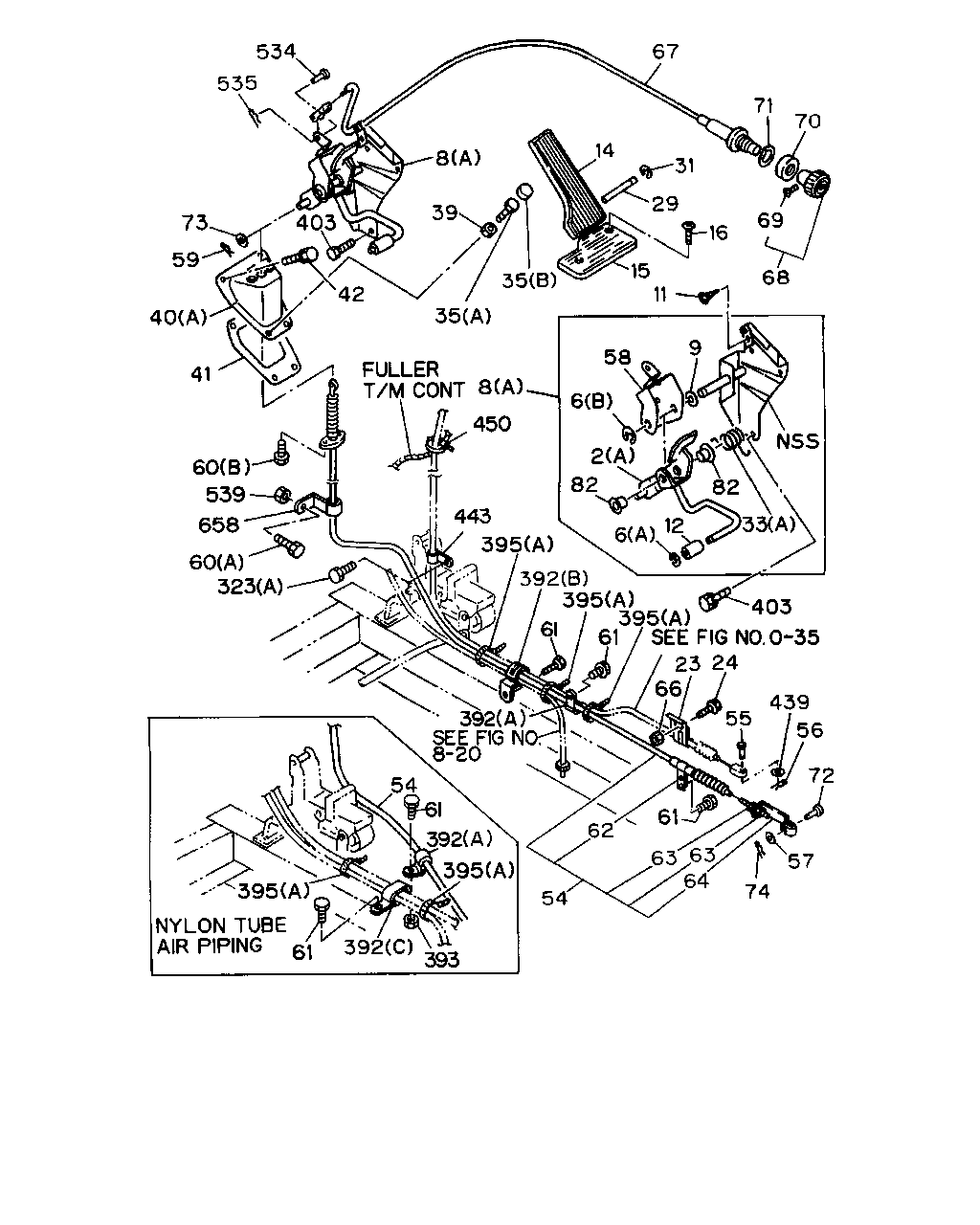

çizim 27443
534 535 73 59 403 8 39 42 40 41 60 539 658 60 323 54 61 395 392 395 392 61 393 54 62 392 61 63 63 64 74 57 72 439 56 55 24 23 66 61 61 403 395 395 392 395 443 450 8 35 35 14 67 71 70 69 68 16 31 29 15 11 58 6 9 82 33 12 6 82 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT
(A) 		1-73997-904-1 01 1 9002- ● ●
2 LEVER; ENG CONT
EXZ&RHD(EX*5**) (A) 		1-73997-904-1 01 1 9002- ●
2 LEVER; ENG CONT
EXZ&LHD(EX*6**) (B) 		1-73997-796-5 01 1 9002-9306 ●
6 RING; SNAP,LINK TO LINK
(A) ID=6 		9-09185-406-0 01 1 9002- ● ●
6 RING; SNAP,LINK TO LINK
EXZ&RHD(EX*5**) (A) ID=6 		9-09185-406-0 01 1 9002- ●
6 RING; SNAP,LINK TO LINK
(B) ID=9 		9-09185-409-0 01 1 9002-9307 ● ●
6 RING; SNAP,LINK TO LINK
EXZ&RHD(EX*5**) (B) ID=9 		9-09185-409-0 01 1 9002-9307 ●
6 RING; SNAP,LINK TO LINK
(B) ID=8 		9-09185-408-0 01 1 9308- ●
6 RING; SNAP,LINK TO LINK
EXZ&LHD(EX*6**) (C) L=27.7 		8-94202-777-0 01 1 9002-9306 ●
8 LINK ASM; ENG CONT
(A) 		1-23240-067-2 01 1 9002- ● ●
8 LINK ASM; ENG CONT
EXZ&RHD(EX*5**) (A) 		1-23240-067-2 01 1 9002- ●
8 LINK ASM; ENG CONT
EXZ&LHD(EX*6**) (B) 		1-23240-050-7 01 1 9002-9306 ●
9 WASHER; PL,CONT LINK
ID=10.5 OD=16 		9-09855-178-0 01 1 9002- ● ● ●
11 SCREW; IDLE CONT CABLE
M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9002- ● ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9002- ● ●
12 ROLLER; ENG CONT LEVER
EXZ&RHD(EX*5**) 		1-09989-007-0 01 1 9002- ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9002- ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73997-675-3 01 1 9002-9305 ● ●
15 STAND; HEEL,ACCEL PEDAL
EXZ&RHD(EX*5**) 		1-73997-675-3 01 1 9002-9305 ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9306- ● ●
15 STAND; HEEL,ACCEL PEDAL
EXZ&RHD(EX*5**) 		1-73907-266-2 01 1 9306- ●
15 STAND; HEEL,ACCEL PEDAL
EXZ&LHD(EX*6**) 		1-73997-770-1 01 1 9002-9306 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X24 W/PL WASHER 		1-09981-504-0 02 1 9002- ● ● ●
23 BRACKET; FUEL CUT CABLE 1-14319-082-0 01 1 9002- ● ● ●
24 BOLT; BRKT 5-09030-026-0 01 1 9002- ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 9002- ● ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 9002- ● ● ●
33 SPRING; IDLING CONT LEVER
(A) 		1-73997-906-0 01 1 9002- ● ●
33 SPRING; IDLING CONT LEVER
EXZ&RHD(EX*5**) (A) 		1-73997-906-0 01 1 9002- ●
33 SPRING; IDLING CONT LEVER
EXZ&LHD(EX*6**) (B) 		1-73997-824-0 01 1 9002-9306 ●
35 STOPPER; ACCEL PEDAL
(A) 		1-09980-582-0 01 1 9002- ● ● ●
35 STOPPER; ACCEL PEDAL
(B) 		1-23249-009-0 01 1 9002- ● ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		8-94279-060-0 01 1 9002- ● ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-73997-632-1 01 1 9002- ● ●
40 BRACKET; ENG CONT CABLE
EXZ&RHD(EX*5**) (A) 		1-73997-632-1 01 1 9002- ●
41 SEAL; BRKT,ENG CONT CABLE 1-73998-451-0 01 1 9002- ● ●
41 SEAL; BRKT,ENG CONT CABLE
EXZ&RHD(EX*5**) 		1-73998-451-0 01 1 9002- ●
42 BOLT; BRKT,ENG CONT CABLE
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002-9301 ● ●
42 BOLT; BRKT,ENG CONT CABLE
EXZ&RHD(EX*5**) M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002-9301 ●
42 BOLT; BRKT,ENG CONT CABLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9302- ● ●
42 BOLT; BRKT,ENG CONT CABLE
EXZ&RHD(EX*5**) M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9302- ●
54 CABLE; ENG CONT
L=2445 		1-23210-794-6 01 1 9002- ● ●
54 CABLE; ENG CONT
EXZ&RHD(EX*5**) L=2445 		1-23210-794-6 01 1 9002- ●
54 CABLE; ENG CONT
EXZ&LHD(EX*6**) L=2780 		1-23210-751-6 01 1 9002-9306 ●
55 PIN; JAW JOINT
L=11 		1-09744-102-0 01 1 9002- ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9002- ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9002- ● ● ●
58 LEVER; IDLING CONT 1-73997-905-1 01 1 9002- ● ●
58 LEVER; IDLING CONT
EXZ&RHD(EX*5**) 		1-73997-905-1 01 1 9002- ●
58 LEVER; IDLING CONT
EXZ&LHD(EX*6**) 		1-73997-781-2 01 1 9002-9306 ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9002- ● ● ●
60 BOLT; CABLE
(B) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9002- ● ● ●
60 BOLT; CABLE
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 01 1 9002- ● ●
60 BOLT; CABLE
EXZ&RHD(EX*5**) (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 01 1 9002- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9204 ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9302 ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9303-9306 ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M6X16 FLANGE 		0-28080-616-0 02 1 9307- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE 		0-28080-816-0 02 1 9307- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9307- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9002- ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-508-0 02 1 9002-9306 ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9307- ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9002- ● ● ●
66 NUT; BRKT
M8 		9-09110-408-0 01 1 9002- ● ● ●
67 CABLE ASM; IDLE CONT
L=422 		1-73997-647-0 01 1 9002- ● ●
67 CABLE ASM; IDLE CONT
EXZ&RHD(EX*5**) L=422 		1-73997-647-0 01 1 9002- ●
67 CABLE ASM; IDLE CONT
EXZ&LHD(EX*6**) L=347 		1-73997-789-0 01 1 9002-9306 ●
68 KNOB; IDLE CONT
W/SCREW 		8-94134-716-0 01 1 9002- ● ● ●
69 SCREW; KNOB,IDLE CONT 5-09120-004-0 01 1 9002- ● ● ●
70 NUT; CONT CABLE
M18 RING NUT 		5-09409-004-1 01 1 9002- ● ● ●
71 WASHER; WAVE,CONT CABLE
ID=18.5 		5-09550-005-0 01 1 9002- ● ● ●
72 PIN; JAW JOINT,CABLE END
OD=8 L=17 		9-08220-817-0 01 1 9002- ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9002- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9002- ● ● ●
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 9002- ● ● ●
323 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9307-9410 ●
323 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9411- ●
392 CLIP; ACCEL CONT CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 9002- ● ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=9 L=20 		9-09524-835-0 01 1 9002- ● ● ●
392 CLIP; ACCEL CONT CABLE
NYLON TUBE AIR PIPING<Z29> (C) ID=9X2 L=20 		9-09534-835-0 01 1 9307- ●
393 NUT; CLIP TO FRAME
NYLON TUBE AIR PIPING<Z29> M8 		9-09110-408-0 01 1 9307- ●
395 CLIP; BAND,ACCEL CONT CABLE
(A) L=100 		5-09707-036-0 03 1 9002- ● ● ●
395 CLIP; BAND,ACCEL CONT CABLE
EXZ&LHD(EX*6**) (B) L=250 		5-09707-030-0 03 1 9002-9306 ●
403 BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002-9301 ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9302- ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9002- ● ● ●
443 CLIP; CABLE
ID=9 L=20 		9-09524-835-0 01 1 9307- ●
450 CLIP; BAND
FULLER M/T<X9B> L=140 		5-09707-031-0 01 1 9008- ●
534 PIN; JAW JOINT,IDLING CONT CABLE 1-09987-034-1 01 1 9002- ● ● ●
535 PIN; SNAP,IDLING CONT CABLE
L=17.9 		1-09747-002-0 01 1 9002- ● ● ●
539 NUT; CLIP
M6 FLANGE 		1-09984-141-0 01 1 9002- ● ●
539 NUT; CLIP
EXZ&RHD(EX*5**) M6 FLANGE 		1-09984-141-0 01 1 9002- ●
658 CLIP; ENG CONT CABLE
ID=13 H=24 L=20 		9-09527-012-0 02 1 9002- ● ●
658 CLIP; ENG CONT CABLE
EXZ&RHD(EX*5**) ID=13 H=24 L=20 		9-09527-012-0 02 1 9002- ●

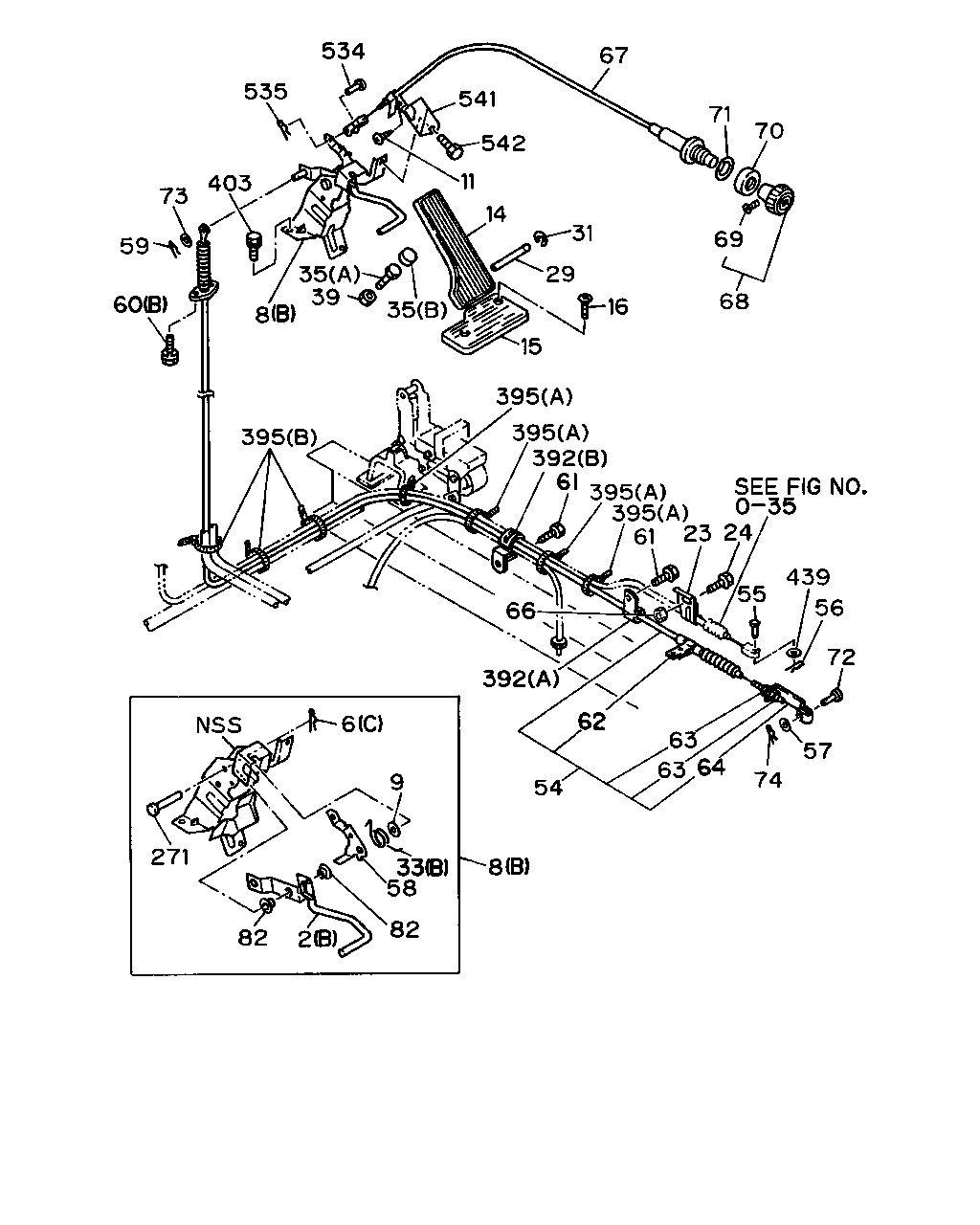

çizim 27714
271 82 2 82 58 9 6 33 8 54 62 392 66 63 63 64 74 57 72 439 55 24 23 61 395 395 61 392 395 395 15 395 8 39 35 35 16 29 31 14 68 69 70 56 71 67 541 11 542 534 535 403 73 59 60
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT
(A) 		1-73997-904-1 01 1 9002- ● ●
2 LEVER; ENG CONT
EXZ&RHD(EX*5**) (A) 		1-73997-904-1 01 1 9002- ●
2 LEVER; ENG CONT
EXZ&LHD(EX*6**) (B) 		1-73997-796-5 01 1 9002-9306 ●
6 RING; SNAP,LINK TO LINK
(A) ID=6 		9-09185-406-0 01 1 9002- ● ●
6 RING; SNAP,LINK TO LINK
EXZ&RHD(EX*5**) (A) ID=6 		9-09185-406-0 01 1 9002- ●
6 RING; SNAP,LINK TO LINK
(B) ID=9 		9-09185-409-0 01 1 9002-9307 ● ●
6 RING; SNAP,LINK TO LINK
EXZ&RHD(EX*5**) (B) ID=9 		9-09185-409-0 01 1 9002-9307 ●
6 RING; SNAP,LINK TO LINK
(B) ID=8 		9-09185-408-0 01 1 9308- ●
6 RING; SNAP,LINK TO LINK
EXZ&LHD(EX*6**) (C) L=27.7 		8-94202-777-0 01 1 9002-9306 ●
8 LINK ASM; ENG CONT
(A) 		1-23240-067-2 01 1 9002- ● ●
8 LINK ASM; ENG CONT
EXZ&RHD(EX*5**) (A) 		1-23240-067-2 01 1 9002- ●
8 LINK ASM; ENG CONT
EXZ&LHD(EX*6**) (B) 		1-23240-050-7 01 1 9002-9306 ●
9 WASHER; PL,CONT LINK
ID=10.5 OD=16 		9-09855-178-0 01 1 9002- ● ● ●
11 SCREW; IDLE CONT CABLE
M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9002- ● ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9002- ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73997-675-3 01 1 9002-9305 ● ●
15 STAND; HEEL,ACCEL PEDAL
EXZ&RHD(EX*5**) 		1-73997-675-3 01 1 9002-9305 ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9306- ● ●
15 STAND; HEEL,ACCEL PEDAL
EXZ&RHD(EX*5**) 		1-73907-266-2 01 1 9306- ●
15 STAND; HEEL,ACCEL PEDAL
EXZ&LHD(EX*6**) 		1-73997-770-1 01 1 9002-9306 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X24 W/PL WASHER 		1-09981-504-0 02 1 9002- ● ● ●
23 BRACKET; FUEL CUT CABLE 1-14319-082-0 01 1 9002- ● ● ●
24 BOLT; BRKT 5-09030-026-0 01 1 9002- ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 9002- ● ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 9002- ● ● ●
33 SPRING; IDLING CONT LEVER
(A) 		1-73997-906-0 01 1 9002- ● ●
33 SPRING; IDLING CONT LEVER
EXZ&RHD(EX*5**) (A) 		1-73997-906-0 01 1 9002- ●
33 SPRING; IDLING CONT LEVER
EXZ&LHD(EX*6**) (B) 		1-73997-824-0 01 1 9002-9306 ●
35 STOPPER; ACCEL PEDAL
(A) 		1-09980-582-0 01 1 9002- ● ● ●
35 STOPPER; ACCEL PEDAL
(B) 		1-23249-009-0 01 1 9002- ● ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		8-94279-060-0 01 1 9002- ● ● ●
54 CABLE; ENG CONT
L=2445 		1-23210-794-6 01 1 9002- ● ●
54 CABLE; ENG CONT
EXZ&RHD(EX*5**) L=2445 		1-23210-794-6 01 1 9002- ●
54 CABLE; ENG CONT
EXZ&LHD(EX*6**) L=2780 		1-23210-751-6 01 1 9002-9306 ●
55 PIN; JAW JOINT
L=11 		1-09744-102-0 01 1 9002- ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9002- ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9002- ● ● ●
58 LEVER; IDLING CONT 1-73997-905-1 01 1 9002- ● ●
58 LEVER; IDLING CONT
EXZ&RHD(EX*5**) 		1-73997-905-1 01 1 9002- ●
58 LEVER; IDLING CONT
EXZ&LHD(EX*6**) 		1-73997-781-2 01 1 9002-9306 ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9002- ● ● ●
60 BOLT; CABLE
(B) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9002- ● ● ●
60 BOLT; CABLE
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 01 1 9002- ● ●
60 BOLT; CABLE
EXZ&RHD(EX*5**) (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 01 1 9002- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9204 ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9302 ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9303-9306 ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M6X16 FLANGE 		0-28080-616-0 02 1 9307- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE 		0-28080-816-0 02 1 9307- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9307- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9002- ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-508-0 02 1 9002-9306 ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9307- ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9002- ● ● ●
66 NUT; BRKT
M8 		9-09110-408-0 01 1 9002- ● ● ●
67 CABLE ASM; IDLE CONT
L=422 		1-73997-647-0 01 1 9002- ● ●
67 CABLE ASM; IDLE CONT
EXZ&RHD(EX*5**) L=422 		1-73997-647-0 01 1 9002- ●
67 CABLE ASM; IDLE CONT
EXZ&LHD(EX*6**) L=347 		1-73997-789-0 01 1 9002-9306 ●
68 KNOB; IDLE CONT
W/SCREW 		8-94134-716-0 01 1 9002- ● ● ●
69 SCREW; KNOB,IDLE CONT 5-09120-004-0 01 1 9002- ● ● ●
70 NUT; CONT CABLE
M18 RING NUT 		5-09409-004-1 01 1 9002- ● ● ●
71 WASHER; WAVE,CONT CABLE
ID=18.5 		5-09550-005-0 01 1 9002- ● ● ●
72 PIN; JAW JOINT,CABLE END
OD=8 L=17 		9-08220-817-0 01 1 9002- ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9002- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9002- ● ● ●
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 9002- ● ● ●
271 SHAFT; ENG CONT
EXZ&LHD(EX*6**) 		1-09987-081-0 01 1 9002-9306 ●
392 CLIP; ACCEL CONT CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 9002- ● ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=9 L=20 		9-09524-835-0 01 1 9002- ● ● ●
392 CLIP; ACCEL CONT CABLE
NYLON TUBE AIR PIPING<Z29> (C) ID=9X2 L=20 		9-09534-835-0 01 1 9307- ●
395 CLIP; BAND,ACCEL CONT CABLE
(A) L=100 		5-09707-036-0 03 1 9002- ● ● ●
395 CLIP; BAND,ACCEL CONT CABLE
EXZ&LHD(EX*6**) (B) L=250 		5-09707-030-0 03 1 9002-9306 ●
403 BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002-9301 ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9302- ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9002- ● ● ●
534 PIN; JAW JOINT,IDLING CONT CABLE 1-09987-034-1 01 1 9002- ● ● ●
535 PIN; SNAP,IDLING CONT CABLE
L=17.9 		1-09747-002-0 01 1 9002- ● ● ●
541 BRACKET; IDLING CONT CABLE
EXZ&LHD(EX*6**) 		1-73997-797-1 01 1 9002-9306 ●
542 BOLT; BRKT,IDLING CONT CABLE
EXZ&LHD(EX*6**) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ●
542 BOLT; BRKT,IDLING CONT CABLE
EXZ&LHD(EX*6**) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9306 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
