Isuzu WW
▶
TRUCKS
▶
FTS
▶
11166 - FTS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#23393) — 21 parça
◀

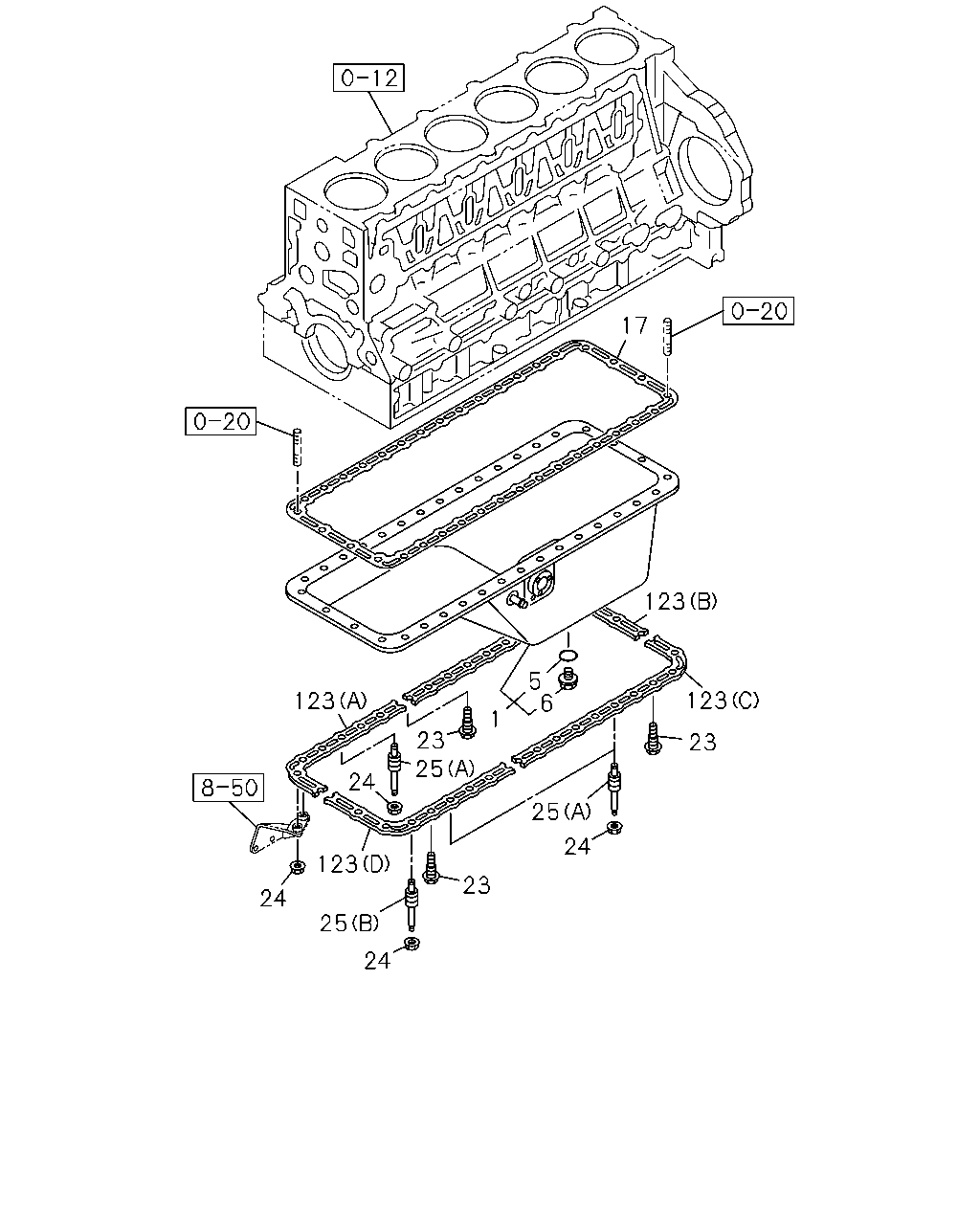

[013A] OIL PAN (12 parça)
[013A] OIL GAUGE (9 parça)
▶
17
123
5
6
123
123
1
23
25
23
24
25
24
123
23
24
25
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98061-363-0
01
1
1001-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1001-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1001-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
1001-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
22
1
1001-
24
NUT; OIL PAN
M8 FLANGE SOU
0-91180-108-0
12
1
1001-
25
STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
04
1
1001-
25
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
01
1
1001-
123
RUBBER; SEAL OIL
(A)
8-94391-755-0
01
1
1001-
123
RUBBER; SEAL OIL
(B)
8-94391-757-0
01
1
1001-
123
RUBBER; SEAL OIL
(C)
8-94391-758-0
01
1
1001-
123
RUBBER; SEAL OIL
(D)
8-94392-548-0
01
1
1001-
10
8
49
2
193
192
193
9
9
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98095-887-0
01
1
1001-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-97618-220-1
01
1
1001-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1001-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1001-
10
BOLT; GUIDE TUBE
(A) M10X35 FLANGE
0-28151-035-0
01
1
1001-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28650-820-0
01
1
1001-
49
NUT; GUIDE TUBE
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
1001-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1001-
