◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11358 - FTS(MALAYSIA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#23384) — 104 parça

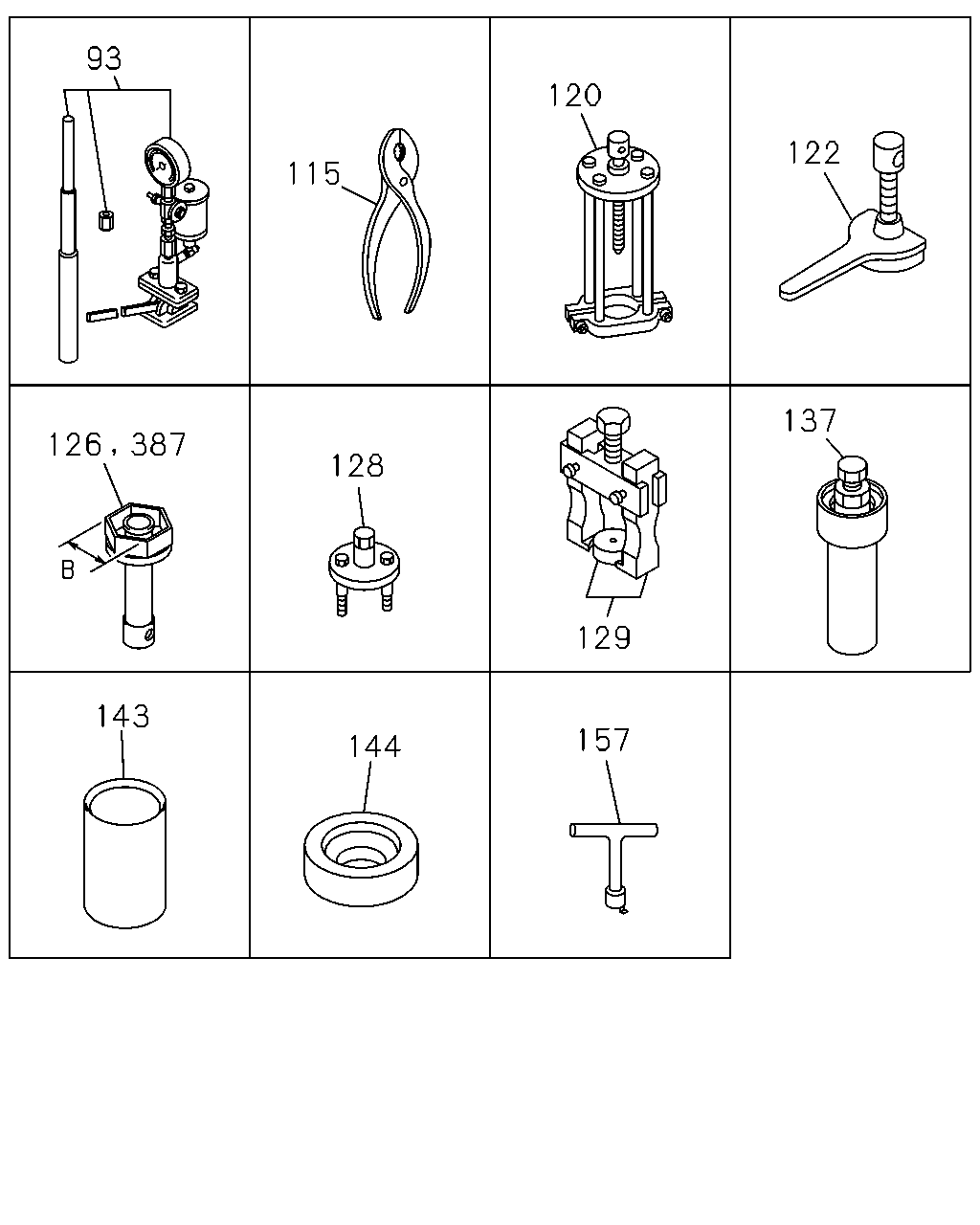

çizim 16165
93 120 122 115 137 128 129 143 157 144 126 387
BalonParca AdiParca NoAdetTipApplied Date
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 0010-
115 PLIER 5-85171-001-0 01 1 0010-0208
115 PLIER
TOOL B KIT<SL1> 		5-85171-001-0 01 1 0209-0212
115 PLIER 5-85171-001-0 01 1 0301-0301
115 PLIER 5-85171-002-0 01 1 0301-1410
115 PLIER 8-98282-845-0 01 1 1411-
120 PULLER ASM; MAIN REAR BRG 9-85210-169-0 01 1 0010-
122 PULLER ASM; COUNTER FRT 9-85210-168-0 01 1 0010-
126 WRENCH; FRT HUB BRG NUT
B=98 L=435 		1-85113-027-0 01 1 0010-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0010-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0010-
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 0010-
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 0010-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 0010-
157 REPLACER KIT; RETURN SPR
ID=16 		1-85237-002-0 01 1 0010-
387 WRENCH; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 0010-
çizim 65140
274 271 268 209 280 285 281 282 284
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0010-0708
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709-
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0010-0604
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605-
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0010-0708
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709-
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0010-0604
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605-
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 0010-
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0010-
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0010-0602
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603-
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 0010-0512
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601-
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0010-0602
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603-

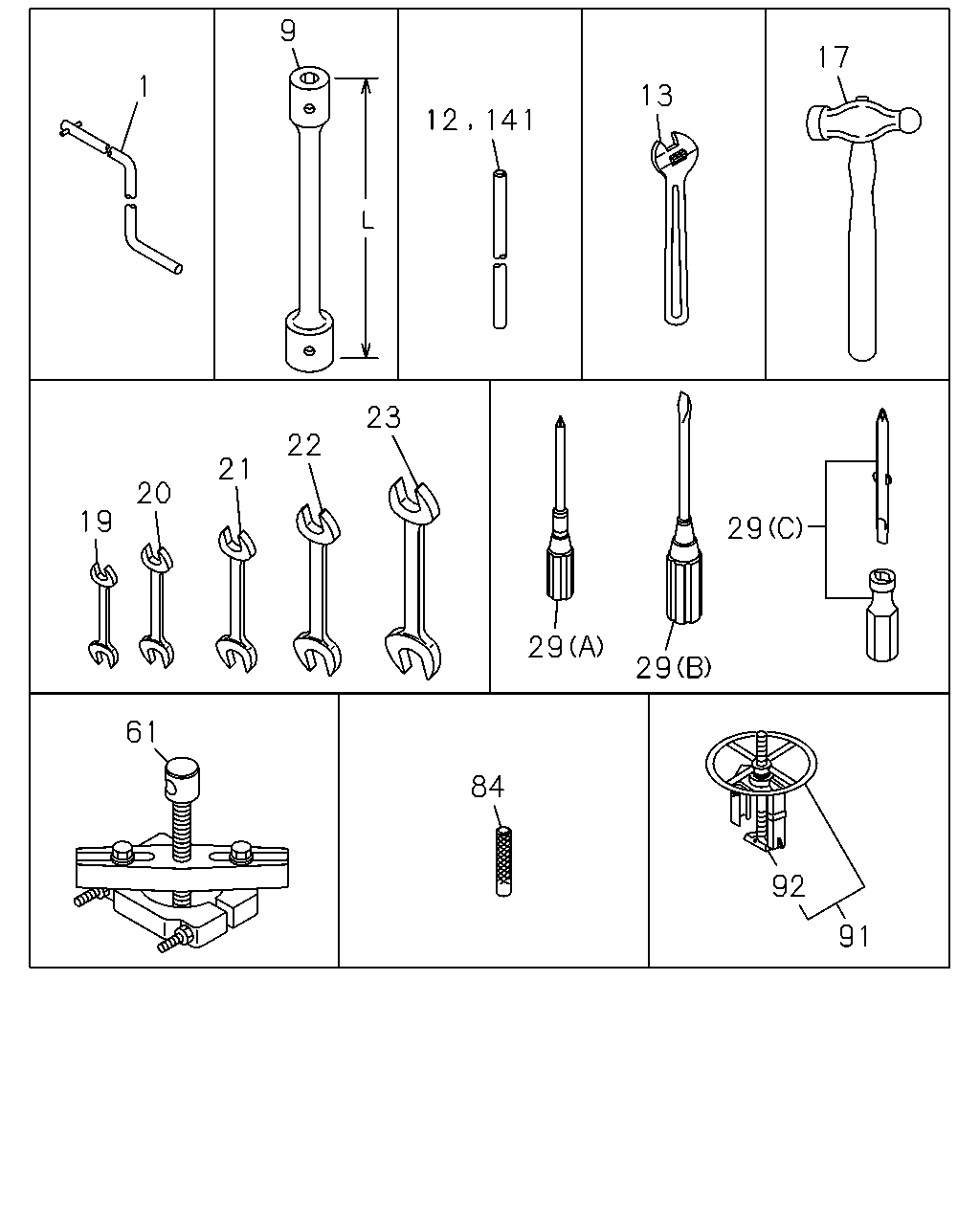

çizim 65290
9 17 1 13 12 141 23 22 21 20 19 29 29 29 61 84 92 91
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0010-
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 0010-1601
9 WRENCH; WHEEL PIN
B=41X21 L=445 		8-98316-703-0 01 1 1602-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0010-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0010-0208
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-0212
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0301-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0010-0208
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209-0212
17 HAMMER 9-85121-406-0 01 1 0301-
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 0010-0208
19 WRENCH; 7X8
TOOL B KIT<SL1> 7X8 		9-09592-107-0 01 1 0209-0212
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 0301-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0010-0208
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0212
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0301-0607
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0608-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0010-0208
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0212
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0301-0607
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0010-0208
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0212
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0301-0607
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0608-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0010-0208
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0212
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0301-0607
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0608-
29 DRIVER; SCREW
(A) <+> L=205 		9-09595-022-0 01 1 0010-0208
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=205 		9-09595-022-0 01 1 0209-0212
29 DRIVER; SCREW
(A) <+> L=205 		9-09595-022-0 01 1 0301-
29 DRIVER; SCREW
(A) <+> L=275 		9-09595-023-0 01 1 0010-0208
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=275 		9-09595-023-0 01 1 0209-0212
29 DRIVER; SCREW
(A) <+> L=275 		9-09595-023-0 01 1 0301-
29 DRIVER; SCREW
(B) <-> L=205 		9-09595-126-0 01 1 0010-0208
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=205 		9-09595-126-0 01 1 0209-0212
29 DRIVER; SCREW
(B) <-> L=205 		9-09595-126-0 01 1 0301-
29 DRIVER; SCREW
(B) <-> L=325 		9-09595-129-0 01 1 0010-0208
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=325 		9-09595-129-0 01 1 0209-0212
29 DRIVER; SCREW
(B) <-> L=325 		9-09595-129-0 01 1 0301-
29 DRIVER; SCREW
TOOL A KIT<SK9> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0209-0212
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0010-
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 0010-
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 0010-
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 0010-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0010-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
çizim 65404
167 166 174 186 186 178 230 193 189 208 232 237
BalonParca AdiParca NoAdetTipApplied Date
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-023-0 01 1 0010-
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0010-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0010-
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0010-
186 ADJUSTER; BRAKE
(A) 		1-85261-001-0 01 1 0010-0208
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> (A) 		1-85261-001-0 01 1 0209-0212
186 ADJUSTER; BRAKE
(A) 		1-85261-001-0 01 1 0301-
186 ADJUSTER; BRAKE
TOOL A KIT<SK9> (B) 		1-47165-066-0 01 1 0209-0212
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0010-0208
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0209-0212
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0301-
193 JACK ASM
10TON 		1-85510-013-1 01 1 0010-0504
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0010-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-2 01 1 0010-0208
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0209-0212
230 PUMP; GREASE 1-85556-007-5 01 1 0301-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE(SG4) 		1-09360-245-1 01 1 0010-
237 BAG; TOOL 8-97130-902-1 01 1 0010-
