8-15 — FIXING PARTS; WIRING HARNESS (#23372) — 188 parça

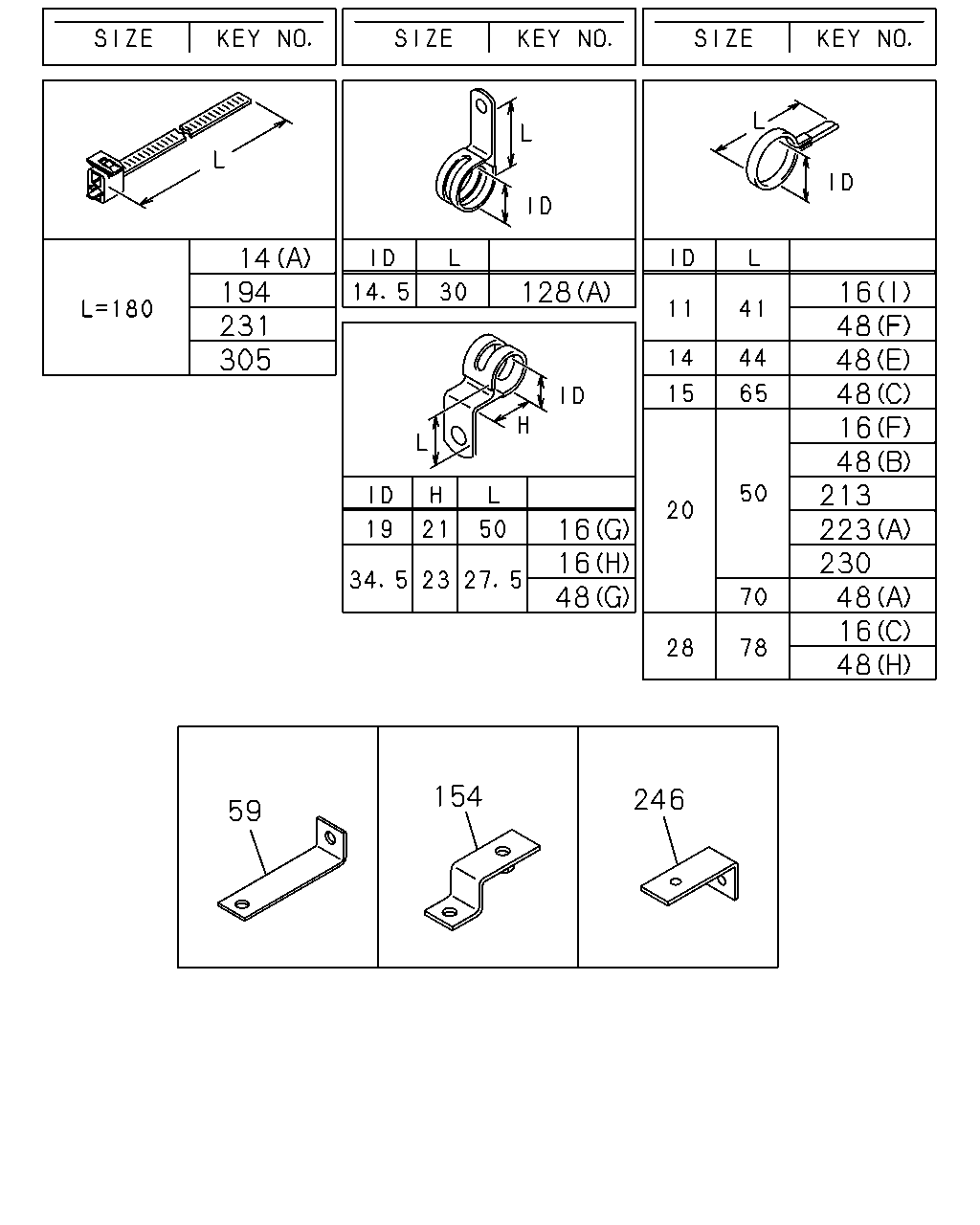

çizim 65046
14 194 231 305 128 16 48 48 48 16 48 213 223 230 48 16 48 16 16 48 154 246 59
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 0010-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0010-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0203-0206
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 05 1 0010-0110
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 07 1 0111-0401
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 08 1 0402-0403
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0404-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0010-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0010-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0010-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0010-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0010-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0010-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 03 1 0010-0110
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0111-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0010-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 01 1 0010-0301
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 03 1 0010-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 06 1 0404-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 04 1 0010-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0010-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 03 1 0010-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 0010-
48 CLIP; FRAME HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0010-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0010-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 01 1 0010-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0010-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 17 1 0010-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0010-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0010-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0010-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301-
194 CLIP; BAND
L=180 		1-09707-162-1 04 1 0010-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0010-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0010-
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 0010-
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0010-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0010-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0010-
246 BRACKET; CLIP,SPD SENSOR
L=55 		1-47475-304-0 01 1 0010-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0010-

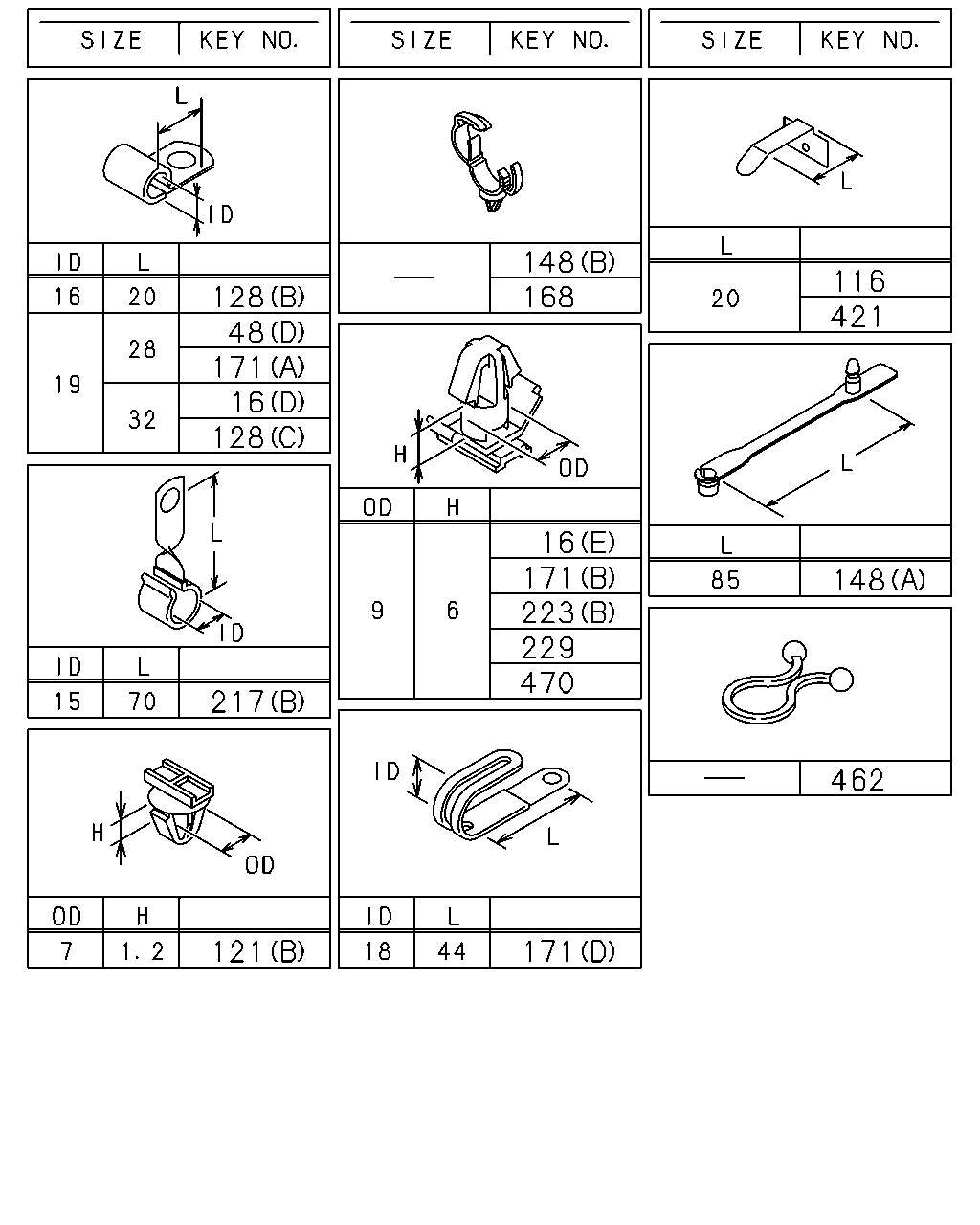

çizim 65047
148 168 116 421 128 48 171 16 128 16 171 223 229 470 148 217 462 121 171
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 05 1 0010-0110
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 07 1 0111-0401
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 08 1 0402-0403
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0404-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0010-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0010-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0010-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0010-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0010-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0010-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 03 1 0010-0110
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0111-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0010-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 01 1 0010-0301
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 03 1 0010-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 06 1 0404-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 04 1 0010-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0010-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 03 1 0010-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 0010-
48 CLIP; FRAME HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0010-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0010-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 01 1 0010-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0010-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 17 1 0010-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0010-0404
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 02 1 0405-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0010-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0010-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0010-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0010-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0010-
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0010-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0010-
171 CLIP; STARTER HARNESS
(D) ID=18 L=44 		8-94225-185-0 01 1 0010-0801
171 CLIP; STARTER HARNESS
(D) ID=18 L=44 		8-97367-985-1 01 1 0802-
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		9-09525-856-0 04 1 0010-0606
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		0-95235-856-0 04 1 0607-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0010-0208
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0010-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0010-
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 0010-
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0010-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0010-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 0010-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
462 CLIP; HARNESS,HTR
ID=20 		1-09709-068-0 02 1 0010-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0010-
çizim 66503
38 139 38 38 139 38 38 133 239 239 239 38 173 133 516 239 239 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0010-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0010-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0010-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0010-0512
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0010-1201
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0010-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0010-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0010-0512
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0010-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0010-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0010-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0010-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0010-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0010-
çizim 66514
133 210 520 184 524 219 294 209
BalonParca AdiParca NoAdetTipApplied Date
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0010-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0010-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0010-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0010-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0010-0602
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0010-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0010-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0010-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 66515
14 16 81 102 121 206 223 228 418 14 16 217 235 530 178 178 178 503 16 171
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 0010-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0010-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 0203-0206
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 05 1 0010-0110
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 07 1 0111-0401
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 08 1 0402-0403
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0404-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0010-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0010-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0010-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0010-
16 CLIP; HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0010-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0010-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 03 1 0010-0110
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0111-
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0010-0606
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 01 1 0010-0301
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 03 1 0010-
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 06 1 0404-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0010-
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0010-0404
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 02 1 0405-
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0010-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0010-
171 CLIP; STARTER HARNESS
(D) ID=18 L=44 		8-94225-185-0 01 1 0010-0801
171 CLIP; STARTER HARNESS
(D) ID=18 L=44 		8-97367-985-1 01 1 0802-
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		9-09525-856-0 04 1 0010-0606
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		0-95235-856-0 04 1 0607-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0010-0812
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901-
178 GROMMET; HARNESS
(B) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0010-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0010-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0010-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0010-0208
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0010-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0010-
223 CLIP; AIR TANK HARNESS
(C) L=140 		5-09707-031-1 01 1 0010-
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 06 1 0010-
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0010-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 0010-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703-
503 CONNECTOR 1-82690-668-0 01 1 0102-
503 CONNECTOR 1-82690-668-0 01 1 0102-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
