◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11358 - FTS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#23371) — 88 parça

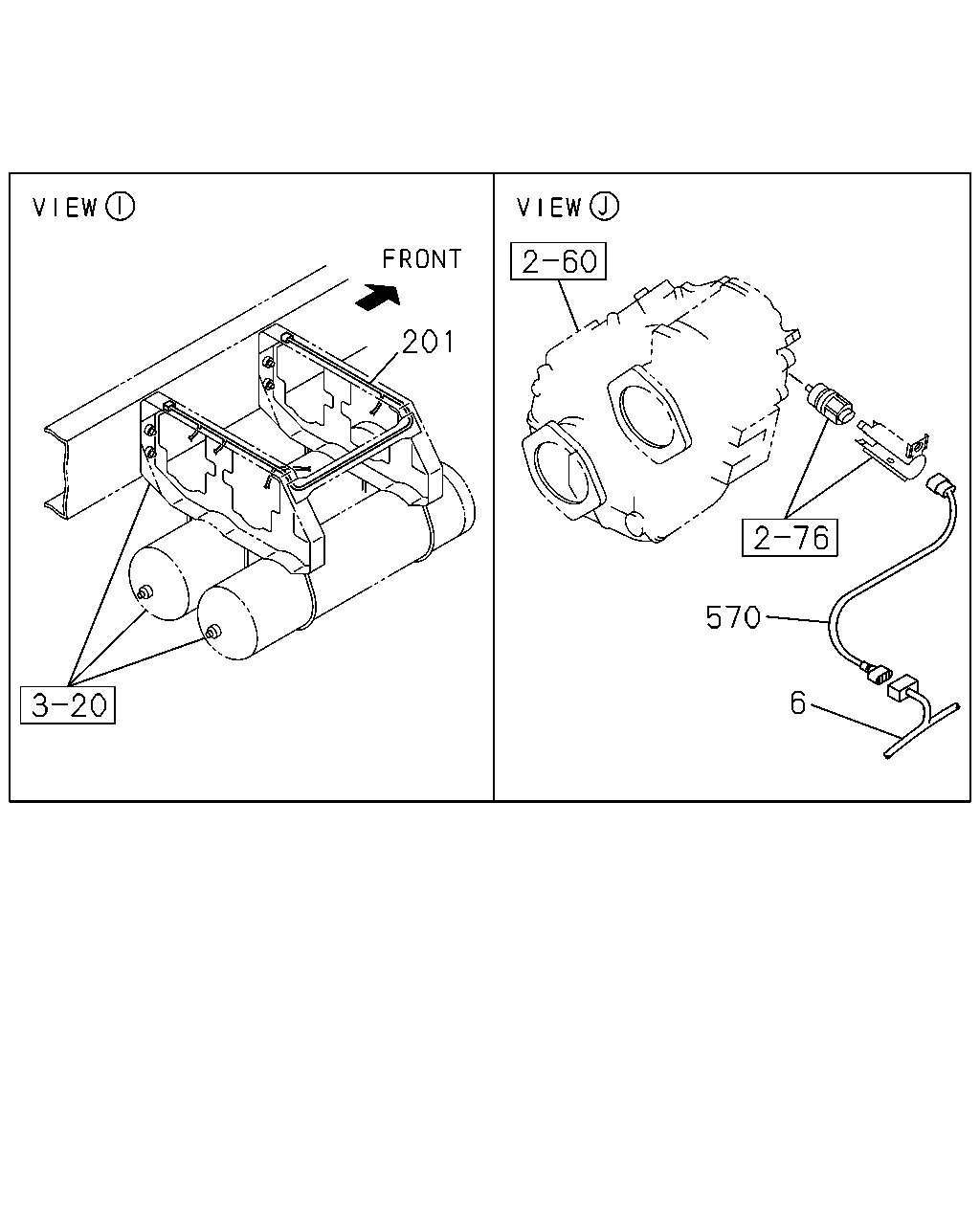

çizim 15592
201 570 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-579-2 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-425-0 01 1 0402-0407
6 HARNESS; FRAME 1-82673-256-4 01 1 0010-0212
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-256-4 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-416-1 01 1 0402-
201 HARNESS; AIR TANK 1-82670-538-1 01 1 0010-
570 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0010-0206
570 HARNESS; SPEED SENSOR 1-82676-547-0 01 1 0207-0401

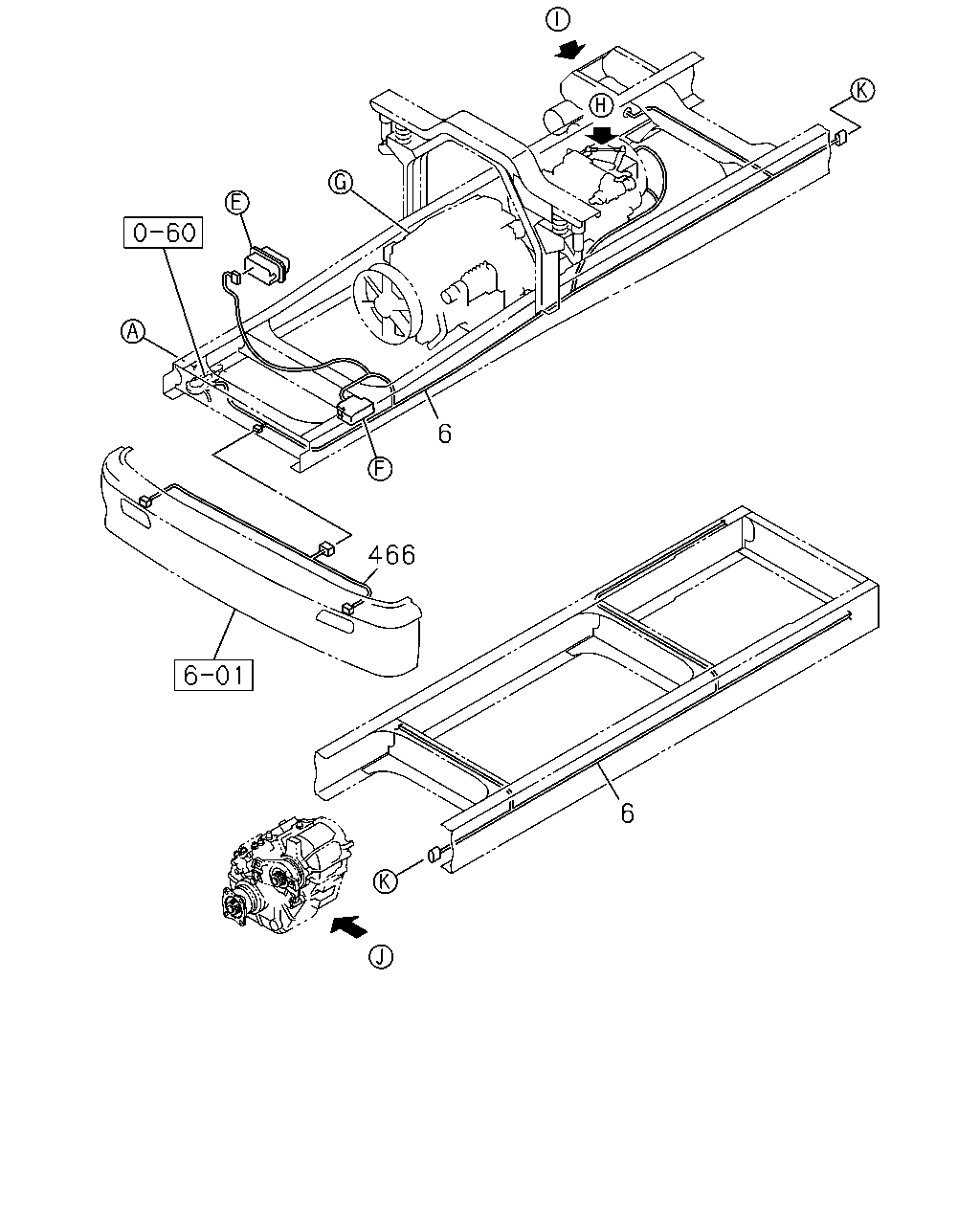

çizim 15808
6 466 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-579-2 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-425-0 01 1 0402-0407
6 HARNESS; FRAME 1-82673-256-4 01 1 0010-0212
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-256-4 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-416-1 01 1 0402-
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82638-996-1 01 1 0301-0407
466 HARNESS; BUMPER 1-82638-758-1 01 1 0010-0212
466 HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82638-758-1 01 1 0301-

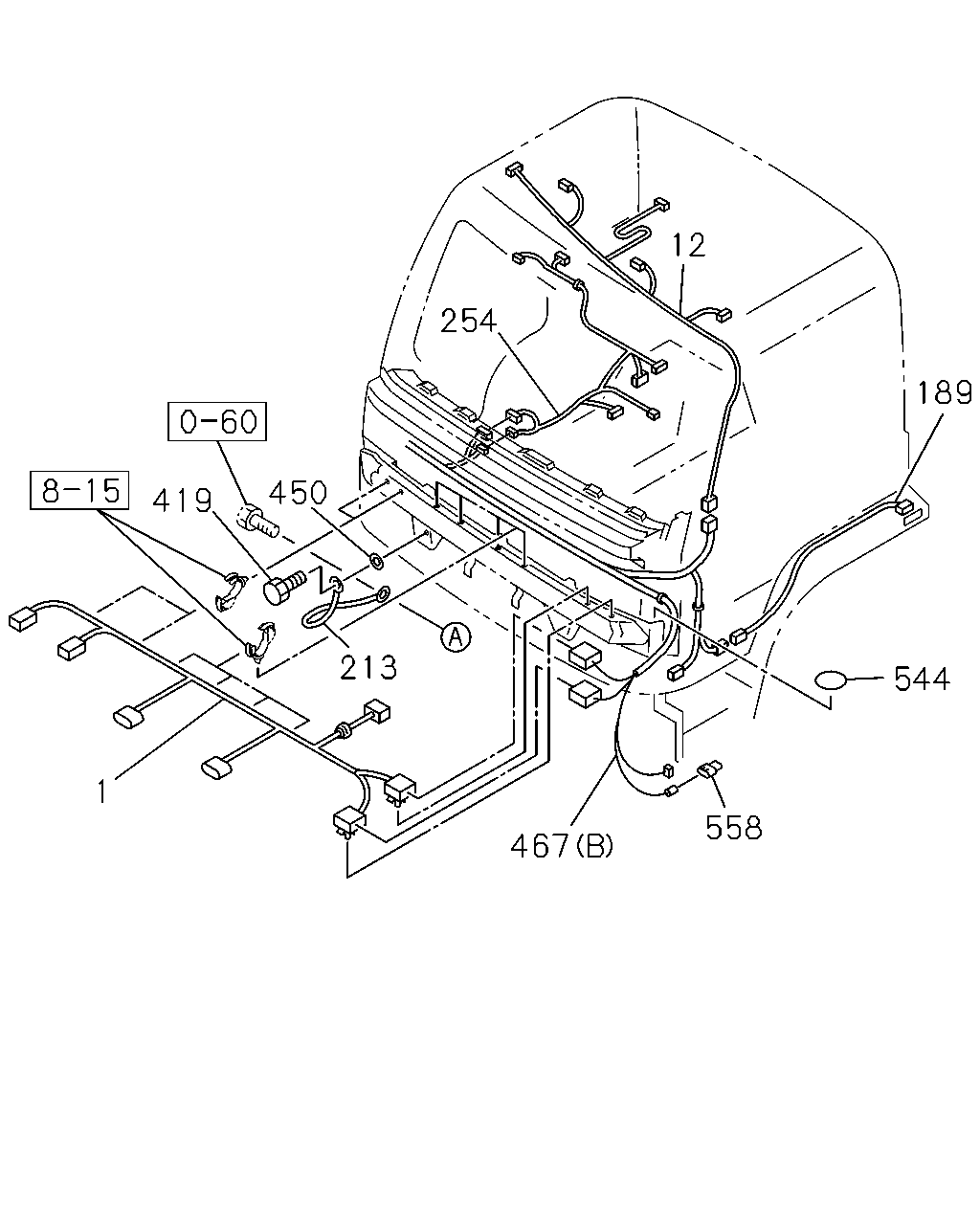

çizim 64884
12 254 189 450 419 213 544 1 558 467
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82625-717-1 01 1 0010-
12 HARNESS; ROOF 1-82625-713-4 01 1 0010-
189 HARNESS; EXT 1-82625-673-2 02 1 0010-
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0010-
254 HARNESS; CAB FLOOR 1-82629-307-3 01 1 0010-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0010-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82629-385-3 01 1 0301-0407
467 HARNESS; FACIA
(A) UPPER 		1-82628-708-2 01 1 0010-
467 HARNESS; FACIA
(B) LOWER 		1-82629-374-5 01 1 0010-0212
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-374-5 01 1 0301-
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0010-
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0010-

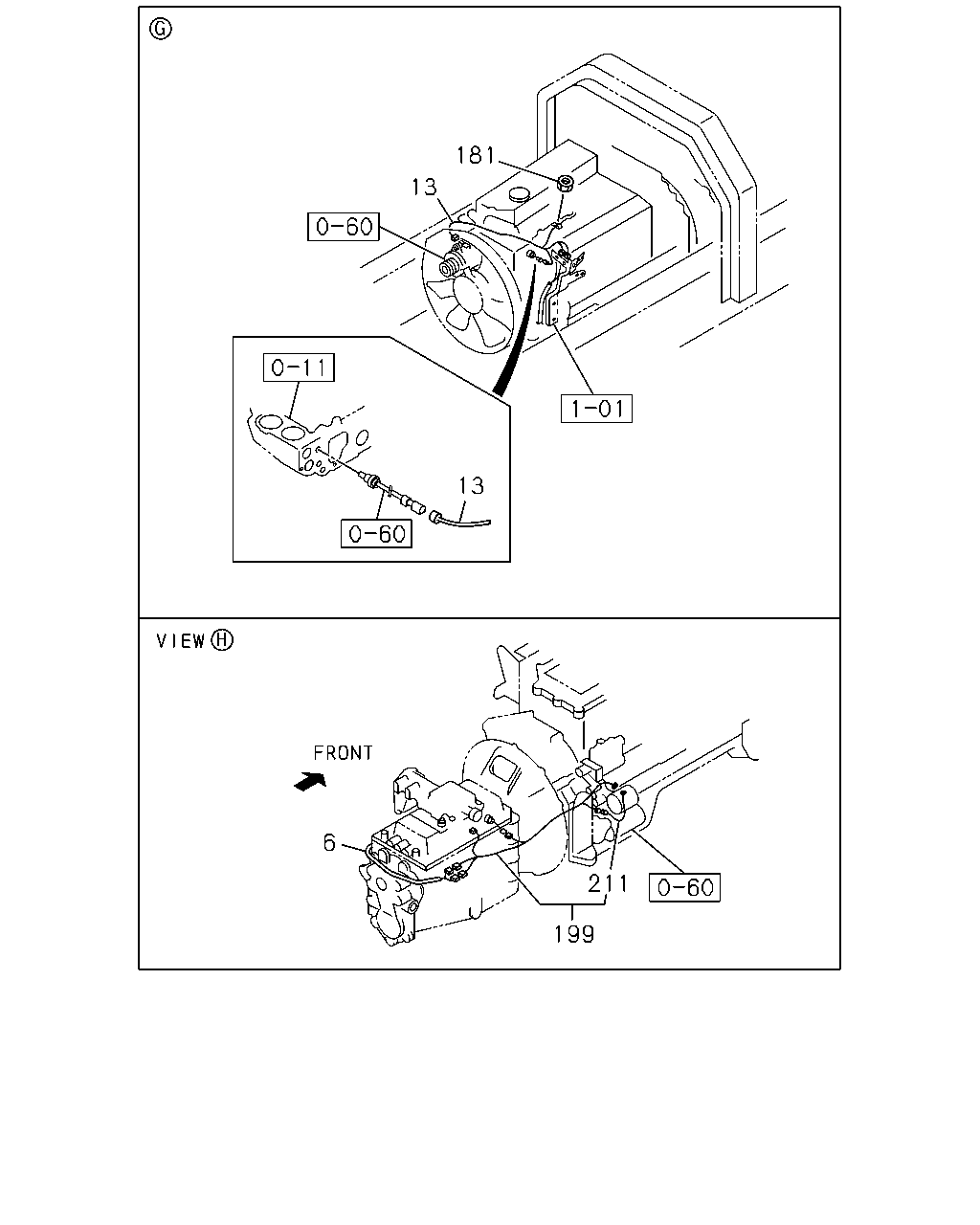

çizim 64890
181 13 13 6 211 199
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-579-2 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-425-0 01 1 0402-0407
6 HARNESS; FRAME 1-82673-256-4 01 1 0010-0212
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-256-4 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-416-1 01 1 0402-
13 HARNESS; ENG 1-82640-714-0 01 1 0010-
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0010-
199 HARNESS; STARTER 1-82640-717-3 01 1 0010-
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-1 01 1 0010-

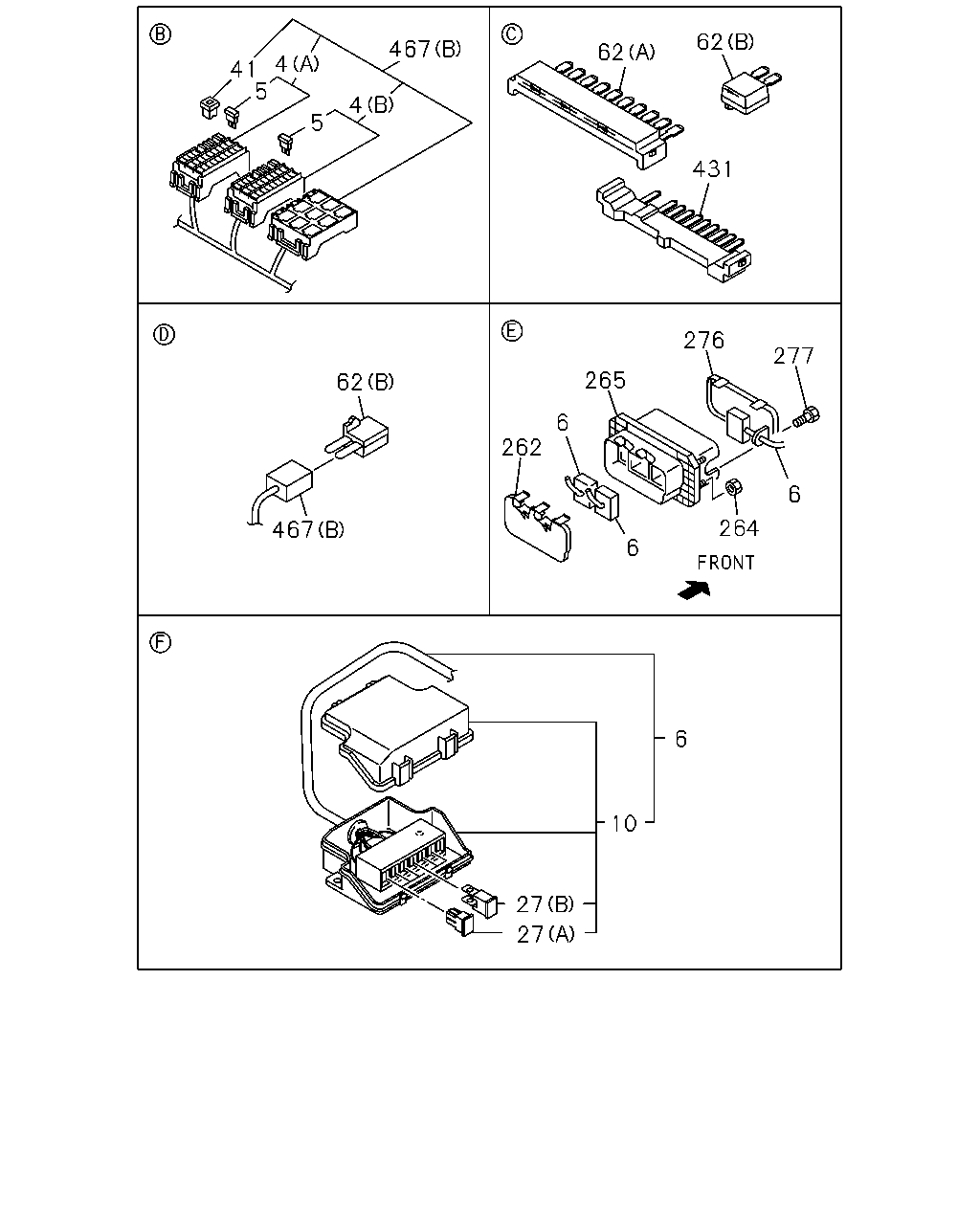

çizim 65063
62 467 62 4 41 5 4 5 431 276 277 265 62 6 262 6 264 467 6 6 10 27 27
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX17 		1-82510-393-0 01 1 0010-0407
4 BOX ASM; FUSE,HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 7.5AX17 		1-82510-393-0 01 1 0408-
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0010-0407
4 BOX ASM; FUSE,HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 15AX15 		1-82510-521-0 01 1 0408-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 0010-0407
5 FUSE; FACIA HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 15A BLUE 		5-82516-003-0 15 1 0408-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 17 1 0010-0407
5 FUSE; FACIA HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 7.5A BROWN 		8-94159-007-0 17 1 0408-
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82673-579-2 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS RECTANGULAR<TR4> 		1-82677-425-0 01 1 0402-0407
6 HARNESS; FRAME 1-82673-256-4 01 1 0010-0212
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82673-256-4 01 1 0301-0401
6 HARNESS; FRAME
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82677-416-1 01 1 0402-
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0010-0212
10 BOX; FUSE,HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> 		1-82510-409-0 01 1 0301-0407
10 BOX; FUSE,HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82510-409-0 01 1 0408-
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0010-0212
27 FUSE UNIT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (A) 40A GREEN 		8-94468-662-0 03 1 0301-0407
27 FUSE UNIT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 40A GREEN 		8-94468-662-0 03 1 0408-
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0010-0212
27 FUSE UNIT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (B) 60A YELLOW 		8-94468-669-0 01 1 0301-0407
27 FUSE UNIT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 60A YELLOW 		8-94468-669-0 01 1 0408-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0010-0407
41 PULLER; FUSE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> L=25.3 B=11.5 		8-94121-482-0 01 1 0408-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0010-0407
62 DIODE; HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) BLACK 10P 		1-82699-703-0 02 1 0408-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0010-0407
62 DIODE; HARNESS
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0408-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0010-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0010-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0010-
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0010-
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0010-0512
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601-
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0010-0407
431 CONNECTOR; JOINT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 10P BROWN 		1-82699-601-0 02 1 0408-
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82629-385-3 01 1 0301-0407
467 HARNESS; FACIA
(A) UPPER 		1-82628-708-2 01 1 0010-
467 HARNESS; FACIA
(B) LOWER 		1-82629-374-5 01 1 0010-0212
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-374-5 01 1 0301-

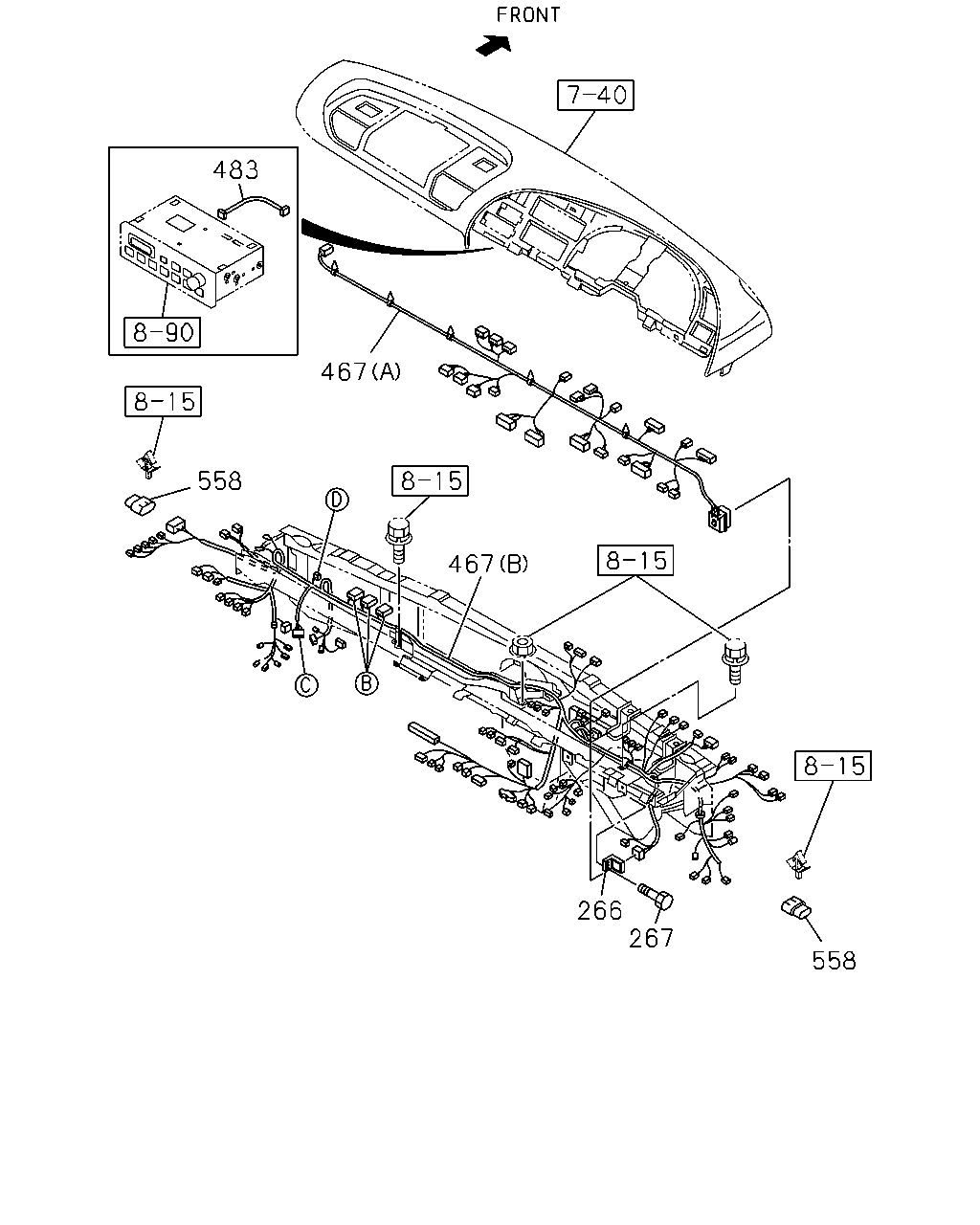

çizim 65075
483 467 558 467 266 267 558
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0010-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0010-
467 HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> (B) 		1-82629-385-3 01 1 0301-0407
467 HARNESS; FACIA
(A) UPPER 		1-82628-708-2 01 1 0010-
467 HARNESS; FACIA
(B) LOWER 		1-82629-374-5 01 1 0010-0212
467 HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82629-374-5 01 1 0301-
483 HARNESS; EXT,RADIO
RADIO CLARION(SK2) 		8-98075-645-0 01 1 0703-
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0010-
