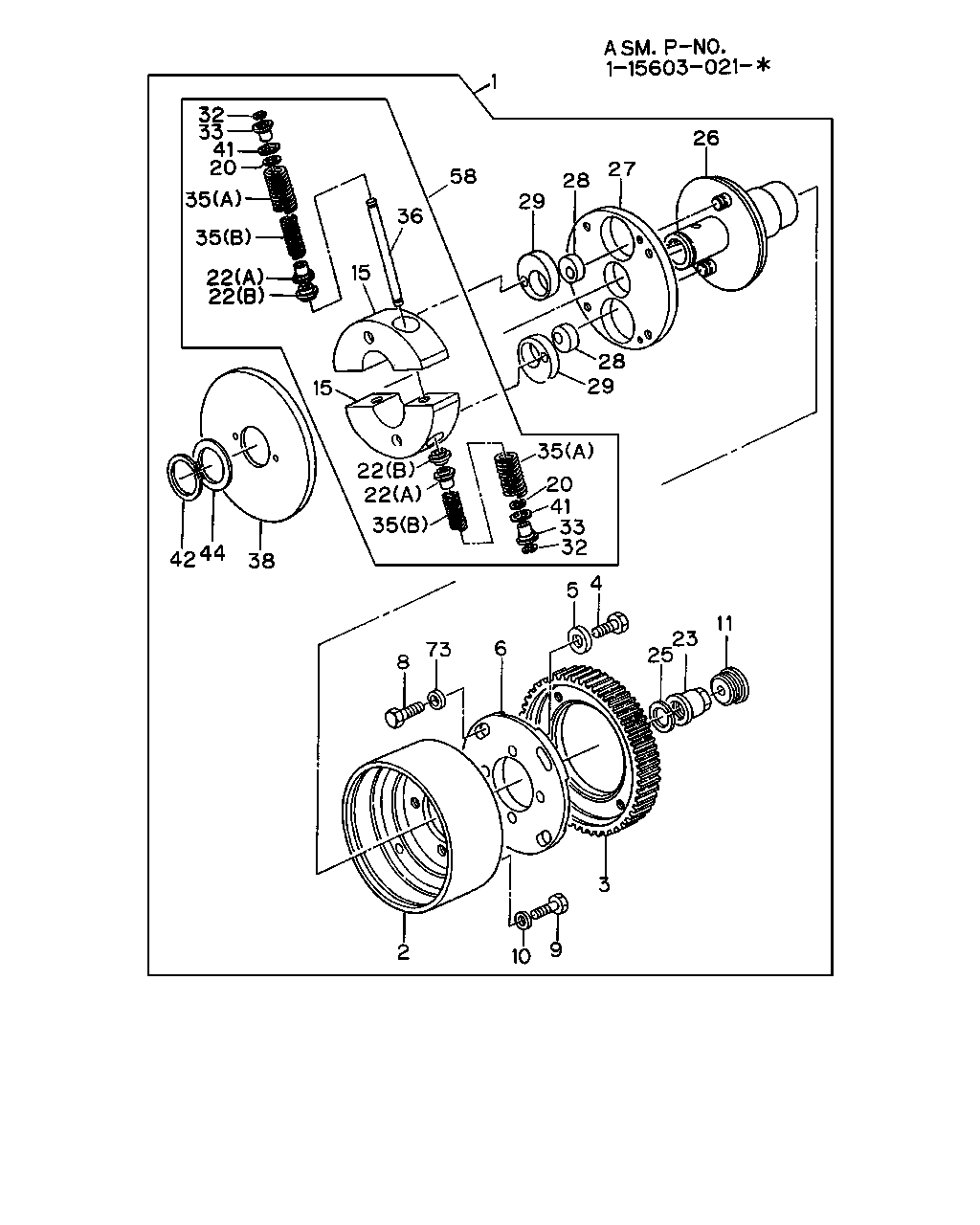

0-85 — AUTO TIMER; INJECTION PUMP (#2337) — 420 parça

1 26 27 28 29 58 36 15 28 29 35 22 20 41 33 32 11 23 25 4 5 6 73 8 3 9 10 2 38 44 42 35 22 15 22 22 35 35 20 41 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15602-444-1	1-15740-271-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-374-0	01	1	-9205
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15602-598-2	1-15740-376-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15740-380-0	01	1	-9111
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5	1-15740-395-0	01	1	-9503
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-401-0	01	1	9206-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15740-404-0	01	1	9112-
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15740-440-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5	1-15740-500-0	01	1	9504-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15741-009-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15741-028-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15741-002-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-12524-034-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15602-434-5	1-12524-034-0	01	1	-9503
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15602-434-5	1-15789-190-0	01	1	9504-
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15742-036-0	01	1	-
7	WASHER; SENSOR PLATE,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-187-0	04	1	9112-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-122-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15749-698-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15743-008-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15743-015-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: M = 1-15603-021-1	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-107-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15743-110-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15743-112-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-014-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-015-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-016-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-017-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-018-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-019-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-082-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-083-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: E = 1-15602-444-1	1-15749-084-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: F = 1-15602-598-2	1-15749-084-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: E = 1-15602-444-1	1-15749-085-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: F = 1-15602-598-2	1-15749-085-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: F = 1-15602-598-2	1-15749-330-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: E = 1-15602-444-1	1-15749-330-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: E = 1-15602-444-1	1-15749-331-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: F = 1-15602-598-2	1-15749-331-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: M = 1-15603-021-1	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: M = 1-15603-021-1	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: M = 1-15603-021-1	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: M = 1-15603-021-1	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: I = 1-15602-902-1	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: I = 1-15602-902-1	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: I = 1-15602-902-1	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: I = 1-15602-902-1	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-435-4	1-15749-493-0	AR	1	9112-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: M = 1-15603-021-1	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-435-4	1-15749-494-0	AR	1	9112-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: M = 1-15603-021-1	1-15749-494-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: I = 1-15602-902-1	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: I = 1-15602-902-1	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-382-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-037-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: M = 1-15603-021-1	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: M = 1-15603-021-1	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-045-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-051-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-044-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15742-040-1	01	1	9206-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15742-044-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15742-078-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15742-087-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15742-104-0	01	1	-9205
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15742-138-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: M = 1-15603-021-1	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: M = 1-15603-021-1	1-15749-520-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-660-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-665-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-666-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-667-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-668-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-670-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15749-785-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-662-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-663-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-664-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-669-0	02	1	-9111
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-669-0	04	1	9112-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-689-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15749-691-0	04	1	9206-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15749-784-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP (A) ASM PART: M = 1-15603-021-1	1-15749-853-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: M = 1-15603-021-1	1-15749-530-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15749-418-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-332-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-435-4	1-15749-493-0	AR	1	-9111
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-435-4	1-15749-494-0	AR	1	-9111
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-494-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: M = 1-15603-021-1	1-15749-524-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: M = 1-15603-021-1	1-15749-525-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: M = 1-15603-021-1	1-15749-526-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: M = 1-15603-021-1	1-15749-527-0	AR	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-185-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-106-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15743-109-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15743-111-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15743-132-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: M = 1-15603-021-1	1-15743-134-0	01	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-187-0	04	1	-9111
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-187-0	04	1	-

1 18 16 17 15 13 12 11 2 55 15 20 22 21 20 43 43 43 43 20 20 21 22 18 17 16 45 39 38 30 26 25 24 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15602-444-1	1-15740-271-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-374-0	01	1	-9205
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15602-598-2	1-15740-376-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15740-380-0	01	1	-9111
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5	1-15740-395-0	01	1	-9503
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-401-0	01	1	9206-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15740-404-0	01	1	9112-
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15740-440-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5	1-15740-500-0	01	1	9504-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15741-009-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15741-028-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15741-002-0	01	1	-
7	WASHER; SENSOR PLATE,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-187-0	04	1	9112-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-122-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15749-698-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15743-008-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15743-015-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: M = 1-15603-021-1	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-107-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15743-110-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15743-112-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-021-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=23.90 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-022-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=24.00 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-049-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=24.10 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-050-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=24.20 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-051-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=18.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=17.90 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=18.10 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=18.20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-023-0	02	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-014-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-015-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-016-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-017-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-018-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-019-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-082-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-083-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: E = 1-15602-444-1	1-15749-084-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: F = 1-15602-598-2	1-15749-084-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: E = 1-15602-444-1	1-15749-085-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: F = 1-15602-598-2	1-15749-085-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: F = 1-15602-598-2	1-15749-330-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: E = 1-15602-444-1	1-15749-330-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: E = 1-15602-444-1	1-15749-331-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: F = 1-15602-598-2	1-15749-331-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: M = 1-15603-021-1	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: M = 1-15603-021-1	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: M = 1-15603-021-1	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: M = 1-15603-021-1	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: I = 1-15602-902-1	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: I = 1-15602-902-1	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: I = 1-15602-902-1	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: I = 1-15602-902-1	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-435-4	1-15749-493-0	AR	1	9112-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: M = 1-15603-021-1	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-435-4	1-15749-494-0	AR	1	9112-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: M = 1-15603-021-1	1-15749-494-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: I = 1-15602-902-1	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: I = 1-15602-902-1	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-110-0	02	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-037-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: M = 1-15603-021-1	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: M = 1-15603-021-1	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-045-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-051-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-036-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-046-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-044-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15742-040-1	01	1	9206-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15742-044-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15742-078-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15742-087-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15742-104-0	01	1	-9205
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15742-138-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-027-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-073-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-660-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-665-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-666-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-667-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-668-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-670-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15749-785-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15749-418-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-332-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-113-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-107-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15749-407-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP OR, L=59.5 WIRE OD=2.2 ASM PART: H = 1-15602-601-2	1-15749-645-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP OR, L=56.5 WIRE OD=2.3 ASM PART: H = 1-15602-601-2	1-15749-646-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP OR, L=54.0 WIRE OD=2.4 ASM PART: H = 1-15602-601-2	1-15749-647-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP L=64.5 WIRE OD=2.1 ASM PART: H = 1-15602-601-2	1-15749-648-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15749-649-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-118-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-049-1	01	1	-

1 18 16 17 15 22 43 21 20 20 43 20 21 22 20 43 43 15 55 2 13 12 11 16 17 18 23 26 25 24 30 38 39 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15602-444-1	1-15740-271-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-374-0	01	1	-9205
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15602-598-2	1-15740-376-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15740-380-0	01	1	-9111
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5	1-15740-395-0	01	1	-9503
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-401-0	01	1	9206-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15740-404-0	01	1	9112-
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15740-440-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5	1-15740-500-0	01	1	9504-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15741-009-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15741-028-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15741-002-0	01	1	-
7	WASHER; SENSOR PLATE,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-187-0	04	1	9112-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-122-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15749-698-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15743-008-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15743-015-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: M = 1-15603-021-1	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-107-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15743-110-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15743-112-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-021-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=23.90 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-022-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=24.00 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-049-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=24.10 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-050-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=24.20 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-051-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=18.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=17.90 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=18.10 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP D=18.20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-023-0	02	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-014-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-015-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-016-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-017-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-018-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-019-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-082-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-083-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: E = 1-15602-444-1	1-15749-084-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: F = 1-15602-598-2	1-15749-084-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: E = 1-15602-444-1	1-15749-085-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: F = 1-15602-598-2	1-15749-085-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: F = 1-15602-598-2	1-15749-330-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: E = 1-15602-444-1	1-15749-330-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: E = 1-15602-444-1	1-15749-331-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: F = 1-15602-598-2	1-15749-331-0	AR	1	9206-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: M = 1-15603-021-1	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: M = 1-15603-021-1	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: M = 1-15603-021-1	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: M = 1-15603-021-1	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: I = 1-15602-902-1	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: I = 1-15602-902-1	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: I = 1-15602-902-1	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: I = 1-15602-902-1	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-435-4	1-15749-493-0	AR	1	9112-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: M = 1-15603-021-1	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-435-4	1-15749-494-0	AR	1	9112-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: M = 1-15603-021-1	1-15749-494-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: I = 1-15602-902-1	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: I = 1-15602-902-1	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-110-0	02	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-037-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: M = 1-15603-021-1	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: M = 1-15603-021-1	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-045-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-051-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-036-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-046-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-044-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15742-040-1	01	1	9206-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15742-044-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15742-078-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15742-087-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15742-104-0	01	1	-9205
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15742-138-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-027-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-073-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-660-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-665-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-666-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-667-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: B = 1-15602-435-4	1-15749-668-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15749-670-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15749-785-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15749-418-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-332-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-113-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-107-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 1-15602-444-1	1-15749-407-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP OR, L=59.5 WIRE OD=2.2 ASM PART: H = 1-15602-601-2	1-15749-645-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP OR, L=56.5 WIRE OD=2.3 ASM PART: H = 1-15602-601-2	1-15749-646-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP OR, L=54.0 WIRE OD=2.4 ASM PART: H = 1-15602-601-2	1-15749-647-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP L=64.5 WIRE OD=2.1 ASM PART: H = 1-15602-601-2	1-15749-648-0	01	1	-9205
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: F = 1-15602-598-2	1-15749-649-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-118-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-15749-049-1	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
