Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#23368) — 267 parça

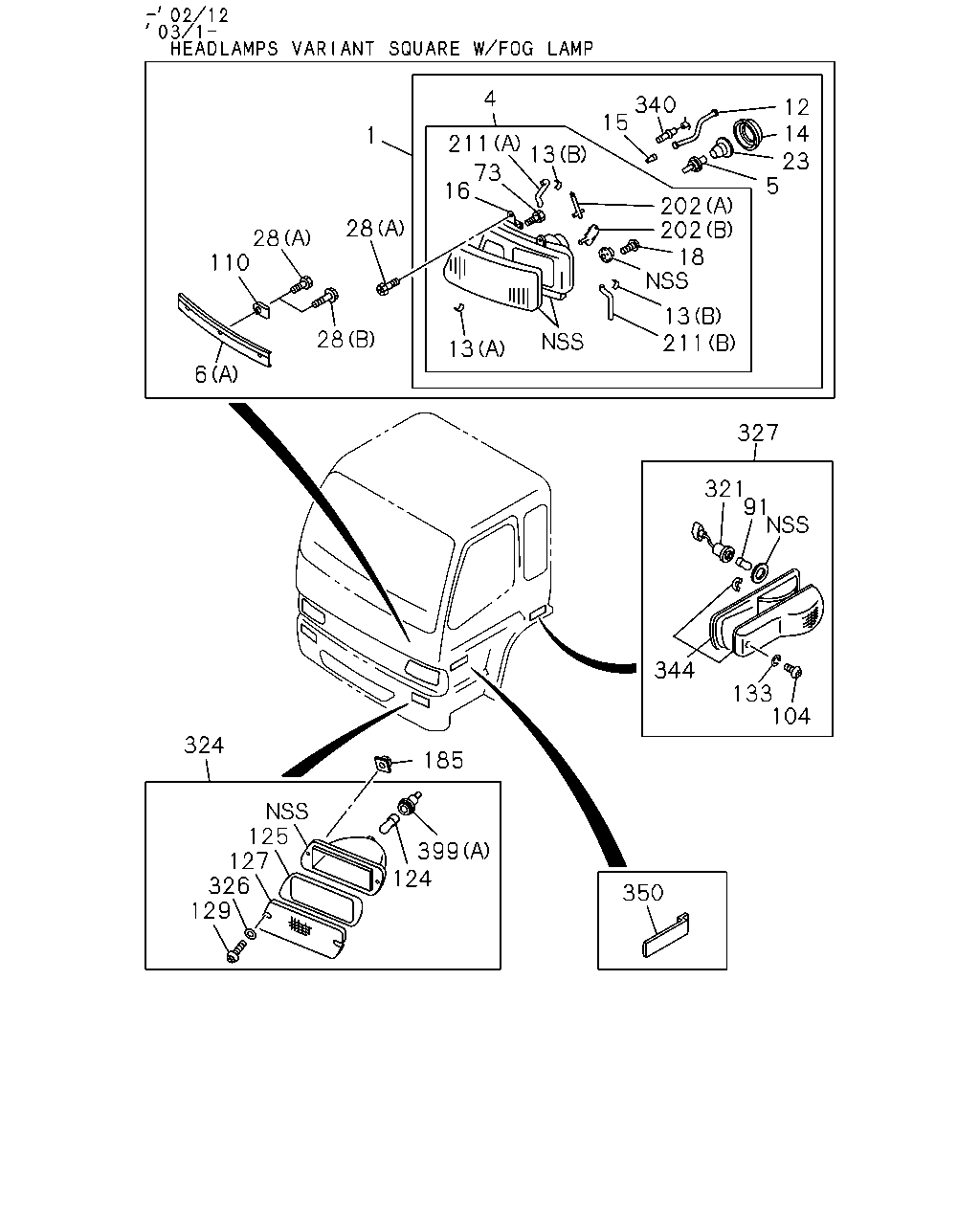

13 211 13 202 202 18 5 23 14 12 340 15 211 4 13 16 1 28 28 28 110 6 344 133 104 91 321 327 350 124 185 324 129 125 399 127 326 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-168-1	01	1	0301-0407
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-169-1	01	1	0301-0407
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-121-4	01	1	0301-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-122-4	01	1	0301-
1	LAMP ASM; HEAD	1-86830-177-6	01	1	0010-0210
1	LAMP ASM; HEAD	1-86830-358-0	01	1	0211-0212
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-358-0	01	1	0301-
1	LAMP ASM; HEAD	1-86830-178-6	01	1	0010-0210
1	LAMP ASM; HEAD	1-86830-359-0	01	1	0211-0212
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-359-0	01	1	0301-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-193-1	01	1	0301-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-194-1	01	1	0301-
4	HEADLAMP UNIT	1-86830-189-1	01	1	0010-0210
4	HEADLAMP UNIT	1-82119-199-0	01	1	0211-0212
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-199-0	01	1	0301-
4	HEADLAMP UNIT	1-86830-190-1	01	1	0010-0210
4	HEADLAMP UNIT	1-82119-200-0	01	1	0211-0212
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-200-0	01	1	0301-
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	8-94405-657-0	02	1	0301-
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0010-0212
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	0301-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-71118-745-1	01	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-71118-746-1	01	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-94165-573-0	04	1	0301-0407
6	RIM; HEADLAMP (A)	1-86830-006-5	01	1	0010-0212
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-006-5	01	1	0301-
6	RIM; HEADLAMP (A)	1-86830-005-5	01	1	0010-0212
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-005-5	01	1	0301-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>	1-86830-199-0	02	1	0301-
12	HARNESS; HEADLAMP	1-86830-145-0	02	1	0010-0212
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-145-0	02	1	0301-
13	CLIP; HEADLAMP (B)	1-82119-084-0	04	1	0010-0212
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82119-084-0	04	1	0301-
13	CLIP; HEADLAMP (A)	8-94381-588-0	14	1	0010-0212
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	8-94381-588-0	14	1	0301-
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	0301-0407
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0010-0212
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	0301-
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	0010-0212
15	BULB; FOG LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W	1-82194-079-0	02	1	0301-
16	BRACKET; HEADLAMP	1-86830-075-0	01	1	0010-0212
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-075-0	01	1	0301-
16	BRACKET; HEADLAMP	1-86830-076-0	01	1	0010-0212
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-076-0	01	1	0301-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0010-0212
18	SCREW; GEAR CASE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	08	1	0301-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0010-0212
23	COVER; BULB,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-147-0	02	1	0301-
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0301-0407
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0301-0407
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0010-0212
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0301-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE	0-28650-616-0	04	1	0709-
73	BOLT; BRKT,HEADLAMP	8-94332-050-0	04	1	0010-0212
73	BOLT; BRKT,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	8-94332-050-0	04	1	0301-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0010-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0010-
110	CLIP; RIM,HEADLAMP	1-86830-213-1	04	1	0010-0212
110	CLIP; RIM,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-213-1	04	1	0301-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0010-0212
124	BULB; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W	1-82194-036-0	02	1	0301-
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0010-0212
125	GASKET; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-033-0	02	1	0301-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0010-0212
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-065-0	01	1	0301-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0010-0212
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-064-0	01	1	0301-
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0010-0212
129	SCREW; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82219-026-0	04	1	0301-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0010-0206
185	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0010-
202	GEAR UNIT; HEADLAMP (A) OUTER	1-86830-139-0	02	1	0010-0212
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-139-0	02	1	0301-
202	GEAR UNIT; HEADLAMP (B) INNER	1-86830-140-0	02	1	0010-0212
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-140-0	02	1	0301-
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	0010-0105
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	0010-0105
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0010-0212
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-330-0	01	1	0301-
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0010-0212
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-331-0	01	1	0301-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0010-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0010-0212
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-203-1	01	1	0301-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0010-0212
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-202-1	01	1	0301-
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0010-0212
326	WASHER; PL,FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-032-0	04	1	0301-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0010-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0010-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0010-0212
340	BULB; POSITION HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W	1-82194-042-0	02	1	0301-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0010-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0010-
350	COVER; SIDE TURN HOLE	1-79998-944-1	01	1	0010-0209
350	COVER; SIDE TURN HOLE	1-79996-607-0	01	1	0210-
350	COVER; SIDE TURN HOLE	1-79998-943-1	01	1	0010-0209
350	COVER; SIDE TURN HOLE	1-79996-606-0	01	1	0210-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-033-0	02	1	0301-0407
399	SOCKET; TURN SIGNAL (A)	1-82219-034-0	02	1	0010-0407
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82219-034-0	02	1	0408-

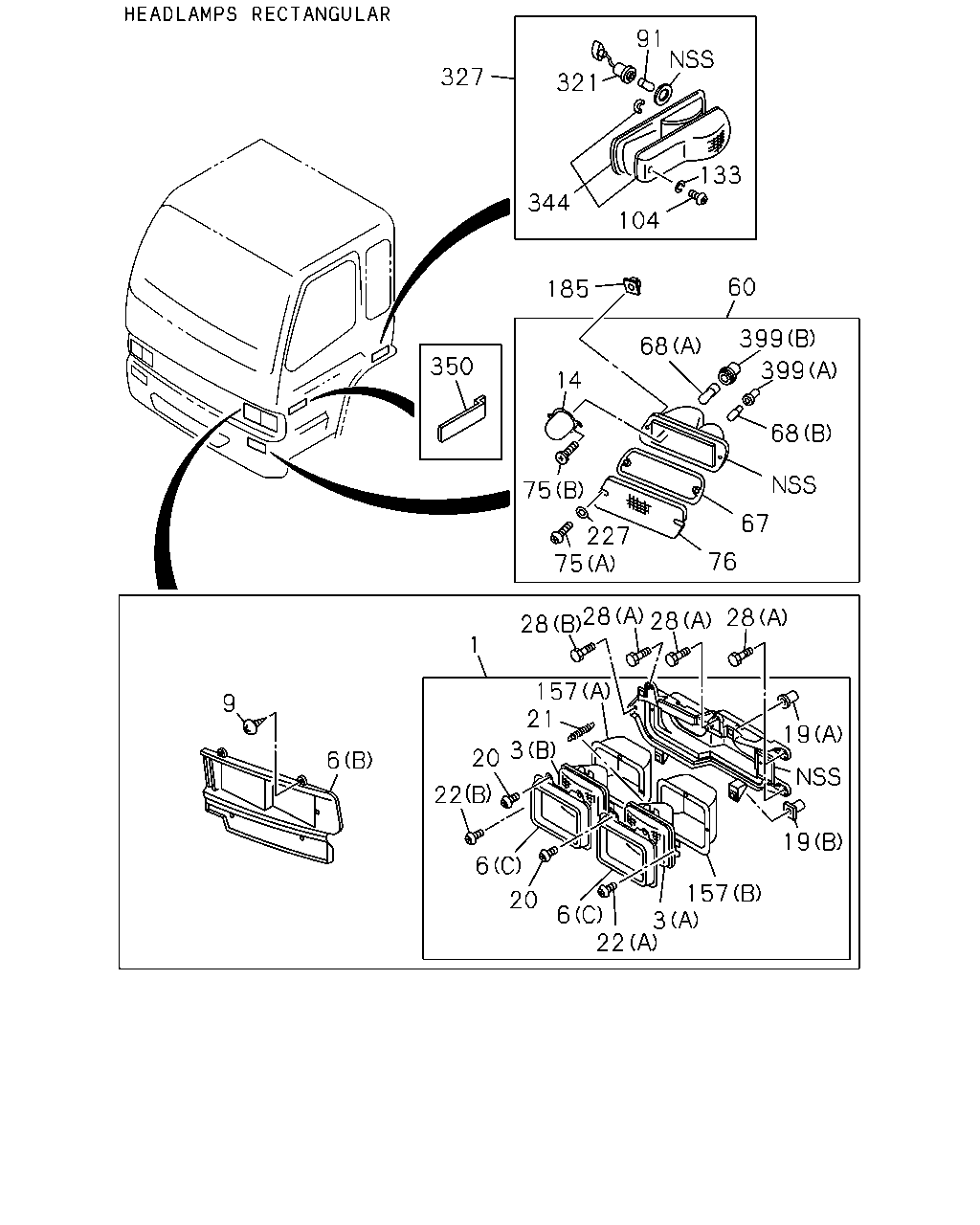

327 321 91 133 104 344 350 14 68 399 399 68 67 76 227 75 75 9 6 1 28 28 28 28 20 22 6 20 6 22 3 157 19 19 185 60 3 21 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-168-1	01	1	0301-0407
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-169-1	01	1	0301-0407
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-121-4	01	1	0301-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-122-4	01	1	0301-
1	LAMP ASM; HEAD	1-86830-177-6	01	1	0010-0210
1	LAMP ASM; HEAD	1-86830-358-0	01	1	0211-0212
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-358-0	01	1	0301-
1	LAMP ASM; HEAD	1-86830-178-6	01	1	0010-0210
1	LAMP ASM; HEAD	1-86830-359-0	01	1	0211-0212
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-359-0	01	1	0301-
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 65/50W	1-82113-011-0	02	1	0301-0407
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	8-94111-276-0	02	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-71118-745-1	01	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-71118-746-1	01	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-94165-573-0	04	1	0301-0407
6	RIM; HEADLAMP (A)	1-86830-006-5	01	1	0010-0212
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-006-5	01	1	0301-
6	RIM; HEADLAMP (A)	1-86830-005-5	01	1	0010-0212
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-005-5	01	1	0301-
9	SCREW; HEADLAMP RIM HEADLAMPS RECTANGULAR<TR4> M4X20 TAPPING W/PL WASHER	0-74110-420-0	08	1	0301-0407
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	0301-0407
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0010-0212
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	0301-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-117-0	08	1	0301-0407
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	8-97044-618-0	08	1	0301-0407
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4> M4X8	8-94165-886-0	16	1	0301-0407
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-120-0	04	1	0301-0407
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) RH,LH UPPER SIDE	1-82119-118-0	07	1	0301-0407
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) LH,INNEER SIDE	1-82119-119-0	01	1	0301-0407
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0301-0407
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0301-0407
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0010-0212
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0301-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE	0-28650-616-0	04	1	0709-
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-220-0	01	1	0301-0407
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-221-0	01	1	0301-0407
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-033-0	02	1	0301-0407
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W	1-82194-036-0	02	1	0301-0407
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W	8-94135-397-0	02	1	0301-0407
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-026-0	04	1	0301-0407
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-031-0	04	1	0301-0407
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82215-070-0	01	1	0301-0407
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82215-071-0	01	1	0301-0407
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0010-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0010-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0010-0206
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-031-0	01	1	0301-0407
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-032-0	01	1	0301-0407
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-033-0	01	1	0301-0407
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-034-0	01	1	0301-0407
185	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0010-
227	SEAT; SET SCREW,FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-032-0	04	1	0301-0407
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0010-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0010-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0010-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0010-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0010-
350	COVER; SIDE TURN HOLE	1-79998-944-1	01	1	0010-0209
350	COVER; SIDE TURN HOLE	1-79996-607-0	01	1	0210-
350	COVER; SIDE TURN HOLE	1-79998-943-1	01	1	0010-0209
350	COVER; SIDE TURN HOLE	1-79996-606-0	01	1	0210-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-033-0	02	1	0301-0407
399	SOCKET; TURN SIGNAL (A)	1-82219-034-0	02	1	0010-0407
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82219-034-0	02	1	0408-

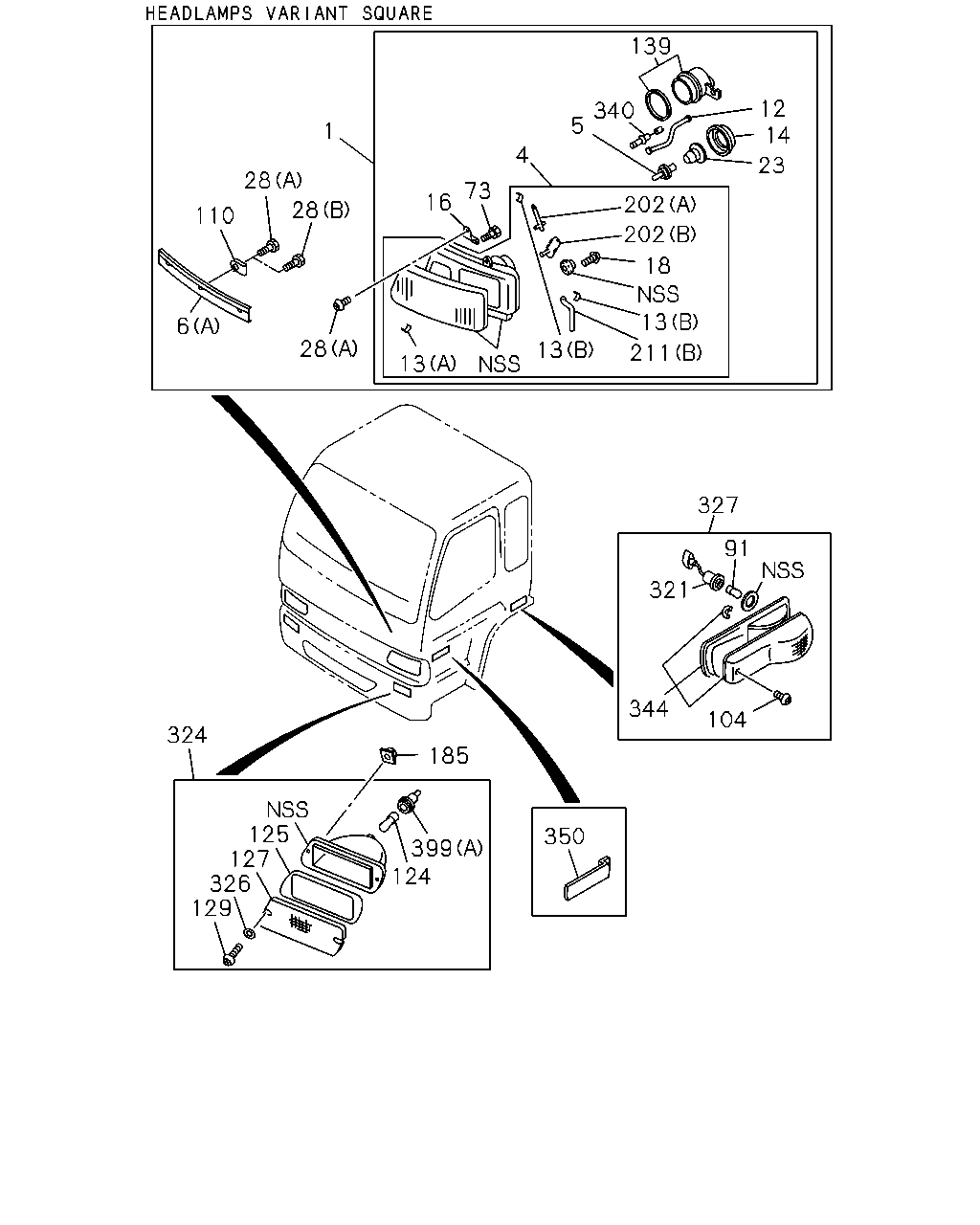

139 340 5 4 73 16 28 28 28 110 6 1 13 13 211 13 18 202 202 12 23 14 327 321 344 104 91 350 124 185 324 129 125 127 326 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-168-1	01	1	0301-0407
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-169-1	01	1	0301-0407
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-121-4	01	1	0301-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-122-4	01	1	0301-
1	LAMP ASM; HEAD	1-86830-177-6	01	1	0010-0210
1	LAMP ASM; HEAD	1-86830-358-0	01	1	0211-0212
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-358-0	01	1	0301-
1	LAMP ASM; HEAD	1-86830-178-6	01	1	0010-0210
1	LAMP ASM; HEAD	1-86830-359-0	01	1	0211-0212
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-359-0	01	1	0301-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-193-1	01	1	0301-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-194-1	01	1	0301-
4	HEADLAMP UNIT	1-86830-189-1	01	1	0010-0210
4	HEADLAMP UNIT	1-82119-199-0	01	1	0211-0212
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-199-0	01	1	0301-
4	HEADLAMP UNIT	1-86830-190-1	01	1	0010-0210
4	HEADLAMP UNIT	1-82119-200-0	01	1	0211-0212
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-200-0	01	1	0301-
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	8-94405-657-0	02	1	0301-
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0010-0212
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	0301-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-71118-745-1	01	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-71118-746-1	01	1	0301-0407
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-94165-573-0	04	1	0301-0407
6	RIM; HEADLAMP (A)	1-86830-006-5	01	1	0010-0212
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-006-5	01	1	0301-
6	RIM; HEADLAMP (A)	1-86830-005-5	01	1	0010-0212
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-005-5	01	1	0301-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>	1-86830-199-0	02	1	0301-
12	HARNESS; HEADLAMP	1-86830-145-0	02	1	0010-0212
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-145-0	02	1	0301-
13	CLIP; HEADLAMP (B)	1-82119-084-0	04	1	0010-0212
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82119-084-0	04	1	0301-
13	CLIP; HEADLAMP (A)	8-94381-588-0	14	1	0010-0212
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	8-94381-588-0	14	1	0301-
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	0301-0407
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0010-0212
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	0301-
16	BRACKET; HEADLAMP	1-86830-075-0	01	1	0010-0212
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-075-0	01	1	0301-
16	BRACKET; HEADLAMP	1-86830-076-0	01	1	0010-0212
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-076-0	01	1	0301-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0010-0212
18	SCREW; GEAR CASE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	08	1	0301-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0010-0212
23	COVER; BULB,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-147-0	02	1	0301-
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0301-0407
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0301-0407
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0010-0212
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0301-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 FLANGE	0-28650-616-0	04	1	0709-
73	BOLT; BRKT,HEADLAMP	8-94332-050-0	04	1	0010-0212
73	BOLT; BRKT,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	8-94332-050-0	04	1	0301-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0010-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0010-
110	CLIP; RIM,HEADLAMP	1-86830-213-1	04	1	0010-0212
110	CLIP; RIM,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-213-1	04	1	0301-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0010-0212
124	BULB; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W	1-82194-036-0	02	1	0301-
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0010-0212
125	GASKET; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-033-0	02	1	0301-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0010-0212
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-065-0	01	1	0301-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0010-0212
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-064-0	01	1	0301-
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0010-0212
129	SCREW; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82219-026-0	04	1	0301-
139	COVER; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>	1-82119-224-0	02	1	0301-
185	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0010-
202	GEAR UNIT; HEADLAMP (A) OUTER	1-86830-139-0	02	1	0010-0212
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-139-0	02	1	0301-
202	GEAR UNIT; HEADLAMP (B) INNER	1-86830-140-0	02	1	0010-0212
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-140-0	02	1	0301-
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	0010-0105
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	0010-0105
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0010-0212
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-330-0	01	1	0301-
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0010-0212
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-331-0	01	1	0301-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0010-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0010-0212
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-203-1	01	1	0301-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0010-0212
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-202-1	01	1	0301-
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0010-0212
326	WASHER; PL,FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-032-0	04	1	0301-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0010-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0010-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0010-0212
340	BULB; POSITION HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W	1-82194-042-0	02	1	0301-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0010-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0010-
350	COVER; SIDE TURN HOLE	1-79998-944-1	01	1	0010-0209
350	COVER; SIDE TURN HOLE	1-79996-607-0	01	1	0210-
350	COVER; SIDE TURN HOLE	1-79998-943-1	01	1	0010-0209
350	COVER; SIDE TURN HOLE	1-79996-606-0	01	1	0210-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-033-0	02	1	0301-0407
399	SOCKET; TURN SIGNAL (A)	1-82219-034-0	02	1	0010-0407
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82219-034-0	02	1	0408-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
