Isuzu WW
▶
TRUCKS
▶
FTS
▶
11358 - FTS(MALAYSIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

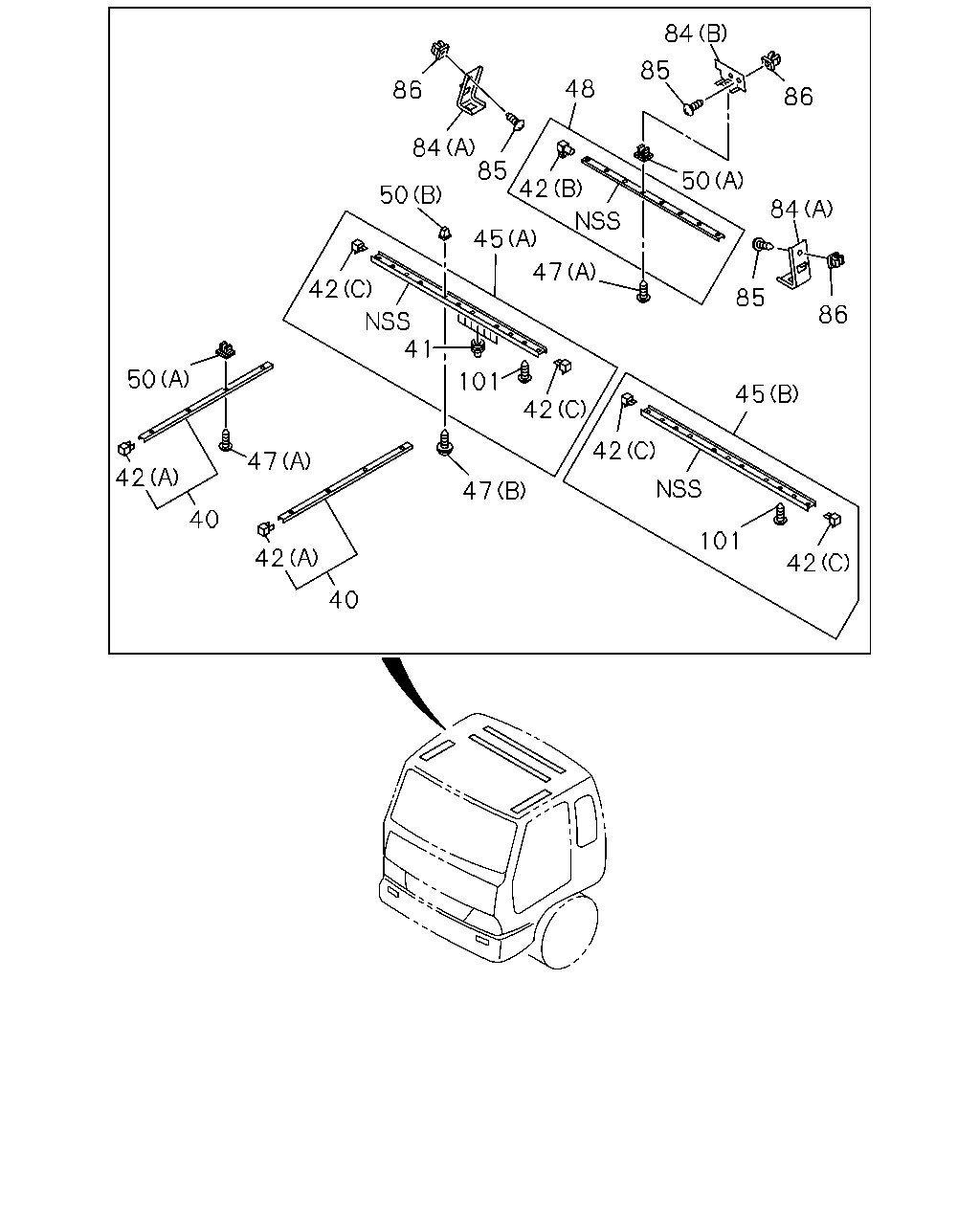

7-70 — SEPARATER AND BED
(#23367) — 24 parça
◀
[770A] CURTAIN RAIL (20 parça)
[770A] CURTAIN AND BED (4 parça)
▶
84
85
48
86
86
84
85
50
42
50
84
45
47
42
85
86
41
50
101
45
42
42
47
42
47
40
101
42
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73996-380-1
01
1
0010-
40
RAIL; CURTAIN,SIDE
1-73996-379-0
01
1
0010-
41
HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE
1-73996-398-0
14
1
0010-
42
STOPPER; CURTAIN RAIL
(A)
1-73996-393-0
02
1
0010-
42
STOPPER; CURTAIN RAIL
(C)
1-73907-657-0
02
1
0010-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-399-0
01
1
0010-
45
RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> (A)
1-73908-374-2
01
1
0010-
45
RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)
1-73908-373-1
01
1
0010-
47
SCREW; CURTAIN RAIL
(A) M5X20
5-09981-059-0
17
1
0010-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0010-
48
RAIL; CURTAIN,BACK
1-73996-385-1
01
1
0010-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0010-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5
8-94279-078-0
17
1
0010-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0010-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0010-
85
SCREW; BRKT
M5X20
5-09981-059-0
02
1
0010-
85
SCREW; BRKT
M5X20
5-09981-059-0
07
1
0010-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0010-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5
8-94279-078-0
07
1
0010-
101
SCREW; STOPPER
1-73907-400-0
02
1
0010-
44
44
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-207-1
01
1
0010-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-208-1
01
1
0010-
58
BED; MAT
MATTRESS SLEEPER CAB<E40>
1-75116-531-1
01
1
0010-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40>
1-75116-700-1
01
1
0010-
