◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11358 - FTS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#23365) — 75 parça

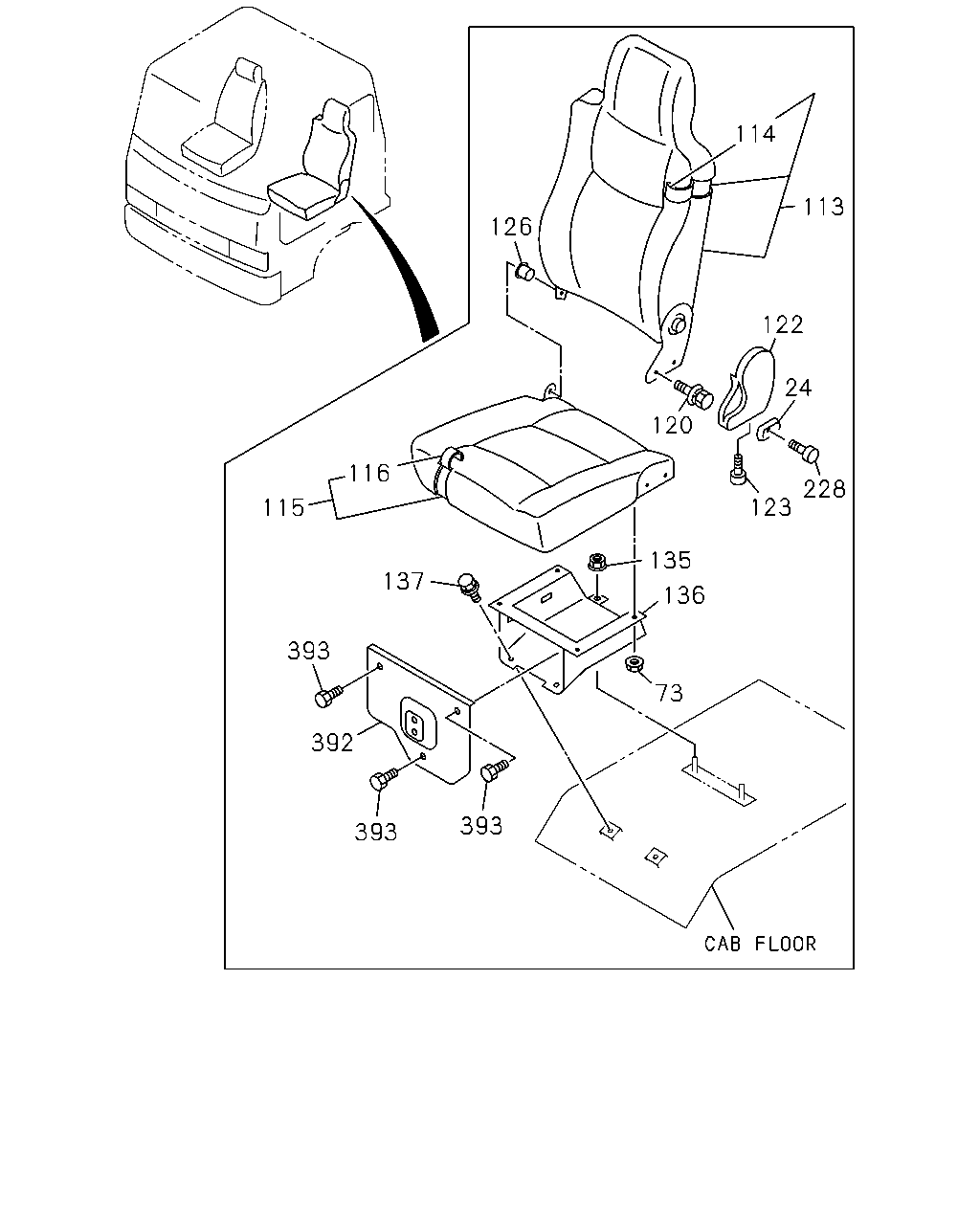

çizim 65388
114 113 126 122 24 120 116 228 123 115 135 137 136 393 73 392 393 393
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 0010-0105
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 0010-0105
24 KNOB; RECLINING,FRT,SEAT
DRIVER DARK GRAY 		8-97867-021-0 01 1 0106-0710
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-066-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
PASSENGER DARK GRAY 		8-97859-019-0 01 1 0106-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0010-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0010-
113 BACK ASM; SEAT 1-75026-723-0 01 1 0010-0105
113 BACK ASM; SEAT 1-75208-074-3 01 1 0106-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-602-0 01 1 0010-0105
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-592-1 01 1 0106-
115 CUSHION ASM; PASSENGER SEAT 1-75026-698-0 01 1 0010-0105
115 CUSHION ASM; PASSENGER SEAT 1-75026-701-1 01 1 0106-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-686-0 01 1 0010-0105
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-689-1 01 1 0106-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0010-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0010-0105
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0106-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0010-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0010-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0010-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-550-4 01 1 0010-0105
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0106-1305
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0010-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0010-0710
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0010-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 0010-0111
392 COVER; STAND,PASSENGER SEAT 1-75558-556-1 01 1 0112-
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0010-0602
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-0703
393 BOLT; COVER,SEAT STAND
M6X16 		0-52000-616-0 03 1 0704-

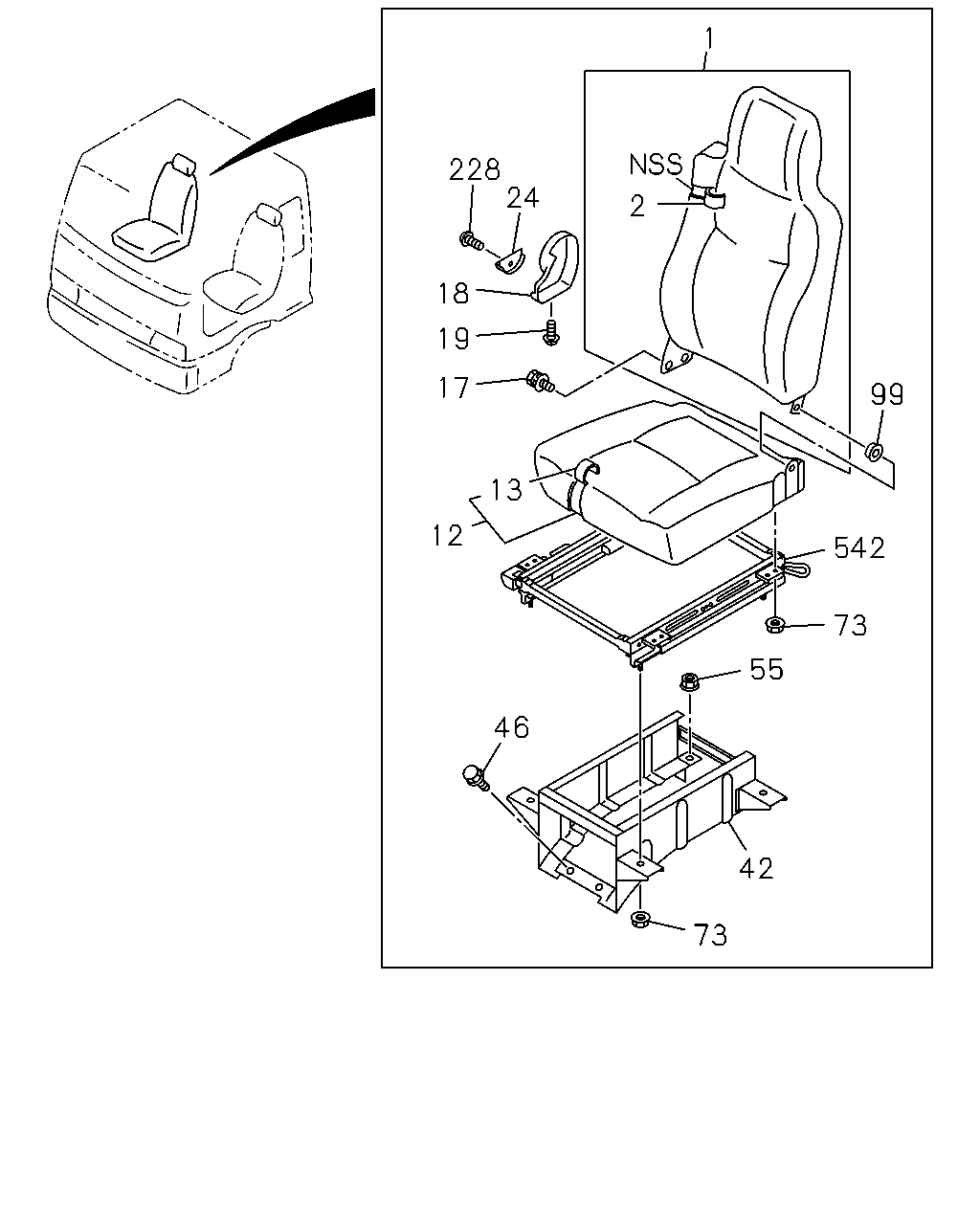

çizim 65442
1 228 24 2 18 19 17 99 13 12 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75026-728-0 01 1 0010-0105
1 BACK ASM; SEAT 1-75208-067-3 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK 1-75116-702-1 01 1 0010-
12 CUSHION; SEAT,FRT 1-75026-692-1 01 1 0010-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-680-1 01 1 0010-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0010-
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0010-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0010-
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 0010-0105
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 0010-0105
24 KNOB; RECLINING,FRT,SEAT
DRIVER DARK GRAY 		8-97867-021-0 01 1 0106-0710
24 KNOB; RECLINING,FRT,SEAT
DRIVER 		1-75418-066-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
PASSENGER DARK GRAY 		8-97859-019-0 01 1 0106-
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0010-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0010-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0010-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0010-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0010-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0010-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0010-0710
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0010-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 0010-1502
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503-

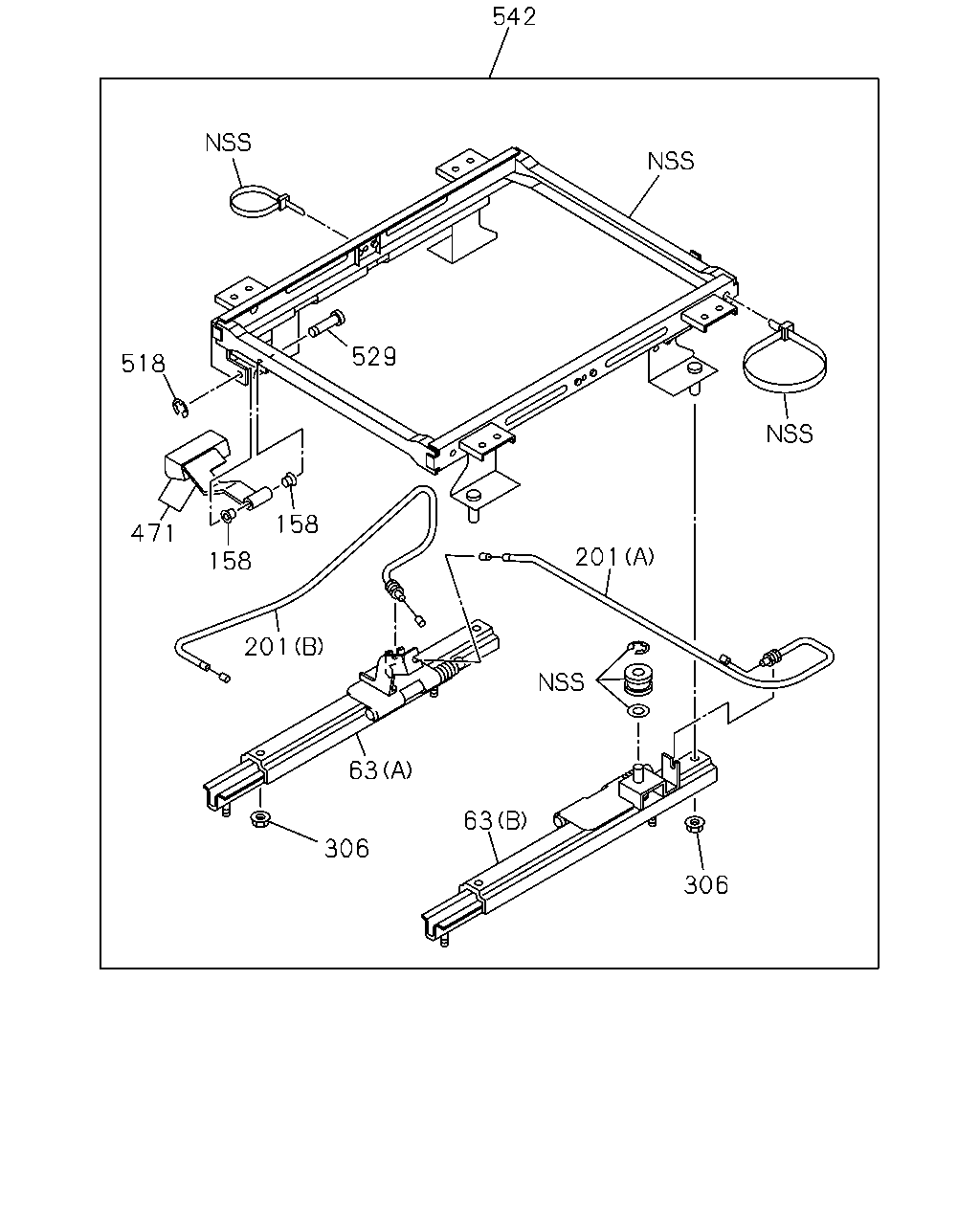

çizim 66501
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0010-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0010-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0010-
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0010-
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0010-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0010-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0010-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
518 NUT; TILT ADJ 1-75518-263-0 01 1 0010-
529 PIN; LINK 1-75518-262-0 01 1 0010-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-286-3 01 1 0010-1502
542 ADJUSTER ASM; SEAT SLIDE 8-98291-659-0 01 1 1503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
