7-40 — INSTRUMENT PANEL AND BOX (#23362) — 117 parça

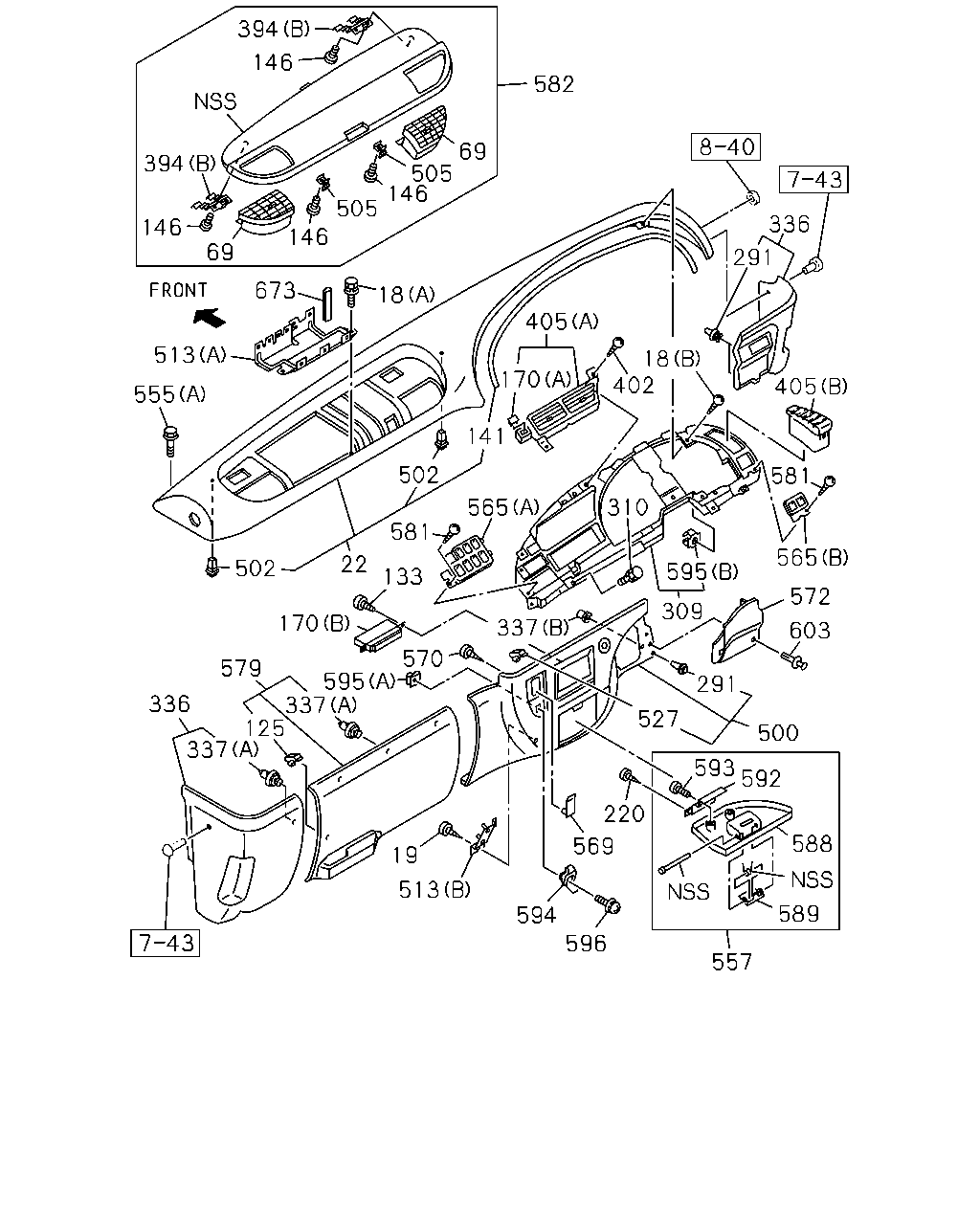

çizim 15875
394 146 582 69 505 146 394 505 336 146 146 69 291 673 18 405 513 18 402 170 405 555 141 502 581 310 565 581 565 22 502 595 133 572 309 170 337 603 570 579 595 337 125 337 291 336 527 500 593 592 220 588 569 19 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28680-840-0 03 1 0010-0512
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0010-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0010-
18 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0010-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0010-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0010-
22 PAD; INST 1-72318-433-4 01 1 0010-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0010-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0010-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0010-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0010-
133 SCREW; COVER,INST PNL
M5X14 		8-94279-325-0 02 1 0010-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0010-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0010-
170 COVER; HOLE
(B) 		1-72438-139-1 01 1 0010-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0010-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0010-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0010-
309 PANEL; SW,INST 1-72418-009-6 01 1 0010-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0010-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0010-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0010-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0010-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0010-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0010-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0010-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0010-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0010-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0010-
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0010-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0010-
505 LOCK; LID 1-72558-024-2 02 1 0010-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0010-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
513 BRACKET; RELAY
(B) 		1-73908-043-1 01 1 0010-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0010-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0010-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0010-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0010-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0010-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0010-
569 HOLDER; CARD 1-72498-015-2 01 1 0010-
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0010-
572 COVER; INSPECTION 1-72438-183-0 01 1 0010-
579 COVER; INST PNL 1-72438-184-1 01 1 0010-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0010-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0010-
588 LID; BOX 1-72548-135-3 01 1 0010-
589 KNOB; LID 1-72548-143-0 01 1 0010-
592 HINGE; LID 1-72548-133-3 01 1 0010-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0010-
594 HOOK; COAT 1-72498-013-0 01 1 0010-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0010-0012
595 NUT; HOOK
(A) 		8-97810-118-0 01 1 0101-0110
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0111-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0010-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0010-0012
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111-
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0010-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-

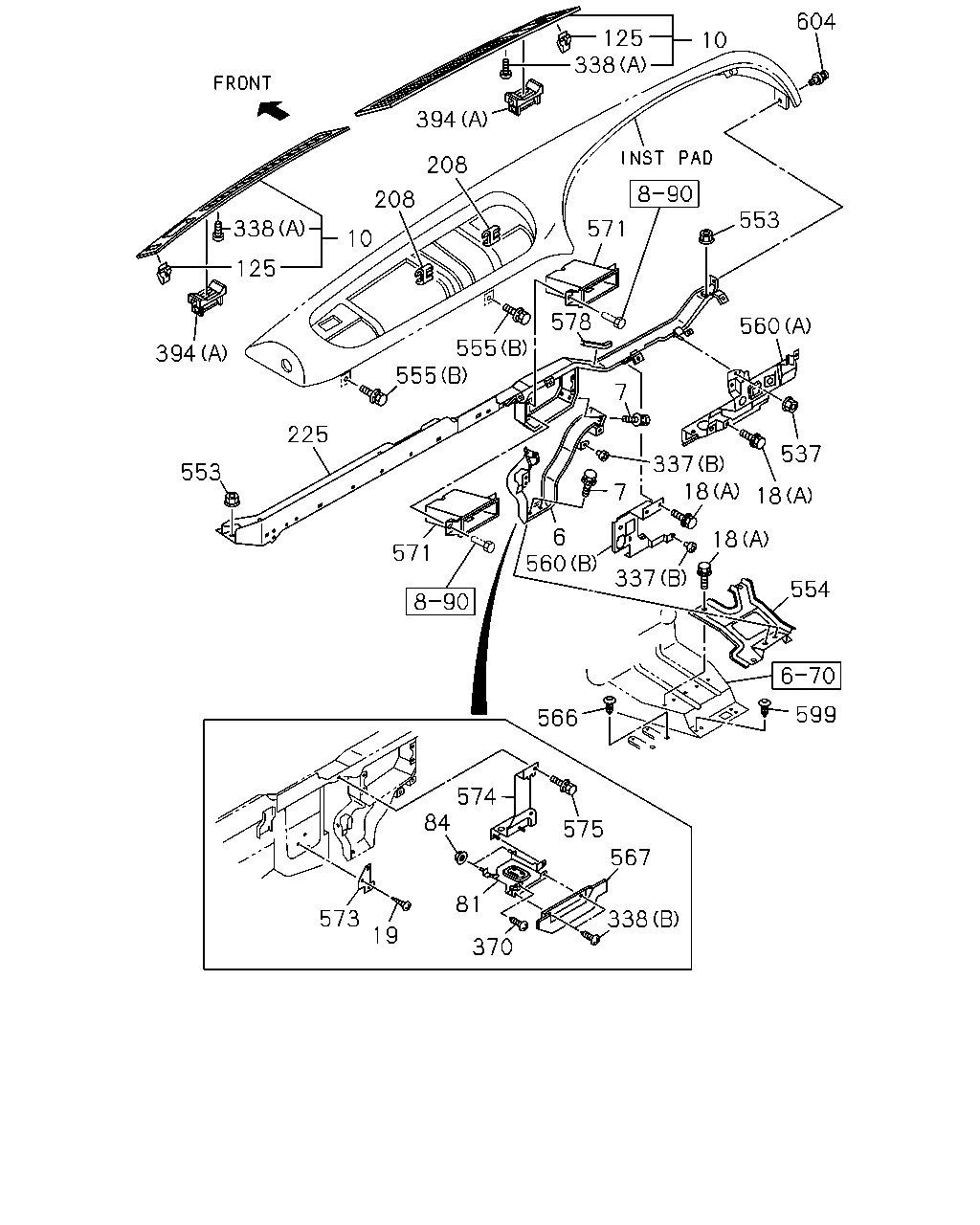

çizim 15876
604 125 338 10 394 208 208 553 571 338 10 125 578 560 555 555 394 7 225 537 337 18 553 7 18 6 560 18 571 337 554 599 566 574 84 575 567 81 573 338 19 370
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0010-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0010-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0010-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0010-
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28680-840-0 03 1 0010-0512
18 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0010-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0010-
18 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0010-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0010-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0010-
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0010-
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0010-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0010-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0010-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0010-
225 FRAME; FACIA 1-65681-096-2 01 1 0010-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0010-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0010-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0010-0208
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0010-0302
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0303-
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0010-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0010-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0010-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0010-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0010-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0010-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 0010-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0010-
560 BRACKET
(B) 		1-65680-976-3 01 1 0010-
560 BRACKET
(A) 		1-65681-078-7 01 1 0010-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0010-
567 COVER; CONT UNIT 1-65681-022-2 01 1 0010-
571 BEZEL; POCKET 1-72438-151-3 01 1 0010-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0010-
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0010-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0010-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0010-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0010-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0010-
604 CLIP; INST PAD 1-09983-123-0 01 1 0010-
