◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11358 - FTS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#23338) — 180 parça

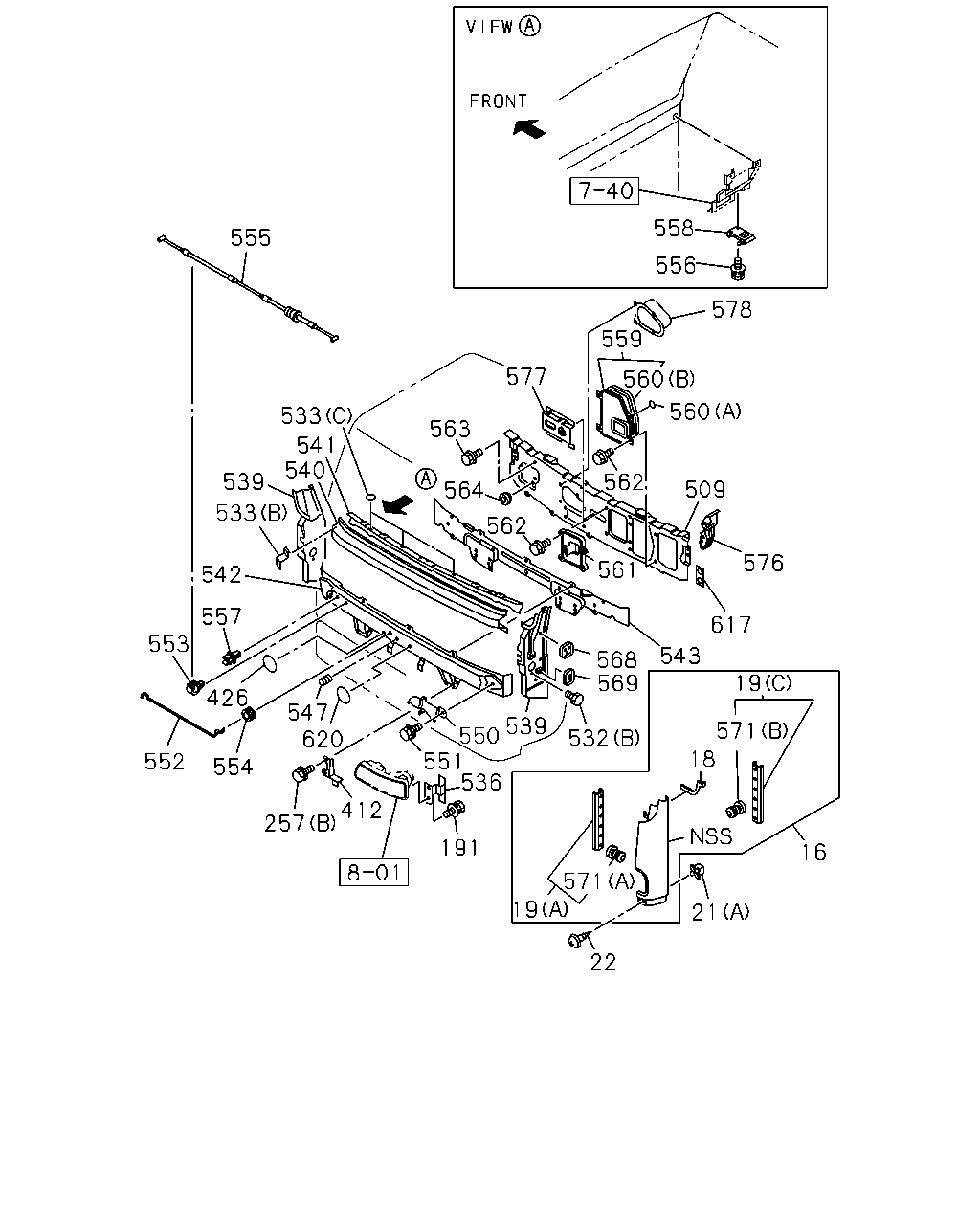

çizim 15991
558 555 556 578 559 577 560 560 533 563 541 540 539 562 509 564 533 562 561 576 542 557 617 553 543 568 569 19 426 547 620 539 550 551 536 571 18 532 552 554 412 257 191 16 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0010-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0010-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0010-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0010-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0010-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0010-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0010-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0010-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0010-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0010-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0010-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0010-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0010-0212
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0301-0708
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0010-0411
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0010-0212
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0301-0904
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0010-0212
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0301-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0010-0212
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0301-
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 0010-0112
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0010-0112
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0201-0310
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0311-0602
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0311-0602
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0603-
509 PANEL; DASH 1-62280-213-1 01 1 0010-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0010-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0010-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0010-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0010-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0010-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0010-
536 HINGE 1-86830-004-5 01 1 0010-0212
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0301-
536 HINGE 1-86830-003-5 01 1 0010-0212
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0301-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0010-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0010-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0010-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0010-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0010-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0010-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0010-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0010-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0010-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0010-
552 STAY; FRT LID 1-71998-810-2 01 1 0010-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0010-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0010-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0010-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0010-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0010-
558 LEVER; FRT LID 1-79338-003-1 01 1 0010-0212
558 LEVER; FRT LID 1-79338-007-1 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0010-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0010-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0010-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0010-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0010-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0010-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0010-
568 PATCH; INST REINF 1-61480-675-2 02 1 0010-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0010-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0010-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0010-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0010-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0010-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0010-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0010-0604
576 FRAME; INST SIDE 1-62280-177-7 01 1 0010-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0010-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0010-0604
617 SEAL; DASH 1-61281-497-0 02 1 0010-0604
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0010-

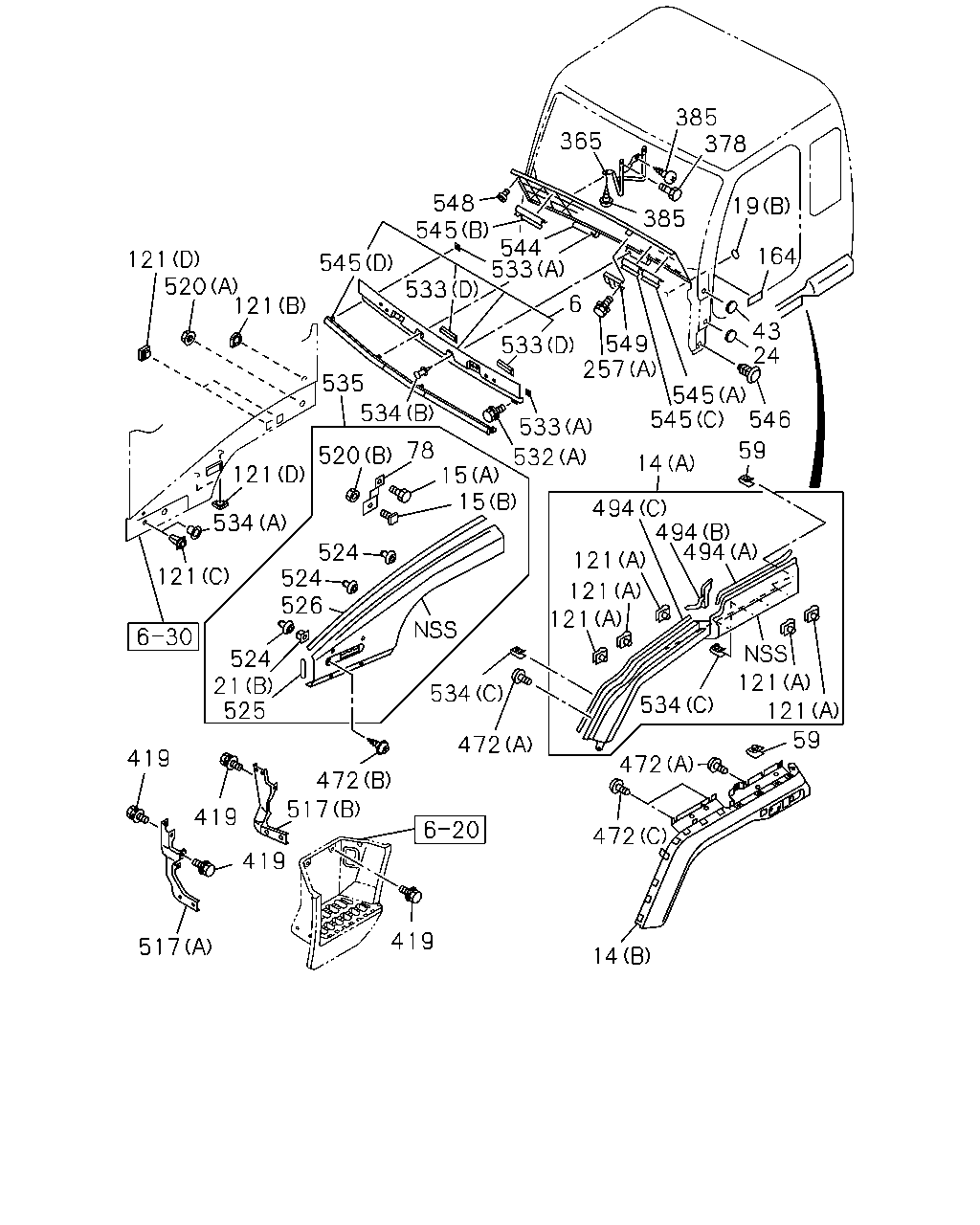

çizim 17957
385 378 365 548 545 19 385 544 533 164 121 520 545 6 533 121 43 24 533 549 257 535 545 545 546 533 534 78 15 15 59 520 532 121 14 494 494 494 534 524 524 526 121 121 121 121 121 121 524 21 525 534 534 59 472 419 472 472 517 419 472 419 419 517 14
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0010-
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 0010-0209
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0010-
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 0010-0209
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210-
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0010-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0010-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0010-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0010-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0010-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0010-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0010-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0010-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0010-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0010-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 0010-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0010-
59 GROMMET; SCREW 8-94279-723-0 02 1 0010-
78 BRACKET; FENDER 1-71268-323-0 01 1 0010-
78 BRACKET; FENDER 1-71268-322-0 01 1 0010-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0010-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0010-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0010-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0010-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0010-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0010-0411
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0010-0212
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0301-0904
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0010-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0010-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0010-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0010-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0010-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 03 1 0010-0602
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0603-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0010-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0010-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0010-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0010-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0010-
517 SUPPORT; STEP PANEL
(A) 		1-71996-057-1 01 1 0010-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0010-
517 SUPPORT; STEP PANEL
(A) 		1-71996-056-1 01 1 0010-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0010-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0010-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0010-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0010-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0010-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-276-1 01 1 0010-0209
526 FINISHER; FENDER 1-71268-275-1 01 1 0010-0209
526 FINISHER; FENDER 1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0010-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0010-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0010-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0010-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0010-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0010-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0010-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 20 1 0010-
534 FASTENER
(C) 		1-71996-035-1 04 1 0010-0404
534 FASTENER
(C) 		1-71996-035-1 06 1 0405-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0010-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0010-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0010-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
544 LID; FRT
HEADLAMPS RECTANGULAR<TR4> MITRAS 		1-71108-116-0 01 1 0301-0407
544 LID; FRT
HEADLAMPS RECTANGULAR<TR4> HITACHI CHEMICAL 		1-71108-152-0 01 1 0301-0407
544 LID; FRT 1-71108-235-3 01 1 0010-0212
544 LID; FRT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71108-235-3 01 1 0301-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0010-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0010-0411
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-71996-253-1 01 1 0412-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0010-0411
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-71996-255-0 01 1 0412-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0010-0411
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) L=63 		1-71998-963-2 01 1 0412-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0010-
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0010-0411
548 STRIKER; FRT LID PANEL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-79318-008-1 02 1 0412-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0010-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-0411
549 BRACKET; STOPPER,FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71108-358-0 01 1 0412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
