◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11358 - FTS(MALAYSIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#23330) — 91 parça

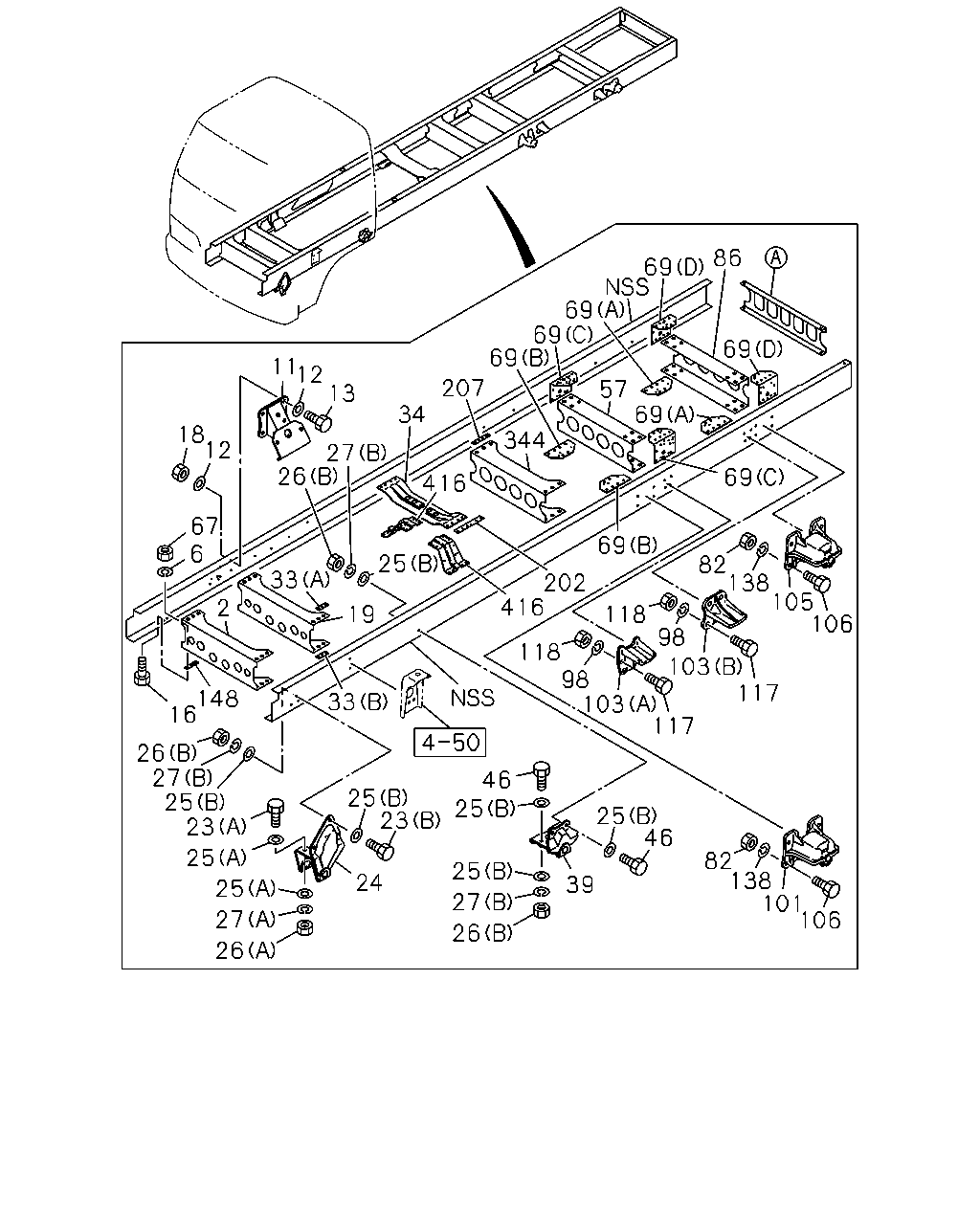

çizim 15853
86 69 69 69 69 69 11 12 13 57 69 344 207 34 18 12 27 26 69 416 25 67 6 69 82 138 105 106 98 33 202 416 2 19 118 118 98 103 103 117 148 16 33 117 26 27 25 23 46 25 25 23 25 46 82 138 101 106 25 25 24 39 25 27 27 26 26
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0010-0706
2 MEMBER; CROSS,1ST 1-53181-939-2 01 1 0707-
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 01 1 0010-0603
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 01 1 0604-
11 BRACKET; ENG MTG 1-53211-218-0 02 1 0010-
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 0010-
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 0010-0512
13 BOLT; BRKT,ENG MTG
M12X35 		0-20951-235-0 08 1 0601-
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 01 1 0010-0512
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 01 1 0601-
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 0010-0512
18 NUT; BRKT,ENG MTG
M12 		0-91110-512-0 08 1 0601-
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0010-0410
19 MEMBER; CROSS,2ND 8-97606-306-0 01 1 0411-
23 BOLT; BRKT,SPR
(B) M14X45 		9-92061-445-0 06 1 0010-
23 BOLT; BRKT,SPR
(A) M16X50 		9-92061-650-0 04 1 0010-0512
23 BOLT; BRKT,SPR
(A) M16X50 		0-20951-650-0 04 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0010-
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0010-
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0010-
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 0010-1201
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 28 1 1202-
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 14 1 0010-0512
26 NUT; BRKT,SPR
(B) M14 		0-91110-514-0 14 1 0601-
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 04 1 0010-0512
26 NUT; BRKT,SPR
(A) M16 		0-91110-516-0 04 1 0601-
27 WASHER; LK,BRKT,FRT SPR
(B) ID=14.2 		9-09150-614-0 14 1 0010-0603
27 WASHER; LK,BRKT,FRT SPR
(B) ID=14.2 		0-91510-614-0 14 1 0604-
27 WASHER; LK,BRKT,FRT SPR
(A) ID=16.2 		9-09150-616-0 04 1 0010-0603
27 WASHER; LK,BRKT,FRT SPR
(A) ID=16.2 		0-91510-616-0 04 1 0604-
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0010-
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0010-
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0010-
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0010-
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0010-
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0010-
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0010-
67 NUT; C/MBR
M16 		9-99110-516-0 01 1 0010-0512
67 NUT; C/MBR
M16 		0-91110-516-0 01 1 0601-
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-099-4 02 1 0010-
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-100-3 02 1 0010-
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-628-0 01 1 0010-
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-629-0 01 1 0010-
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-630-0 01 1 0010-
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-631-0 01 1 0010-
82 NUT; BRKT
M14 		9-99110-414-0 20 1 0010-0512
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601-
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 0010-
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0010-0603
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604-
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0010-
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0010-
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0010-
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0010-
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 0010-
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0010-
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 0010-0512
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601-
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 0010-0603
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604-
148 SPACER; C/MBR 1-53168-341-0 02 1 0010-
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0010-
207 SPACER; 4TH C/MBR
PINTLE HOOK<PP7> 		1-53168-163-1 01 1 0010-
207 SPACER; 4TH C/MBR
EXC. PINTLE HOOK<PP7> 		1-53168-163-1 02 1 0010-
344 MEMBER; CROSS,4TH 1-53181-095-2 01 1 0010-
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0010-
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0010-

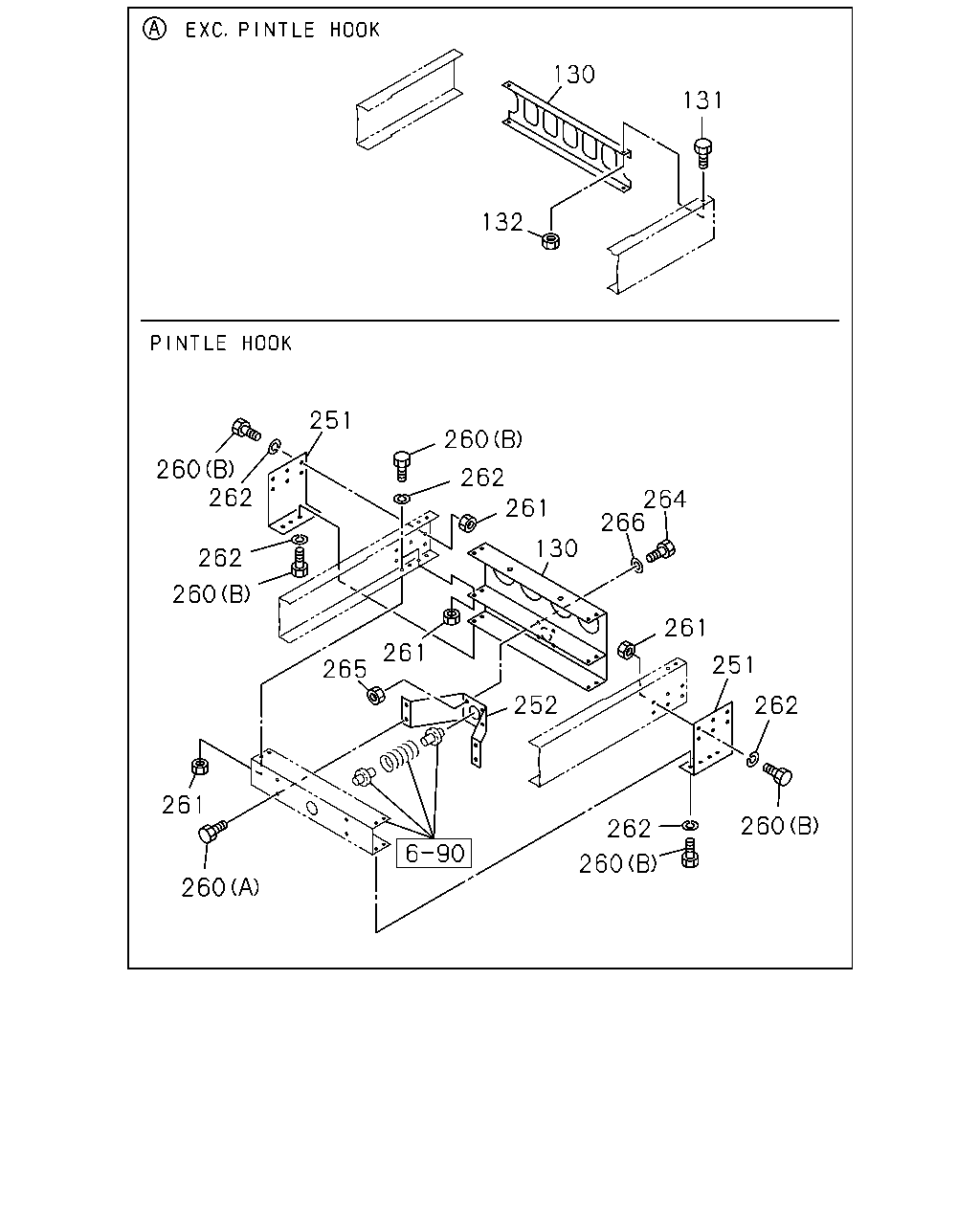

çizim 65011
130 131 132 251 260 260 262 262 261 264 266 130 262 260 261 261 265 251 252 262 261 260 262 260 260
BalonParca AdiParca NoAdetTipApplied Date
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> 		1-53181-586-0 01 1 0010-
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53181-151-2 01 1 0010-
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50041-230-0 04 1 0010-0512
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		9-99110-412-0 04 1 0010-0512
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		0-91110-512-0 04 1 0601-
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-183-1 01 1 0010-
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-184-1 01 1 0010-
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-187-0 01 1 0010-
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M12X40 W/LK WASHER 		0-50041-240-0 08 1 0010-0906
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M12X40 W/LK WASHER 		0-50541-240-0 08 1 0907-
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (B) M14X35 		9-92061-435-0 24 1 0010-0512
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (B) M14X35 		0-20951-435-0 24 1 0601-
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		9-99110-514-0 16 1 0010-0512
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		0-91110-514-0 16 1 0601-
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		9-09150-614-0 24 1 0010-0603
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 24 1 0604-
264 BOLT; FRT C/MBR
PINTLE HOOK<PP7> M14X35 		9-92061-435-0 04 1 0010-0512
264 BOLT; FRT C/MBR
PINTLE HOOK<PP7> M14X35 		0-20951-435-0 04 1 0601-
265 NUT; FRT C/MBR
PINTLE HOOK<PP7> M14 		9-99110-514-0 04 1 0010-0512
265 NUT; FRT C/MBR
PINTLE HOOK<PP7> M14 		0-91110-514-0 04 1 0601-
266 WASHER; LK,C/MBR
PINTLE HOOK<PP7> ID=14.2 		9-09150-614-0 04 1 0010-0202
266 WASHER; LK,C/MBR
PINTLE HOOK<PP7> ID=14.2 		9-09150-814-0 04 1 0203-0603
266 WASHER; LK,C/MBR
PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 04 1 0604-
