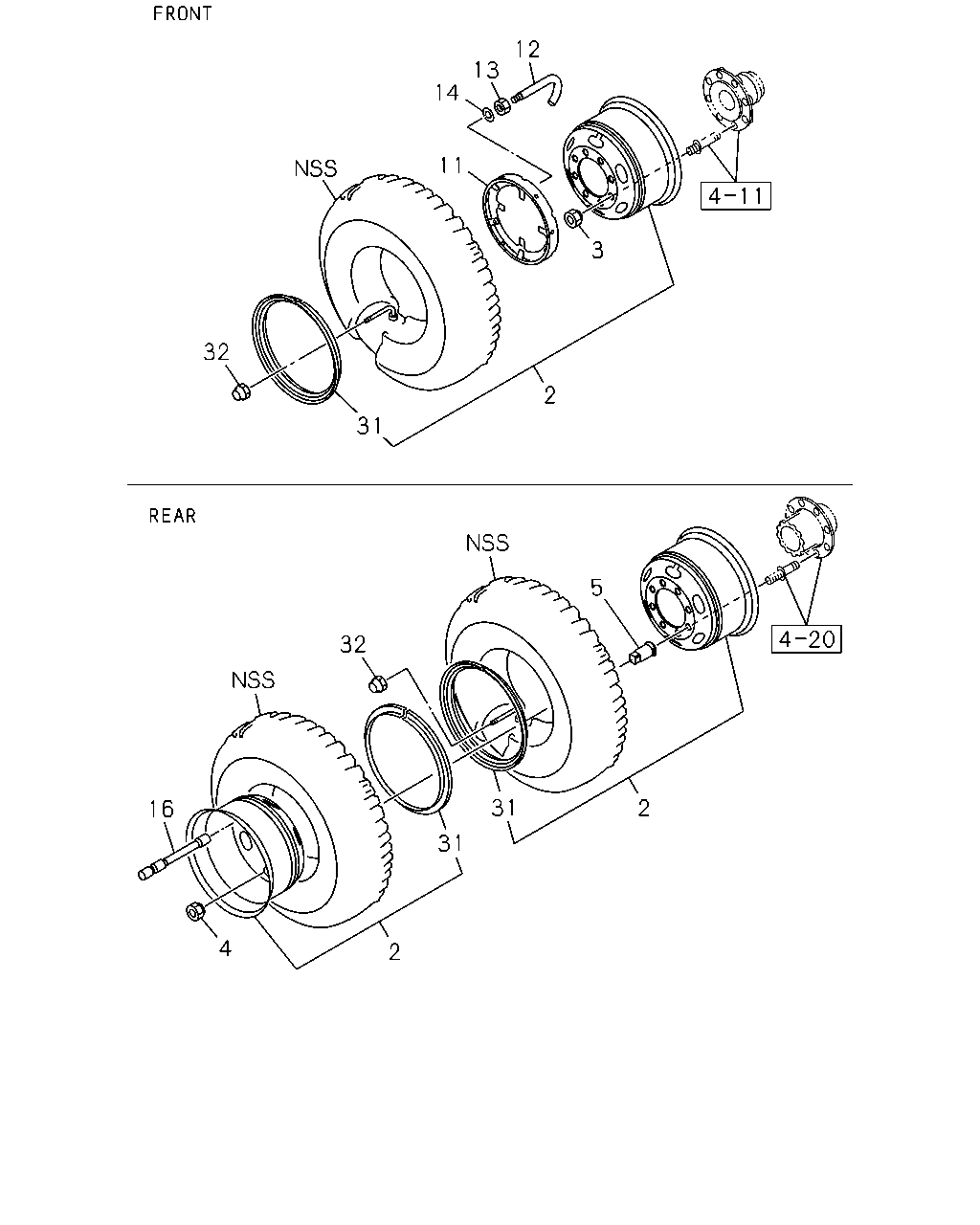

4-80 — ROAD WHEEL (#23329) — 26 parça

12 13 14 11 3 32 2 31 5 32 31 2 16 31 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE	1-42350-478-0	01	1	0010-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42350-478-0	06	1	0010-
2	WHEEL; DISC EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE	1-42350-268-2	01	1	0010-
2	WHEEL; DISC EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42350-268-2	06	1	0010-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0010-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0010-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0010-0610
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0010-0610
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0010-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0010-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-
11	STEP; DISC WHEEL SIDE	1-43139-002-2	02	1	0010-
12	U-BOLT; STEP DISC L=44	9-43139-023-1	06	1	0010-
13	NUT; STEP DISC M10	9-09110-510-0	06	1	0010-0512
13	NUT; STEP DISC M10	0-91110-510-0	06	1	0601-
14	WASHER; LK,STEP DISC ID=10.2	9-09150-510-0	06	1	0010-0603
14	WASHER; LK,STEP DISC ID=10.2	0-91510-510-0	06	1	0604-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	02	1	0010-0210
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE	1-42355-003-1	01	1	0010-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42355-003-1	06	1	0010-
31	RING; SIDE,DISC WHEEL EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE	1-42355-012-1	01	1	0010-
31	RING; SIDE,DISC WHEEL EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42355-012-1	06	1	0010-
32	CAP; VALVE	1-42374-001-0	07	1	0010-
