4-42 — POWER STEERING OIL PUMP (#23324) — 77 parça

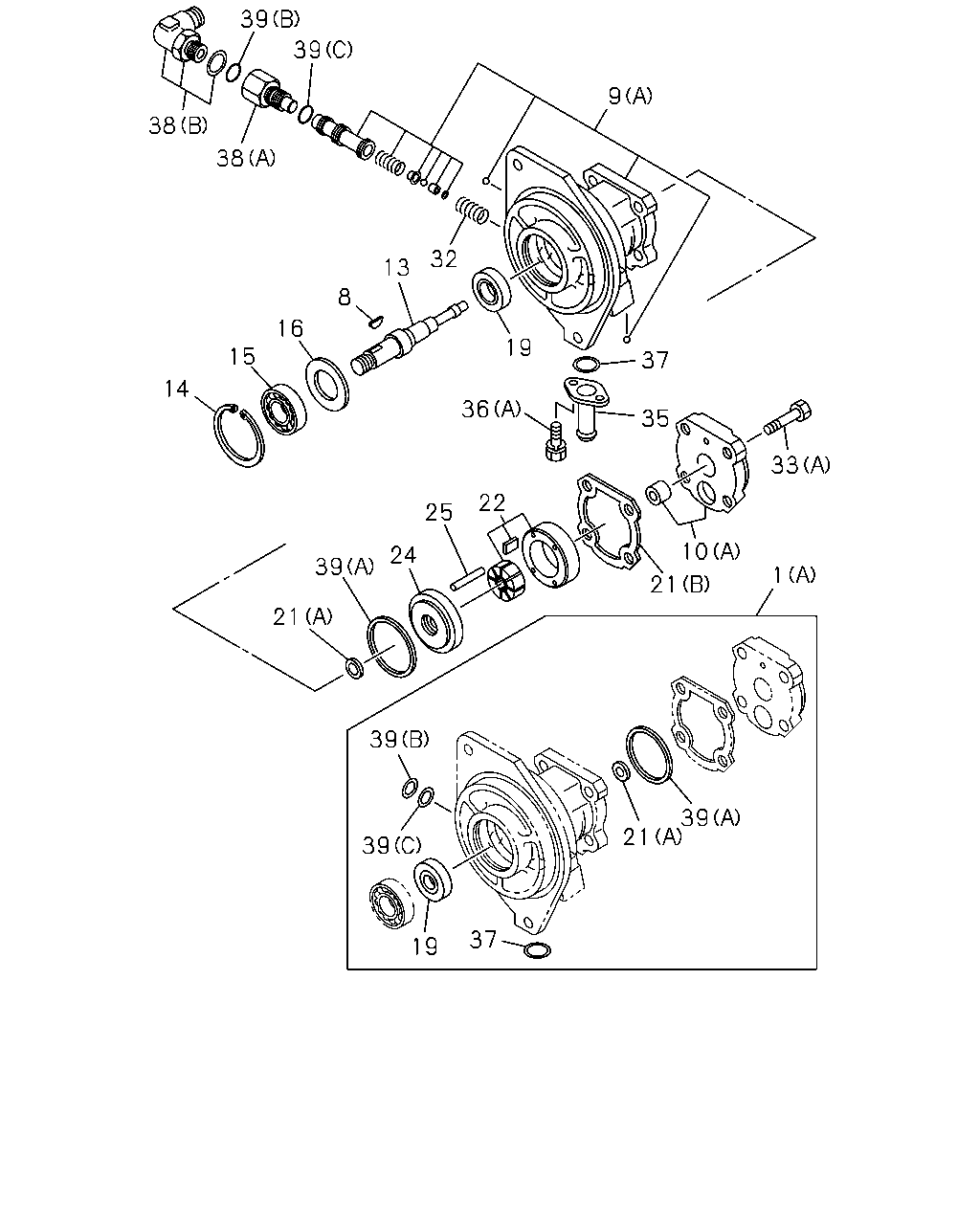

39 38 9 39 38 32 13 8 16 15 14 19 37 36 22 25 24 39 21 21 33 1 10 35 39 21 39 39 19 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 1-19500-530-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98202-668-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: B = 1-19500-595-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	9-08055-413-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (A) ASM PART: A = 1-19500-530-0	1-19511-143-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (A) ASM PART: B = 1-19500-595-1	1-19511-186-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (B) ASM PART: C = 8-98202-668-0	8-98202-782-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: A = 1-19500-530-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-98202-668-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: B = 1-19500-595-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-530-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	1-19519-258-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: C = 8-98202-668-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-530-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-530-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-530-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-33739-345-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	8-94475-376-0	01	1	-
33	BOLT; COVER (B) ASM PART: C = 8-98202-668-0	1-19519-346-1	04	1	-
33	BOLT; COVER (A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE (B) ASM PART: C = 8-98202-668-0	1-19519-124-1	02	1	-
36	BOLT; CONN,PIPE (A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-307-1	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	1-19519-324-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98202-668-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-530-0, C = 8-98202-668-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-595-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	9-48429-028-0	01	1	-

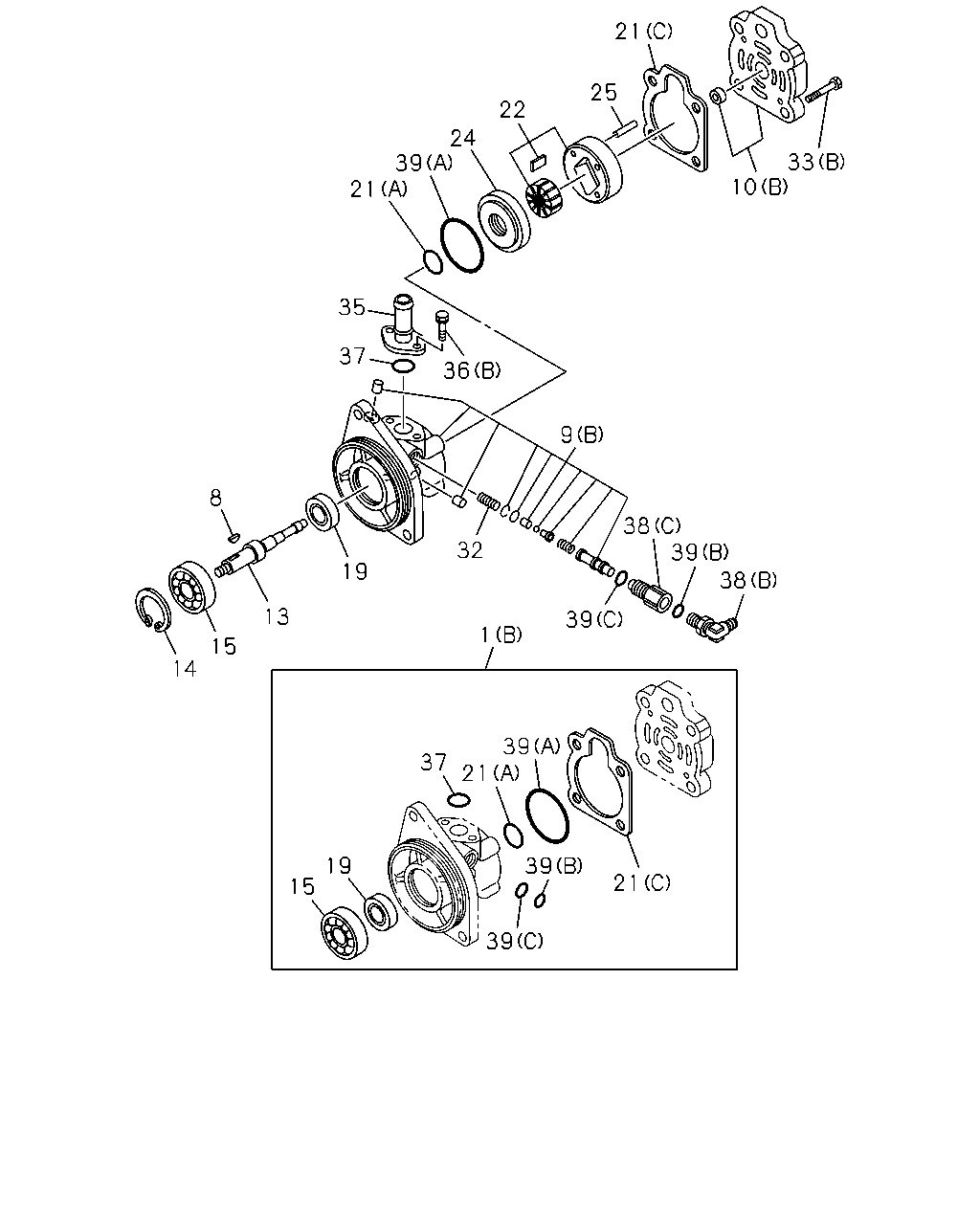

9 32 19 13 15 14 1 39 38 39 38 8 36 37 35 15 37 19 39 39 21 21 39 21 39 24 22 25 21 10 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 1-19500-530-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98202-668-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: B = 1-19500-595-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	9-08055-413-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (A) ASM PART: A = 1-19500-530-0	1-19511-143-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (A) ASM PART: B = 1-19500-595-1	1-19511-186-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (B) ASM PART: C = 8-98202-668-0	8-98202-782-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: A = 1-19500-530-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-98202-668-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: B = 1-19500-595-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-530-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: C = 8-98202-668-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-530-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-530-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-530-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-595-1, C = 8-98202-668-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-33739-345-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	8-94475-376-0	01	1	-
33	BOLT; COVER (B) ASM PART: C = 8-98202-668-0	1-19519-346-1	04	1	-
33	BOLT; COVER (A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE (B) ASM PART: C = 8-98202-668-0	1-19519-124-1	02	1	-
36	BOLT; CONN,PIPE (A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-307-1	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1	1-19519-324-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98202-668-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-530-0, C = 8-98202-668-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-595-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-530-0, B = 1-19500-595-1, C = 8-98202-668-0	9-48429-028-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
