4-33 — STEERING LINKAGE
(#23320) — 37 parça
◀

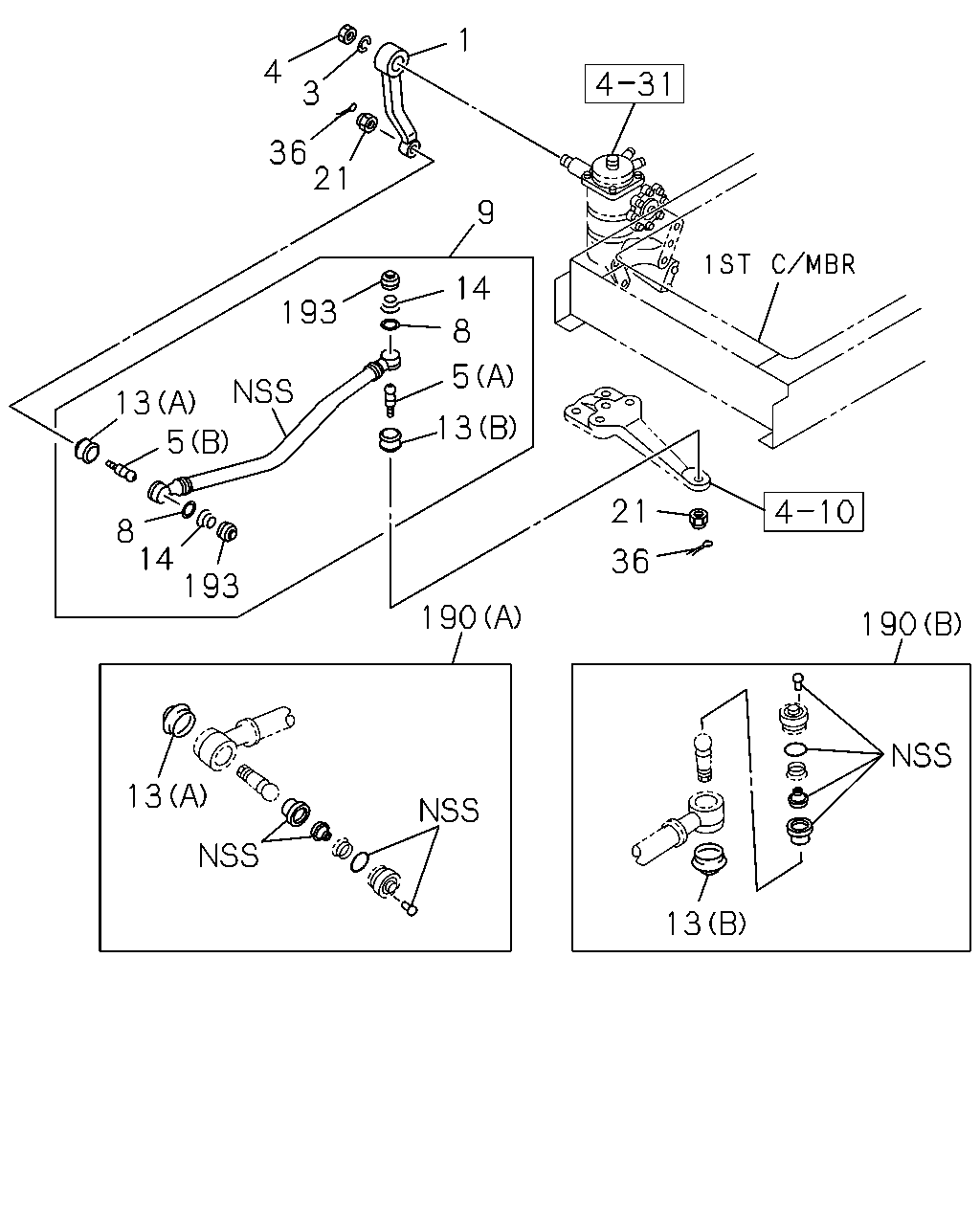

[433A] -'11/3 (21 parça)

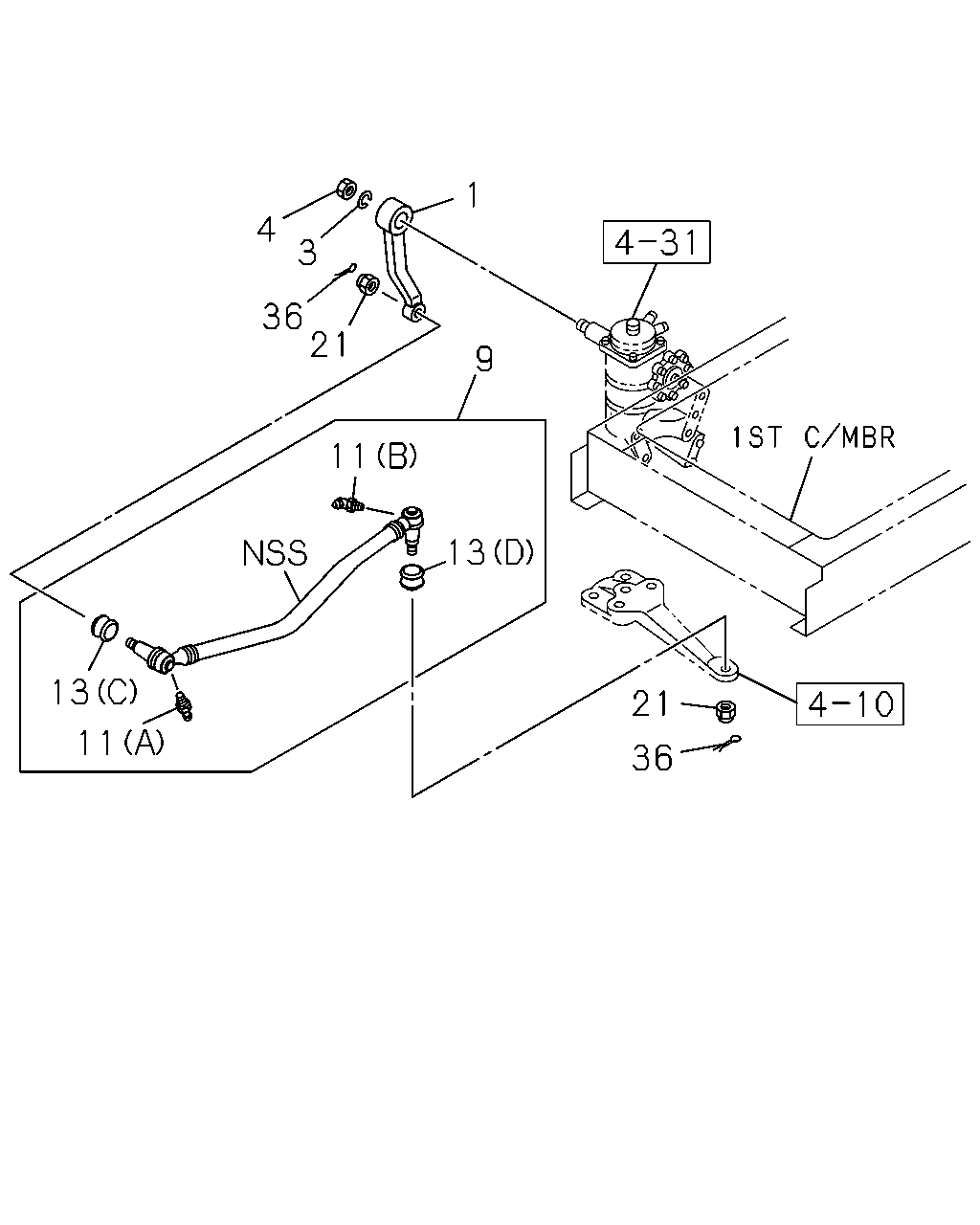

[433A] '11/4- (16 parça)
▶
1
4
3
36
21
9
14
193
8
5
13
5
13
21
8
14
193
36
190
190
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-389-1
01
1
0010-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0010-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0010-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
5
BALL; JOINT,DRAG LINK
(A)
1-44361-098-0
01
1
0010-1103
5
BALL; JOINT,DRAG LINK
(B)
1-44361-105-1
01
1
0010-1103
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0010-1103
9
LINK; DRAG
1-44380-122-2
01
1
0010-1103
9
LINK; DRAG
8-98177-629-0
01
1
1104-
13
BOOT; DRAG LINK
(A)
1-43159-078-0
01
1
0010-1103
13
BOOT; DRAG LINK
(C)
1-43159-131-0
01
1
1104-
13
BOOT; DRAG LINK
(B)
1-43159-081-0
01
1
0010-1103
13
BOOT; DRAG LINK
(D)
1-43159-134-0
01
1
1104-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0010-1103
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0010-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0010-0606
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
190
REPAIR KIT; DRAG LINK
(B)
1-85574-040-0
01
1
0010-1103
190
REPAIR KIT; DRAG LINK
(A)
1-85574-041-0
01
1
0010-1103
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0010-1103
1
4
3
36
21
9
11
13
13
21
11
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-389-1
01
1
0010-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0010-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0010-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
9
LINK; DRAG
1-44380-122-2
01
1
0010-1103
9
LINK; DRAG
8-98177-629-0
01
1
1104-
11
NIPPLE; GREASE,DRAG LINK
(A)
1-43159-132-0
01
1
1104-
11
NIPPLE; GREASE,DRAG LINK
(B)
8-98160-122-0
01
1
1104-
13
BOOT; DRAG LINK
(A)
1-43159-078-0
01
1
0010-1103
13
BOOT; DRAG LINK
(C)
1-43159-131-0
01
1
1104-
13
BOOT; DRAG LINK
(B)
1-43159-081-0
01
1
0010-1103
13
BOOT; DRAG LINK
(D)
1-43159-134-0
01
1
1104-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0010-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0010-0606
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
