Sayfa 0-80 - Isuzu EPC

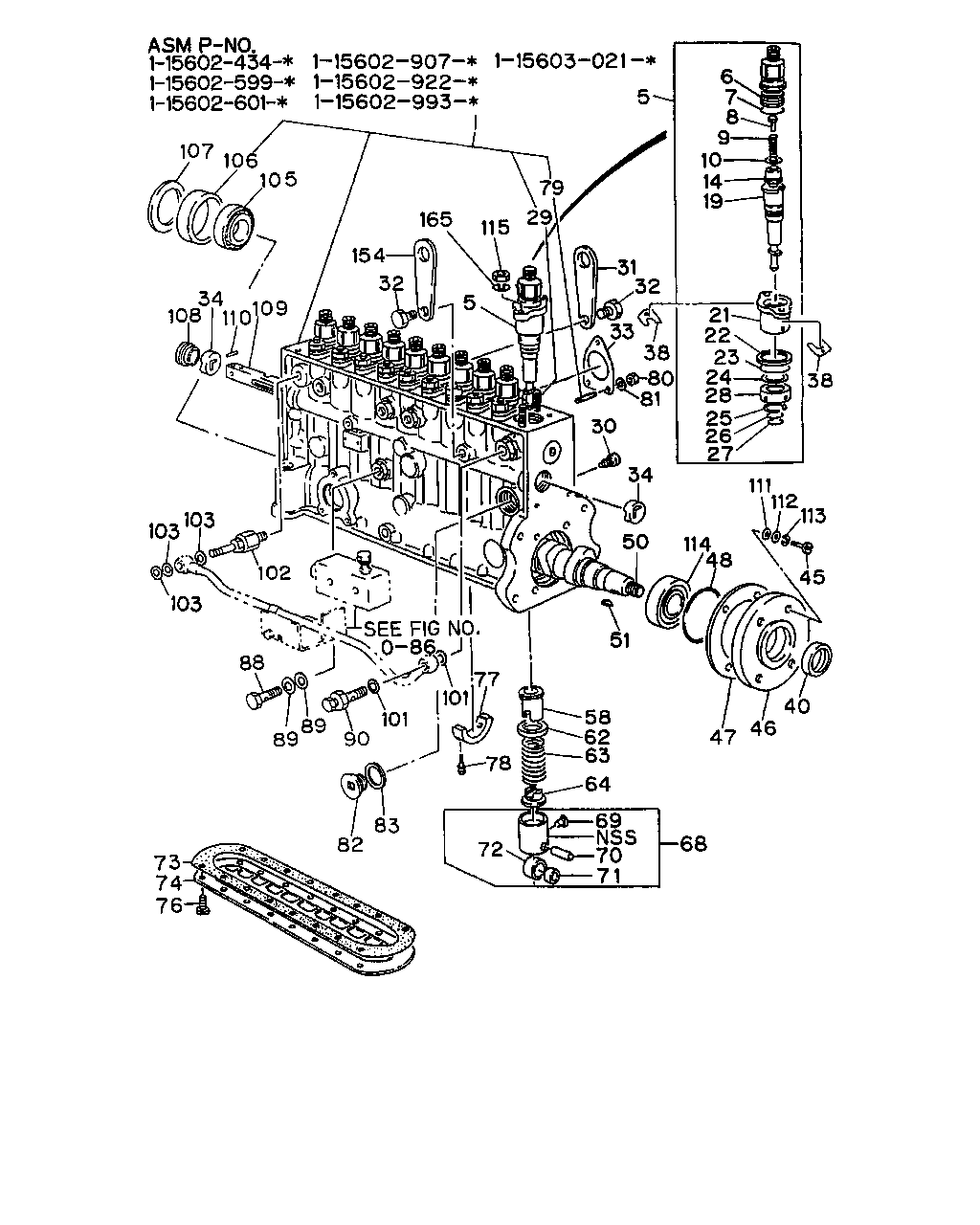

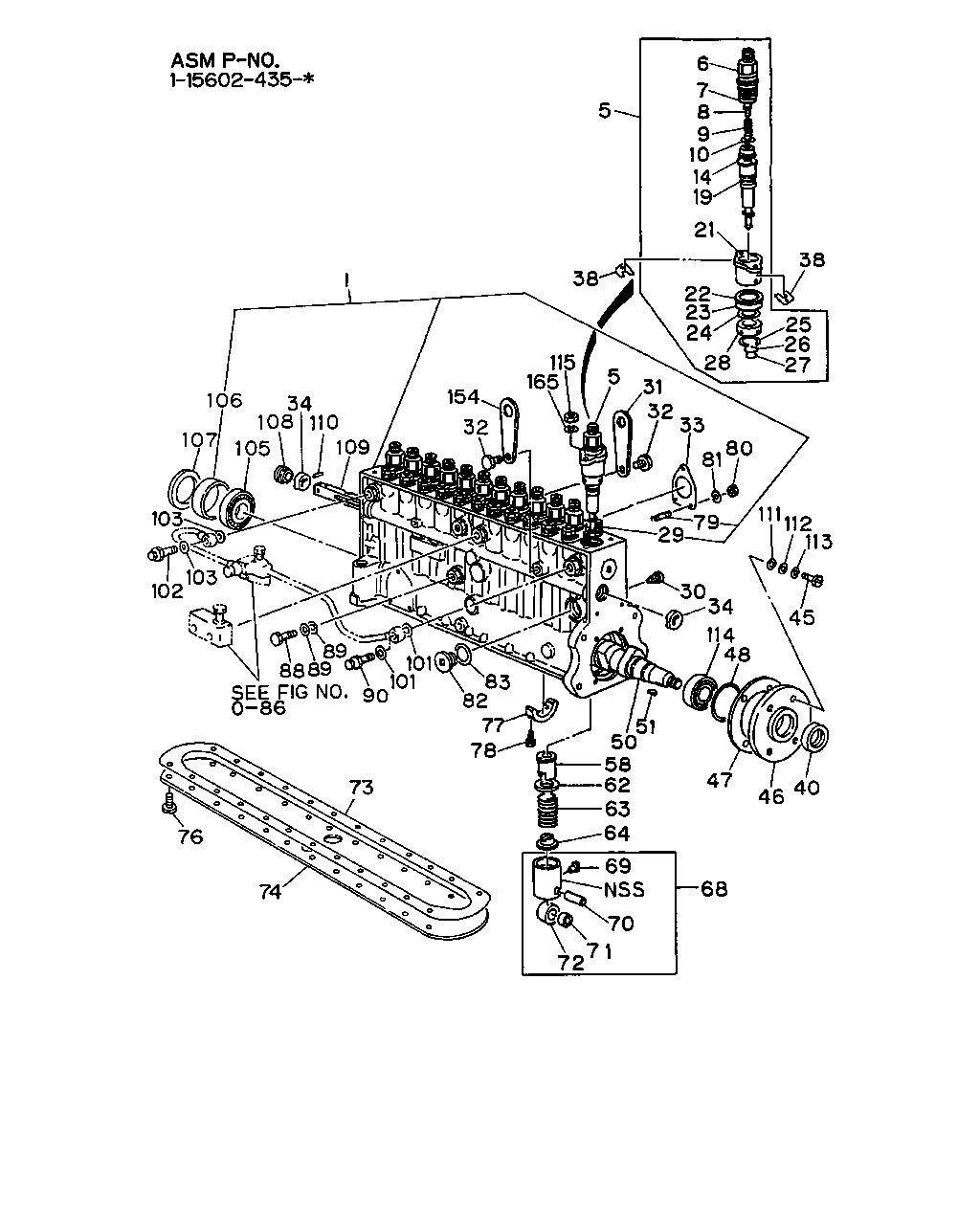

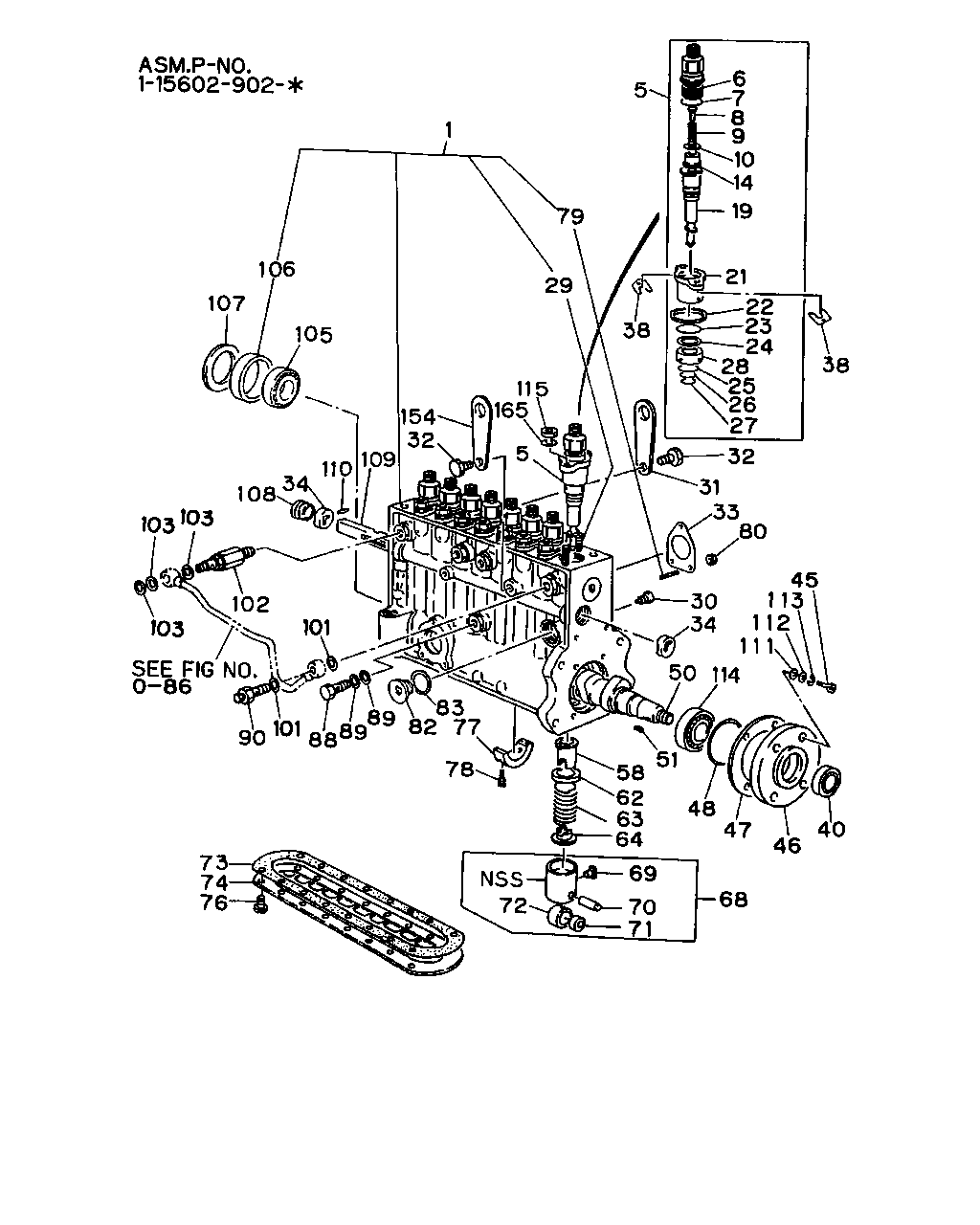

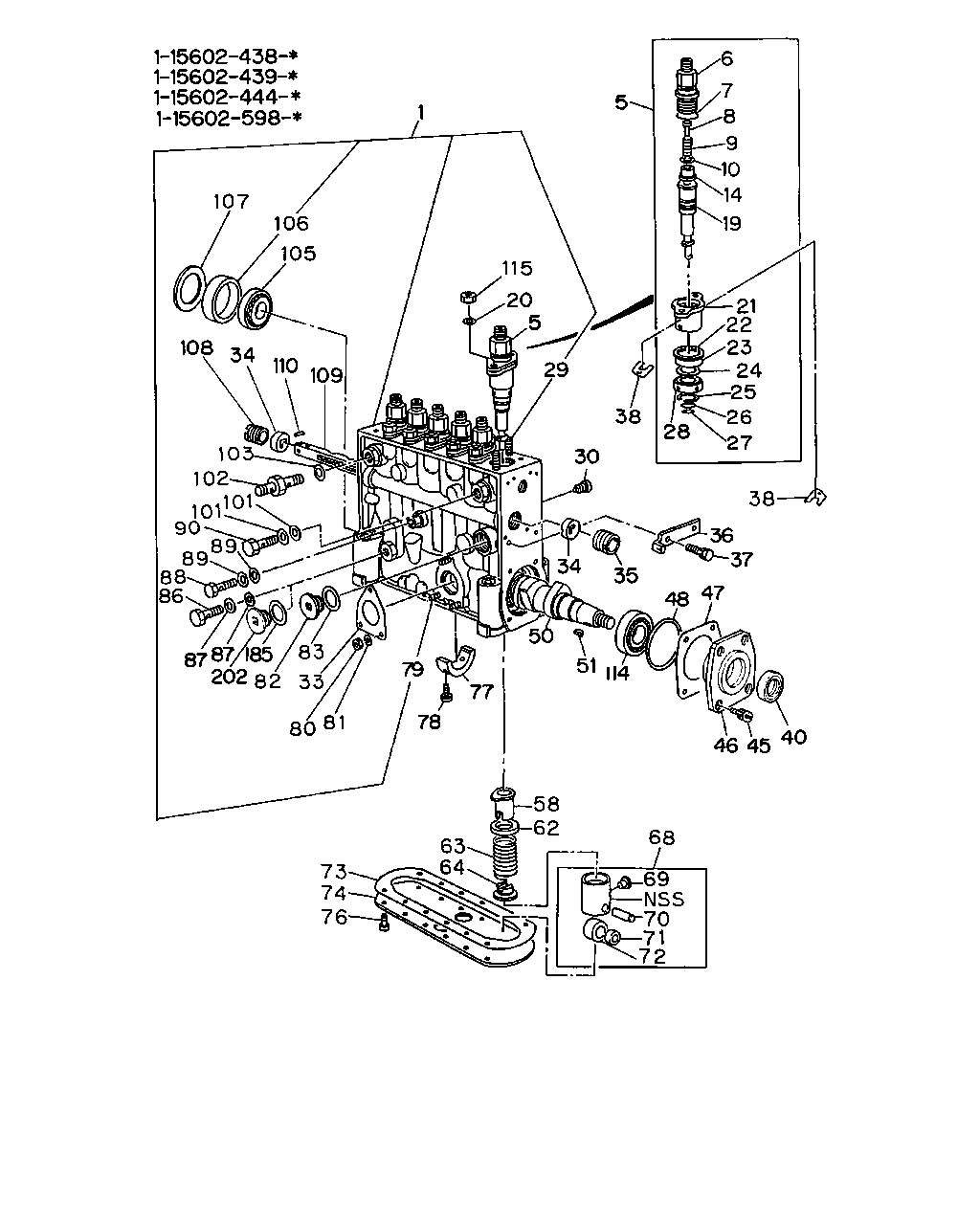

0-80 — INJECTION PUMP (#2332) — 1219 parça

76 73 74 71 71 69 68 70 40 46 47 8 64 63 62 58 51 50 114 31 30 111 45 113 112 80 33 31 32 27 38 26 25 28 24 23 22 21 19 14 10 6 5 7 8 9 1 79 29 38 115 165 5 154 109 32 105 106 107 110 34 108 103 103 103 101 102 90 88 101 89 82 89 83 77 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15602-598-2	1-15611-066-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: I = 1-15602-902-1	1-15611-096-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15611-111-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-435-4	1-15611-112-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-063-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-119-0	12	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-164-0	08	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15644-013-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15644-013-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15644-013-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15629-088-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81235-052-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-435-4	9-81235-052-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-084-0	08	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-084-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-435-4	1-15643-005-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15643-007-0	08	1	-
9	SPRING; DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-174-0	12	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-174-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-085-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-085-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15641-013-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-028-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-064-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-116-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-116-0	08	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-120-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-435-4	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: I = 1-15602-902-1	1-15742-082-0	08	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15649-008-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15649-008-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-902-1	1-15629-089-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: M = 1-15603-021-1	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-016-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-435-4	1-15639-016-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-430-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-430-0	08	1	-
25	RING; SNAP ASM PART: B = 1-15602-435-4	9-88410-431-0	12	1	-
25	RING; SNAP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: I = 1-15602-902-1	9-88410-431-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
27	GASKET; PLUNGER LWR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: I = 1-15602-902-1	1-15639-086-0	08	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-435-4	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: I = 1-15602-902-1	9-88410-432-0	16	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-432-0	20	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-435-4	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-435-4	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: I = 1-15602-902-1	9-81215-130-0	08	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-163-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-039-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15619-308-0	04	1	9206-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-308-0	04	1	9112-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-023-0	04	1	-9111
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15629-023-0	04	1	-9205
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-451-0	AR	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: M = 1-15603-021-1	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15621-069-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-902-1	1-15621-071-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-435-4	1-15621-073-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15635-001-0	08	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-136-0	08	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-136-0	12	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15634-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15634-008-0	08	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: I = 1-15602-902-1	1-15643-004-0	08	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-435-4	1-15643-004-0	12	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: I = 1-15602-902-1	9-81221-240-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-435-4	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: I = 1-15602-902-1	1-15629-063-0	08	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-063-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-063-0	12	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-062-0	08	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-061-0	08	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-061-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-034-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: M = 1-15603-021-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15629-104-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: I = 1-15602-902-1	1-15612-019-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15619-066-0	14	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-435-4	1-15729-006-0	03	1	-9111
80	NUT; FUEL FEED PUMP FIX ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15729-006-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-598-2	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: E = 1-15602-444-1, I = 1-15602-902-1, M = 1-15603-021-1	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, J = 1-15602-907-1	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	9-09110-406-0	03	1	9206-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9504-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9206-9503
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: K = 1-15602-922-0, L = 1-15602-993-0	9-09110-506-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-435-4	9-09110-506-0	03	1	9112-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	02	1	-9306
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15719-093-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	03	1	9307-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: I = 1-15602-902-1	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	02	1	9206-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	02	1	-9205
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-087-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	03	1	9206-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	03	1	-9205
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15637-014-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-456-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-456-0	16	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-456-0	20	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-163-0	01	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-020-0	20	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: I = 1-15602-902-1	1-15639-020-0	16	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: B = 1-15602-435-4	1-15639-020-0	24	1	-

76 74 73 78 82 77 101 101 90 83 72 71 68 70 69 47 46 40 64 63 62 58 50 51 48 114 30 34 45 113 112 111 29 79 80 81 33 32 31 5 115 165 154 32 109 89 89 88 102 103 103 107 106 34 108 105 110 1 38 5 6 7 8 9 10 14 38 21 19 22 28 24 23 25 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15602-598-2	1-15611-066-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: I = 1-15602-902-1	1-15611-096-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15611-111-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-435-4	1-15611-112-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-063-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-119-0	12	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-164-0	08	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15644-013-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15644-013-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15644-013-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15629-088-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81235-052-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-435-4	9-81235-052-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-084-0	08	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-084-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-435-4	1-15643-005-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15643-007-0	08	1	-
9	SPRING; DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-174-0	12	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-174-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-085-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-085-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15641-013-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-028-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-064-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-116-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-116-0	08	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-120-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-435-4	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: I = 1-15602-902-1	1-15742-082-0	08	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15649-008-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15649-008-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-902-1	1-15629-089-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: M = 1-15603-021-1	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-016-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-435-4	1-15639-016-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-430-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-430-0	08	1	-
25	RING; SNAP ASM PART: B = 1-15602-435-4	9-88410-431-0	12	1	-
25	RING; SNAP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: I = 1-15602-902-1	9-88410-431-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
27	GASKET; PLUNGER LWR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: I = 1-15602-902-1	1-15639-086-0	08	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-435-4	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: I = 1-15602-902-1	9-88410-432-0	16	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-432-0	20	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-435-4	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-435-4	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: I = 1-15602-902-1	9-81215-130-0	08	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-163-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-039-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15619-308-0	04	1	9206-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-308-0	04	1	9112-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-023-0	04	1	-9111
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15629-023-0	04	1	-9205
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: M = 1-15603-021-1	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15621-069-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-902-1	1-15621-071-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-435-4	1-15621-073-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15635-001-0	08	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-136-0	08	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-136-0	12	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15634-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15634-008-0	08	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: I = 1-15602-902-1	1-15643-004-0	08	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-435-4	1-15643-004-0	12	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: I = 1-15602-902-1	9-81221-240-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-435-4	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: I = 1-15602-902-1	1-15629-063-0	08	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-063-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-063-0	12	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-062-0	08	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-061-0	08	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-061-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-060-0	08	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-060-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-060-0	12	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-034-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: M = 1-15603-021-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15629-104-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: I = 1-15602-902-1	1-15612-019-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15619-066-0	14	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-435-4	1-15729-006-0	03	1	-9111
80	NUT; FUEL FEED PUMP FIX ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15729-006-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-598-2	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: E = 1-15602-444-1, I = 1-15602-902-1, M = 1-15603-021-1	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, J = 1-15602-907-1	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	9-09110-406-0	03	1	9206-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9504-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9206-9503
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: K = 1-15602-922-0, L = 1-15602-993-0	9-09110-506-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-435-4	9-09110-506-0	03	1	9112-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	02	1	-9306
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15719-093-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	03	1	9307-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: I = 1-15602-902-1	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	02	1	9206-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	02	1	-9205
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-087-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	03	1	9206-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	03	1	-9205
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15637-014-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-456-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-456-0	16	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-456-0	20	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-163-0	01	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-020-0	20	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: I = 1-15602-902-1	1-15639-020-0	16	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: B = 1-15602-435-4	1-15639-020-0	24	1	-

76 73 74 82 83 72 71 64 69 70 68 63 78 47 62 58 51 77 101 101 90 89 89 88 102 103 103 103 50 114 48 46 40 45 113 112 111 27 34 30 81 80 38 33 32 31 38 21 26 25 28 24 23 22 19 14 10 9 8 7 5 6 79 29 115 5 165 154 32 109 110 34 108 105 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-063-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-119-0	12	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-164-0	08	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15644-013-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15644-013-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15644-013-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15629-088-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81235-052-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-435-4	9-81235-052-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-084-0	08	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-084-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-435-4	1-15643-005-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15643-007-0	08	1	-
9	SPRING; DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-174-0	12	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-174-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-085-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-085-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15641-013-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-028-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-064-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-116-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-116-0	08	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-120-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-435-4	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: I = 1-15602-902-1	1-15742-082-0	08	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15649-008-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15649-008-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-902-1	1-15629-089-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: M = 1-15603-021-1	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-016-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-435-4	1-15639-016-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-430-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-430-0	08	1	-
25	RING; SNAP ASM PART: B = 1-15602-435-4	9-88410-431-0	12	1	-
25	RING; SNAP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: I = 1-15602-902-1	9-88410-431-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
27	GASKET; PLUNGER LWR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: I = 1-15602-902-1	1-15639-086-0	08	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-435-4	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: I = 1-15602-902-1	9-88410-432-0	16	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-432-0	20	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-435-4	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-435-4	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: I = 1-15602-902-1	9-81215-130-0	08	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-163-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-039-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15619-308-0	04	1	9206-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-308-0	04	1	9112-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-023-0	04	1	-9111
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15629-023-0	04	1	-9205
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: M = 1-15603-021-1	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15621-069-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-902-1	1-15621-071-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-435-4	1-15621-073-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15635-001-0	08	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-136-0	08	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-136-0	12	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15634-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15634-008-0	08	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: I = 1-15602-902-1	1-15643-004-0	08	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-435-4	1-15643-004-0	12	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: I = 1-15602-902-1	9-81221-240-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-435-4	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: I = 1-15602-902-1	1-15629-063-0	08	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-063-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-063-0	12	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-062-0	08	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-061-0	08	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-061-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-060-0	08	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-060-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-060-0	12	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-034-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: M = 1-15603-021-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15629-104-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: I = 1-15602-902-1	1-15612-019-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15619-066-0	14	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-435-4	1-15729-006-0	03	1	-9111
80	NUT; FUEL FEED PUMP FIX ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15729-006-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-598-2	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: E = 1-15602-444-1, I = 1-15602-902-1, M = 1-15603-021-1	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, J = 1-15602-907-1	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	9-09110-406-0	03	1	9206-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9504-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9206-9503
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: K = 1-15602-922-0, L = 1-15602-993-0	9-09110-506-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-435-4	9-09110-506-0	03	1	9112-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	02	1	-9306
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15719-093-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	03	1	9307-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: I = 1-15602-902-1	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	02	1	9206-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	02	1	-9205
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-087-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	03	1	9206-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	03	1	-9205
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15637-014-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-456-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-456-0	16	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-456-0	20	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-163-0	01	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-020-0	20	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: I = 1-15602-902-1	1-15639-020-0	16	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: B = 1-15602-435-4	1-15639-020-0	24	1	-

1 5 6 7 8 9 10 14 19 115 21 22 23 24 25 26 27 28 38 30 29 5 20 105 106 107 108 34 110 109 103 102 90 101 101 89 89 88 86 87 87 185 202 82 33 80 81 83 79 77 78 73 74 76 63 64 27 68 69 70 71 62 58 50 51 114 46 45 40 47 48 35 34 36 38 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15602-598-2	1-15611-066-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: I = 1-15602-902-1	1-15611-096-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15611-111-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-435-4	1-15611-112-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-063-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-119-0	12	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-164-0	08	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15644-013-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15644-013-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15644-013-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15629-088-0	08	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81235-052-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-435-4	9-81235-052-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-084-0	08	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-084-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-435-4	1-15643-005-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-902-1	1-15643-007-0	08	1	-
9	SPRING; DELIVERY VLV ASM PART: M = 1-15603-021-1	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-174-0	12	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-174-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-085-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: I = 1-15602-902-1	1-15639-085-0	08	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15641-013-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-028-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15631-064-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: M = 1-15603-021-1	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15631-116-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-902-1	1-15631-116-0	08	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-435-4	1-15631-120-0	12	1	-
20	WASHER; PLUNGER BARREL ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-020-0	12	1	-
20	WASHER; PLUNGER BARREL ASM PART: M = 1-15603-021-1	1-15639-020-0	20	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-435-4	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: I = 1-15602-902-1	1-15742-082-0	08	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15649-008-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15649-008-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-902-1	1-15629-089-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: M = 1-15603-021-1	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-016-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-435-4	1-15639-016-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-430-0	12	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-430-0	08	1	-
25	RING; SNAP ASM PART: B = 1-15602-435-4	9-88410-431-0	12	1	-
25	RING; SNAP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: I = 1-15602-902-1	9-88410-431-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
26	GASKET; PLUNGER UPR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-902-1	1-15629-090-0	08	1	-
27	GASKET; PLUNGER LWR ASM PART: M = 1-15603-021-1	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-81215-120-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-435-4	9-81215-120-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: I = 1-15602-902-1	1-15639-086-0	08	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-435-4	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: I = 1-15602-902-1	9-88410-432-0	16	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-432-0	20	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-435-4	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-435-4	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: I = 1-15602-902-1	9-81215-130-0	08	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-123-0	02	1	-
35	SPACER; HSG ASM PART: F = 1-15602-598-2	1-15619-280-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15619-148-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15619-156-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15619-308-0	04	1	9206-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-308-0	04	1	9112-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-023-0	04	1	-9111
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-599-1	1-15629-023-0	04	1	-9205
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: I = 1-15602-902-1, M = 1-15603-021-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: M = 1-15603-021-1	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15621-069-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-902-1	1-15621-071-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-435-4	1-15621-073-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15635-001-0	08	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: I = 1-15602-902-1	9-81215-136-0	08	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-435-4	9-81215-136-0	12	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15602-444-1, F = 1-15602-598-2	1-15634-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: I = 1-15602-902-1	1-15634-008-0	08	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-435-4	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: I = 1-15602-902-1	1-15643-004-0	08	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-435-4	1-15643-004-0	12	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: I = 1-15602-902-1	9-81221-240-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-435-4	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: I = 1-15602-902-1	1-15629-063-0	08	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-063-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-063-0	12	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-062-0	08	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: I = 1-15602-902-1	9-81225-061-0	08	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-435-4	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-061-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15629-034-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: M = 1-15603-021-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15629-104-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: I = 1-15602-902-1	1-15612-019-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-435-4	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: I = 1-15602-902-1	1-15619-066-0	14	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-435-4	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, I = 1-15602-902-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-435-4	1-15729-006-0	03	1	-9111
80	NUT; FUEL FEED PUMP FIX ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15729-006-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-598-2	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: E = 1-15602-444-1, I = 1-15602-902-1, M = 1-15603-021-1	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, J = 1-15602-907-1	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	9-09110-406-0	03	1	9206-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9504-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	-9205
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9206-9503
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: K = 1-15602-922-0, L = 1-15602-993-0	9-09110-506-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-435-4	9-09110-506-0	03	1	9112-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-067-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15722-012-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0	1-15759-012-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	02	1	-9306
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15719-093-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: F = 1-15602-598-2	1-15719-093-0	03	1	9307-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: I = 1-15602-902-1	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, G = 1-15602-599-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, M = 1-15603-021-1	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	02	1	9206-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	02	1	-9205
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-435-4	1-15639-087-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-09630-085-0	03	1	9206-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15602-435-4	1-09630-085-0	02	1	9112-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15759-012-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-435-4	1-15759-012-0	02	1	-9111
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: G = 1-15602-599-1, H = 1-15602-601-2	1-15759-012-0	03	1	-9205
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: I = 1-15602-902-1	1-15637-014-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-435-4	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-435-4, C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2, G = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15602-438-0, D = 1-15602-439-0, E = 1-15602-444-1, F = 1-15602-598-2	9-88410-456-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-435-4	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: I = 1-15602-902-1	9-88410-456-0	16	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, G = 1-15602-599-1, H = 1-15602-601-2, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-88410-456-0	20	1	-
185	GASKET; PLUG ASM PART: E = 1-15602-444-1	1-15619-102-0	01	1	-
202	PLUG; PUMP,SIDE ASM PART: E = 1-15602-444-1	1-15759-004-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
