4-25 — REAR FINAL DRIVE (#23317) — 160 parça

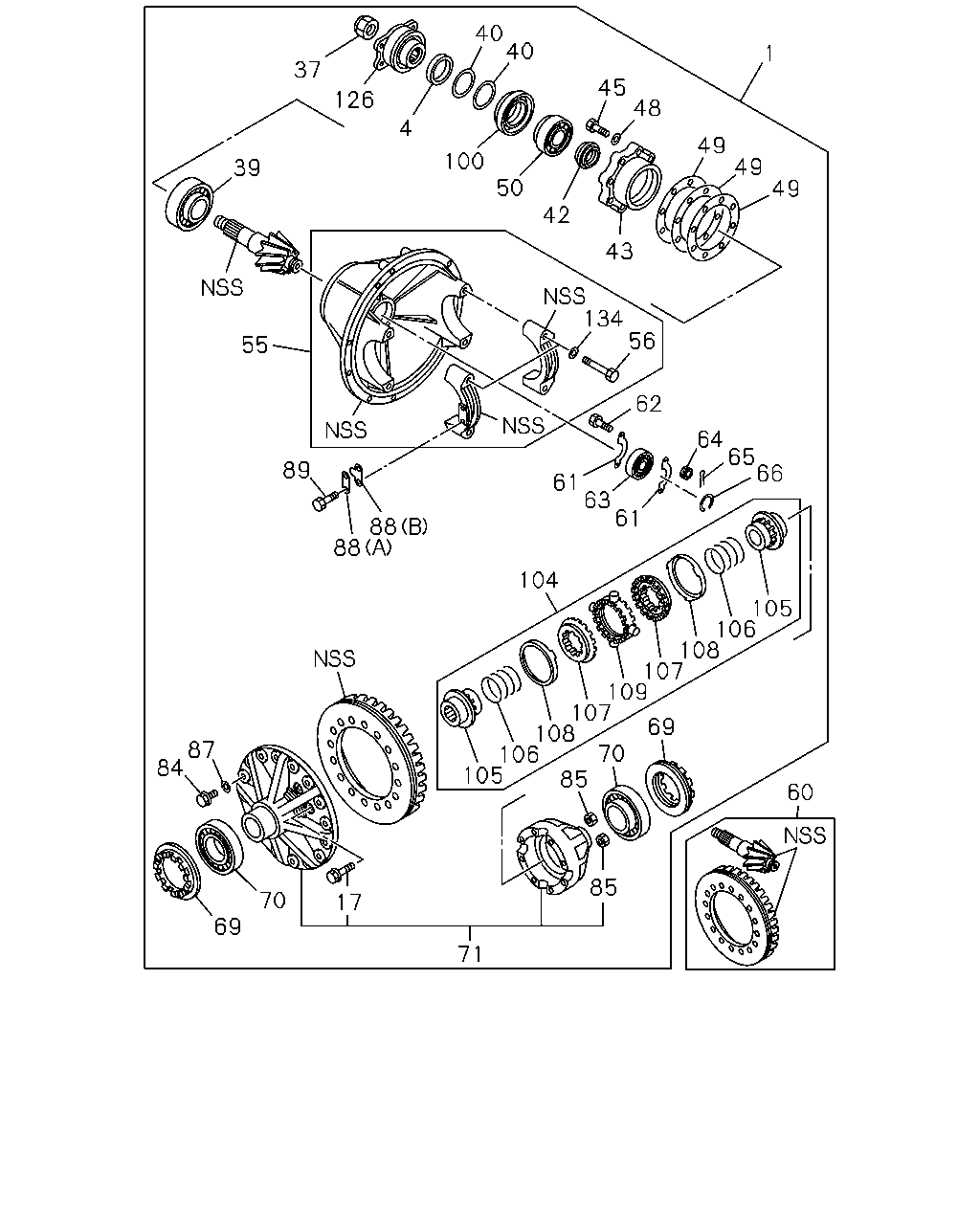

40 40 1 37 45 48 126 4 49 49 49 100 39 50 42 43 134 56 55 62 64 65 66 89 61 63 61 88 88 104 105 106 108 107 109 107 108 106 105 69 87 84 70 85 60 85 70 17 69 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-338-0	01	1	0010-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-276-0	01	1	0010-
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0010-0208
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0010-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0010-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	0010-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0010-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0010-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0010-
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0010-0603
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0010-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0010-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0010-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0010-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0010-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-
55	CARRIER; DIFF	1-41110-052-0	01	1	0010-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0010-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0010-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0010-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0010-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0010-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0010-
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0010-0512
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0010-0805
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0010-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0010-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0010-
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0010-0911
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0010-0911
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0010-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0010-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0010-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0010-
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	0010-0104
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0010-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0010-
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0010-0512
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0010-
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-032-0	01	1	0010-
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-083-0	02	1	0010-
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	0010-
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	0010-
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	0010-
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	0010-
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	0010-0208
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	0010-0603
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-

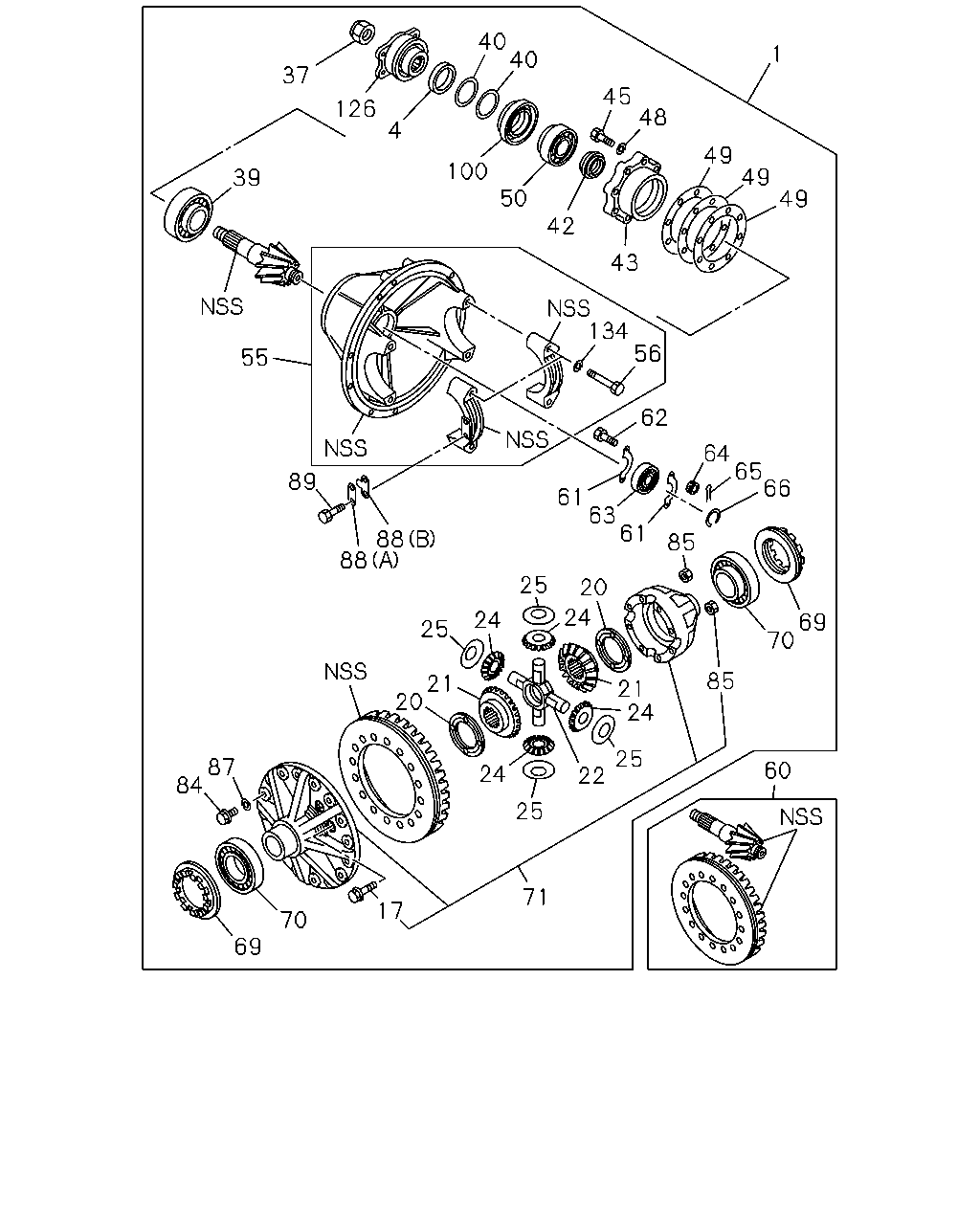

40 40 1 37 45 48 126 4 49 49 49 100 39 50 42 43 134 56 55 62 64 65 66 89 61 63 61 88 88 85 25 20 24 24 69 70 25 85 21 20 21 24 25 22 87 84 60 24 25 71 17 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-338-0	01	1	0010-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-276-0	01	1	0010-
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0010-0208
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.75	1-41562-139-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-140-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.85	1-41562-141-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-142-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.95	1-41562-143-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-144-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.05	1-41562-145-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-146-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.15	1-41562-147-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-148-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.25	1-41562-149-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-150-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.35	1-41562-151-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-152-0	AR	1	0010-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.45	1-41562-153-0	AR	1	0010-
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-075-0	02	1	0010-0407
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-127-0	02	1	0408-0903
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-160-0	02	1	0904-
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> OD=30	1-41521-014-1	01	1	0010-0408
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-061-0	01	1	0409-
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-010-2	04	1	0010-0407
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-041-0	04	1	0408-0903
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-051-0	04	1	0904-
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41552-012-0	04	1	0010-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0010-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	0010-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0010-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0010-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0010-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0010-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0010-
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0010-0603
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0010-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0010-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0010-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0010-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0010-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-
55	CARRIER; DIFF	1-41110-052-0	01	1	0010-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0010-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0010-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0010-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0010-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0010-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0010-
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0010-0512
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0010-0805
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0010-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0010-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0010-
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0010-0911
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0010-0911
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0010-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0010-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0010-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0010-
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	0010-0104
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0010-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0010-
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0010-0512
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0010-
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	0010-0208
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	0010-0603
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-
