12 |
JOINT ASM
LOCKING HUB FRT WHEEL DRIVE(W12)
|
1-43330-012-0 |
02 |
1 |
0010- |
| |
12 |
JOINT ASM
EXC. LOCKING HUB FRT WHEEL DRIVE(W12)
|
1-43330-018-0 |
02 |
1 |
0010- |
| |

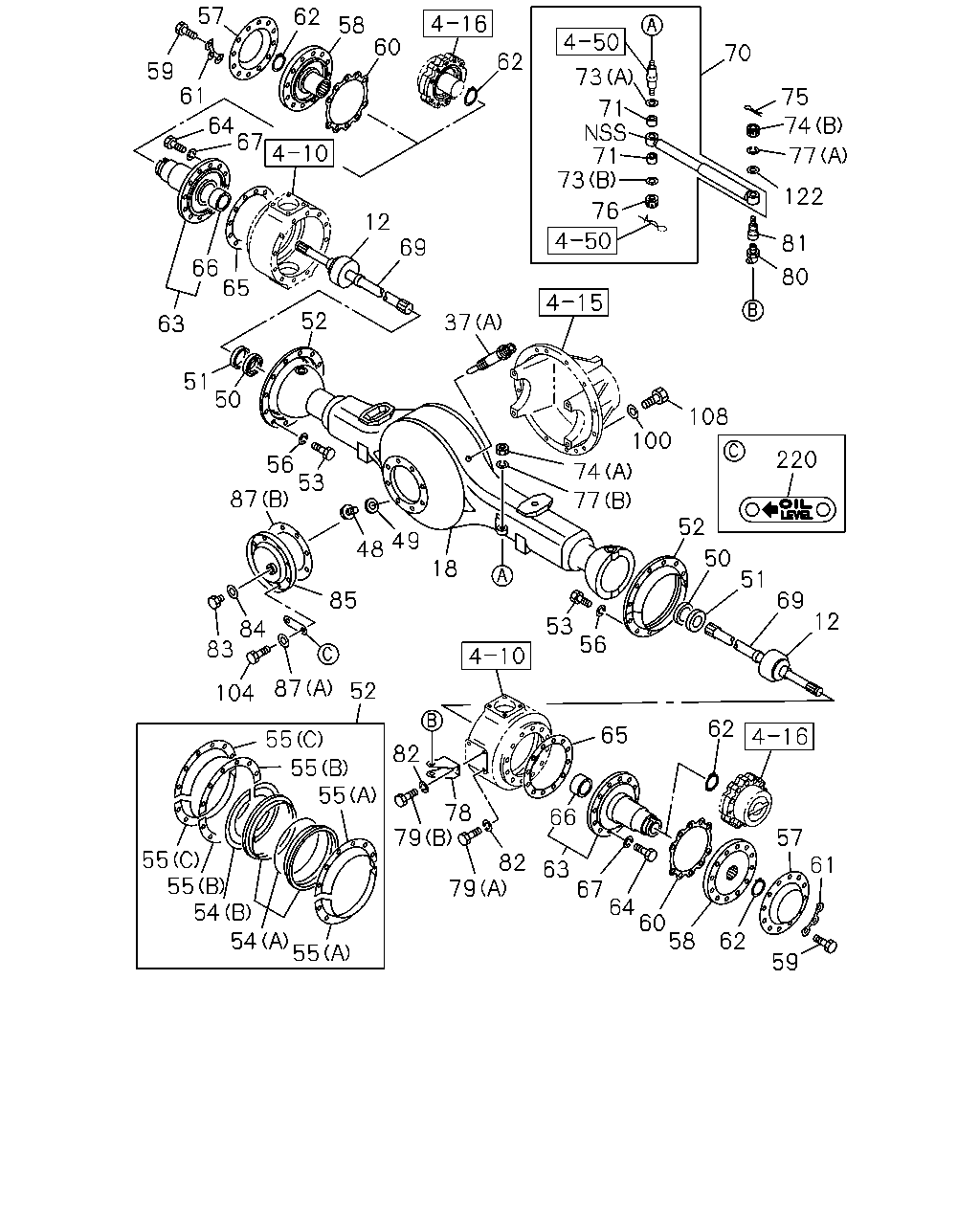

18 |
CASE; FRT AXLE
|
1-43210-102-4 |
01 |
1 |
0010-1109 |
| |
18 |
CASE; FRT AXLE
|
8-98200-699-0 |
01 |
1 |
1110- |
| |

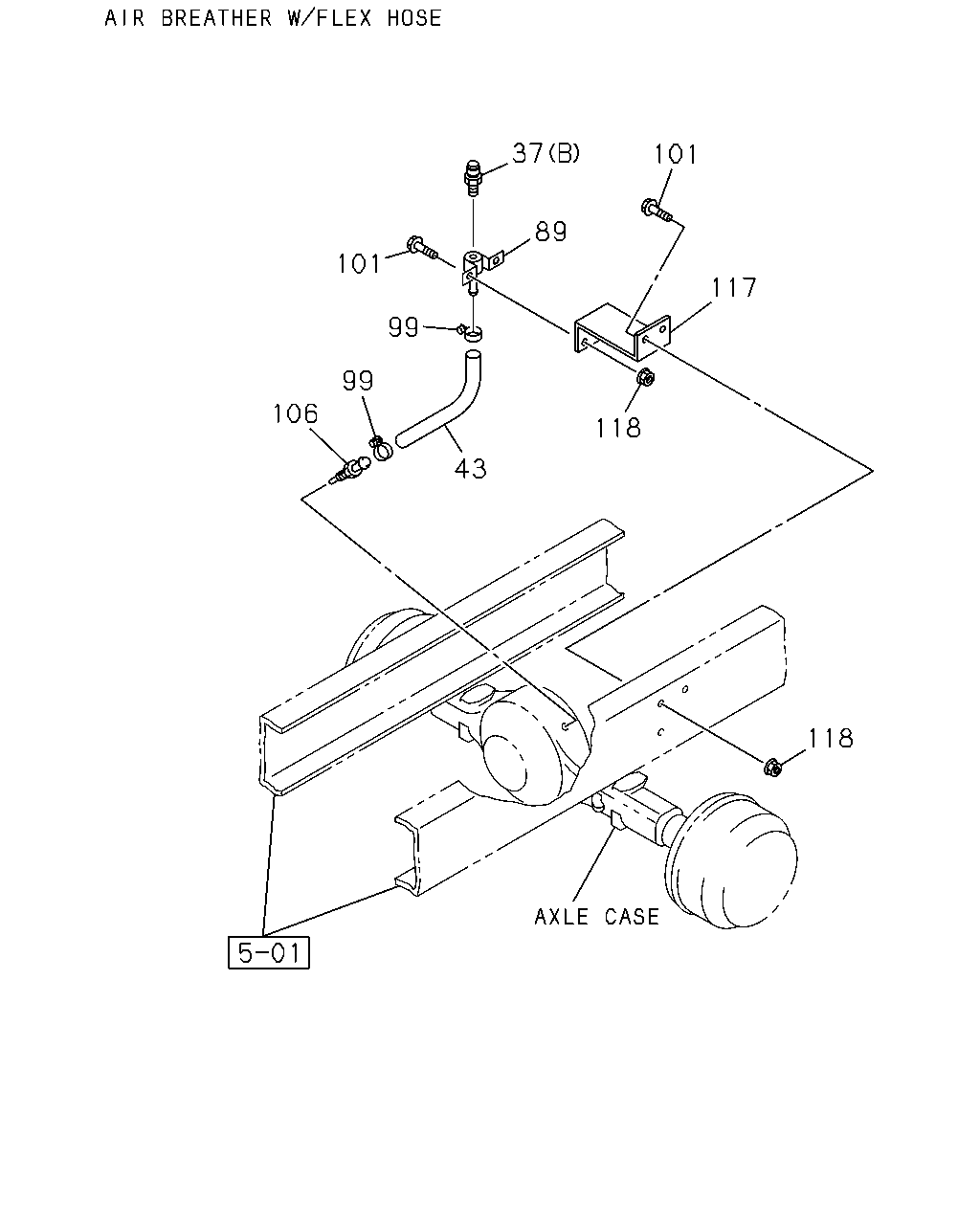

37 |
BREATHER; FRT AXLE CASE
AIR BREATHER W/FLEX HOSE<C4M>
(B)
|
9-36122-013-0 |
01 |
1 |
0010- |
| |
37 |
BREATHER; FRT AXLE CASE
EXC. AIR BREATHER W/FLEX HOSE<C4M>
(A)
|
9-36122-015-1 |
01 |
1 |
0010- |
| |
48 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0010- |
| |
49 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0010- |
| |
50 |
SEAL; OIL,SHAFT,FRT AXLE
|
1-09625-192-0 |
02 |
1 |
0010- |
| |
51 |
GUIDE; OIL,FRT AXLE
|
9-43339-003-0 |
02 |
1 |
0010- |
| |
52 |
SEAL; OIL,KNUCKLE
|
1-09625-004-0 |
02 |
1 |
0010- |
| |
53 |
BOLT; OIL SEAL
M8X16
|
0-20800-816-0 |
24 |
1 |
0010-0512 |
| |
53 |
BOLT; OIL SEAL
M8X16
|
0-20850-816-0 |
24 |
1 |
0601- |
| |
54 |
GASKET; OIL SEAL
(A)
|
1-09625-241-0 |
02 |
1 |
0010- |
| |
54 |
GASKET; OIL SEAL
(B)
|
1-09625-242-0 |
02 |
1 |
0010- |
| |
55 |
RING; OIL SEAL
(A)
|
1-09625-243-0 |
04 |
1 |
0010- |
| |
55 |
RING; OIL SEAL
(B)
|
1-09625-244-0 |
04 |
1 |
0010- |
| |
55 |
RING; OIL SEAL
(C)
|
1-09625-245-0 |
04 |
1 |
0010- |
| |
56 |
WASHER; LK,OIL SEAL
ID=8.2
|
9-09150-508-0 |
24 |
1 |
0010-0603 |
| |
56 |
WASHER; LK,OIL SEAL
ID=8.2
|
0-91510-508-0 |
24 |
1 |
0604- |
| |
57 |
COVER; FLANGE,FRT AXLE SHAFT
EXC. LOCKING HUB FRT WHEEL DRIVE(W12)
|
9-42313-116-0 |
02 |
1 |
0010- |
| |
58 |
FLANGE; AXLE SHAFT,FRT
EXC. LOCKING HUB FRT WHEEL DRIVE(W12)
|
1-42312-028-0 |
02 |
1 |
0010- |
| |
59 |
BOLT; FLANGE,FRT AXLE SHAFT
EXC. LOCKING HUB FRT WHEEL DRIVE(W12)
M12X45
|
9-09804-239-1 |
20 |
1 |
0010- |
| |
60 |
GASKET; FLANGE,FRT AXLE SHAFT
EXC. LOCKING HUB FRT WHEEL DRIVE(W12)
|
1-42175-001-0 |
02 |
1 |
0010- |
| |
61 |
PLATE; LK,FLANGE
EXC. LOCKING HUB FRT WHEEL DRIVE(W12)
|
1-43319-005-0 |
08 |
1 |
0010- |
| |
62 |
RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00
|
9-09952-253-0 |
02 |
1 |
0010- |
| |
63 |
SPINDLE; KNUCKLE,FRT AXLE SHAFT
|
1-43241-028-1 |
02 |
1 |
0010-0902 |
| |
63 |
SPINDLE; KNUCKLE,FRT AXLE SHAFT
|
1-43241-061-0 |
02 |
1 |
0903- |
| |
64 |
BOLT; SPINDLE
M12X35
|
9-92061-235-0 |
08 |
1 |
0010-0512 |
| |
64 |
BOLT; SPINDLE
M12X35
|
0-20951-235-0 |
08 |
1 |
0601- |
| |
64 |
BOLT; SPINDLE
M12X45
|
9-92061-245-0 |
16 |
1 |
0010- |
| |
65 |
GASKET; KNUCKLE TO SPINDLE
|
9-43254-005-0 |
02 |
1 |
0010- |
| |
66 |
BUSHING; SPINDLE,FRT AXLE SHAFT
|
1-43321-008-0 |
02 |
1 |
0010-0902 |
| |
66 |
BUSHING; SPINDLE,FRT AXLE SHAFT
|
1-43321-011-0 |
02 |
1 |
0903- |
| |
67 |
WASHER; LK,SPINDLE
ID=12.2
|
9-09150-512-0 |
24 |
1 |
0010-0603 |
| |
67 |
WASHER; LK,SPINDLE
ID=12.2
|
0-91510-512-0 |
24 |
1 |
0604- |
| |
69 |
SHAFT; AXLE,FRT INNER
|
1-43311-037-0 |
01 |
1 |
0010- |
| |
69 |
SHAFT; AXLE,FRT INNER
|
1-43311-038-0 |
01 |
1 |
0010- |
| |
70 |
ABSORBER ASM; SHOCK,SHIMMY
|
1-51630-207-0 |
01 |
1 |
0010- |
| |
71 |
BUSHING; RUB,LWR,FRT S/ABS
|
9-51631-037-0 |
02 |
1 |
0010- |
| |
73 |
WASHER; LWR,FRT S/ABS
(A)
|
9-51679-010-0 |
01 |
1 |
0010- |
| |
73 |
WASHER; LWR,FRT S/ABS
(B)
|
9-51679-011-0 |
01 |
1 |
0010- |
| |
74 |
NUT; S/ABS
(A)
M16
|
9-99110-416-0 |
01 |
1 |
0010-0512 |
| |
74 |
NUT; S/ABS
(A)
M16
|
0-91110-516-0 |
01 |
1 |
0601- |
| |
74 |
NUT; S/ABS
(B)
M12
|
9-99116-412-0 |
01 |
1 |
0010-0805 |
| |
74 |
NUT; S/ABS
(B)
M12
|
0-91116-512-0 |
01 |
1 |
0806- |
| |
75 |
PIN; SPLIT,S/ABS
OD=2.8 L=20
|
9-08113-020-0 |
01 |
1 |
0010-0606 |
| |
75 |
PIN; SPLIT,S/ABS
OD=2.8 L=20
|
0-81123-020-0 |
01 |
1 |
0607- |
| |
76 |
NUT; LWR,FRT S/ABS
|
9-51631-083-0 |
01 |
1 |
0010- |
| |
77 |
WASHER; LK,S/ABS
(A)
ID=12.2
|
9-09150-512-0 |
01 |
1 |
0010-0603 |
| |
77 |
WASHER; LK,S/ABS
(A)
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0604- |
| |
77 |
WASHER; LK,S/ABS
(B)
ID=16.2
|
9-09150-516-0 |
01 |
1 |
0010-0603 |
| |
77 |
WASHER; LK,S/ABS
(B)
ID=16.2
|
0-91510-516-0 |
01 |
1 |
0604- |
| |
78 |
BRACKET; SHIMMY DAMPER
|
1-43219-017-0 |
01 |
1 |
0010- |
| |
79 |
BOLT; BRKT
(A)
M12X20
|
0-20801-220-0 |
02 |
1 |
0010- |
| |
79 |
BOLT; BRKT
(B)
M12X25
|
0-20801-225-0 |
02 |
1 |
0010- |
| |
80 |
NIPPLE; GREASE,BRKT
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
01 |
1 |
0010-0512 |
| |
80 |
NIPPLE; GREASE,BRKT
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0601- |
| |
81 |
PIN; SHIMMY DAMPER
|
1-43219-018-0 |
01 |
1 |
0010- |
| |
82 |
WASHER; LK,BRKT
ID=12.2
|
9-09150-512-0 |
04 |
1 |
0010-0603 |
| |
82 |
WASHER; LK,BRKT
ID=12.2
|
0-91510-512-0 |
04 |
1 |
0604- |
| |
83 |
PLUG; OIL FILLER
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0010- |
| |
84 |
GASKET; PLUG,OIL FILLER
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0010- |
| |
85 |
COVER; AXLE CASE
|
9-42141-059-0 |
01 |
1 |
0010-1109 |
| |
87 |
GASKET; COVER,AXLE CASE
(A)
ID=10.2 OD=19
|
9-09572-010-0 |
08 |
1 |
0010-1109 |
| |
87 |
GASKET; COVER,AXLE CASE
(B)
|
9-42142-026-2 |
01 |
1 |
0010-1109 |
| |
100 |
WASHER; LK,FRT FINAL DRIVE
ID=12.2
|
9-09150-812-0 |
12 |
1 |
0010-0603 |
| |
100 |
WASHER; LK,FRT FINAL DRIVE
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0604- |
| |
104 |
BOLT; COVER,AXLE CASE
M10X16
|
9-09800-874-0 |
08 |
1 |
0010-1109 |
| |
108 |
BOLT; FRT FINAL DRIVE
M12X35
|
9-92061-235-0 |
08 |
1 |
0010-0512 |
| |
108 |
BOLT; FRT FINAL DRIVE
M12X35
|
0-20951-235-0 |
08 |
1 |
0601- |
| |
108 |
BOLT; FRT FINAL DRIVE
M12X45
|
9-92061-245-0 |
04 |
1 |
0010- |
| |
122 |
WASHER; S/ABS
ID=17
|
9-09160-516-0 |
01 |
1 |
0010-0605 |
| |
122 |
WASHER; S/ABS
ID=17 OD=30
|
0-91610-516-0 |
01 |
1 |
0606- |
| |
220 |
PLATE
|
9-83996-444-1 |
01 |
1 |
0010-1109 |
