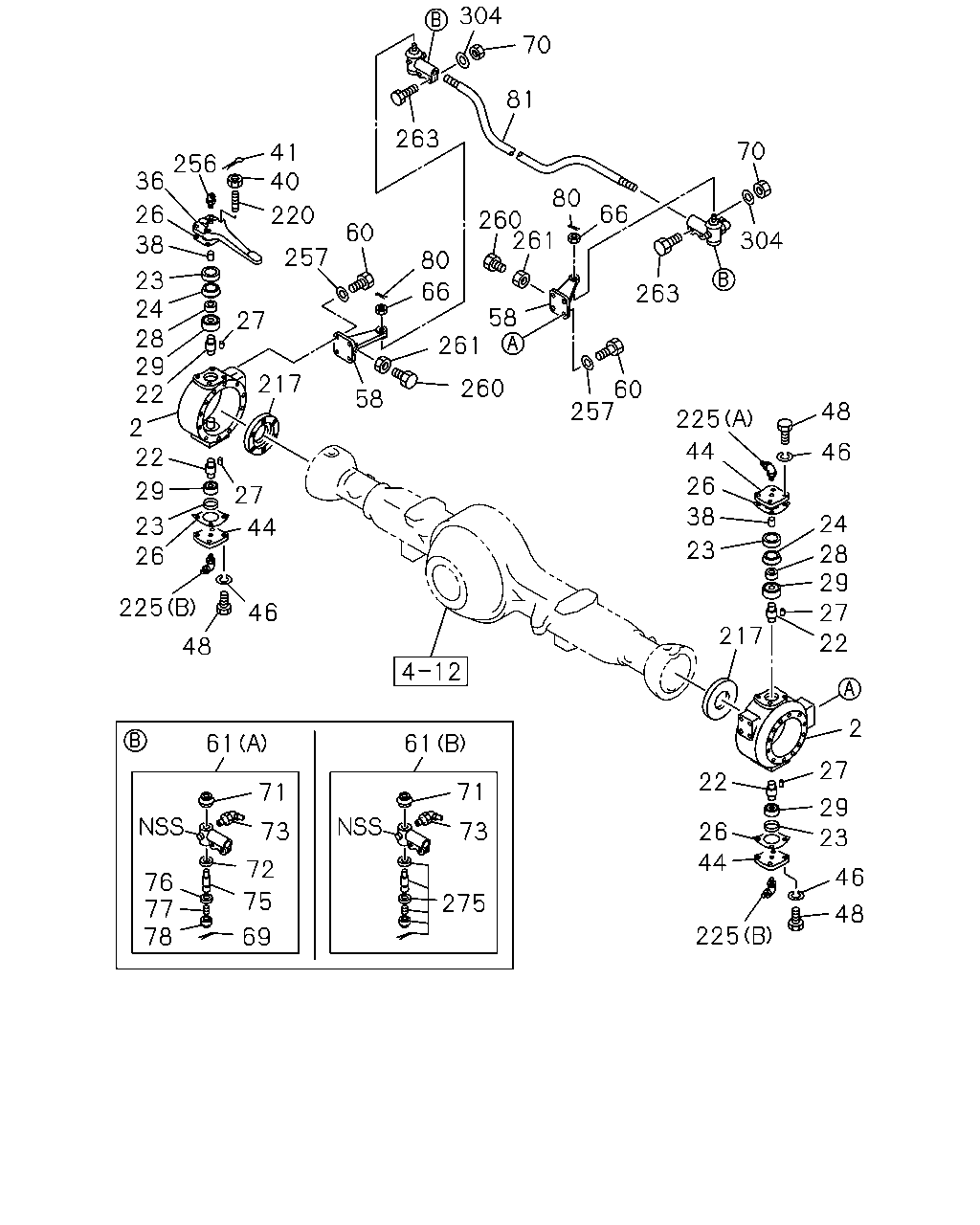

2 |
KNUCKLE; FRT AXLE
|
1-43242-006-4 |
01 |
1 |
0010- |
| |
2 |
KNUCKLE; FRT AXLE
|
9-43241-037-2 |
01 |
1 |
0010- |
| |
22 |
PIN; KING,FRT AXLE
H=50
|
1-43264-003-0 |
04 |
1 |
0010- |
| |
23 |
COLLAR; DIST BRG
|
9-43267-004-0 |
04 |
1 |
0010- |
| |
24 |
RECEIVER; KING PIN
|
9-43269-008-0 |
02 |
1 |
0010- |
| |
26 |
SHIM; KING PIN,BRG
T=0.1
|
9-43266-013-0 |
AR |
1 |
0010- |
| |
26 |
SHIM; KING PIN,BRG
T=0.2
|
9-43266-014-0 |
AR |
1 |
0010- |
| |
26 |
SHIM; KING PIN,BRG
T=0.5
|
9-43266-015-0 |
AR |
1 |
0010- |
| |
27 |
PIN; STRAIGHT,KING PIN
OD=5 L=10
|
9-08160-510-0 |
04 |
1 |
0010- |
| |
28 |
WASHER; KING PIN
|
9-43269-007-0 |
02 |
1 |
0010- |
| |
29 |
BEARING; KING PIN
|
9-00093-181-0 |
04 |
1 |
0010- |
| |
36 |
ARM; KNUCKLE
|
1-43261-029-0 |
01 |
1 |
0010-1003 |
| |
36 |
ARM; KNUCKLE
|
1-43261-035-0 |
01 |
1 |
1004- |
| |
38 |
KNOCK; KNUCKLE ARM
|
9-43269-009-1 |
02 |
1 |
0010- |
| |
40 |
NUT; KNUCKLE ARM
M14
|
9-99116-414-0 |
04 |
1 |
0010-0604 |
| |
40 |
NUT; KNUCKLE ARM
M14 SLOTTED
|
0-91116-514-0 |
04 |
1 |
0605- |
| |
41 |
PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25
|
9-08113-025-0 |
04 |
1 |
0010-0606 |
| |
41 |
PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25
|
0-81123-025-0 |
04 |
1 |
0607- |
| |
44 |
COVER; KING PIN
|
9-43265-007-1 |
03 |
1 |
0010- |
| |
46 |
WASHER; LK,COVER
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0010-0603 |
| |
46 |
WASHER; LK,COVER
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
| |
48 |
BOLT; COVER
M14X35
|
9-92061-435-0 |
12 |
1 |
0010-0512 |
| |
48 |
BOLT; COVER
M14X35
|
0-20951-435-0 |
12 |
1 |
0601- |
| |
58 |
ARM; TIE ROD
|
9-43262-017-1 |
01 |
1 |
0010-1405 |
| |
58 |
ARM; TIE ROD
|
8-98138-221-0 |
01 |
1 |
1406- |
| |
58 |
ARM; TIE ROD
|
9-43263-011-1 |
01 |
1 |
0010-1405 |
| |
58 |
ARM; TIE ROD
|
8-98138-222-0 |
01 |
1 |
1406- |
| |
60 |
BOLT; TIE ROD ARM
M16X40
|
9-92061-640-0 |
08 |
1 |
0010-0512 |
| |
60 |
BOLT; TIE ROD ARM
M16X40
|
0-20951-640-0 |
08 |
1 |
0601- |
| |
61 |
ROD END; TIE ROD
(A)
|
1-43150-191-0 |
01 |
1 |
0010-1405 |
| |
61 |
ROD END; TIE ROD
(B)
|
8-98236-792-1 |
01 |
1 |
1406- |
| |
61 |
ROD END; TIE ROD
(A)
|
1-43150-192-0 |
01 |
1 |
0010-1405 |
| |
61 |
ROD END; TIE ROD
(B)
|
8-98236-793-1 |
01 |
1 |
1406- |
| |
66 |
NUT; TIE ROD END
M16
|
9-09841-068-0 |
02 |
1 |
0010-1405 |
| |
66 |
NUT; TIE ROD END
M24
|
1-09442-032-0 |
02 |
1 |
1406- |
| |
69 |
PIN; SPLIT,TIE ROD END
|
9-08114-065-0 |
02 |
1 |
0010-0808 |
| |
69 |
PIN; SPLIT,TIE ROD END
|
0-81124-065-0 |
02 |
1 |
0809-1405 |
| |
70 |
NUT; TIE ROD END
M12
|
9-99110-512-0 |
04 |
1 |
0010-0512 |
| |
70 |
NUT; TIE ROD END
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
71 |
BOOT; TIE ROD END
|
1-43159-009-0 |
02 |
1 |
0010-1405 |
| |
71 |
BOOT; TIE ROD END
|
8-98229-116-0 |
02 |
1 |
1406- |
| |
72 |
SEAT; BALL,TIE ROD JOINT
|
9-44371-133-0 |
02 |
1 |
0010-1405 |
| |
73 |
NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0010-0512 |
| |
73 |
NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
0601-1405 |
| |
73 |
NIPPLE; GREASE,TIE ROD END
|
1-43159-132-0 |
02 |
1 |
1406- |
| |
75 |
JOINT; BALL,DRAG LINK
|
1-44361-042-2 |
02 |
1 |
0010-1405 |
| |
76 |
SEAT; SPR,DRAG LINK
|
9-44373-006-0 |
02 |
1 |
0010-1405 |
| |
77 |
SPRING; TIE ROD END
|
9-09940-057-0 |
02 |
1 |
0010-1405 |
| |
78 |
PLUG; ADJ,ROD END
|
1-44375-017-0 |
02 |
1 |
0010-1405 |
| |
80 |
PIN; SPLIT,ROD END
OD=3.7 L=30
|
9-08114-030-0 |
02 |
1 |
0010-0606 |
| |
80 |
PIN; SPLIT,ROD END
OD=3.7 L=30
|
0-81124-030-0 |
02 |
1 |
0607-1405 |
| |
80 |
PIN; SPLIT,ROD END
OD=4.6 L=35
|
0-81125-035-0 |
02 |
1 |
1406- |
| |
81 |
ROD; TIE
|
1-43151-070-0 |
01 |
1 |
0010-1405 |
| |
217 |
WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12)
OD=100 ID=71
|
9-43321-005-0 |
02 |
1 |
0010-0902 |
| |
217 |
WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12)
OD=100 ID=71
|
1-43321-009-0 |
02 |
1 |
0903- |
| |
220 |
STUD; KNUCKLE ARM
M14X54.5 L=72
|
9-09830-131-0 |
01 |
1 |
0010- |
| |
220 |
STUD; KNUCKLE ARM
M14X41.5 L=60.5
|
9-09830-132-0 |
01 |
1 |
0010- |
| |
220 |
STUD; KNUCKLE ARM
M14X46.5 L=72
|
9-09830-133-0 |
01 |
1 |
0010- |
| |
220 |
STUD; KNUCKLE ARM
M14X33.5 L=60.5
|
9-09830-134-0 |
01 |
1 |
0010- |
| |
225 |
NIPPLE; GREASE,COVER
(A)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
01 |
1 |
0010-0512 |
| |
225 |
NIPPLE; GREASE,COVER
(A)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0601- |
| |
225 |
NIPPLE; GREASE,COVER
(B)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0010-0512 |
| |
225 |
NIPPLE; GREASE,COVER
(B)
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
0601- |
| |
256 |
NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
01 |
1 |
0010-0512 |
| |
256 |
NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
0601- |
| |
257 |
WASHER; LK,TIE ROD ARM
ID=16.2
|
9-09150-516-0 |
08 |
1 |
0010-0603 |
| |
257 |
WASHER; LK,TIE ROD ARM
ID=16.2
|
0-91510-516-0 |
08 |
1 |
0604- |
| |
260 |
BOLT; STOPPER,TIE ROD ARM
M14X35
|
0-20801-435-0 |
02 |
1 |
0010-0512 |
| |
260 |
BOLT; STOPPER,TIE ROD ARM
M14X35
|
0-20851-435-0 |
02 |
1 |
0601- |
| |
261 |
NUT; STOPPER BOLT
M14
|
9-99111-414-0 |
02 |
1 |
0010-0512 |
| |
261 |
NUT; STOPPER BOLT
M14
|
0-91111-514-0 |
02 |
1 |
0601- |
| |
263 |
BOLT; ROD END
M12X45
|
9-92061-245-0 |
04 |
1 |
0010-0808 |
| |
263 |
BOLT; ROD END
M12X50
|
0-20951-250-0 |
04 |
1 |
0809-1405 |
| |
263 |
BOLT; ROD END
M12X65
|
8-98053-922-0 |
04 |
1 |
1406- |
| |
275 |
BOOT; ROD END,TIE
|
8-98229-116-0 |
02 |
1 |
1406- |
| |
304 |
WASHER; PL
ID=12.5
|
9-09164-512-0 |
04 |
1 |
0010-0808 |
| |
304 |
WASHER; PL
ID=12.5
|
0-91614-512-0 |
04 |
1 |
0809- |
