Isuzu WW
▶
TRUCKS
▶
FTS
▶
11358 - FTS(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#23308) — 30 parça
◀

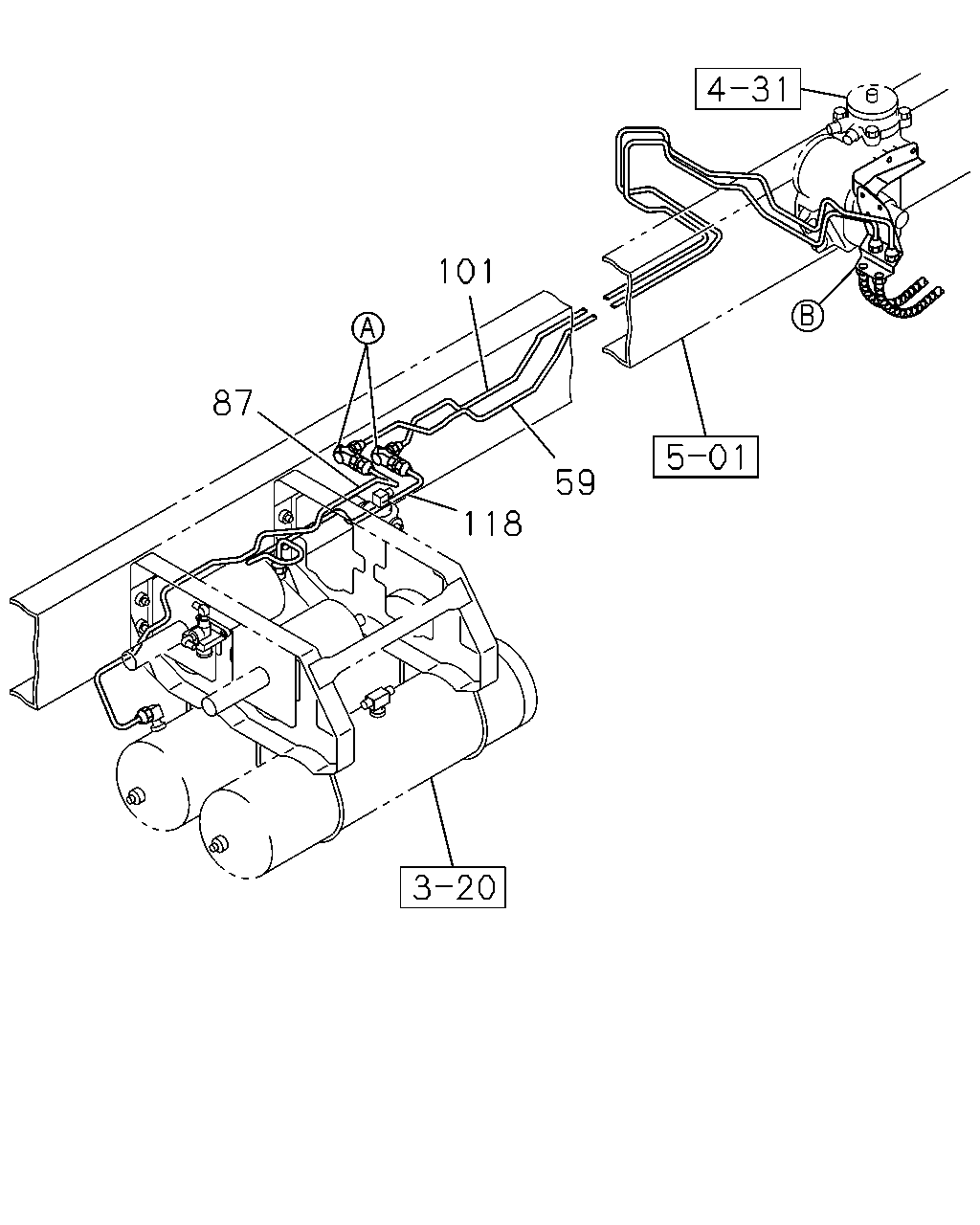

[377A] NO.1 (4 parça)

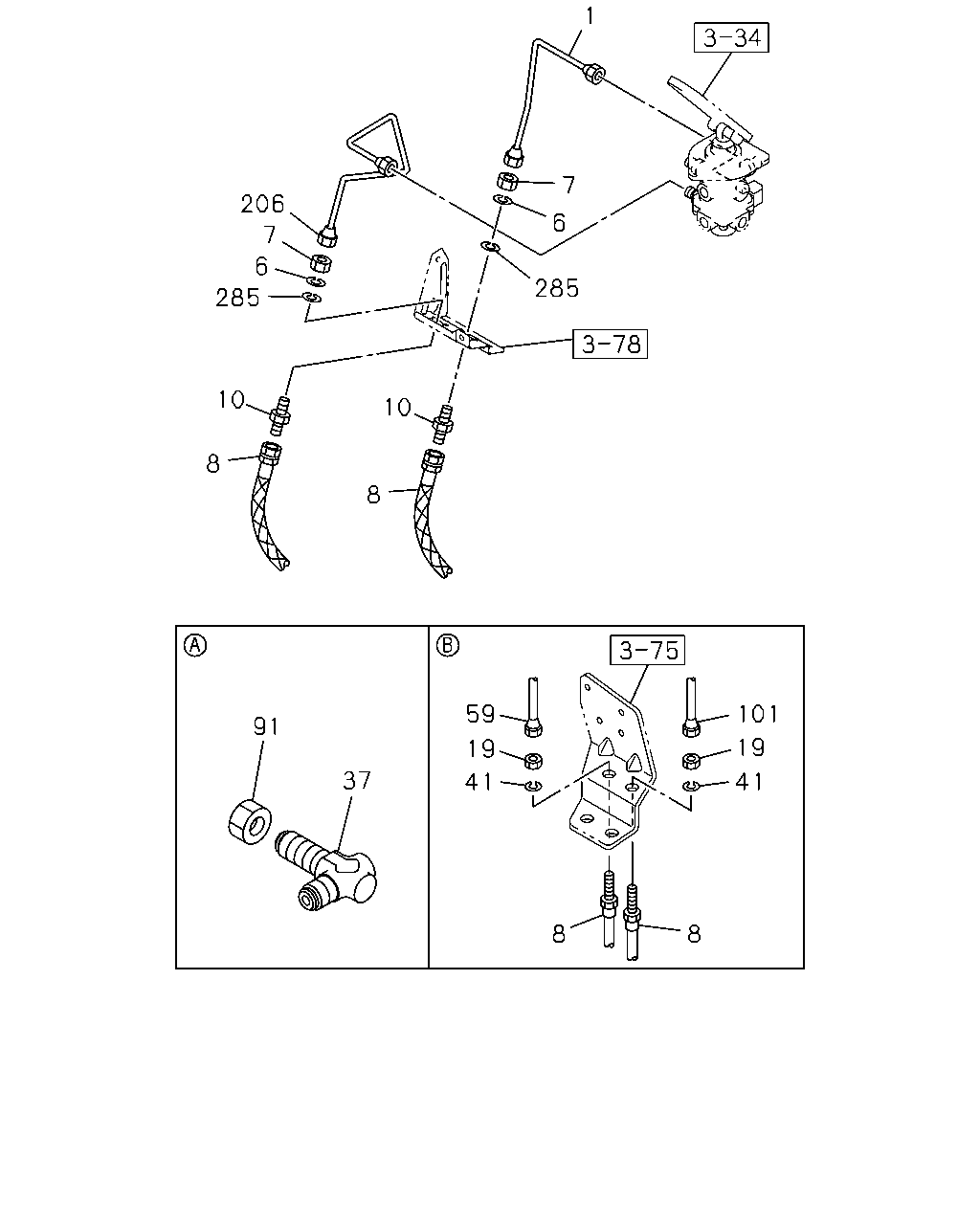

[377A] NO.2 (26 parça)
▶
101
87
59
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
59
PIPE; AIR,UNION TO FLEX HOSE
L=3470 SERVICED BY L=3500
1-47428-887-0
01
1
0010-
87
PIPE; AIR,AIR TANK TO UNION
L=1232 SERVICED BY L=1250
1-47426-416-0
01
1
0010-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3199 SERVICED BY L=3300
1-47428-886-0
01
1
0010-
118
PIPE; AIR,UNION TO AIR MASTER
1-49118-357-0
01
1
0010-
1
7
206
6
7
6
285
285
10
10
8
8
59
101
91
19
19
37
41
41
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0010-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0010-0603
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
0010-0512
7
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
8
HOSE; FLEX,AIR,CAB SIDE
L=520
1-09363-605-0
02
1
0010-
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
02
1
0010-
19
NUT; PIPE UNION
M16
9-99111-416-0
02
1
0010-0512
19
NUT; PIPE UNION
M16
0-91111-516-0
02
1
0601-
37
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
01
1
0010-0607
37
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
01
1
0010-0607
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0608-
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0608-
41
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0010-0603
41
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
59
PIPE; AIR,UNION TO FLEX HOSE
L=3470 SERVICED BY L=3500
1-47428-887-0
01
1
0010-
91
NUT; PIPE UNION
M16
9-99111-416-0
01
1
0010-0512
91
NUT; PIPE UNION
M16
9-99111-416-0
01
1
0010-0512
91
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
91
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3199 SERVICED BY L=3300
1-47428-886-0
01
1
0010-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0010-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0010-0605
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0010-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-
