3-55 — BRAKE PIPING; OIL,REAR (#23304) — 24 parça

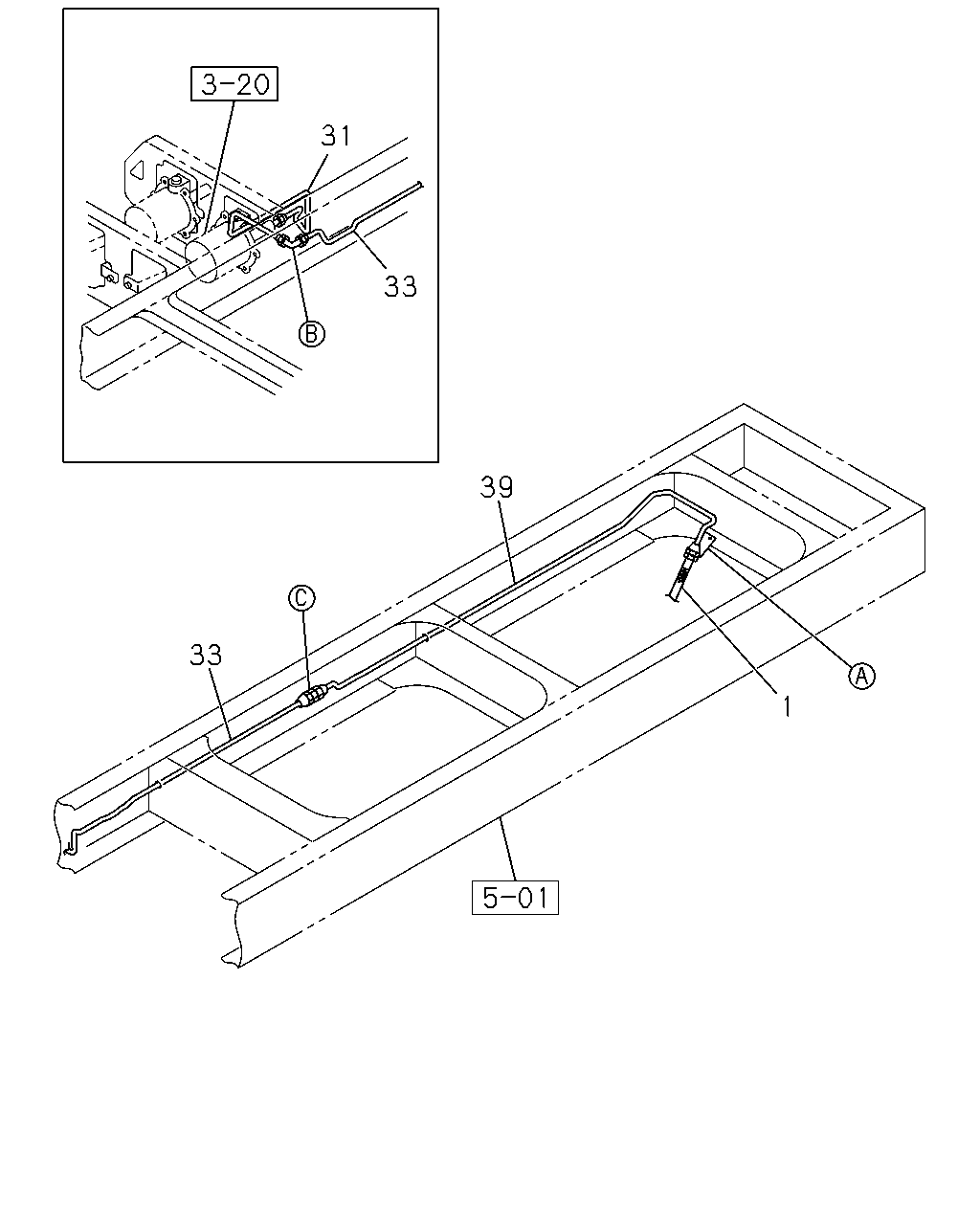

31 33 39 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	0010-0907
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	0908-
31	PIPE; OIL,AIR MASTER TO UNION L=614 SERVICED BY L=650	1-47426-346-0	01	1	0010-
33	PIPE; OIL,UNION TO UNION L=2105 SERVICED BY L=2200	1-47426-360-0	01	1	0010-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	0010-

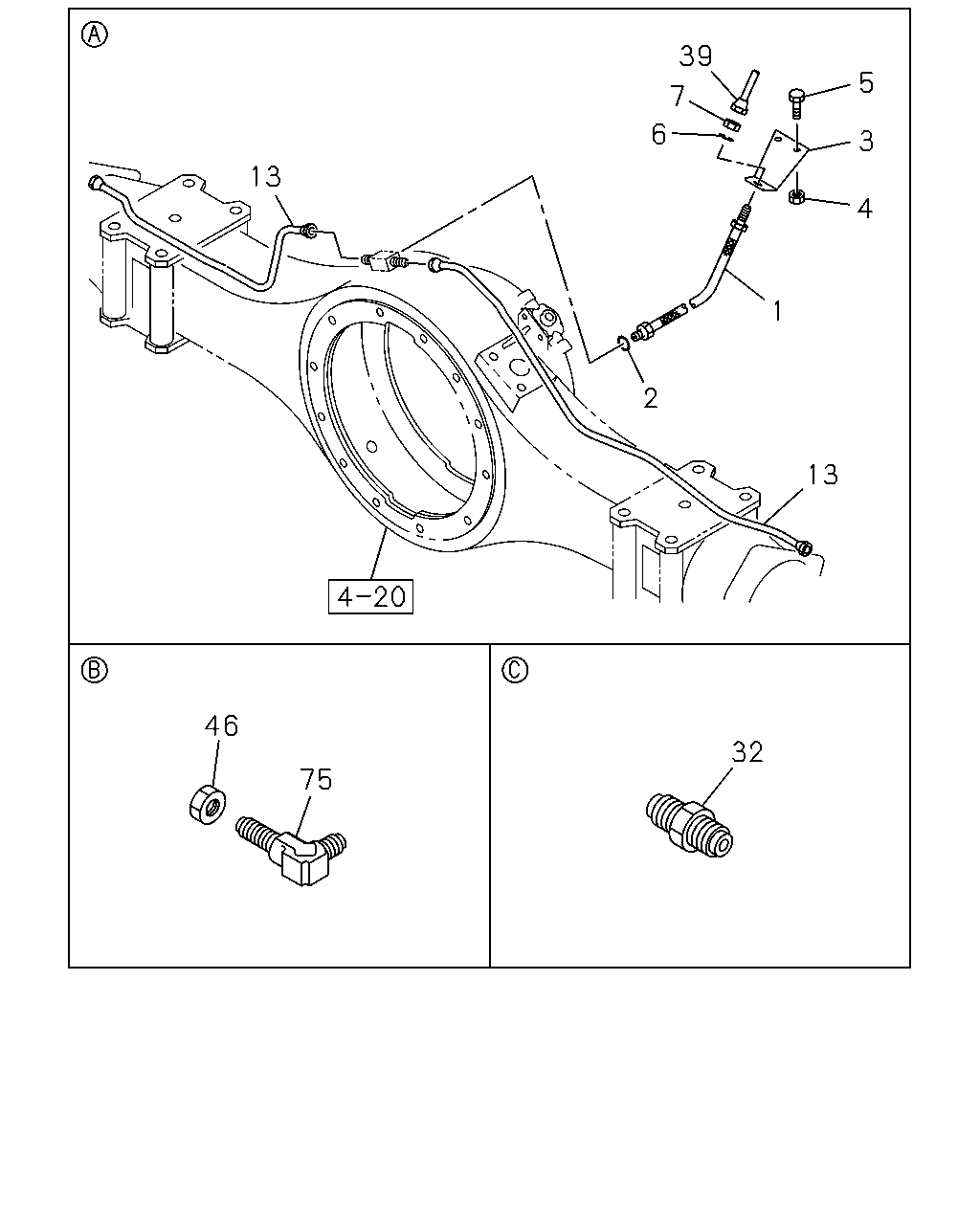

39 5 7 6 3 13 4 1 2 13 46 32 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	0010-0907
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	0908-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0010-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	0010-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0010-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	0010-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0010-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0010-
13	PIPE; BRK,RR AXLE	1-47428-643-0	01	1	0010-
13	PIPE; BRK,RR AXLE	1-47428-644-0	01	1	0010-
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0010-0607
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	0010-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0010-
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0010-0607
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
