Isuzu WW
▶
TRUCKS
▶
FTS
▶
11358 - FTS(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#23302) — 44 parça
◀

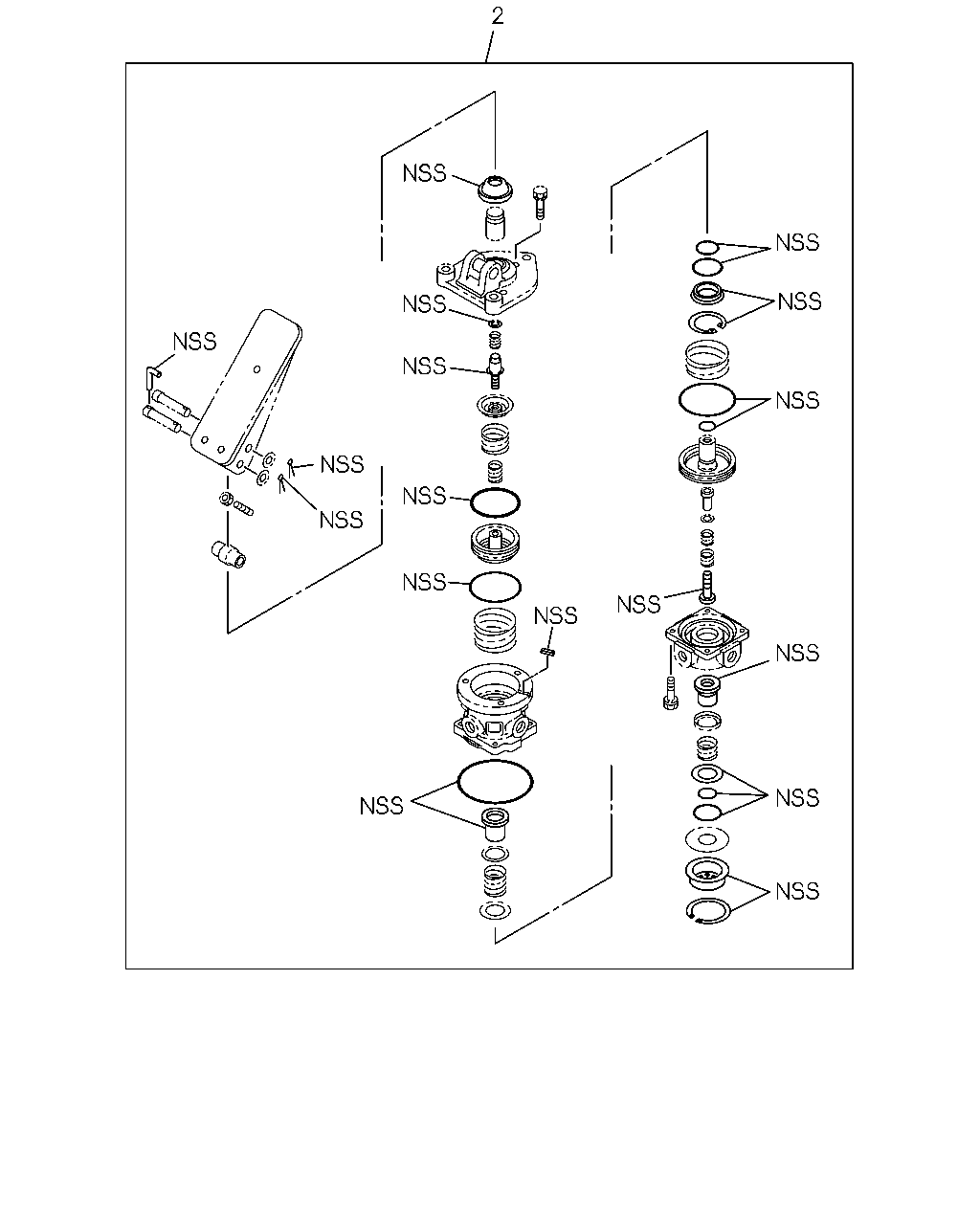

[334A] REPAIR KIT (3 parça)

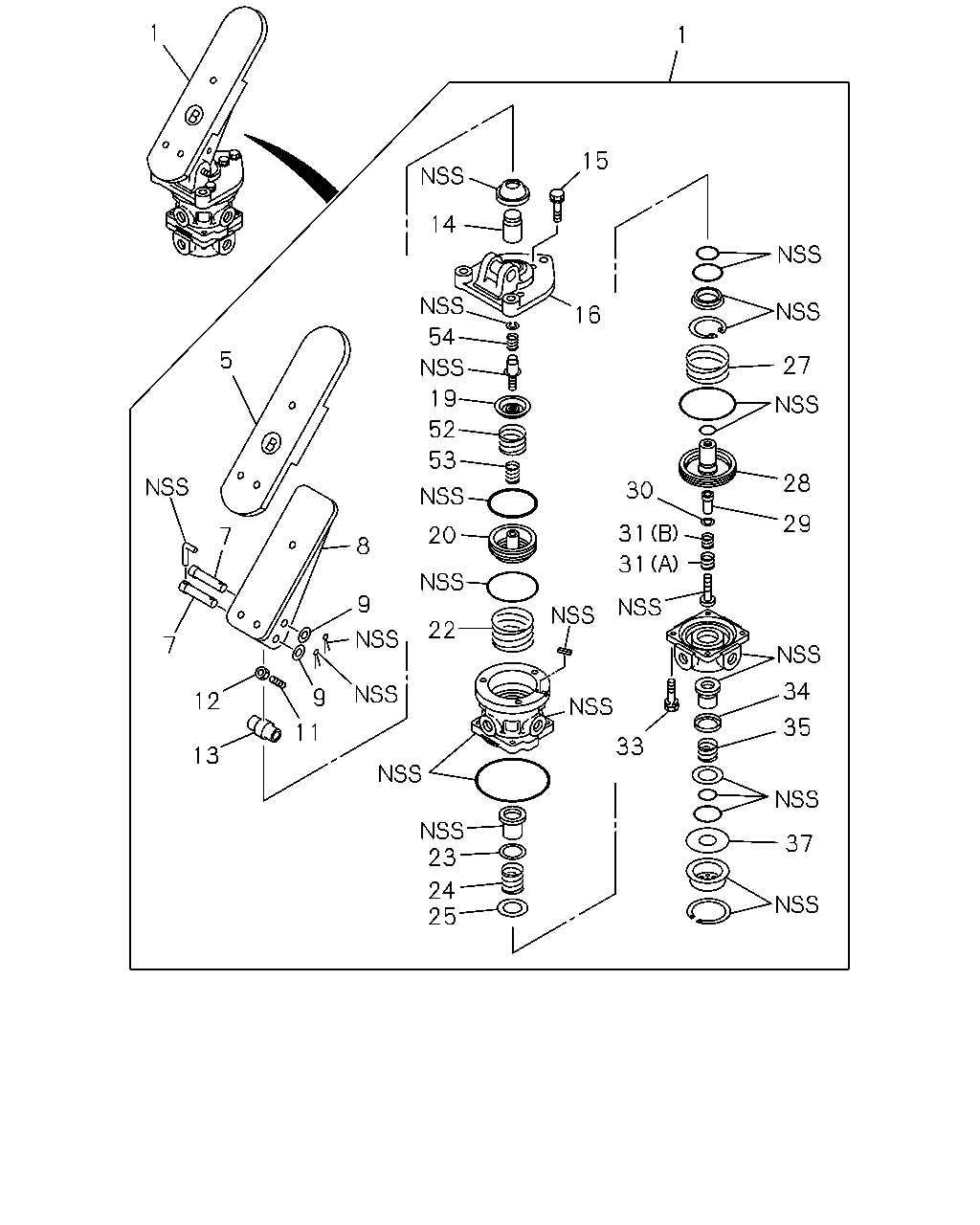

[334A] COMPONENT (41 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-182-0
01
1
0010-0201
2
REPAIR KIT; BRK VLV
1-85576-285-0
01
1
0202-1211
2
REPAIR KIT; BRK VLV
8-98222-819-0
01
1
1212-
1
1
15
14
16
54
5
27
19
52
53
28
30
29
31
20
7
8
31
9
22
7
34
9
12
35
11
33
13
23
37
24
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-775-0
01
1
0010-0201
1
VALVE; BRK
1-48100-844-0
01
1
0202-1211
1
VALVE; BRK
8-98222-791-0
01
1
1212-
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
0010-0201
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0202-
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
0010-0201
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0202-
8
PEDAL; BRK VLV
1-48119-332-0
01
1
0010-0201
8
PEDAL; BRK VLV
1-48119-428-0
01
1
0202-
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
0010-0201
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
0010-0201
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0202-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0010-
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
0010-0201
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0202-
14
PLUNGER; BRK VLV
1-48119-383-0
01
1
0010-0201
14
PLUNGER; BRK VLV
1-48119-561-0
01
1
0202-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0010-
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
0010-0201
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0202-
19
SEAT; SPRING,BRK VLV
1-48123-041-0
01
1
0010-
20
PISTON; UPR,BRK VLV
1-48119-381-0
01
1
0010-0201
20
PISTON; UPR,BRK VLV
1-48119-560-0
01
1
0202-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-071-0
01
1
0010-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
0010-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
0010-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
0010-
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
0010-
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
0010-0201
28
PISTON; LWR,BRK VLV
1-48129-313-0
01
1
0202-
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
0010-
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
0010-
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
0010-
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
0010-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0010-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
0010-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
0010-
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
0010-
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-074-0
01
1
0010-
53
SPRING; PISTON,INNER,BRK VLV
1-48123-068-0
01
1
0010-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
0010-
