3-20 — AIR TANK (#23299) — 75 parça

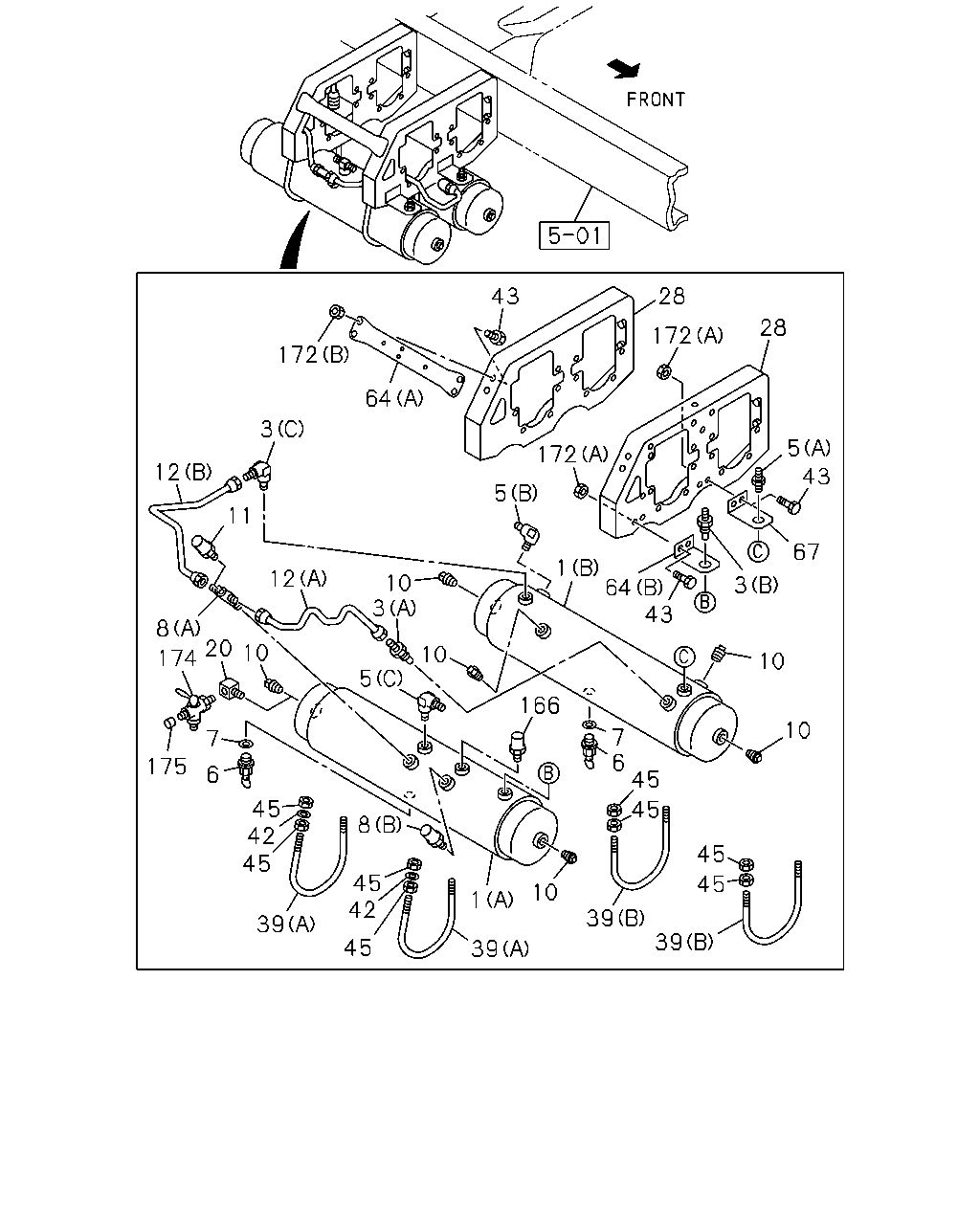

çizim 16705
28 43 172 28 172 64 3 5 43 172 12 5 11 67 1 64 43 12 10 3 3 8 20 174 10 10 10 5 7 6 45 166 10 7 175 6 45 42 45 45 8 45 45 42 45 10 1 39 39 39 45 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0010-
1 TANK ASM; AIR
(B) 		1-48370-299-0 01 1 0010-
3 VALVE; CHECK,AIR TANK
(B) M22 & PT3/4 		1-48410-136-3 01 1 0010-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 STRAIGHT 		1-48410-182-3 01 1 0010-
3 VALVE; CHECK,AIR TANK
(C) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 0010-
5 UNION; AIR TANK
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0010-
5 UNION; AIR TANK
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0010-
5 UNION; AIR TANK
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0010-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0010-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0010-
8 CONNECTOR; AIR TANK
(B) 		1-09650-283-1 01 1 0010-
8 CONNECTOR; AIR TANK
(A) 		1-09656-699-0 01 1 0010-
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE(SG4) PT1/4 		9-99204-513-0 05 1 0010-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE(SG4) PT1/4 		9-99204-513-0 06 1 0010-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0010-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-011-0 01 1 0010-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-012-0 01 1 0010-
20 NIPPLE; AIR TANK
TIRE INFLATOR DEVICE(SG4) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0010-
28 BRACKET; AIR TANK 1-53318-338-6 02 1 0010-
39 U-BOLT; AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 0010-
39 U-BOLT; AIR TANK
(B) L=195 		1-48317-367-2 02 1 0010-
42 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 04 1 0010-0605
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 0606-
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28680-820-0 04 1 0010-0512
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
43 BOLT; STAY,AIR TANK,MAIN
M10X25 FLANGE 		0-28681-025-0 04 1 0010-0512
43 BOLT; STAY,AIR TANK,MAIN
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
45 NUT; AIR TANK,MAIN
M8 		9-09110-408-0 16 1 0010-0512
45 NUT; AIR TANK,MAIN
M8 		0-91110-508-0 16 1 0601-
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 0010-
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 0010-
67 STAY; SUB TANK 1-48317-349-0 01 1 0010-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA 		1-48340-054-1 01 1 0010-
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 04 1 0010-0602
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 0010-0602
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0603-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE(SG4) 		1-09680-099-0 01 1 0010-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE(SG4) 		9-48319-102-0 01 1 0010-

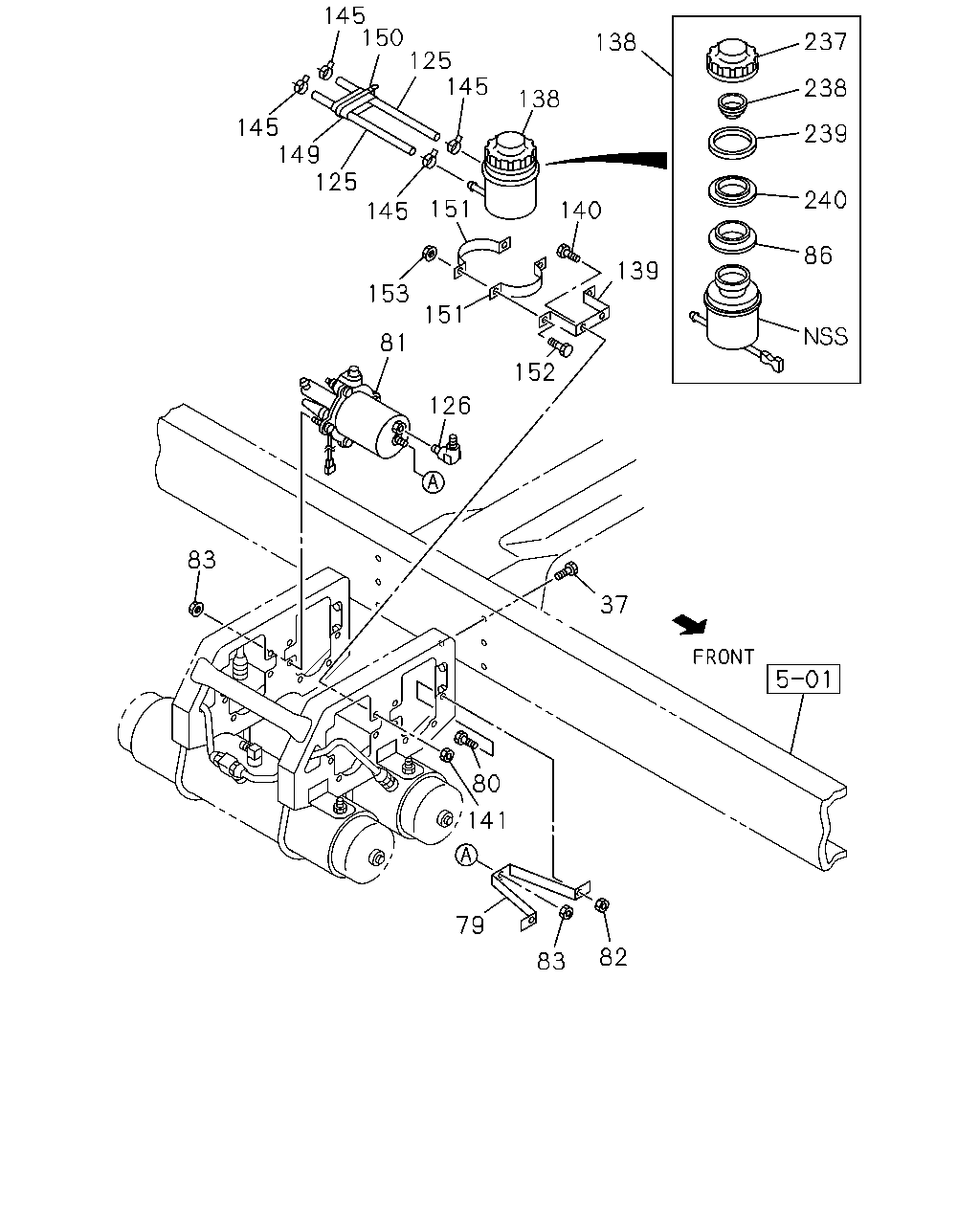

çizim 65406
145 150 125 145 237 138 238 138 145 149 125 239 240 151 140 145 86 139 153 151 81 152 126 83 37 80 141 79 82 83
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 0010-0512
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601-
79 STAY; AIR MASTER TO BRKT 1-53318-347-0 02 1 0010-0805
79 STAY; AIR MASTER TO BRKT 8-98120-254-0 02 1 0806-
80 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0010-0512
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-663-1 01 1 0010-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-664-2 01 1 0010-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91150-210-0 04 1 0010-0602
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
83 NUT; AIR MASTER
M10 FLANGE 		0-91150-210-0 10 1 0010-0602
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 0603-
86 SEAL; DUST 1-47529-019-0 01 1 0010-
125 HOSE; OIL TANK TO AIR MASTER
L=270 SERVICED BY L=1800 		1-09360-320-0 02 1 0010-
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0010-
138 TANK ASM; OIL,AIR MASTER 1-47530-170-1 01 1 0010-0011
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0012-0206
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207-
139 BRACKET; OIL TANK 1-47537-081-2 01 1 0010-
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 0010-0512
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0010-0602
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0010-
149 SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0010-
150 CLIP; BAND,RUBBER SLEEVE
L=140 		5-09707-031-1 01 1 0010-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0010-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 0010-0512
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 0010-0602
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603-
237 CAP; OIL TANK 1-47525-024-0 01 1 0010-0011
237 CAP; OIL TANK 1-47525-030-0 01 1 0012-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0010-
239 FILTER; DUST 1-47529-017-0 01 1 0010-
240 HOLDER; FILTER 1-47529-018-0 01 1 0010-
