0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#2329) — 80 parça

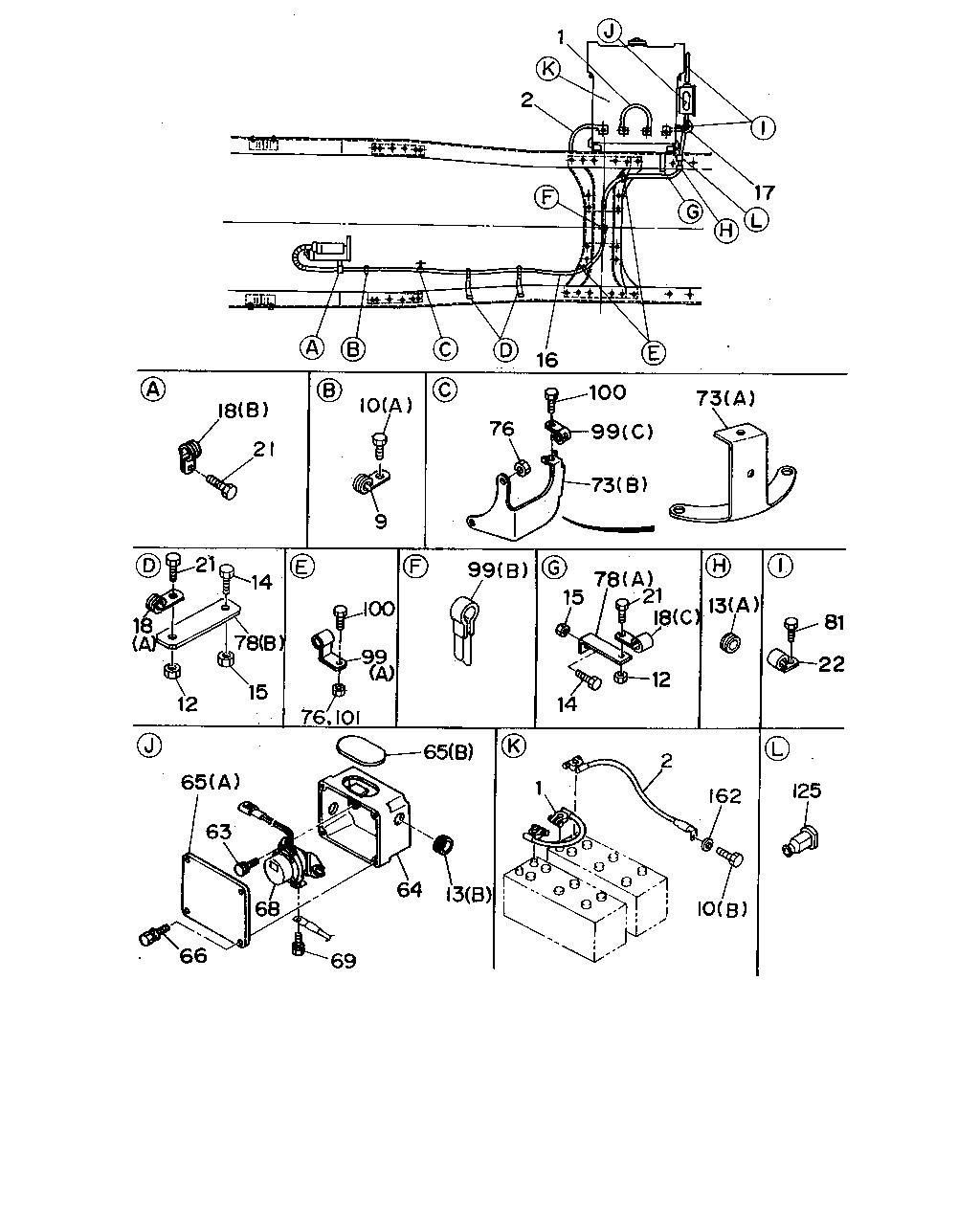

çizim 29898
66 69 68 63 65 65 64 13 1 2 162 10 125 22 81 13 12 14 15 78 21 18 99 99 101 76 100 15 12 18 14 21 78 21 18 10 9 76 100 73 99 73 16 17 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; BATTERY
L=500 		1-82650-130-0 01 1 9002-9003 ● ● ●
1 CABLE; BATTERY
L=500 		1-82650-124-0 01 1 9004- ● ● ●
2 CABLE; BATTERY
L=290 		1-82650-151-0 01 1 9002- ● ● ●
9 CLIP; BATTERY CABLE
ID=19 L=40 		9-09525-876-0 01 1 9002-9202 ● ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9002- ● ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 02 1 9002- ● ● ●
12 NUT; BATTERY CABLE CLIP
EXZ&RHD(EX*5**) M8 		9-09110-408-0 01 1 9405- ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9405- ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9002- ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9002- ● ● ●
14 BOLT; BRKT CLIP
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9204 ● ● ●
14 BOLT; BRKT CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ●
14 BOLT; BRKT CLIP
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9204 ● ● ●
14 BOLT; BRKT CLIP
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
14 BOLT; BRKT CLIP
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306 ● ● ●
14 BOLT; BRKT CLIP
M8X30 FLANGE 		0-28080-830-0 02 1 9307-9411 ● ●
14 BOLT; BRKT CLIP
M8X40 FLANGE 		0-28080-840-0 02 1 9412- ● ●
14 BOLT; BRKT CLIP
EXZ&RHD(EX*5**) M8X25 FLANGE 		0-28080-825-0 01 1 9307- ●
14 BOLT; BRKT CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9307- ●
15 NUT; BRKT CLIP
M8 		9-09110-408-0 03 1 9002-9306 ● ● ●
15 NUT; BRKT CLIP
M8 		9-09110-408-0 02 1 9307-9404 ● ●
15 NUT; BRKT CLIP
M8 		9-09110-408-0 03 1 9405- ● ●
16 CABLE; STARTER TO RELAY
L=4100 L=4100 		1-82652-524-0 01 1 9002- ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=250 		1-82652-510-0 01 1 9002- ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=50 		1-09701-072-0 02 1 9002-9504 ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=50 		1-09701-072-0 02 1 9505- ●
18 CLIP; BATTERY CABLE
(C) ID=18 L=40 		1-09701-111-0 01 1 9002-9306 ● ● ●
18 CLIP; BATTERY CABLE
EXZ&RHD(EX*5**) (C) ID=18 L=40 		1-09701-111-0 01 1 9307- ●
18 CLIP; BATTERY CABLE
(C) ID=18 L=40 		1-09701-111-0 01 1 9307- ●
18 CLIP; BATTERY CABLE
FULLER M/T<X9B> (A) ID=18 L=28 		1-09701-067-0 02 1 9505- ● ●
18 CLIP; BATTERY CABLE
(B) ID=24 L=32 		1-09700-766-1 01 1 9002-9306 ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9307- ● ●
21 BOLT; CLIP CABLE
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9002-9302 ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ●
21 BOLT; CLIP CABLE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9002-9302 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9002-9404 ● ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 04 1 9405- ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9002- ● ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9002- ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9002- ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9002- ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9002- ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204 ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ●
69 BOLT; CABLE BATTERY
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9401 ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9402- ● ●
73 BRACKET; BATTERY CABLE
(A) 		1-82699-371-0 01 1 9002-9106 ● ●
73 BRACKET; BATTERY CABLE
(A) 		1-82699-542-0 01 1 9107-9306 ● ●
73 BRACKET; BATTERY CABLE
MJA7T M/T(X6F),MJA6A M/T(X6V) (A) 		1-82699-542-0 01 1 9307-9410 ● ●
73 BRACKET; BATTERY CABLE
MJA7T M/T(X6F),MJA6A M/T(X6V) (B) 		1-82699-822-0 01 1 9411-9504 ● ●
73 BRACKET; BATTERY CABLE
(B) 		1-82699-822-0 01 1 9505- ● ●
73 BRACKET; BATTERY CABLE
RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6) ,RTX11609B M/T FULLER(X8W) (A) 		1-82699-358-0 01 1 9307-9504 ● ●
76 NUT; BATTERY CABLE
M8 		9-09110-408-0 02 1 9307- ● ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		5-09440-006-0 02 1 9002- ● ● ●
78 BRACKET; CLIP BATTERY
(B) 		1-22133-053-0 02 1 9002- ● ● ●
78 BRACKET; CLIP BATTERY
(A) 		1-82699-085-0 01 1 9002- ● ● ●
81 BOLT; BATTERY CABLE
M8X22 		9-01900-822-0 02 1 9002-9204 ● ● ●
81 BOLT; BATTERY CABLE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9205-9302 ● ● ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 9002-9306 ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=16 L=46 		9-09917-428-0 01 1 9002- ● ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=50 		1-09701-072-0 01 1 9002-9002 ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 01 1 9003- ● ● ●
100 BOLT; BATTERY CABLE CLIP
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9009 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9010-9204 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9002-9302 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9303- ● ● ●
101 NUT; BATTERY CABLE CLIP
M6 		9-09110-406-0 02 1 9002-9009 ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 02 1 9010-9306 ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9002- ● ● ●
125 GROMMET; CABLE BATTERY 1-09333-062-1 01 1 9002-9410 ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9002- ● ● ●
