Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#23280) — 342 parça

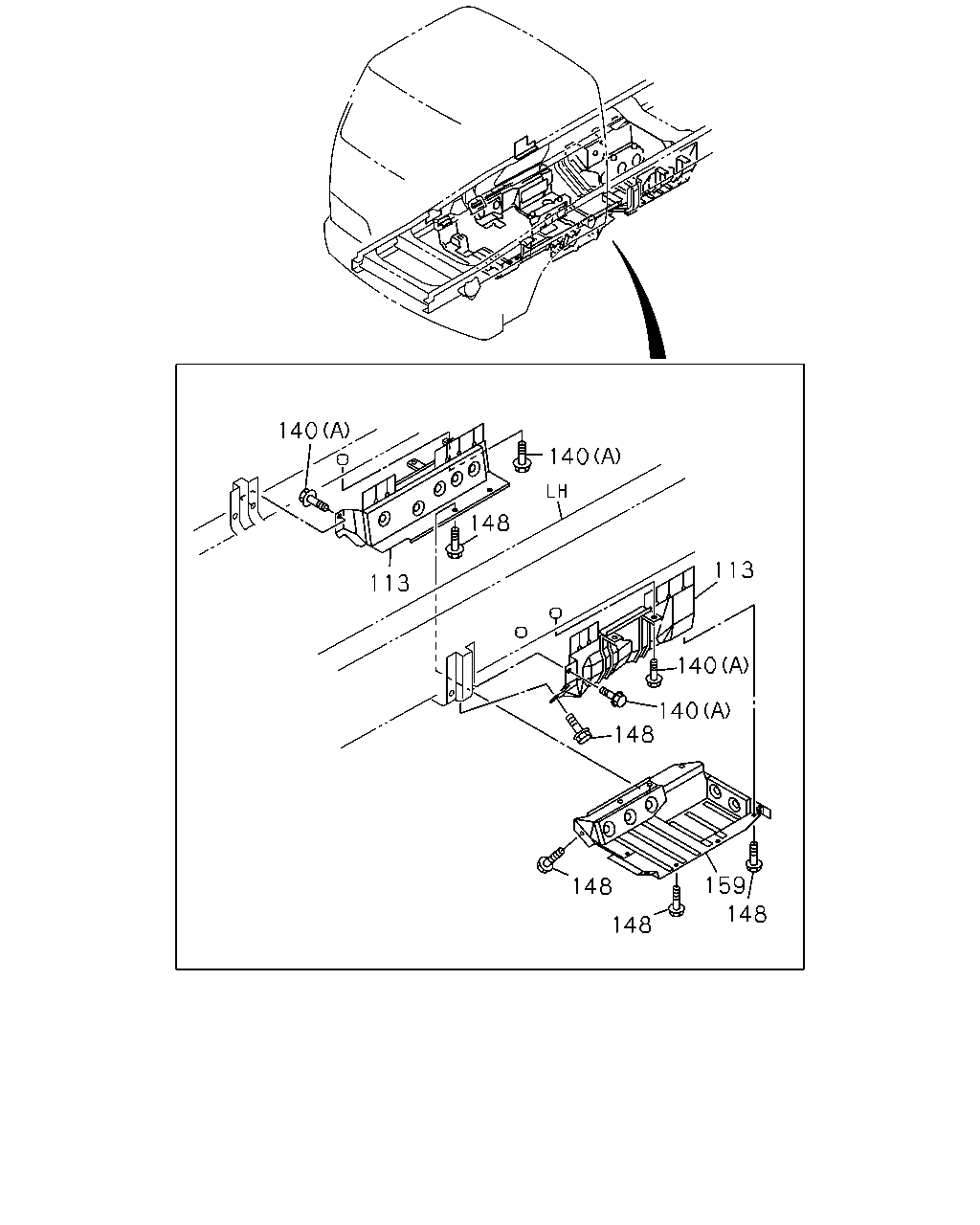

140 140 148 113 113 140 140 148 159 148 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-910-1	01	1	0210-0212	●	●
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-389-0	01	1	0301-0308	●	●
113	PANEL; SIDE 6HH1 STD ENG(65L)	1-53194-389-0	01	1	0309-		●
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-912-2	01	1	0210-0302	●	●
113	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-391-0	01	1	0303-0308	●	●
113	PANEL; SIDE 6HH1 STD ENG(65L)	1-53194-391-0	01	1	0309-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (B) M8X16 FLANGE	0-28080-816-0	04	1	9601-0301	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	09	1	0210-0308	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	09	1	0309-0512		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28650-825-0	09	1	0601-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X40 FLANGE	0-28680-840-0	04	1	0210-0308	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	0309-0512		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X40 FLANGE	0-28650-840-0	04	1	0601-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0210-0308	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0309-		●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0210-0308	●	●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0309-		●
159	PANEL; SIDE,TRANS,CTR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-913-1	01	1	0210-0308	●	●
159	PANEL; SIDE,TRANS,CTR 6HH1 STD ENG(65L)	1-53192-913-1	01	1	0309-		●

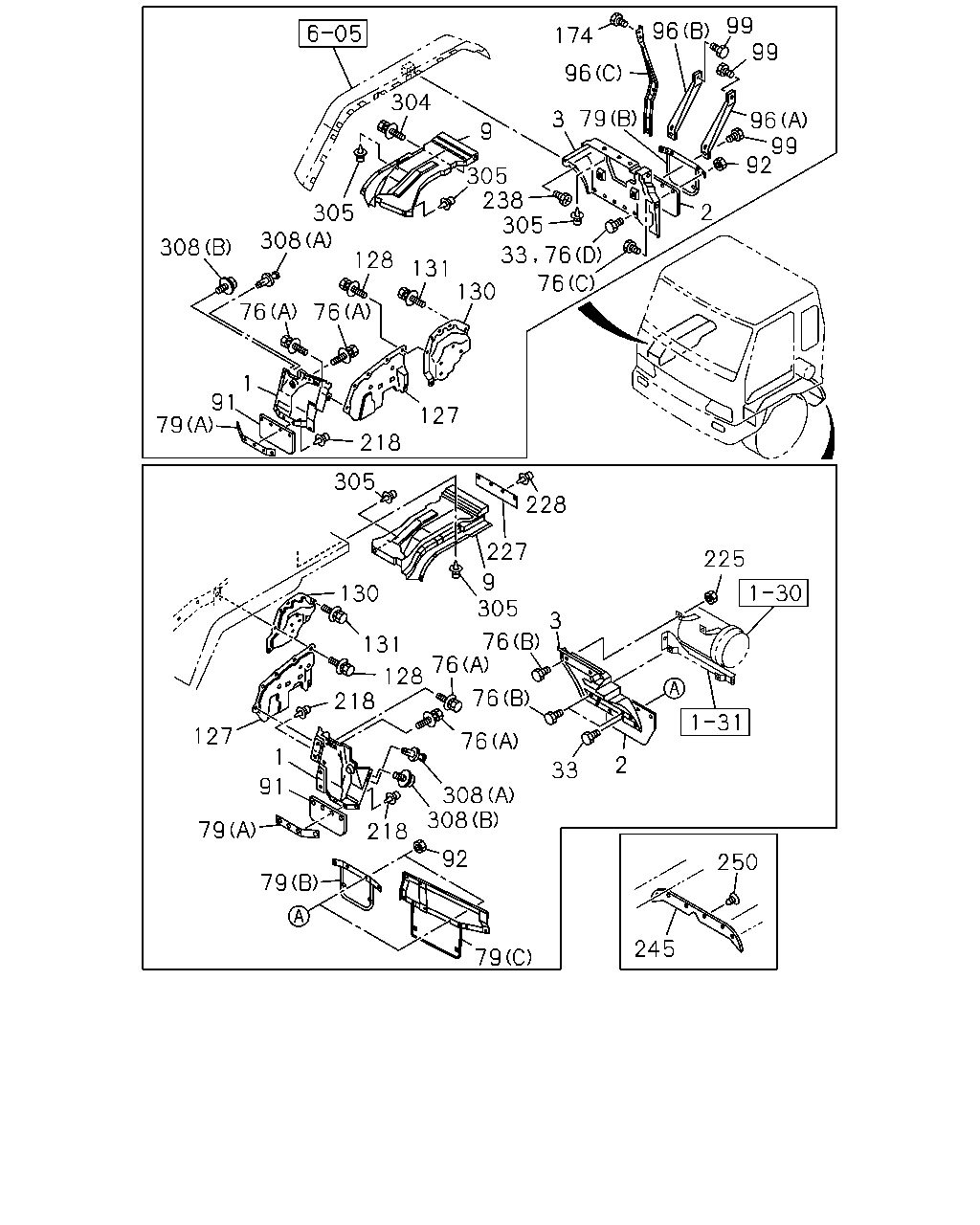

96 99 99 79 304 96 98 92 3 175 99 9 305 238 305 305 128 76 2 96 308 308 131 76 130 76 1 91 79 127 218 227 228 305 225 9 130 305 76 3 131 76 128 218 76 1 127 76 2 33 308 91 308 79 218 250 92 79 245 79 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-0308	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0309-		●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-0308	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0309-		●
2	COVER; MUD,TIRE RR	1-79931-223-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9602-9803	●	●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9804-0004	●	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-0308	●	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0309-		●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9602-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9607-0308	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	0309-		●
3	GUARD; MUD,RR	1-79938-934-2	01	1	9601-9605	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-999-0	01	1	9712-0308	●	●
3	GUARD; MUD,RR	1-79938-999-0	01	1	0309-		●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0308	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0309-0403		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-971-1	01	1	0404-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9803-0308	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0309-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9601-9601	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9602-0308	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0309-		●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-9803	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9804-0004	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9804-0004	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0308	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0309-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9601-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0308	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0309-0805		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-		●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-0308	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0309-		●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-0308	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0309-		●
76	BOLT; MUD GUARD (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-0308	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0309-		●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-0308	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0309-		●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9602-9803	●	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	9804-0308	●	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	0309-		●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9711	●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	9712-0308	●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0309-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9601-0308	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0309-		●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9803	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	9804-9806	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9807-0004	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	0005-0308	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	0309-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	05	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	9804-0004	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0308	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0309-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9803	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9804-0308	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0309-		●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9803	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9804-0308	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0309-		●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9803	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9804-0004	●	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-0308	●	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0309-		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9804-0308	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0309-0512		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9601-0308	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0309-		●
127	APRON; FRT	1-53192-301-2	01	1	9601-9611	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53192-301-3	01	1	9612-0308	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53192-301-3	01	1	0309-		●
127	APRON; FRT	1-53193-222-0	01	1	9601-9611	●	●
127	APRON; FRT 6SD1 STD ENG(37L)	1-53193-222-1	01	1	9612-0308	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-223-1	01	1	9612-0308	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-223-1	01	1	0309-		●
127	APRON; FRT 6SD1 STD ENG(37L)	1-53192-302-2	01	1	9612-0308	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-0308	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0309-		●
130	PANEL; SHUTTER NOISE	1-53192-307-3	01	1	9601-9611	●	●
130	PANEL; SHUTTER NOISE 6SD1 STD ENG(37L)	1-53192-307-4	01	1	9612-0308	●	●
130	PANEL; SHUTTER NOISE	1-53192-305-1	01	1	9601-9611	●	●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-305-2	01	1	9612-0308	●	●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-305-2	01	1	0309-		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-308-3	01	1	9612-0308	●	●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-308-3	01	1	0309-		●
130	PANEL; SHUTTER NOISE 6SD1 STD ENG(37L)	1-53192-306-1	01	1	9612-0308	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-0308	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0309-		●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9804-9901	●	●
175	NUT; STAY FIX 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9902-0308	●	●
175	NUT; STAY FIX 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	04	1	9902-0308	●	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	0309-0602		●
175	NUT; STAY FIX 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	04	1	0603-		●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-0308	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0309-		●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9601-9612	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-0308	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-		●
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9601-9601	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-0308	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0309-		●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9601-0308	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0309-		●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9601-9705	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-0308	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0309-		●
245	RUBBER; SHUTTER,RAD 6HH1 STD ENG(65L)	1-79938-927-0	01	1	9601-0308	●	●
245	RUBBER; SHUTTER,RAD 6HH1 STD ENG(65L)	1-79938-927-0	01	1	0309-		●
250	FASTENER; SHUTTER 6HH1 STD ENG(65L)	1-09987-189-0	06	1	9601-0308	●	●
250	FASTENER; SHUTTER 6HH1 STD ENG(65L)	1-09987-189-0	06	1	0309-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-0308	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0309-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9601-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9804-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0308	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0309-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9601-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9804-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9601-9602	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-0308	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0309-0404		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0308	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0309-0404		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-		●

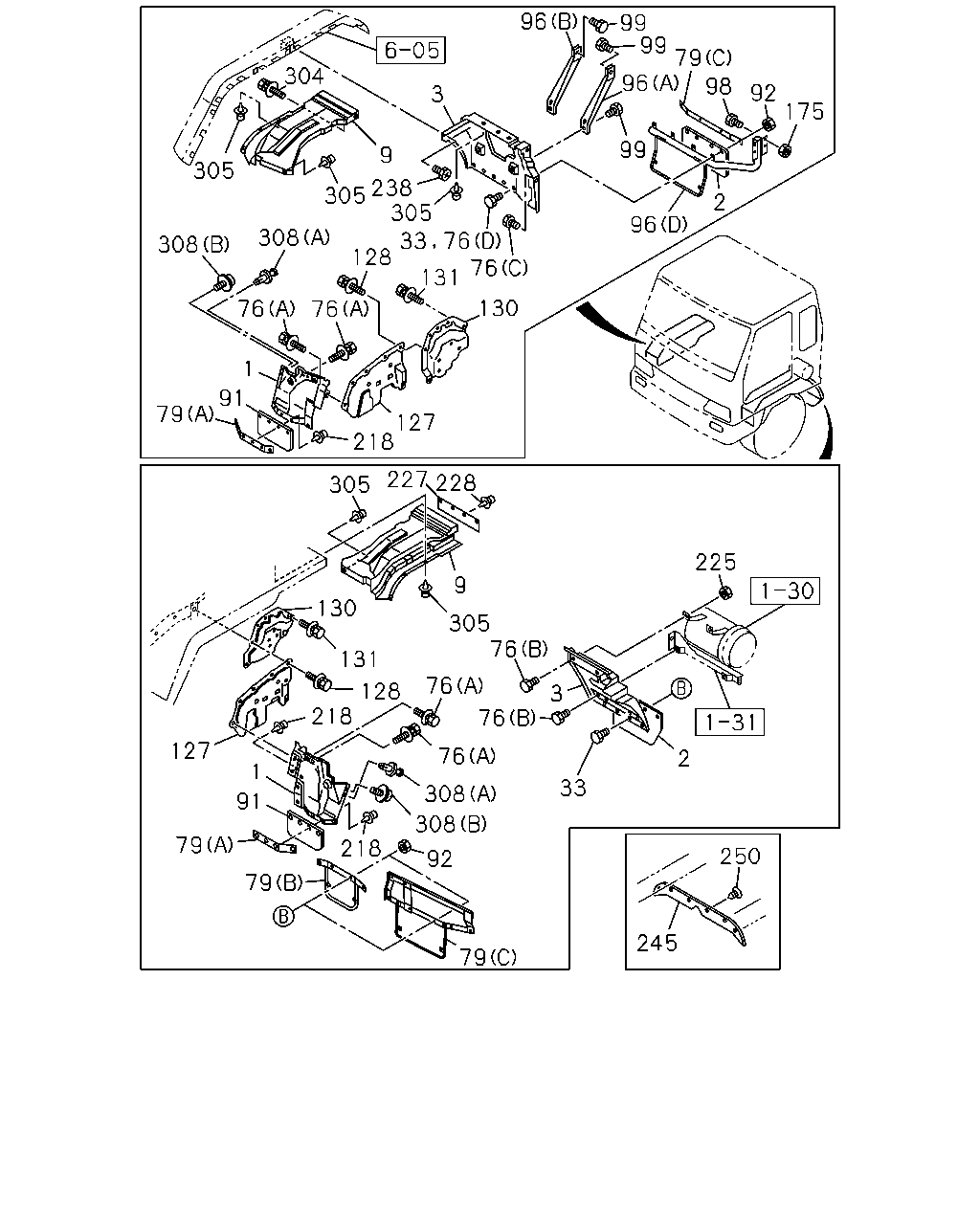

99 99 96 174 304 96 79 3 96 99 92 9 305 238 305 2 305 308 308 128 131 76 130 76 76 1 91 127 79 218 305 228 227 225 9 305 130 3 76 131 76 128 76 218 1 127 76 2 33 91 308 308 79 218 92 250 79 245 79 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-0308	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0309-		●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-0308	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0309-		●
2	COVER; MUD,TIRE RR	1-79931-223-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9602-9803	●	●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9804-0004	●	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-0308	●	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0309-		●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9602-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9607-0308	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	0309-		●
3	GUARD; MUD,RR	1-79938-934-2	01	1	9601-9605	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-999-0	01	1	9712-0308	●	●
3	GUARD; MUD,RR	1-79938-999-0	01	1	0309-		●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0308	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0309-0403		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-971-1	01	1	0404-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9803-0308	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0309-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9601-9601	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9602-0308	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0309-		●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-9803	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9804-0004	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9804-0004	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0308	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0309-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9601-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0308	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0309-0805		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-		●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-0308	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0309-		●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-0308	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0309-		●
76	BOLT; MUD GUARD (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-0308	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0309-		●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-0308	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0309-		●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9602-9803	●	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	9804-0308	●	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	0309-		●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9711	●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	9712-0308	●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0309-		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9601-0308	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0309-		●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9803	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	9804-9806	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9807-0004	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	0005-0308	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	0309-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	05	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	9804-0004	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0308	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0309-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-		●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9803	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9804-0308	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0309-		●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9803	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9804-0308	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0309-		●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9803	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9804-0004	●	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-0308	●	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0309-		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9601-0308	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0309-		●
127	APRON; FRT	1-53192-301-2	01	1	9601-9611	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53192-301-3	01	1	9612-0308	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53192-301-3	01	1	0309-		●
127	APRON; FRT	1-53193-222-0	01	1	9601-9611	●	●
127	APRON; FRT 6SD1 STD ENG(37L)	1-53193-222-1	01	1	9612-0308	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-223-1	01	1	9612-0308	●	●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-223-1	01	1	0309-		●
127	APRON; FRT 6SD1 STD ENG(37L)	1-53192-302-2	01	1	9612-0308	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-0308	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0309-		●
130	PANEL; SHUTTER NOISE	1-53192-307-3	01	1	9601-9611	●	●
130	PANEL; SHUTTER NOISE 6SD1 STD ENG(37L)	1-53192-307-4	01	1	9612-0308	●	●
130	PANEL; SHUTTER NOISE	1-53192-305-1	01	1	9601-9611	●	●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-305-2	01	1	9612-0308	●	●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-305-2	01	1	0309-		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-308-3	01	1	9612-0308	●	●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L)	1-53192-308-3	01	1	0309-		●
130	PANEL; SHUTTER NOISE 6SD1 STD ENG(37L)	1-53192-306-1	01	1	9612-0308	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-0308	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0309-		●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-9803	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-0308	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0309-		●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9601-9612	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-0308	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-		●
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9601-9601	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-0308	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0309-		●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9601-0308	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0309-		●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9601-9705	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-0308	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0309-		●
245	RUBBER; SHUTTER,RAD 6HH1 STD ENG(65L)	1-79938-927-0	01	1	9601-0308	●	●
245	RUBBER; SHUTTER,RAD 6HH1 STD ENG(65L)	1-79938-927-0	01	1	0309-		●
250	FASTENER; SHUTTER 6HH1 STD ENG(65L)	1-09987-189-0	06	1	9601-0308	●	●
250	FASTENER; SHUTTER 6HH1 STD ENG(65L)	1-09987-189-0	06	1	0309-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-0308	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0309-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9601-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9804-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0308	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0309-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9601-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9804-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9601-9602	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-0308	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0309-0404		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0308	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0309-0404		●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-		●

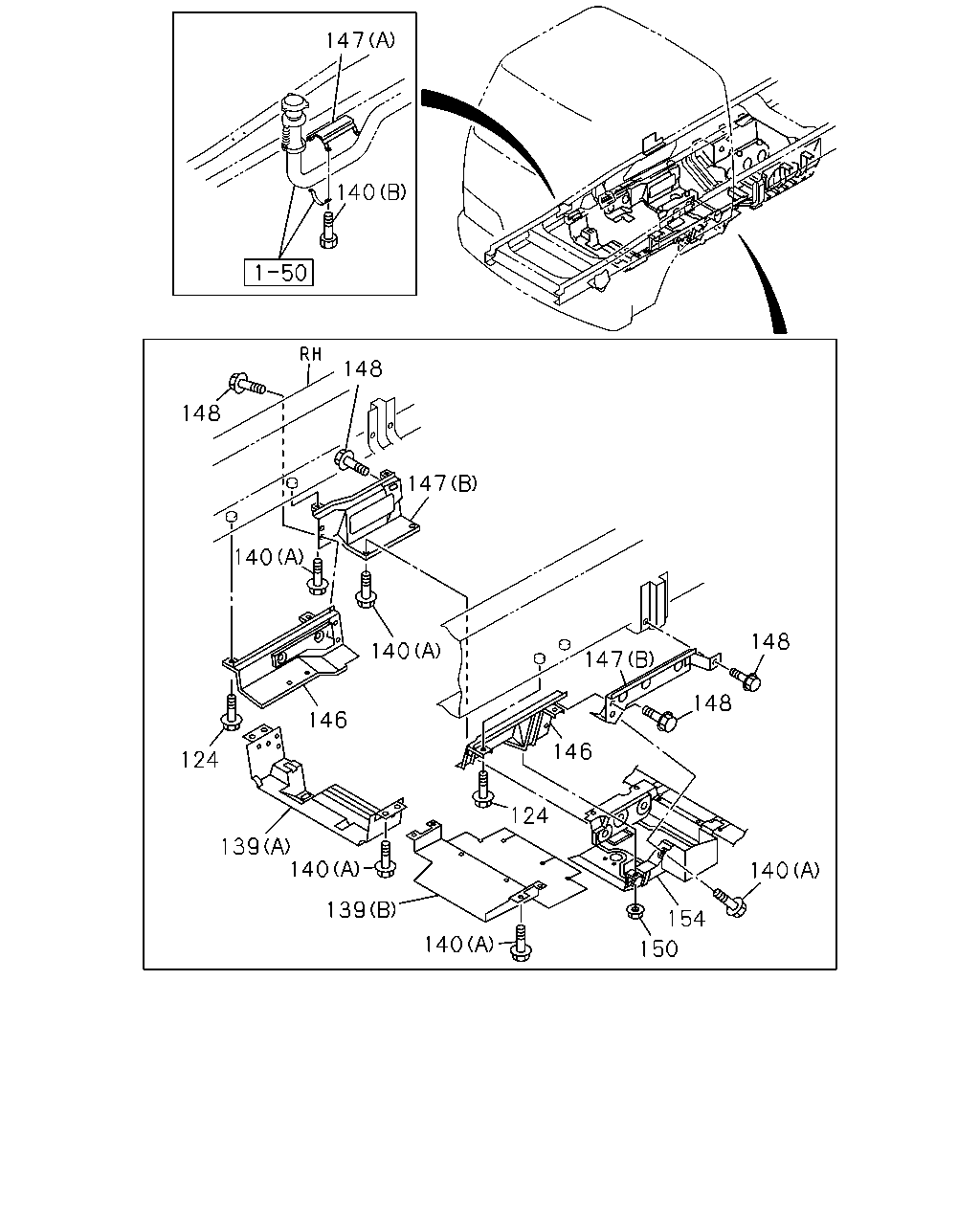

147 140 148 148 147 140 148 140 147 148 146 146 124 124 139 140 140 139 154 140 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	BOLT; BRKT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	04	1	0210-0308	●	●
124	BOLT; BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	0309-0512		●
124	BOLT; BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
139	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-593-0	01	1	0210-0308	●	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (A)	1-53192-593-0	01	1	0309-		●
139	PANEL; SIDE 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B)	1-53192-917-2	01	1	0301-0308	●	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53192-917-2	01	1	0309-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (B) M8X16 FLANGE	0-28080-816-0	04	1	9601-0301	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	09	1	0210-0308	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	09	1	0309-0512		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28650-825-0	09	1	0601-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X40 FLANGE	0-28680-840-0	04	1	0210-0308	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X40 FLANGE	0-28680-840-0	04	1	0309-0512		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X40 FLANGE	0-28650-840-0	04	1	0601-		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0210-0308	●	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0309-		●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-939-0	01	1	0210-0308	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-939-0	01	1	0309-		●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-937-1	01	1	0210-0308	●	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-937-1	01	1	0309-		●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) (A)	1-22119-346-0	01	1	9601-0301	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B)	1-53193-051-1	01	1	0210-0308	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) (B)	1-53193-051-1	01	1	0309-		●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> (B)	1-53192-923-1	01	1	0210-0308	●	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L) (B)	1-53192-923-1	01	1	0309-		●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0210-0308	●	●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0309-		●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	0210-0308	●	●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0603-		●
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-920-1	01	1	0210-0308	●	●
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L)	1-53192-920-1	01	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
