0-61A — BATTERY AND ENGINE ELECTRICAL PARTS (#2328) — 66 parça

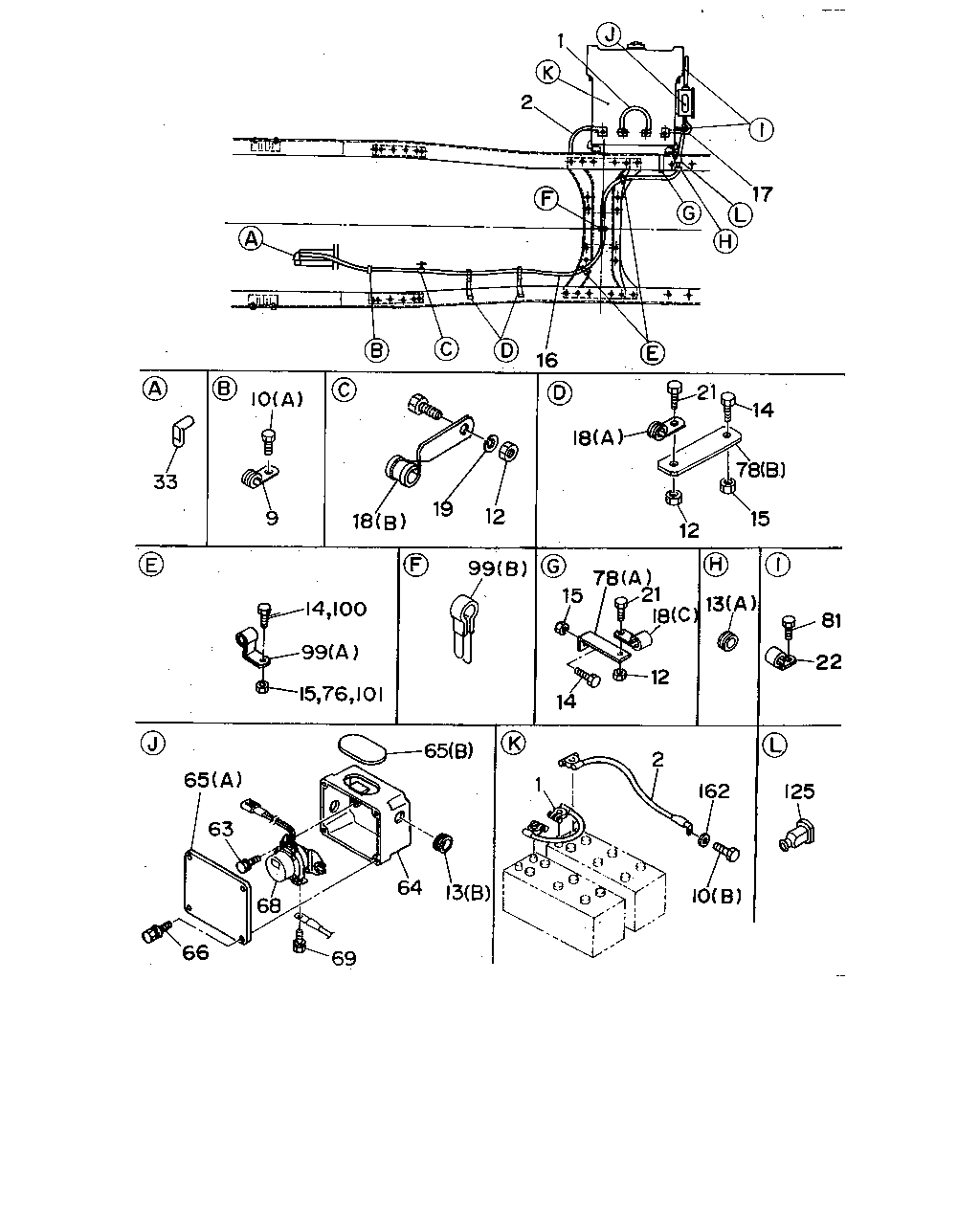

çizim 29721
66 69 68 63 65 64 13 65 1 2 162 10 125 22 81 13 18 21 78 15 14 12 99 101 76 15 100 14 99 33 18 19 12 10 18 12 15 78 14 21 17 2 1 16 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; BATTERY
L=500 		1-82650-130-0 01 1 9002-9003 ● ● ●
1 CABLE; BATTERY
L=500 		1-82650-124-0 01 1 9004- ● ● ●
2 CABLE; BATTERY
L=290 		1-82650-151-0 01 1 9002- ● ● ●
9 CLIP; BATTERY CABLE
ID=19 L=40 		9-09525-876-0 01 1 9002-9202 ● ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9002- ● ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9202 ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 02 1 9002- ● ● ●
12 NUT; BATTERY CABLE CLIP
M10 		9-09110-510-0 01 1 9002- ● ● ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9405- ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9002- ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9002- ● ● ●
14 BOLT; BRKT CLIP
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9204 ● ● ●
14 BOLT; BRKT CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ● ●
14 BOLT; BRKT CLIP
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9204 ● ● ●
14 BOLT; BRKT CLIP
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ● ●
14 BOLT; BRKT CLIP
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306 ● ● ●
14 BOLT; BRKT CLIP
M8X30 FLANGE 		0-28080-830-0 02 1 9307-9411 ●
14 BOLT; BRKT CLIP
M8X40 FLANGE 		0-28080-840-0 02 1 9412- ●
14 BOLT; BRKT CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9307- ●
15 NUT; BRKT CLIP
M8 		9-09110-408-0 03 1 9002-9306 ● ● ●
15 NUT; BRKT CLIP
M8 		9-09110-408-0 02 1 9307-9404 ●
15 NUT; BRKT CLIP
M8 		9-09110-408-0 03 1 9405- ●
16 CABLE; STARTER TO RELAY
L=3900 		1-82652-525-0 01 1 9002-9003 ● ● ●
16 CABLE; STARTER TO RELAY
L=3750 		1-82652-543-0 01 1 9004-9102 ● ● ●
16 CABLE; STARTER TO RELAY
L=3650 		1-82652-522-0 01 1 9103- ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=250 		1-82652-510-0 01 1 9002- ● ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=80 		1-09701-069-0 01 1 9002- ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=50 		1-09701-072-0 02 1 9002-9504 ● ● ●
18 CLIP; BATTERY CABLE
(C) ID=18 L=40 		1-09701-111-0 01 1 9002-9306 ● ● ●
18 CLIP; BATTERY CABLE
(C) ID=18 L=40 		1-09701-111-0 01 1 9307- ●
18 CLIP; BATTERY CABLE
FULLER M/T<X9B> (A) ID=18 L=28 		1-09701-067-0 02 1 9505- ●
19 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9002- ● ● ●
21 BOLT; CLIP CABLE
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9002-9302 ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 03 1 9303-9306 ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9002-9404 ● ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 04 1 9405- ●
33 CAP; INSULATOR 1-82699-206-0 01 1 9002- ● ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9002- ● ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9002- ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9002- ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9002- ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9002- ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9204 ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ●
69 BOLT; CABLE BATTERY
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9401 ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9402- ●
76 NUT; BATTERY CABLE
M8 		9-09110-408-0 02 1 9307- ● ● ●
78 BRACKET; CLIP BATTERY
(B) 		1-22133-053-0 02 1 9002- ● ● ●
78 BRACKET; CLIP BATTERY
(A) 		1-82699-085-0 01 1 9002- ● ● ●
81 BOLT; BATTERY CABLE
M8X22 		9-01900-822-0 02 1 9002-9204 ● ● ●
81 BOLT; BATTERY CABLE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9205-9302 ● ● ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9307- ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 9002-9306 ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=16 L=46 		9-09917-428-0 01 1 9002- ● ● ●
100 BOLT; BATTERY CABLE CLIP
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9009 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9010-9204 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ● ●
101 NUT; BATTERY CABLE CLIP
M6 		9-09110-406-0 02 1 9002-9009 ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 02 1 9010-9306 ● ● ●
125 GROMMET; CABLE BATTERY 1-09333-062-1 01 1 9002-9410 ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9002- ● ● ●
