Isuzu WW
▶
TRUCKS
▶
FVR
▶
11352 - FVR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

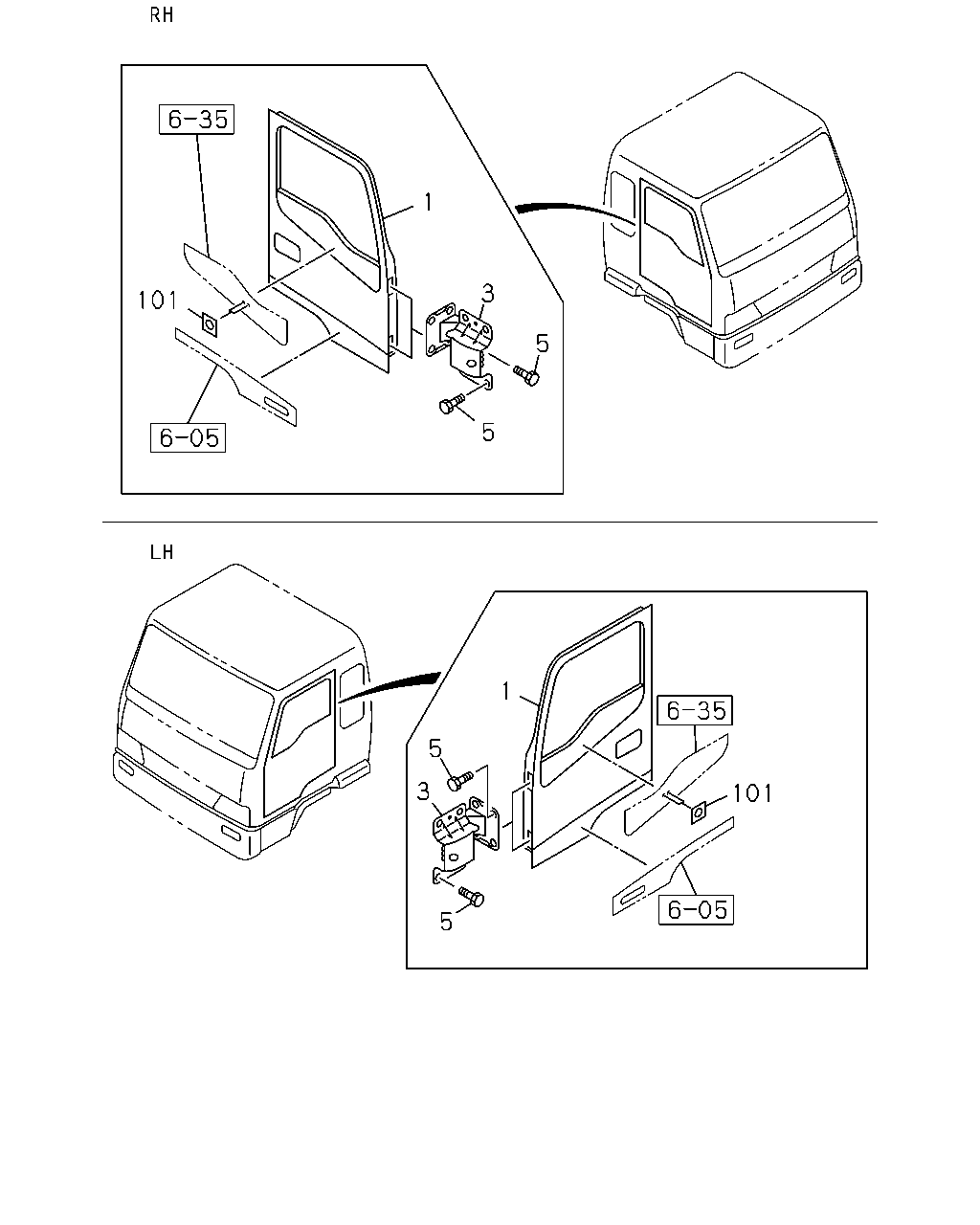

6-30 — FRONT DOOR AND HINGE
(#23274) — 21 parça
Tümü
A - FVR6MC
B - FVR6MF
1
3
101
5
5
1
5
3
101
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DOOR ASM; FRT,WO/TRIM
1-64080-326-0
01
1
9601-9901
●
●
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-2
01
1
9902-0308
●
●
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-2
01
1
0309-
●
1
DOOR ASM; FRT,WO/TRIM
1-64080-325-0
01
1
9601-9901
●
●
1
DOOR ASM; FRT,WO/TRIM
1-64080-390-2
01
1
9902-0308
●
●
1
DOOR ASM; FRT,WO/TRIM
1-64080-390-2
01
1
0309-
●
3
HINGE; DOOR FRT
UPPER
1-64780-088-3
01
1
9601-0308
●
●
3
HINGE; DOOR FRT
UPPER
1-64780-088-3
01
1
9601-0308
●
●
3
HINGE; DOOR FRT
UPPER
1-64780-088-3
01
1
0309-
●
3
HINGE; DOOR FRT
UPPER
1-64780-088-3
01
1
0309-
●
3
HINGE; DOOR FRT
LOWER
1-64780-089-4
01
1
9601-0308
●
●
3
HINGE; DOOR FRT
LOWER
1-64780-089-4
01
1
9601-0308
●
●
3
HINGE; DOOR FRT
LOWER
1-64780-089-4
01
1
0309-
●
3
HINGE; DOOR FRT
LOWER
1-64780-089-4
01
1
0309-
●
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
9601-0308
●
●
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0309-
●
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
9601-0308
●
●
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
9601-0308
●
●
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0309-
●
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0309-
●
101
SEAL; BODY METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
9601-9810
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
