6-20 — SIDE PANEL AND STEP (#23273) — 176 parça

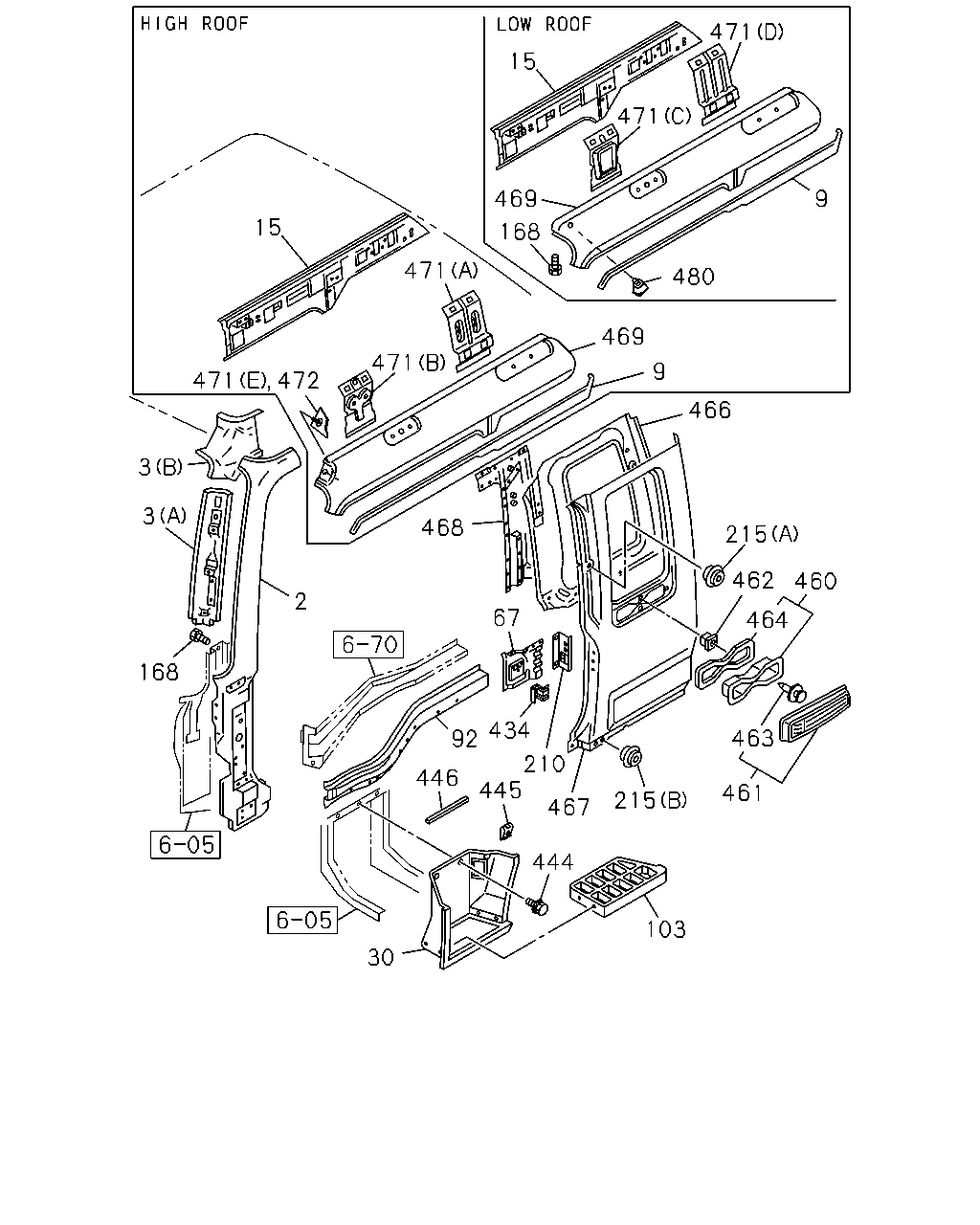

çizim 16197
471 15 471 469 9 15 168 471 480 469 471 9 466 3 3 468 215 462 460 2 67 464 168 434 463 92 210 445 446 461 215 467 444 103 30 471 472
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 9601-0308 ● ●
2 PILLAR; FRT 1-61281-410-2 01 1 0309- ●
2 PILLAR; FRT 1-61281-409-2 01 1 9601-0308 ● ●
2 PILLAR; FRT 1-61281-409-2 01 1 0309- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9601-0308 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0309- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9601-0308 ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0309- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9601-9803 ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9601-9803 ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9601-9803 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 9804-0308 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 0309- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9601-9803 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 9804-0308 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 0309- ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 9601-0308 ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0309- ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 9601-0308 ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0309- ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9601-9803 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9601-9803 ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9601-9803 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 9804-0308 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 0309- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9601-9803 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 9804-0308 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 0309- ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 9601-0308 ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0309- ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 9601-0308 ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0309- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9601-0308 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0309- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9601-0308 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0309- ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 9601-0308 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0309- ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 9601-0308 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0309- ●
103 PLATE; STEP 1-71998-868-1 01 1 9601-9605 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 9606-0308 ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0309- ●
103 PLATE; STEP 1-71998-867-1 01 1 9601-9605 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 9606-0308 ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0309- ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9601-9702 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9601-9702 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-9803 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-9803 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9804-0308 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9804-0308 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0309-0512 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0309-0512 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 9601-0308 ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0309- ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9601-9709 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-0308 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0309- ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9601-0308 ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0309- ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9601-9803 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9601-9803 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9804-0308 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0309-1204 ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1205- ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9601-0308 ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0309-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
445 NUT; CLOSING 8-94279-723-0 02 1 9601-0308 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0309- ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9601-0308 ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0309- ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 9601-0308 ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0309- ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9601-0308 ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0309- ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9601-0308 ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0309- ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9601-0308 ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0309- ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9601-0308 ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0309- ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9601-0308 ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0309- ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9601-0308 ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0309- ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9601-0308 ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0309- ●
467 PANEL; OUTER,BACK CORNER
COUNTRY ALGERIA<D2G> 		1-61281-477-3 01 1 1205- ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 9601-0308 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0309- ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 9601-0308 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0309-1204 ●
467 PANEL; OUTER,BACK CORNER
EXC. COUNTRY ALGERIA<D2G> 		1-61281-203-4 01 1 1205- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 9601-9803 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9601-9803 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9601-9803 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-435-2 01 1 9804-0308 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-435-2 01 1 0309- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9601-9803 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-434-2 01 1 9804-0308 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-434-2 01 1 0309- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-4 01 1 9601-9803 ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-4 01 1 9601-9803 ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-3 01 1 9601-9803 ● ●
469 ROOF; SIDE 1-61281-268-6 01 1 9804-0308 ● ●
469 ROOF; SIDE 1-61281-268-6 01 1 0309- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-3 01 1 9601-9803 ● ●
469 ROOF; SIDE 1-61281-267-6 01 1 9804-0308 ● ●
469 ROOF; SIDE 1-61281-267-6 01 1 0309- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 02 1 9804-0308 ● ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 02 1 0309-1204 ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 01 1 1205- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 9804-0308 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 0309- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9601-9803 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 9804-0308 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 0309- ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9601-9803 ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9601-9803 ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-997-3 01 1 9804-0308 ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-997-3 01 1 0309- ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9601-9803 ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-996-3 01 1 9804-0308 ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-996-3 01 1 0309- ●

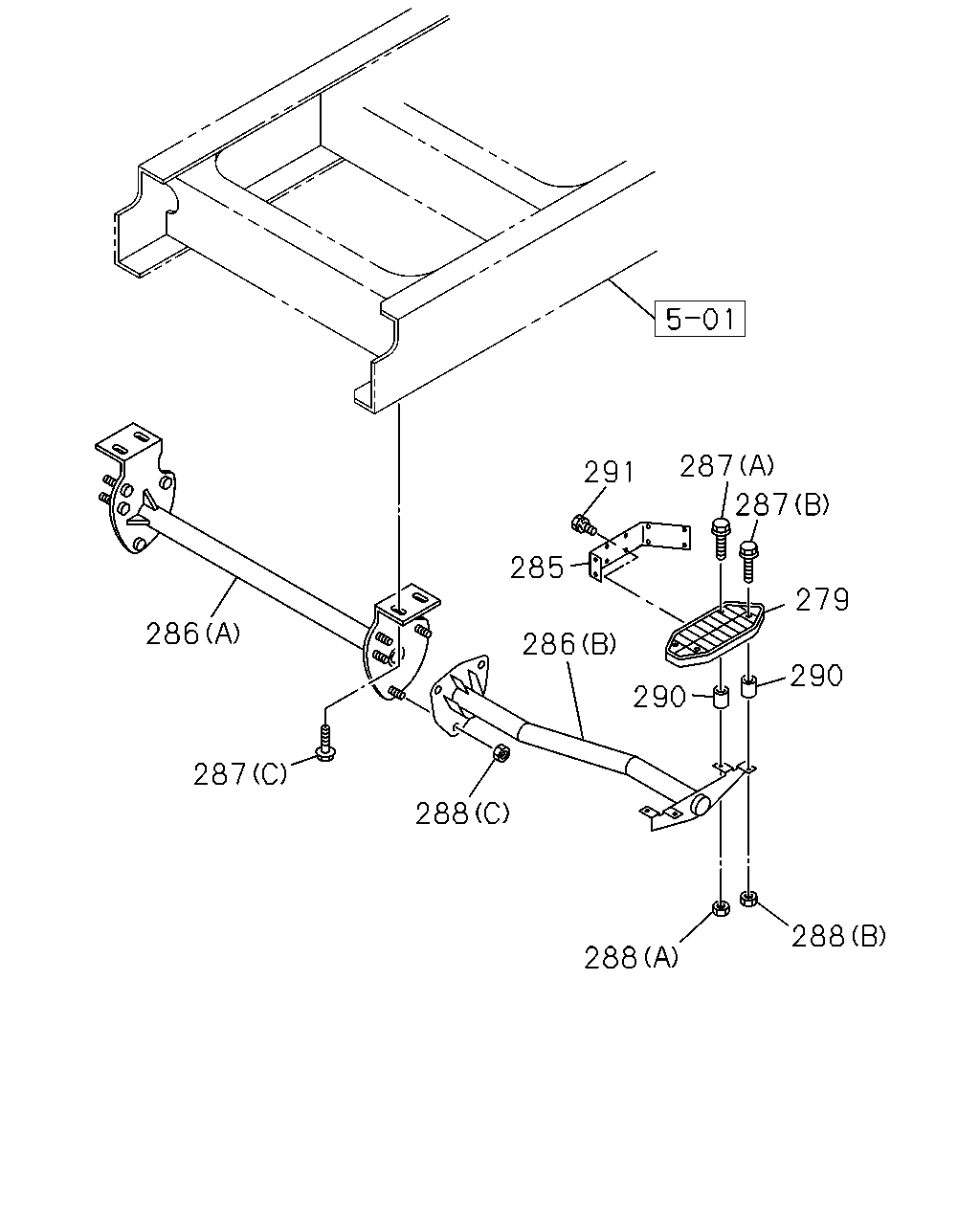

çizim 65645
287 291 287 285 279 286 286 290 290 287 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B
279 BOARD; STEP 1ST 1-53414-035-0 02 1 9601-0308 ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0309- ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0010-0308 ● ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0309- ●
286 STEP ASM; 1ST
(B) 		1-53414-107-0 01 1 9601-0003 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0004-0308 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0309- ●
286 STEP ASM; 1ST
(B) 		1-53414-108-0 01 1 9601-0003 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0004-0308 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0309- ●
286 STEP ASM; 1ST
(A) 		1-53414-126-1 01 1 9601-0112 ● ●
286 STEP ASM; 1ST
(A) 		1-53414-254-0 01 1 0201-0308 ● ●
286 STEP ASM; 1ST
(A) 		1-53414-254-0 01 1 0309- ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 9601-0009 ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28680-635-0 04 1 0010-0308 ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28680-635-0 04 1 0309-0512 ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28650-635-0 04 1 0601- ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 9601-0009 ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0010-0308 ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0309-0512 ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
287 BOLT; BOARD STEP
(C) M12X30 FLANGE 		0-28081-230-0 04 1 9601-9606 ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 9607-0308 ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 0309-0512 ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 9601-0308 ● ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 0309-0602 ●
288 NUT; STEP
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 9601-0308 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 0309-0602 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
288 NUT; STEP
(C) M12 		9-99110-512-0 06 1 9601-9606 ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 9607-0308 ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 0309-0602 ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0603- ●
290 SPACER 1-53414-016-0 08 1 9601-0308 ● ●
290 SPACER 1-53414-016-0 08 1 0309- ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0010-0308 ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0309-0512 ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28050-616-0 10 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
