◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#23269) — 23 parça

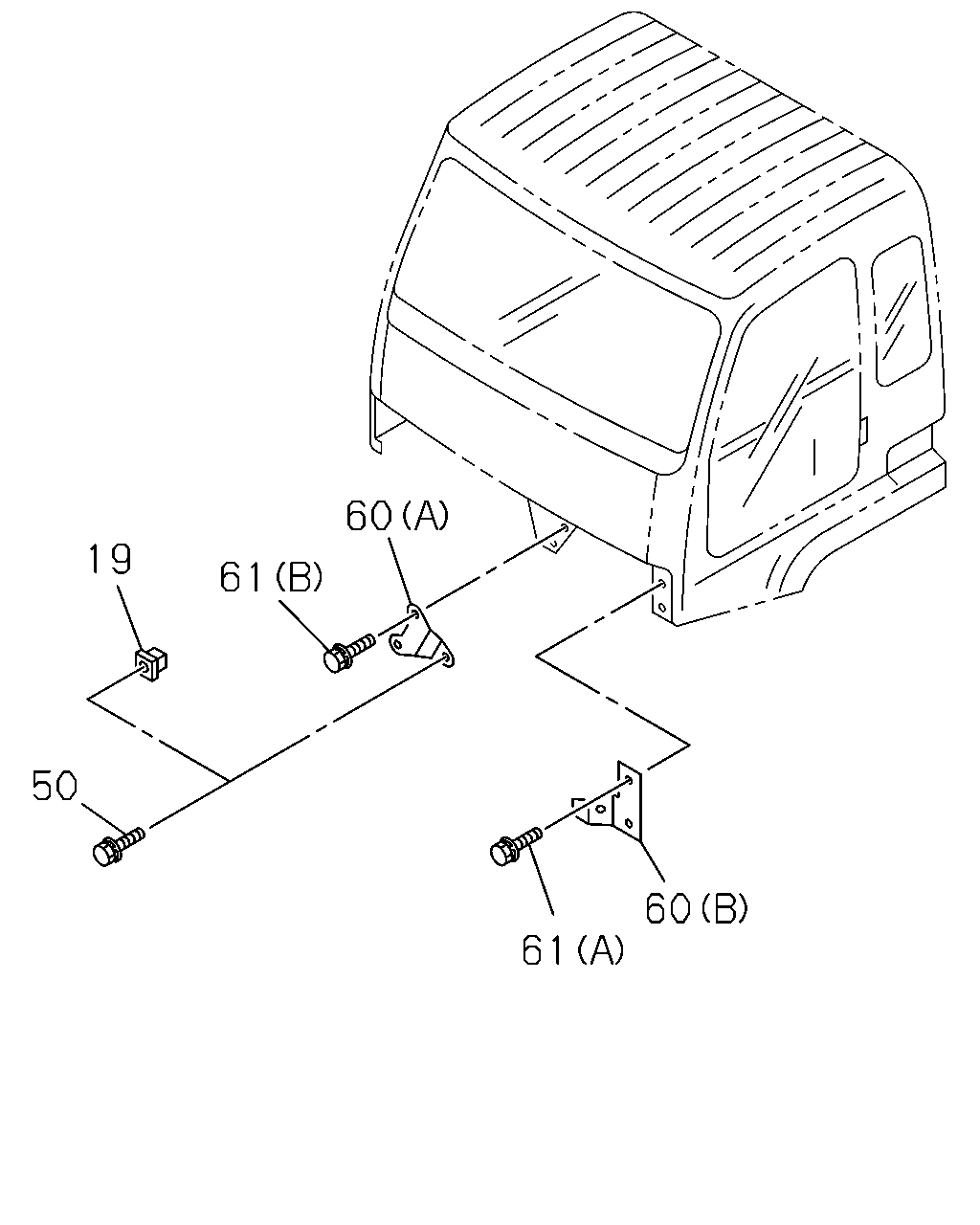

çizim 66442
60 19 61 50 60 61
BalonParca AdiParca NoAdetTipApplied Date A B
19 GROMMET; SCREW,RAD GRILLE
D=7.5X7.5 L=7 		8-94430-147-0 04 1 0410- ●
50 BOLT; GRILLE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0410-0602 ●
60 BRACKET; RAD GRILLE SIDE
(B) 		1-71118-776-1 01 1 0410- ●
60 BRACKET; RAD GRILLE SIDE
(A) 		1-71118-785-1 01 1 0410-1112 ●
60 BRACKET; RAD GRILLE SIDE
(A) 		1-71118-752-1 01 1 0410-1112 ●
60 BRACKET; RAD GRILLE SIDE
(B) 		1-71118-775-1 01 1 0410- ●
61 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0410- ●
61 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0410-0904 ●
61 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-1112 ●
çizim 66815
1 8 40 9 1 8 38 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
(A) 		1-71118-702-3 01 1 0410- ●
1 GRILLE; RAD
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) BLACK 		1-71118-766-1 01 1 9804-0004 ● ●
1 GRILLE; RAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71118-702-3 01 1 9601-9803 ● ●
1 GRILLE; RAD
FRONT PANEL CARGO FACE<NGD> (A) 		1-71118-702-3 01 1 0005-0308 ● ●
1 GRILLE; RAD
FRONT PANEL CARGO FACE<NGD> (A) 		1-71118-702-3 01 1 0309-0409 ●
1 GRILLE; RAD
EXC. FRONT PANEL CARGO FACE<NGD> (A) WHITE 		1-71118-818-1 01 1 0005-0308 ● ●
1 GRILLE; RAD
EXC. FRONT PANEL CARGO FACE<NGD> (A) WHITE 		1-71118-818-1 01 1 0309-0409 ●
8 GROMMET; SCREW,RAD GRILLE 8-94279-704-0 01 1 9601-0308 ● ●
8 GROMMET; SCREW,RAD GRILLE 8-94279-704-0 01 1 0309- ●
9 SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 01 1 9601-0308 ● ●
9 SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 01 1 0309- ●
38 CLIP; GRILLE
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> BLACK 		8-94218-027-0 06 1 9601-0004 ● ●
40 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 06 1 9601-0308 ● ●
40 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 06 1 0309- ●
