6-01 — FRONT BUMPER (#23268) — 160 parça

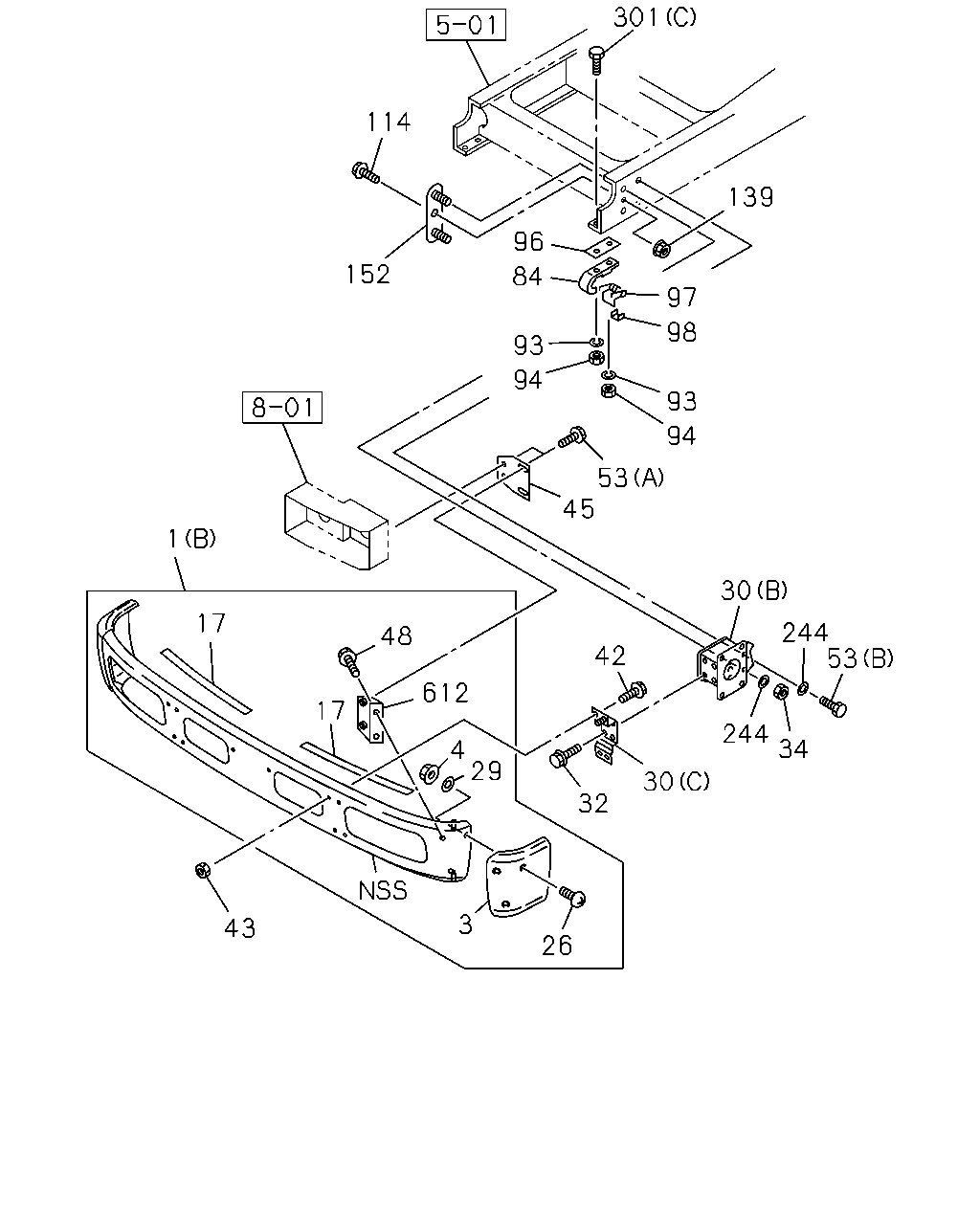

çizim 65382
301 114 139 96 152 84 97 98 93 94 93 94 53 45 1 30 17 244 53 48 42 612 17 244 34 4 29 30 32 3 43 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-661-2 01 1 9601-0004 ● ●
1 BUMPER ASM; FRT
FRONT PANEL CARGO FACE<NGD> (A) WHITE 		1-71210-661-2 01 1 0005-0308 ● ●
1 BUMPER ASM; FRT
FRONT PANEL CARGO FACE<NGD> (A) WHITE 		1-71210-661-2 01 1 0309-0409 ●
1 BUMPER ASM; FRT
EXC. FRONT PANEL CARGO FACE<NGD> (A) WHITE 		1-71210-846-2 01 1 0005-0308 ● ●
1 BUMPER ASM; FRT
EXC. FRONT PANEL CARGO FACE<NGD> (A) WHITE 		1-71210-846-2 01 1 0309-0409 ●
1 BUMPER ASM; FRT
(B) 		1-71210-843-1 01 1 0410- ●
3 BUMPER; FRT,SIDE 1-71210-641-0 01 1 0410- ●
3 BUMPER; FRT,SIDE 1-71210-642-0 01 1 0410- ●
4 NUT; CTR BUMPER
M8 FLANGE 		0-91150-108-0 06 1 0410-0602 ●
4 NUT; CTR BUMPER
M8 FLANGE 		0-91180-108-0 06 1 0603- ●
17 PROTECTOR; FRT BUMPER 1-71260-178-0 02 1 0410- ●
26 BOLT; CTR BUMPER 1-09060-008-0 06 1 0410- ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 06 1 0410-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 06 1 0606- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-207-3 01 1 9601-0111 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-568-0 01 1 0112-0308 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-568-0 01 1 0309-0409 ●
30 BRACKET; FRT BUMPER
(C) 		1-71230-577-0 01 1 0410- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-208-3 01 1 9601-0308 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-208-3 01 1 0309-0409 ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-320-1 01 1 0410- ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-321-1 01 1 0410- ●
30 BRACKET; FRT BUMPER
(C) 		1-71230-576-0 01 1 0410- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9601-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0308 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0309-0409 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 08 1 0410-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9601-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0308 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0309-0409 ●
34 NUT; BRKT,BUMPER
M14 		9-99110-514-0 04 1 0410-0512 ●
34 NUT; BRKT,BUMPER
M14 		0-91110-514-0 04 1 0601- ●
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 07 1 0410-0512 ●
42 BOLT; BUMPER
M10X25 FLANGE 		0-28651-025-0 07 1 0601- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 06 1 9601-9606 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0308 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0309-0409 ●
43 NUT; BRKT TO BUMPER
M10 CAP NUT 		1-09650-480-0 08 1 0410- ●
45 BRACKET; BRKT TO BUMPER 1-71230-350-1 02 1 0410- ●
48 BOLT; SUPPORT
M10X16 FLANGE 		0-28081-016-0 04 1 0410-0512 ●
48 BOLT; SUPPORT
M10X16 FLANGE 		0-28051-016-0 04 1 0601- ●
53 BOLT; BRKT TO FRAME
(B) M14X40 		0-20801-440-0 04 1 0410-0512 ●
53 BOLT; BRKT TO FRAME
(B) M14X40 		0-20851-440-0 04 1 0601- ●
53 BOLT; BRKT TO FRAME
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0410-0512 ●
53 BOLT; BRKT TO FRAME
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
84 HOOK 1-57181-027-1 01 1 9601-0208 ● ●
84 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 0209-0308 ● ●
84 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 0309-0409 ●
84 HOOK 1-57181-027-1 01 1 0410- ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9601-0208 ● ●
93 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		9-09150-516-0 02 1 0209-0308 ● ●
93 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		9-09150-516-0 02 1 0309-0409 ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0410-0603 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9601-0206 ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0208 ● ●
94 NUT; HOOK
TOW HOOK<V76> M16 		9-99110-516-0 02 1 0209-0308 ● ●
94 NUT; HOOK
TOW HOOK<V76> M16 		9-99110-516-0 02 1 0309-0409 ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0410-0512 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ●
96 PLATE; DIST,HOOK 1-57189-193-0 01 1 9601-9803 ● ●
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0410- ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9601-9803 ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0410- ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9601-9803 ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0410- ●
114 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0410-0512 ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
139 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ●
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
152 PLATE; FRT BUMPER 1-53497-544-1 02 1 0410- ●
244 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 0410-0603 ●
244 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-814-0 08 1 0604- ●
301 BOLT; HOOK TO FRAME
(D) M16X147 		5-51361-003-3 02 1 9601-9803 ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 9804-0208 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (B) M16X70 		0-10811-670-0 01 1 0209-0308 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (B) M16X70 		0-10811-670-0 01 1 0309-0409 ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 9804-0208 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (A) M16X60 		0-10811-660-0 01 1 0209-0308 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (A) M16X60 		0-10811-660-0 01 1 0309-0409 ●
301 BOLT; HOOK TO FRAME
(C) M16X80 		0-10811-680-0 02 1 0410-0512 ●
301 BOLT; HOOK TO FRAME
(C) M16X80 		0-10861-680-0 02 1 0601- ●
612 SUPPORT 1-71230-351-0 02 1 0410- ●

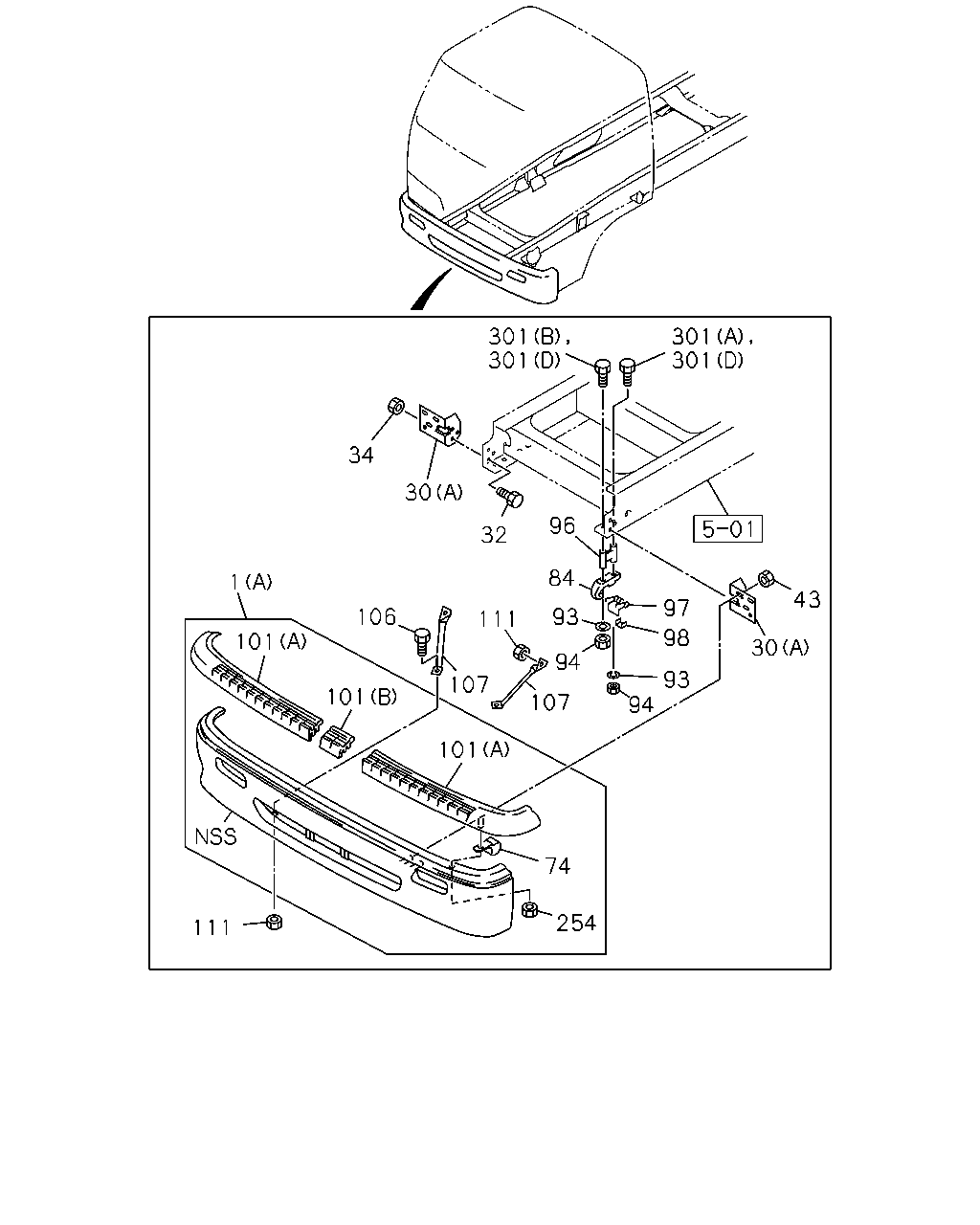

çizim 66530
301 301 301 301 34 30 96 32 84 43 97 106 93 111 98 101 30 94 93 107 101 107 94 101 74 254 111
BalonParca AdiParca NoAdetTipApplied Date A B
30 BRACKET; FRT BUMPER
(A) 		1-71230-207-3 01 1 9601-0111 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-568-0 01 1 0112-0308 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-568-0 01 1 0309-0409 ●
30 BRACKET; FRT BUMPER
(C) 		1-71230-577-0 01 1 0410- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-208-3 01 1 9601-0308 ● ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-208-3 01 1 0309-0409 ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-320-1 01 1 0410- ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-321-1 01 1 0410- ●
30 BRACKET; FRT BUMPER
(C) 		1-71230-576-0 01 1 0410- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9601-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0308 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0309-0409 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 08 1 0410-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9601-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0308 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0309-0409 ●
34 NUT; BRKT,BUMPER
M14 		9-99110-514-0 04 1 0410-0512 ●
34 NUT; BRKT,BUMPER
M14 		0-91110-514-0 04 1 0601- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 06 1 9601-9606 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0308 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0309-0409 ●
43 NUT; BRKT TO BUMPER
M10 CAP NUT 		1-09650-480-0 08 1 0410- ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9601-0308 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0309-0409 ●
84 HOOK 1-57181-027-1 01 1 9601-0208 ● ●
84 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 0209-0308 ● ●
84 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 0309-0409 ●
84 HOOK 1-57181-027-1 01 1 0410- ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9601-0208 ● ●
93 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		9-09150-516-0 02 1 0209-0308 ● ●
93 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		9-09150-516-0 02 1 0309-0409 ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0410-0603 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9601-0206 ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0208 ● ●
94 NUT; HOOK
TOW HOOK<V76> M16 		9-99110-516-0 02 1 0209-0308 ● ●
94 NUT; HOOK
TOW HOOK<V76> M16 		9-99110-516-0 02 1 0309-0409 ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0410-0512 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ●
96 PLATE; DIST,HOOK 1-57189-193-0 01 1 9601-9803 ● ●
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0410- ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9601-9803 ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0410- ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9601-9803 ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0410- ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9601-0308 ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0309-0409 ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9601-0308 ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0309-0409 ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9601-0308 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 0309-0409 ●
106 BOLT; AIR DAM
M10X16 FLANGE 		0-28081-016-0 02 1 9601-9602 ● ●
106 BOLT; AIR DAM
M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ● ●
106 BOLT; AIR DAM
M10X25 FLANGE 		0-28681-025-0 02 1 9607-0308 ● ●
106 BOLT; AIR DAM
M10X25 FLANGE 		0-28681-025-0 02 1 0309-0409 ●
107 STAY; AIR DAM 1-71260-132-1 01 1 9601-0308 ● ●
107 STAY; AIR DAM 1-71260-132-1 01 1 0309-0409 ●
107 STAY; AIR DAM 1-71260-131-1 01 1 9601-0308 ● ●
107 STAY; AIR DAM 1-71260-131-1 01 1 0309-0409 ●
111 NUT; STAY
M10 FLANGE 		0-91150-110-0 04 1 9601-9606 ● ●
111 NUT; STAY
M10 FLANGE 		0-91150-210-0 04 1 9607-0308 ● ●
111 NUT; STAY
M10 FLANGE 		0-91150-210-0 04 1 0309-0409 ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9601-0308 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 0309-0409 ●
301 BOLT; HOOK TO FRAME
(D) M16X147 		5-51361-003-3 02 1 9601-9803 ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 9804-0208 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (B) M16X70 		0-10811-670-0 01 1 0209-0308 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (B) M16X70 		0-10811-670-0 01 1 0309-0409 ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 9804-0208 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (A) M16X60 		0-10811-660-0 01 1 0209-0308 ● ●
301 BOLT; HOOK TO FRAME
TOW HOOK<V76> (A) M16X60 		0-10811-660-0 01 1 0309-0409 ●
301 BOLT; HOOK TO FRAME
(C) M16X80 		0-10811-680-0 02 1 0410-0512 ●
301 BOLT; HOOK TO FRAME
(C) M16X80 		0-10861-680-0 02 1 0601- ●
