5-30 — SPARE TIRE CARRIER AND COVER (#23267) — 126 parça

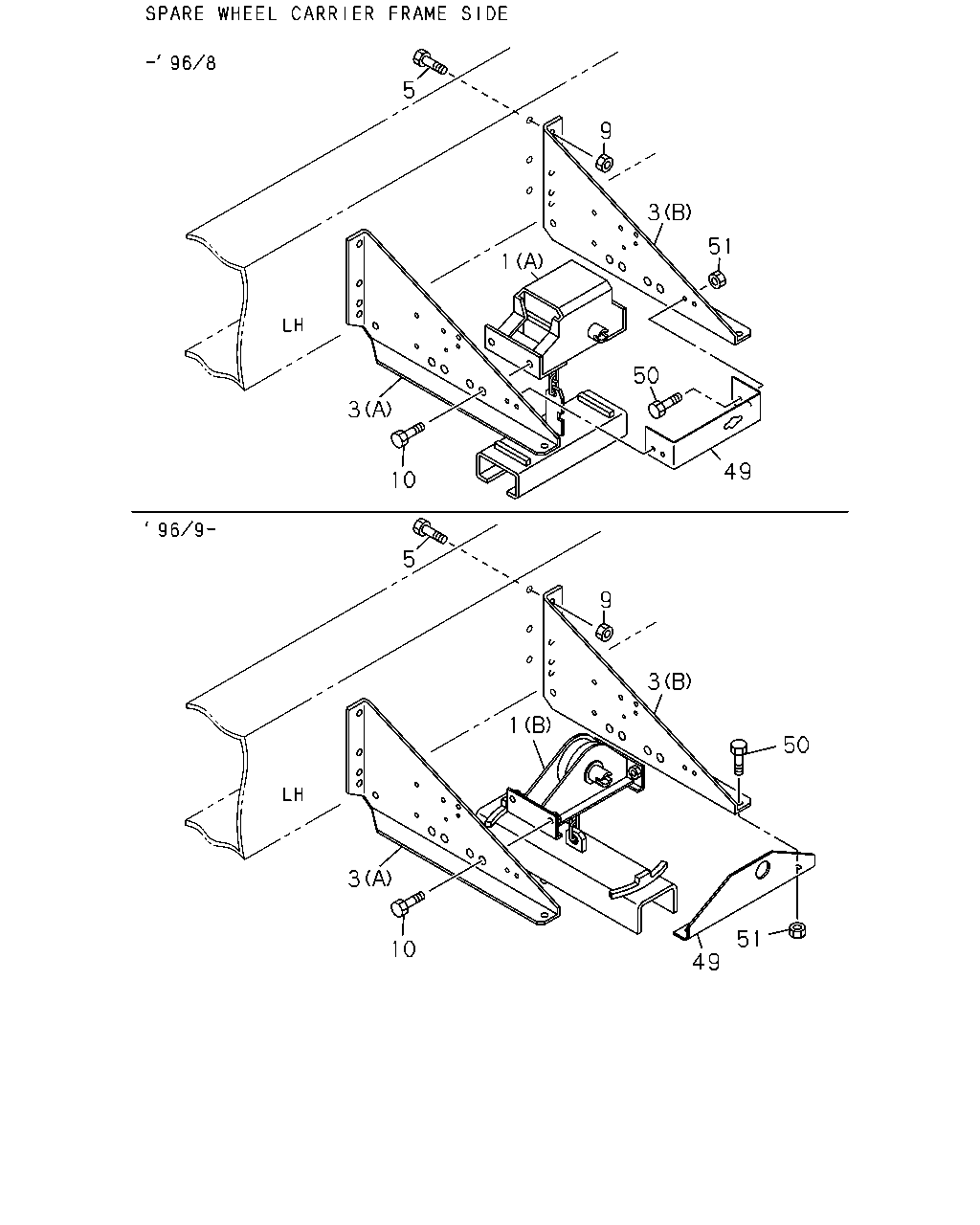

çizim 66531
5 9 3 51 1 50 3 49 10 5 9 3 1 50 3 51 10 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) 		1-53630-217-0 01 1 9601-9608 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) 		1-53630-217-0 01 1 9601-9608 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9803 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9803 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-1 01 1 9804-0004 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-1 01 1 9804-0004 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-4 01 1 0005-0308 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-4 01 1 0005-0308 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-4 01 1 0309- ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-162-1 01 1 9601-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) 		1-53630-208-3 01 1 0408- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-391-0 01 1 9604-0308 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-392-0 01 1 9604-0308 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28081-240-0 06 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28081-245-0 06 1 9607-0308 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 9812-9912 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0001-0004 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0005-0005 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0005-0006 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0007-0308 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 9609-9809 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE 		0-28081-035-0 08 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X40 FLANGE 		0-28681-040-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28681-040-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE 		0-28081-035-0 08 1 9609-9809 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9609-9809 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9810-9811 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-16 GULF LUG(56N),TIRE 11.00-20-16 GULF RIB(57N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE 		0-28081-035-0 08 1 9812-0308 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9812-0308 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 0309-0512 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28051-035-0 08 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9601-0308 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9601-9606 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-0602 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607-9608 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 9607-9608 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0012 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0012 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0101-0308 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0101-0308 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0309-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 0101-0308 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9601-9608 ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-278-1 01 1 9604-9608 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-376-0 01 1 9609-0104 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 0105-0308 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9608 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 02 1 9609-9702 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 02 1 9703-0104 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28680-830-0 04 1 0105-0308 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-408-0 04 1 9604-9606 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 04 1 9607-9608 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-112-0 02 1 9609-9609 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 02 1 9609-9710 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 02 1 9711-0104 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-508-0 04 1 0105-0308 ●

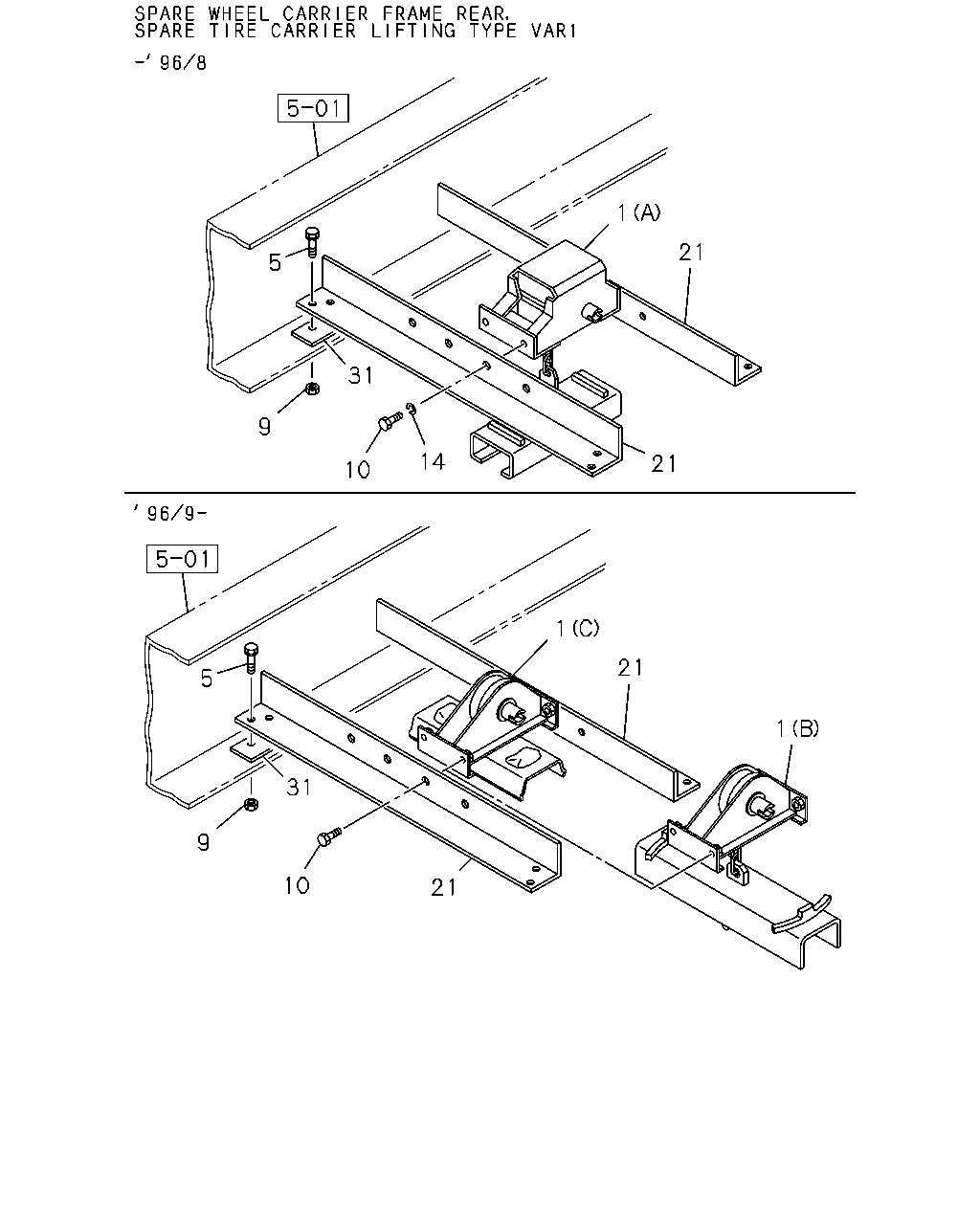

çizim 66574
1 21 5 31 9 14 21 10 1 21 5 1 31 9 10 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) 		1-53630-217-0 01 1 9601-9608 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) 		1-53630-217-0 01 1 9601-9608 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9803 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9803 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-1 01 1 9804-0004 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-1 01 1 9804-0004 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-4 01 1 0005-0308 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-4 01 1 0005-0308 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) 		1-53630-210-4 01 1 0309- ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-162-1 01 1 9601-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) 		1-53630-208-3 01 1 0408- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28081-240-0 06 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28081-245-0 06 1 9607-0308 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 9812-9912 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0001-0004 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0005-0005 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0005-0006 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 0007-0308 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 FLANGE 		0-28081-025-0 08 1 9609-9809 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE 		0-28081-035-0 08 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9601-9606 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X40 FLANGE 		0-28681-040-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28681-040-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE 		0-28081-035-0 08 1 9609-9809 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9609-9809 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9810-9811 ●
5 BOLT; BRKT TO FRAME
TIRE 11.00-20-16 GULF LUG(56N),TIRE 11.00-20-16 GULF RIB(57N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE 		0-28081-035-0 08 1 9812-0308 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9812-0308 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 0309-0512 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28051-035-0 08 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9601-0308 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9601-9606 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-0602 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607-9608 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 9607-9608 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0012 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0012 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0101-0308 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0101-0308 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0309-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 0101-0308 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9601-9608 ● ●
14 WASHER; LK,TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9601-9608 ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-394-0 02 1 9811-9912 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-394-0 02 1 0001-0004 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-394-0 02 1 0005-0006 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE 11R22.5-14 GULF RIB(68N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-394-0 02 1 0007-0308 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00R20-16 RIB(55R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-394-0 02 1 9601-9809 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-395-1 02 1 9601-9809 ●
21 BRACKET; SPARE TIRE HANGER
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 9601-9809 ●
21 BRACKET; SPARE TIRE HANGER
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 9810-9810 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 11.00-20-16 GULF LUG(56N),TIRE 11.00-20-16 GULF RIB(57N) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53631-395-1 02 1 9811-0308 ●
21 BRACKET; SPARE TIRE HANGER
FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 9811-0308 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 0309- ●
31 SPACER; HANGER BRKT
WHEEL BASE 4200MM(42W) FRAME EQUIPMENT HEAVY DUTY(F03) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53168-369-0 02 1 9601-0308 ●
31 SPACER; HANGER BRKT
WHEEL BASE 4200MM(42W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53168-369-0 02 1 0309-1305 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
