5-10 — CAB MOUNTING; FRAME SIDE (#23264) — 251 parça

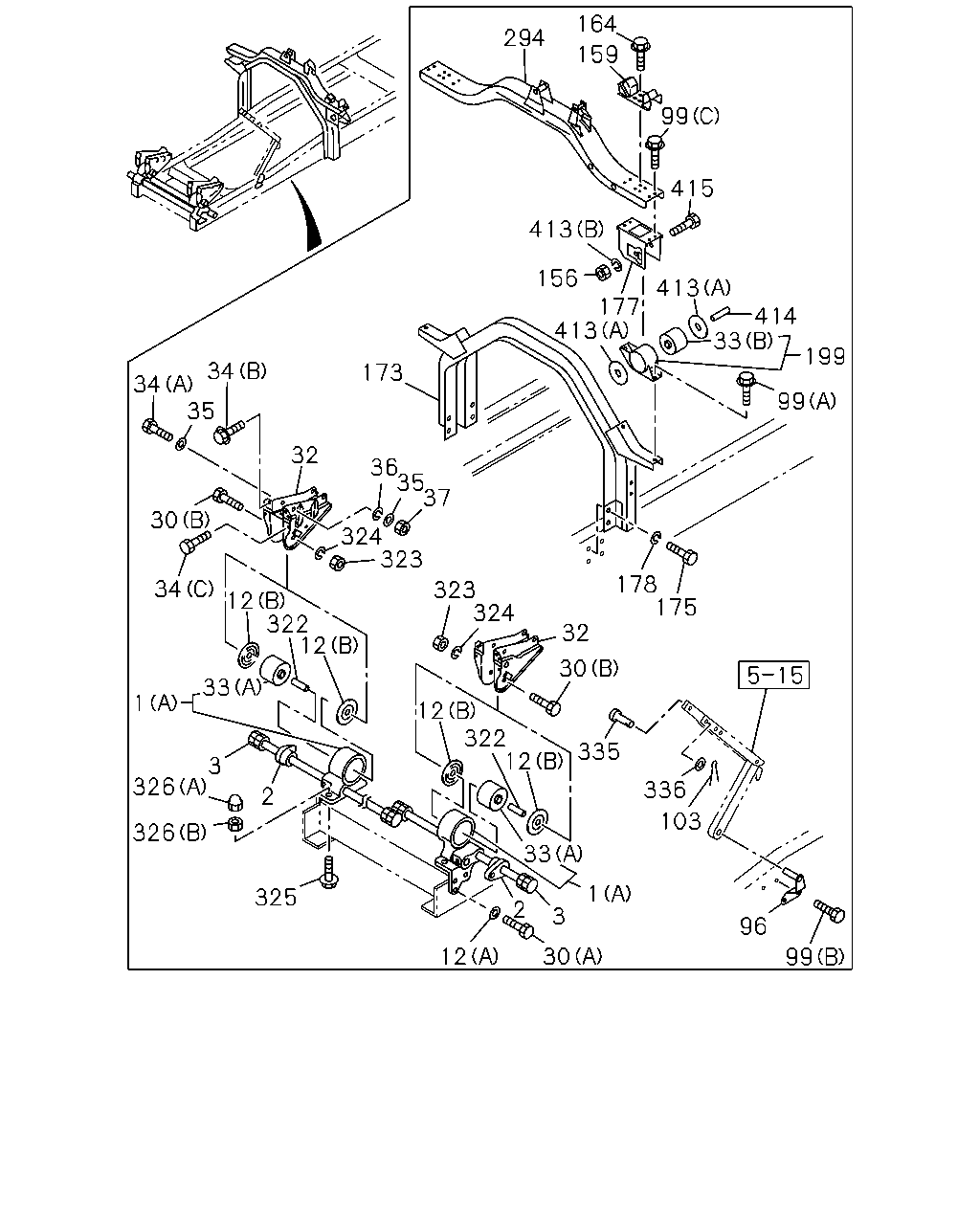

çizim 16196
164 294 159 99 415 413 156 413 177 413 414 33 199 34 173 34 35 99 32 36 35 37 30 324 323 178 175 34 323 324 12 322 2 32 30 33 1 12 322 12 335 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(A) 		1-53453-265-0 01 1 9601-0308 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-265-0 01 1 0309- ●
1 BRACKET; CAB MTG
(A) 		1-53453-266-0 01 1 9601-0308 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-266-0 01 1 0309- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804-0308 ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0309- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9601-0308 ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0309- ●
3 TORSION BAR 1-09585-129-0 01 1 9601-0308 ● ●
3 TORSION BAR 1-09585-129-0 01 1 0309- ●
3 TORSION BAR 1-09585-130-0 01 1 9601-0308 ● ●
3 TORSION BAR 1-09585-130-0 01 1 0309- ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9601-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307-0308 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0309- ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9601-0308 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0309-1201 ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9601-0308 ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0309- ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9601-0201 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0202-0308 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0309- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9601-0308 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0309- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9601-0308 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 0309- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 9601-0308 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 0309- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9601-9803 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9601-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0309- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9601-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0309- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9804-0112 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0201-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0309-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0201-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0309-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9601-9803 ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9601-0308 ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0309- ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9601-0308 ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0309- ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9601-0308 ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0309- ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9601-0308 ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0309- ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9601-9606 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-0308 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0309-0512 ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-0308 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0309-0512 ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9601-9606 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-0308 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0309-0512 ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9601-0308 ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0309- ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9601-0308 ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0309-0512 ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9601-0308 ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0309- ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9607-0308 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0309-0512 ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
173 MEMBER; CAB MTG RR 1-53454-599-3 01 1 9601-9803 ● ●
173 MEMBER; CAB MTG RR 1-53454-705-1 01 1 9804-0308 ● ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0309- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9601-0308 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0309-0512 ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ●
177 BRACKET; MEMBER 1-53454-528-1 01 1 9601-9803 ● ●
177 BRACKET; MEMBER 1-53454-529-1 01 1 9601-9803 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9601-0308 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0309-0603 ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9601-9803 ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 9804-0207 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-0308 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0309-1403 ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 9601-0308 ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 0309- ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9601-0308 ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0309- ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9601-0308 ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0309-0512 ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9601-0308 ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0309-0603 ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28081-235-0 02 1 9601-9606 ● ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28681-235-0 02 1 9607-9612 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0308 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0309-0512 ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9601-9612 ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9601-0109 ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0110-0308 ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0309- ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9601-0308 ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0309- ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9601-0308 ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0309- ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9601-0306 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307-0308 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0309- ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9601-0308 ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0309-0603 ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9601-0308 ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0309- ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9601-0308 ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0309- ●

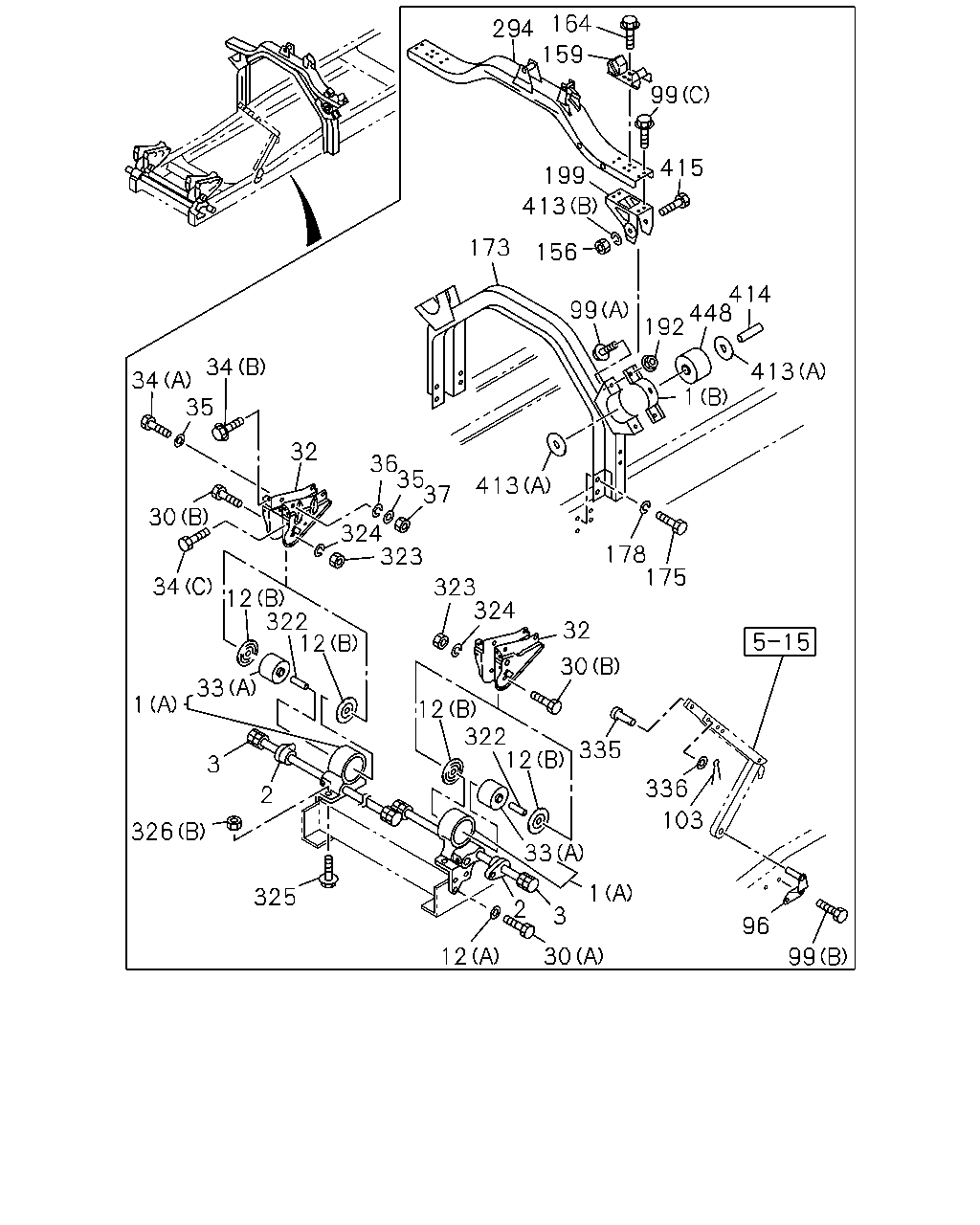

çizim 16555
164 294 159 99 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 2 32 30 33 1 12 322 12 335 3 336 2 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(A) 		1-53453-265-0 01 1 9601-0308 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-265-0 01 1 0309- ●
1 BRACKET; CAB MTG
(A) 		1-53453-266-0 01 1 9601-0308 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-266-0 01 1 0309- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804-0308 ● ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 0309- ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9601-0308 ● ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 0309- ●
3 TORSION BAR 1-09585-129-0 01 1 9601-0308 ● ●
3 TORSION BAR 1-09585-129-0 01 1 0309- ●
3 TORSION BAR 1-09585-130-0 01 1 9601-0308 ● ●
3 TORSION BAR 1-09585-130-0 01 1 0309- ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9601-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307-0308 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0309- ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9601-0308 ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0309-1201 ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9601-0308 ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0309- ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		9-92061-450-0 10 1 9601-0201 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0202-0308 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 10 1 0309- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9601-0308 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 0309- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9601-0308 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 0309- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 9601-0308 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-634-0 02 1 0309- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9601-9803 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 9601-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0309- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9601-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0309- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9804-0112 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0201-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0309-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0201-0308 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0309-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9601-9803 ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9601-0308 ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0309- ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9601-0308 ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0309- ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9601-0308 ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0309- ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9601-0308 ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0309- ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9601-9606 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9607-0308 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 0309-0512 ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9601-9606 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9607-0308 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0309-0512 ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9601-9606 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 9607-0308 ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0309-0512 ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9601-0308 ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0309- ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9601-0308 ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 0309-0512 ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 9601-0308 ● ●
159 RUBBER; CUSHION,CAB MTG 1-53458-285-0 02 1 0309- ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9607-0308 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 0309-0512 ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
173 MEMBER; CAB MTG RR 1-53454-599-3 01 1 9601-9803 ● ●
173 MEMBER; CAB MTG RR 1-53454-705-1 01 1 9804-0308 ● ●
173 MEMBER; CAB MTG RR 1-53454-705-3 01 1 0309- ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9601-0308 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0309-0512 ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9601-0308 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0309-0603 ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 9804-0308 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 0309-0602 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9601-9803 ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 9804-0207 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-0308 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0309-1403 ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 9601-0308 ● ●
294 MEMBER; FLOATING 1-53454-602-0 01 1 0309- ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9601-0308 ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 0309- ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9601-0308 ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0309-0512 ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9601-0308 ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0309-0603 ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28081-235-0 02 1 9601-9606 ● ●
325 BOLT; GUIDE NUT
M12X35 FLANGE 		0-28681-235-0 02 1 9607-9612 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0308 ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0309-0512 ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9601-9612 ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9601-0109 ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0110-0308 ● ●
326 NUT; GUIDE NUT
(B) M12 SELF LOCK 		8-97028-390-1 02 1 0309- ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9601-0308 ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0309- ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9601-0308 ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0309- ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9601-0306 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307-0308 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0309- ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9601-0308 ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 0309-0603 ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9601-0308 ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 0309- ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9601-0308 ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 0309- ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 9804-0308 ● ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
