Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#23263) — 375 parça

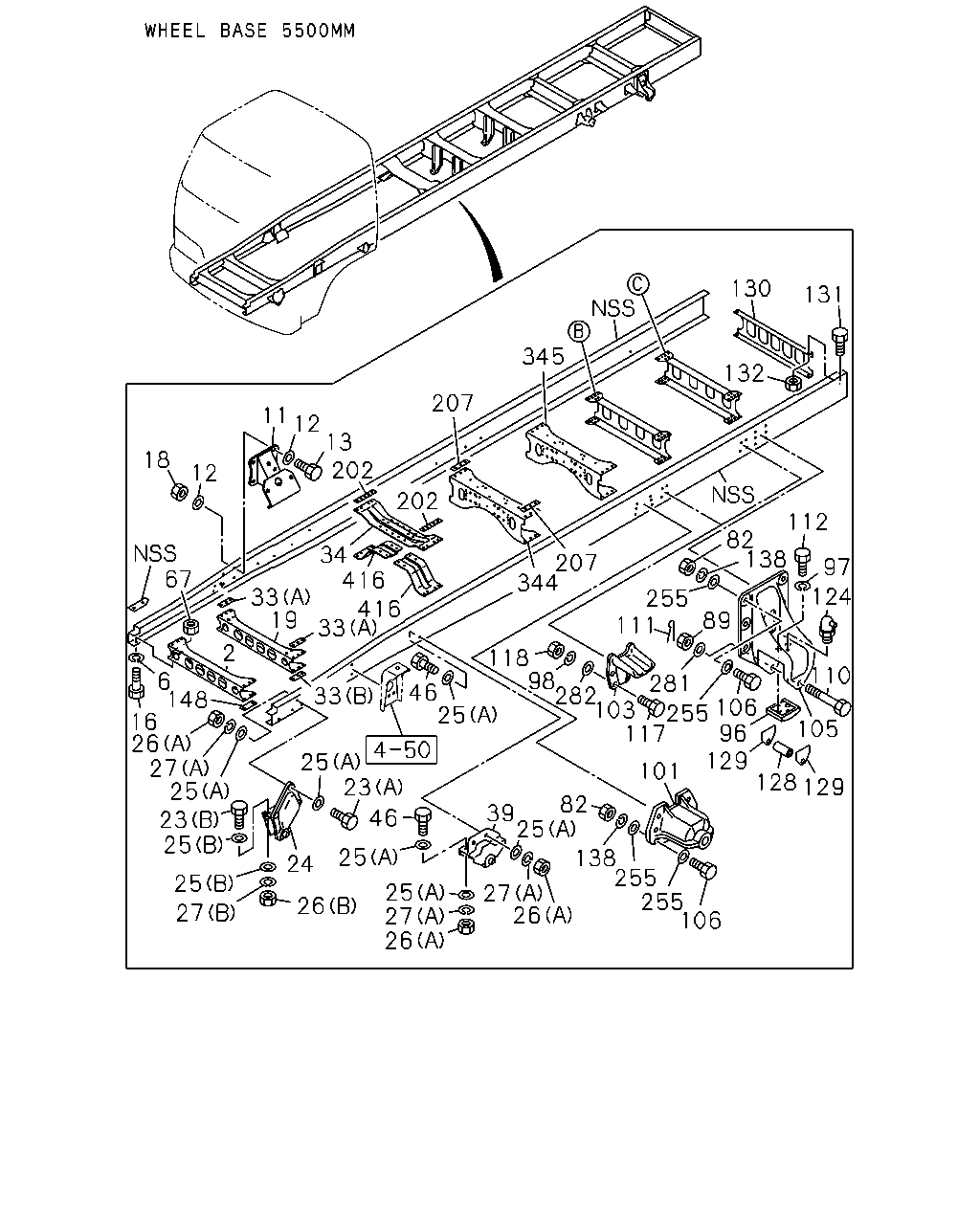

130 131 207 132 11 12 13 202 344 18 207 12 34 416 416 33 112 82 138 202 67 97 255 111 2 6 148 124 33 19 89 281 118 98 110 282 255 103 106 117 96 129 33 46 25 16 26 27 25 23 25 128 129 25 23 101 82 39 25 46 138 255 255 106 25 24 27 26 25 25 27 26 26 27 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	1-53181-670-9	01	1	9601-0009	●	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-1	01	1	0010-0308	●	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-2	01	1	0309-		●			●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9601-9803	●	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9804-0308	●	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	0309-0603		●			●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0604-		●			●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9601-0308	●	●	●	●	●
11	BRACKET; ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9601-9803		●	●	●	●
11	BRACKET; ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9804-9907			●	●	●
11	BRACKET; ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9908-0308	●	●	●	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	0309-		●			●
12	WASHER; PL,BRKT,ENG MTG 6HH1 STD ENG(65L) ID=12.5	1-09503-171-0	16	1	9601-9803	●	●	●	●	●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9601-9803	●	●	●	●	●
13	BOLT; BRKT,ENG MTG 6HH1 STD ENG(65L) M12X35 FLANGE	0-28691-235-0	08	1	9804-0308	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0309-0512		●			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-		●			●
13	BOLT; BRKT,ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9601-9803		●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9601-9803	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9804-0308	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	0309-0512		●			●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	02	1	0601-		●			●
18	NUT; BRKT,ENG MTG 6HH1 STD ENG(65L) M12	9-99110-512-0	08	1	9601-9803	●	●	●	●	●
18	NUT; BRKT,ENG MTG 6HH1 STD ENG(65L) M12 FLANGE	0-91150-212-0	08	1	9804-0308	●	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	0309-0602		●			●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-		●			●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	9601-0308	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	0309-0410		●			●
19	MEMBER; CROSS,2ND	8-97606-306-0	01	1	0411-		●			●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9601-9803	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	9804-0308	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0309-		●			●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9601-9803	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	9804-0308	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	0309-0512		●			●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0601-		●			●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9601-0308	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0309-		●			●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9601-0308	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0309-		●			●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9601-0308	●	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0309-		●			●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9601-0308	●	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0309-1201		●			●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-		●			●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9601-0308	●	●	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	0309-0512		●			●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0601-		●			●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9601-0308	●	●	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0309-0512		●			●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0601-		●			●
27	WASHER; LK,BRKT,FRT SPR (A) ID=14.2	9-09150-614-0	14	1	9601-9803	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=16.2	9-09150-616-0	04	1	9601-9803	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9601-0308	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	0309-		●			●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9601-0308	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	0309-		●			●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9601-0308	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-2	01	1	0309-		●			●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9601-0308	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0309-		●			●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9601-0308	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0309-		●			●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9601-9803	●	●	●	●	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	9804-0308	●	●	●	●	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	0309-0512		●			●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	08	1	0601-		●			●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9601-9803	●	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9804-0308	●	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	0309-0512		●			●
67	NUT; C/MBR M16	0-91110-516-0	02	1	0601-		●			●
82	NUT; BRKT M14	9-99110-514-0	24	1	9601-0308	●	●	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	0309-0512		●			●
82	NUT; BRKT M14	0-91110-514-0	24	1	0601-		●			●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9601-0308	●	●	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	0309-0604		●			●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0605-		●			●
96	PAD; RR SPR	1-53359-047-0	02	1	9601-0308	●	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0309-		●			●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9601-0308	●	●	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	0309-0603		●			●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0604-		●			●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9601-9803	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9601-0308	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0309-		●			●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9601-0308	●	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0309-		●			●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9601-0308	●	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0309-		●			●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-92061-460-0	24	1	9601-9803	●	●	●	●	●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9804-0308	●	●	●	●	●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	0309-0512		●			●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0601-		●			●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9601-9803	●	●	●	●	●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X45	9-92061-445-0	24	1	9804-0308	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9601-0308	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0309-		●			●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9601-0308	●	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	0309-0606		●			●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0607-		●			●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9601-0308	●	●	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	0309-0512		●			●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0601-		●			●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-91066-460-0	16	1	9601-9803	●	●	●	●	●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9804-0308	●	●		●	●
117	BOLT; STOPPER 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9804-0308			●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	0309-0512		●			●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0601-		●			●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9601-9803	●	●	●	●	●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X45	9-92061-445-0	16	1	9804-0308	●	●	●	●	●
117	BOLT; STOPPER 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	16	1	9804-0308			●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9601-0308	●	●	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	0309-0512		●			●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-		●			●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9601-9803	●	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9804-0308	●	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0309-0512		●			●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●			●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9601-0308	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9601-0308	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0309-		●			●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9601-0308	●	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0309-		●			●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	9601-0308	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0309-		●			●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9601-9803	●	●	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	9804-0308	●	●	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	0309-0512		●			●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0601-		●			●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9601-9803	●	●	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	9804-0308	●	●	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	0309-0602		●			●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0603-		●			●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9601-9803	●	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9601-0308	●	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	0309-		●			●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9601-0308	●	●	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0309-		●			●
207	SPACER; 4TH C/MBR 6HH1 STD ENG(65L)	1-53168-163-1	02	1	9601-9803	●	●
207	SPACER; 4TH C/MBR 6SD1 STD ENG(37L)	1-53168-163-1	02	1	9601-9803			●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9601-9803					●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9804-0308	●	●			●
207	SPACER; 4TH C/MBR 6SD1 STD ENG(37L)	1-53168-163-1	02	1	9804-0308			●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	0309-		●			●
207	SPACER; 4TH C/MBR 6SD1 STD ENG(37L)	1-53168-162-2	02	1	9601-9803	●	●
207	SPACER; 4TH C/MBR 6HH1 STD ENG(65L)	1-53168-162-2	02	1	9601-9803			●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9601-9803				●
207	SPACER; 4TH C/MBR 6HH1 STD ENG(65L)	1-53168-162-2	02	1	9804-0308			●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9601-0308	●	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0309-1201		●			●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-		●			●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9601-0308	●	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0309-		●			●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9601-0308	●	●	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	0309-1201		●			●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-		●			●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9601-9803	●	●	●	●	●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	9804-0308	●	●	●	●	●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	0309-		●			●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9601-0308	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-1	01	1	0309-		●			●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9601-0308	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-1	01	1	0309-		●			●

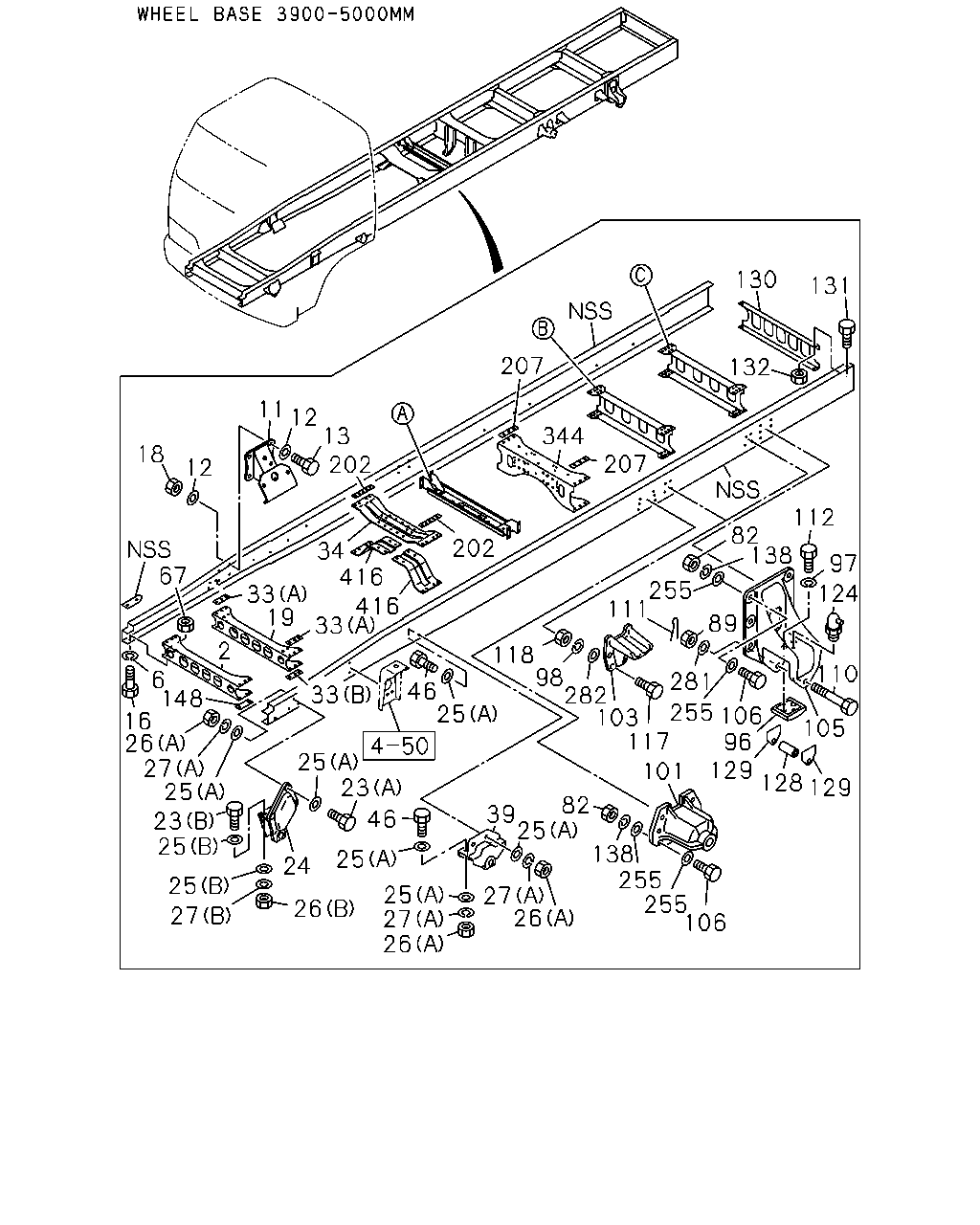

345 130 131 132 207 11 12 13 202 18 12 202 34 416 416 33 112 82 138 67 207 344 97 2 6 148 124 33 19 255 111 89 118 110 98 282 103 106 255 117 96 129 33 46 25 281 16 26 27 25 23 25 128 129 25 23 101 82 39 25 46 25 138 255 255 106 24 27 26 25 25 27 26 26 27 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	1-53181-670-9	01	1	9601-0009	●	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-1	01	1	0010-0308	●	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-2	01	1	0309-		●			●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9601-9803	●	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9804-0308	●	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	0309-0603		●			●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0604-		●			●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9601-0308	●	●	●	●	●
11	BRACKET; ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9601-9803		●	●	●	●
11	BRACKET; ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9804-9907			●	●	●
11	BRACKET; ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9908-0308	●	●	●	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	0309-		●			●
12	WASHER; PL,BRKT,ENG MTG 6HH1 STD ENG(65L) ID=12.5	1-09503-171-0	16	1	9601-9803	●	●	●	●	●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9601-9803	●	●	●	●	●
13	BOLT; BRKT,ENG MTG 6HH1 STD ENG(65L) M12X35 FLANGE	0-28691-235-0	08	1	9804-0308	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0309-0512		●			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-		●			●
13	BOLT; BRKT,ENG MTG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9601-9803		●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9601-9803	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9804-0308	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	0309-0512		●			●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	02	1	0601-		●			●
18	NUT; BRKT,ENG MTG 6HH1 STD ENG(65L) M12	9-99110-512-0	08	1	9601-9803	●	●	●	●	●
18	NUT; BRKT,ENG MTG 6HH1 STD ENG(65L) M12 FLANGE	0-91150-212-0	08	1	9804-0308	●	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	0309-0602		●			●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-		●			●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	9601-0308	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	0309-0410		●			●
19	MEMBER; CROSS,2ND	8-97606-306-0	01	1	0411-		●			●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9601-9803	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	9804-0308	●	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0309-		●			●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9601-9803	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	9804-0308	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	0309-0512		●			●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0601-		●			●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9601-0308	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0309-		●			●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9601-0308	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0309-		●			●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9601-0308	●	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0309-		●			●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9601-0308	●	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0309-1201		●			●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-		●			●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9601-0308	●	●	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	0309-0512		●			●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0601-		●			●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9601-0308	●	●	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0309-0512		●			●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0601-		●			●
27	WASHER; LK,BRKT,FRT SPR (A) ID=14.2	9-09150-614-0	14	1	9601-9803	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=16.2	9-09150-616-0	04	1	9601-9803	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9601-0308	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	0309-		●			●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9601-0308	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	0309-		●			●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9601-0308	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-2	01	1	0309-		●			●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9601-0308	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0309-		●			●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9601-0308	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0309-		●			●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9601-9803	●	●	●	●	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	9804-0308	●	●	●	●	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	0309-0512		●			●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	08	1	0601-		●			●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9601-9803	●	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9804-0308	●	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	0309-0512		●			●
67	NUT; C/MBR M16	0-91110-516-0	02	1	0601-		●			●
82	NUT; BRKT M14	9-99110-514-0	24	1	9601-0308	●	●	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	0309-0512		●			●
82	NUT; BRKT M14	0-91110-514-0	24	1	0601-		●			●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9601-0308	●	●	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	0309-0604		●			●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0605-		●			●
96	PAD; RR SPR	1-53359-047-0	02	1	9601-0308	●	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0309-		●			●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9601-0308	●	●	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	0309-0603		●			●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0604-		●			●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9601-9803	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9601-0308	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0309-		●			●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9601-0308	●	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0309-		●			●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9601-0308	●	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0309-		●			●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-92061-460-0	24	1	9601-9803	●	●	●	●	●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9804-0308	●	●	●	●	●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	0309-0512		●			●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0601-		●			●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9601-9803	●	●	●	●	●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X45	9-92061-445-0	24	1	9804-0308	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9601-0308	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0309-		●			●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9601-0308	●	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	0309-0606		●			●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0607-		●			●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9601-0308	●	●	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	0309-0512		●			●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0601-		●			●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-91066-460-0	16	1	9601-9803	●	●	●	●	●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9804-0308	●	●		●	●
117	BOLT; STOPPER 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9804-0308			●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	0309-0512		●			●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0601-		●			●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9601-9803	●	●	●	●	●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X45	9-92061-445-0	16	1	9804-0308	●	●	●	●	●
117	BOLT; STOPPER 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	16	1	9804-0308			●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9601-0308	●	●	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	0309-0512		●			●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-		●			●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9601-9803	●	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9804-0308	●	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0309-0512		●			●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●			●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9601-0308	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9601-0308	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0309-		●			●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9601-0308	●	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0309-		●			●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	9601-0308	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0309-		●			●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9601-9803	●	●	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	9804-0308	●	●	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	0309-0512		●			●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0601-		●			●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9601-9803	●	●	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	9804-0308	●	●	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	0309-0602		●			●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0603-		●			●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9601-9803	●	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9601-0308	●	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	0309-		●			●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9601-0308	●	●	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0309-		●			●
207	SPACER; 4TH C/MBR 6HH1 STD ENG(65L)	1-53168-163-1	02	1	9601-9803	●	●
207	SPACER; 4TH C/MBR 6SD1 STD ENG(37L)	1-53168-163-1	02	1	9601-9803			●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9601-9803					●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9804-0308	●	●			●
207	SPACER; 4TH C/MBR 6SD1 STD ENG(37L)	1-53168-163-1	02	1	9804-0308			●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	0309-		●			●
207	SPACER; 4TH C/MBR 6SD1 STD ENG(37L)	1-53168-162-2	02	1	9601-9803	●	●
207	SPACER; 4TH C/MBR 6HH1 STD ENG(65L)	1-53168-162-2	02	1	9601-9803			●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9601-9803				●
207	SPACER; 4TH C/MBR 6HH1 STD ENG(65L)	1-53168-162-2	02	1	9804-0308			●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9601-0308	●	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0309-1201		●			●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-		●			●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9601-0308	●	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0309-		●			●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9601-0308	●	●	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	0309-1201		●			●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-		●			●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9601-9803	●	●	●	●	●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	9804-0308	●	●	●	●	●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	0309-		●			●
345	MEMBER; CROSS,5TH	1-53171-738-7	01	1	9601-9803					●
345	MEMBER; CROSS,5TH	1-53171-953-2	01	1	9804-					●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9601-0308	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-1	01	1	0309-		●			●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9601-0308	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-1	01	1	0309-		●			●

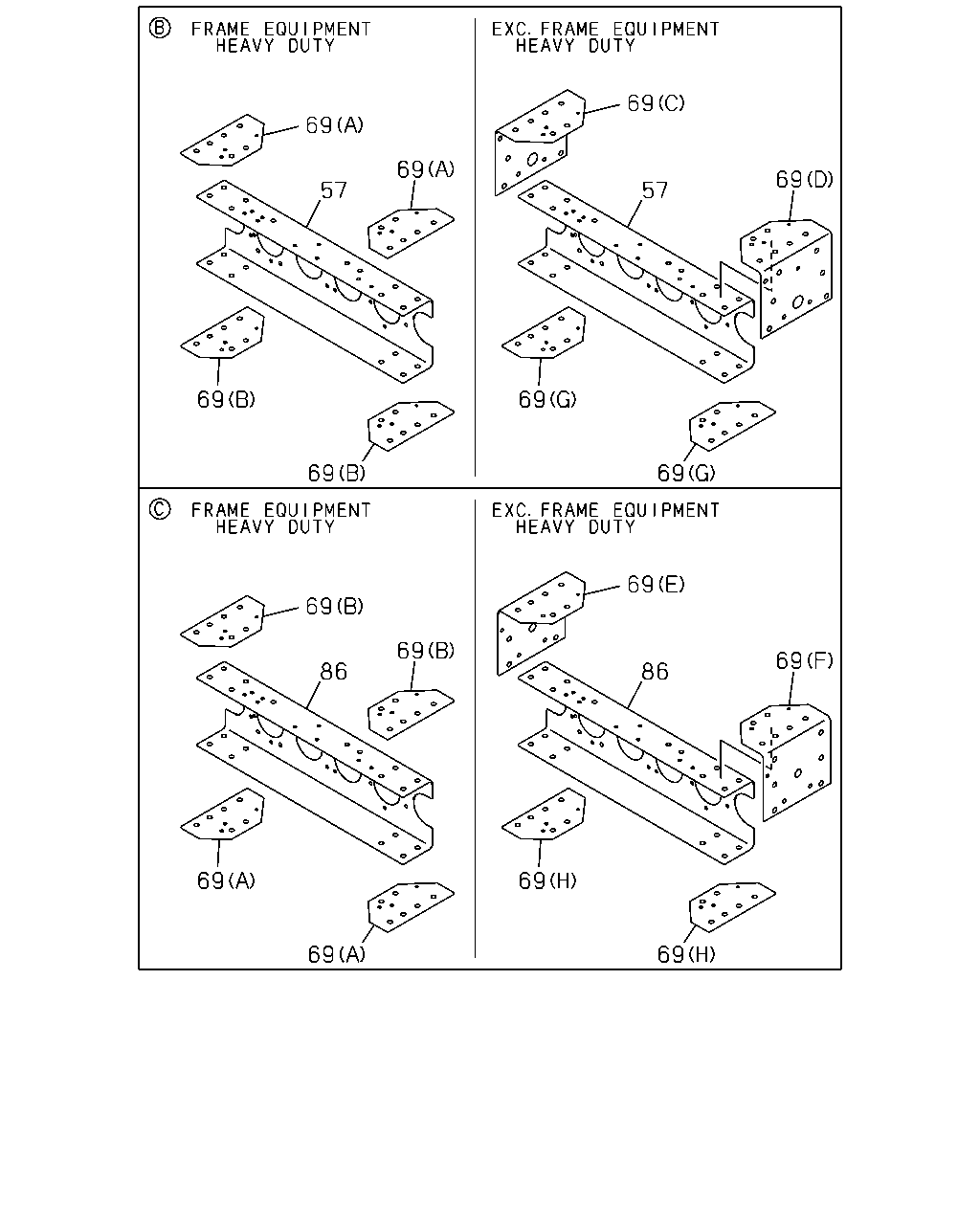

69 69 69 69 57 57 69 69 69 69 69 69 69 69 86 86 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	MEMBER; CROSS,RR SUSP FRT FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-380-6	01	1	9601-0308	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-6	01	1	0309-		●			●
57	MEMBER; CROSS,RR SUSP FRT EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-382-8	01	1	9601-9803	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-815-1	01	1	9804-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (C) 21-HOLE	1-53167-095-4	01	1	9601-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (D) 21-HOLE	1-53167-096-4	01	1	9601-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (E) 17-HOLE	1-53167-097-5	01	1	9601-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (F) 17-HOLE	1-53167-098-5	01	1	9601-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (H)	1-53167-099-4	02	1	9601-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (G)	1-53167-100-3	02	1	9601-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (A)	1-53167-462-0	04	1	9601-9803	●	●	●		●
69	GUSSET; RR SUSP,UPR 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) (A)	1-53167-462-0	04	1	9601-9803				●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (A)	1-53167-462-0	04	1	9804-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR (A)	1-53167-462-0	04	1	0309-		●			●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (B)	1-53167-463-0	04	1	9601-9803	●	●	●		●
69	GUSSET; RR SUSP,UPR 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) (B)	1-53167-463-0	04	1	9601-9803				●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (B)	1-53167-463-0	04	1	9804-0308	●	●	●	●	●
69	GUSSET; RR SUSP,UPR (B)	1-53167-463-0	04	1	0309-		●			●
69	GUSSET; RR SUSP,UPR 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) (A)	1-53167-462-0	05	1	9601-9803				●
69	GUSSET; RR SUSP,UPR 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) (B)	1-53167-463-0	03	1	9601-9803				●
86	MEMBER; CROSS,RR SUSP RR FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-380-6	01	1	9601-0308	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-6	01	1	0309-		●			●
86	MEMBER; CROSS,RR SUSP RR EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-382-8	01	1	9601-9803	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-815-1	01	1	9804-0308	●	●	●	●	●

64 60 41 40 40 58 64 61 62 41 60 64 41 40 40 58 64 61 62 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
40	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY(F03) M10X40 W/LK WASHER	0-50041-040-0	08	1	9601-9803	●
40	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M10X40 FLANGE	0-28681-040-0	08	1	0005-0308	●
40	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 W/LK WASHER	0-50041-035-0	08	1	9601-9803	●
40	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 FLANGE	0-28681-035-0	08	1	0005-0308	●
41	BRACKET; CENTER BRG,FRAME SIDE 6HH1 STD ENG(65L)	1-37515-085-0	02	1	0005-0308	●
41	BRACKET; CENTER BRG,FRAME SIDE 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-37515-085-0	02	1	9601-9803	●
41	BRACKET; CENTER BRG,FRAME SIDE 6HH1 STD ENG(65L)	1-37515-085-0	02	1	9601-9803	●
58	MEMBER; CENTER BRG 6HH1 STD ENG(65L)	1-37529-113-0	01	1	0005-0308	●
58	MEMBER; CENTER BRG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-37529-094-0	01	1	9601-9803	●
58	MEMBER; CENTER BRG 6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-37529-052-2	01	1	9601-9803	●
58	MEMBER; CENTER BRG 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-37529-095-0	01	1	9601-9803	●
60	BOLT; MBR 6HH1 STD ENG(65L) M10X25 FLANGE	0-28681-025-0	08	1	0005-0308	●
60	BOLT; MBR 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) M10X25 W/LK WASHER	0-50041-025-0	08	1	9601-9803	●
60	BOLT; MBR 6HH1 STD ENG(65L) M10X25 W/LK WASHER	0-50041-025-0	08	1	9601-9803	●
61	WASHER; PL,MBR 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) ID=10.5 OD=22	9-09164-610-0	08	1	9601-9803	●
61	WASHER; PL,MBR 6HH1 STD ENG(65L) ID=10.5 OD=22	9-09164-610-0	08	1	9601-9803	●
62	NUT; MBR 6HH1 STD ENG(65L) M10 FLANGE	0-91150-210-0	08	1	0005-0308	●
62	NUT; MBR 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) M10	9-09110-510-0	08	1	9601-9803	●
62	NUT; MBR 6HH1 STD ENG(65L) M10	9-09110-510-0	08	1	9601-9803	●
64	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) M10 FLANGE	0-91150-110-0	08	1	0005-0308	●
64	NUT; BRKT TO FRAME 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03) M10	9-09110-510-0	08	1	9601-9803	●
64	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) M10	9-09110-510-0	08	1	9601-9803	●
65	BRACKET; CENTER BRG 6SD1 STD ENG(37L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53271-334-1	01	1	9601-9803	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
