4-65 — REAR LEAF SPRING (#23261) — 82 parça

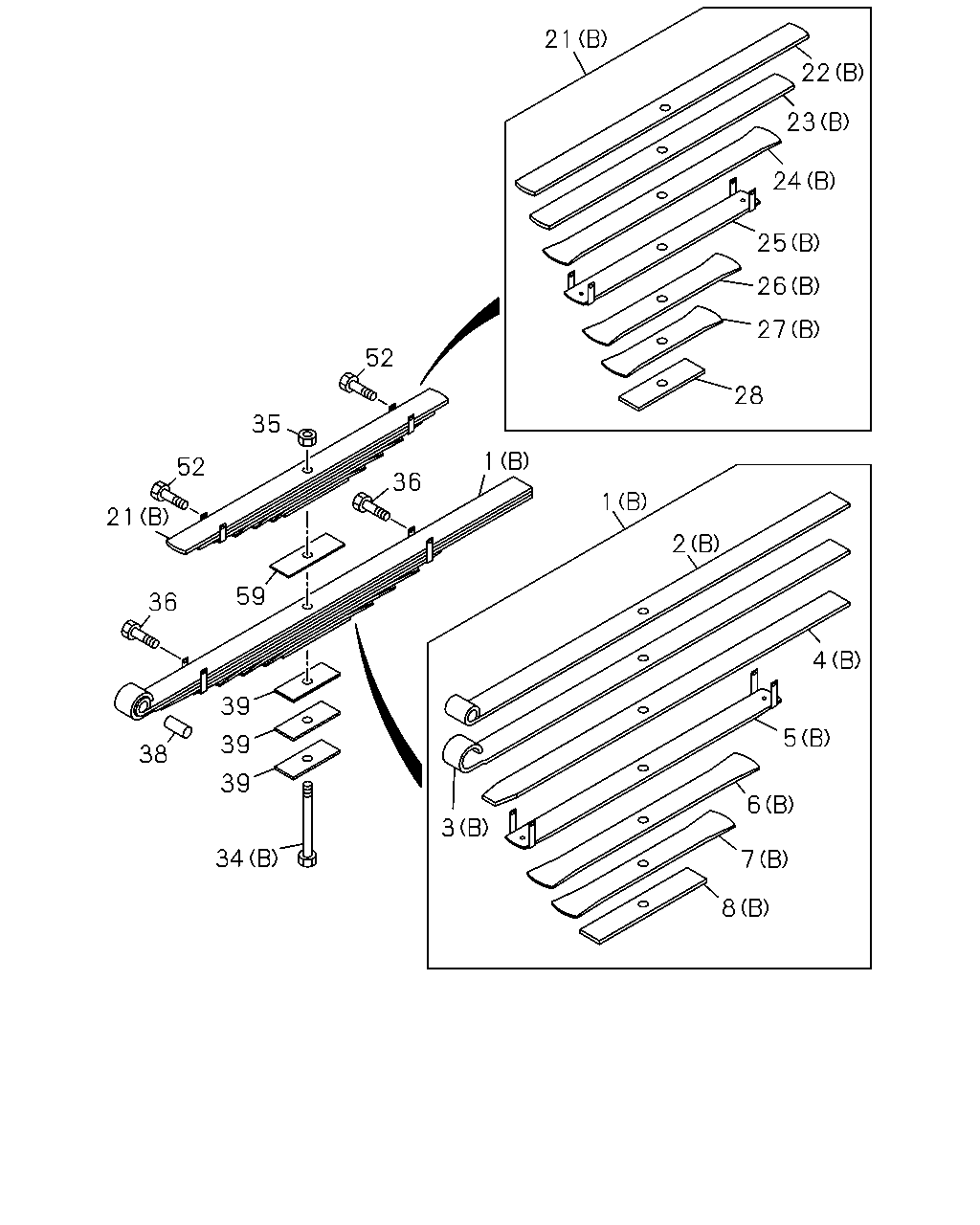

çizim 66541
21 22 23 24 25 26 27 52 28 35 1 52 36 1 21 2 59 36 4 39 5 39 38 39 6 3 34 7 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51310-721-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51410-094-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51411-094-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51412-094-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51413-094-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B), W/CLIP ASM PART: B = 1-51300-522-1 		1-51414-094-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A), W/CLIP ASM PART: A = 1-51300-352-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51415-094-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51416-094-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51417-094-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51340-450-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51340-612-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51341-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51341-612-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51342-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51342-612-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51343-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51343-612-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(A), W/CLIP ASM PART: A = 1-51300-352-0 		1-51344-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B), W/CLIP ASM PART: B = 1-51300-522-1 		1-51344-612-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51345-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51345-612-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51346-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51346-612-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: B = 1-51300-522-1 		1-51347-612-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=240 ASM PART: A = 1-51300-352-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=235 ASM PART: B = 1-51300-522-1 		1-51356-140-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-87610-164-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: B = 1-51300-522-1 		1-51377-118-0 03 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 1-51300-352-0 		1-51377-118-0 05 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-51377-118-0 01 1 -

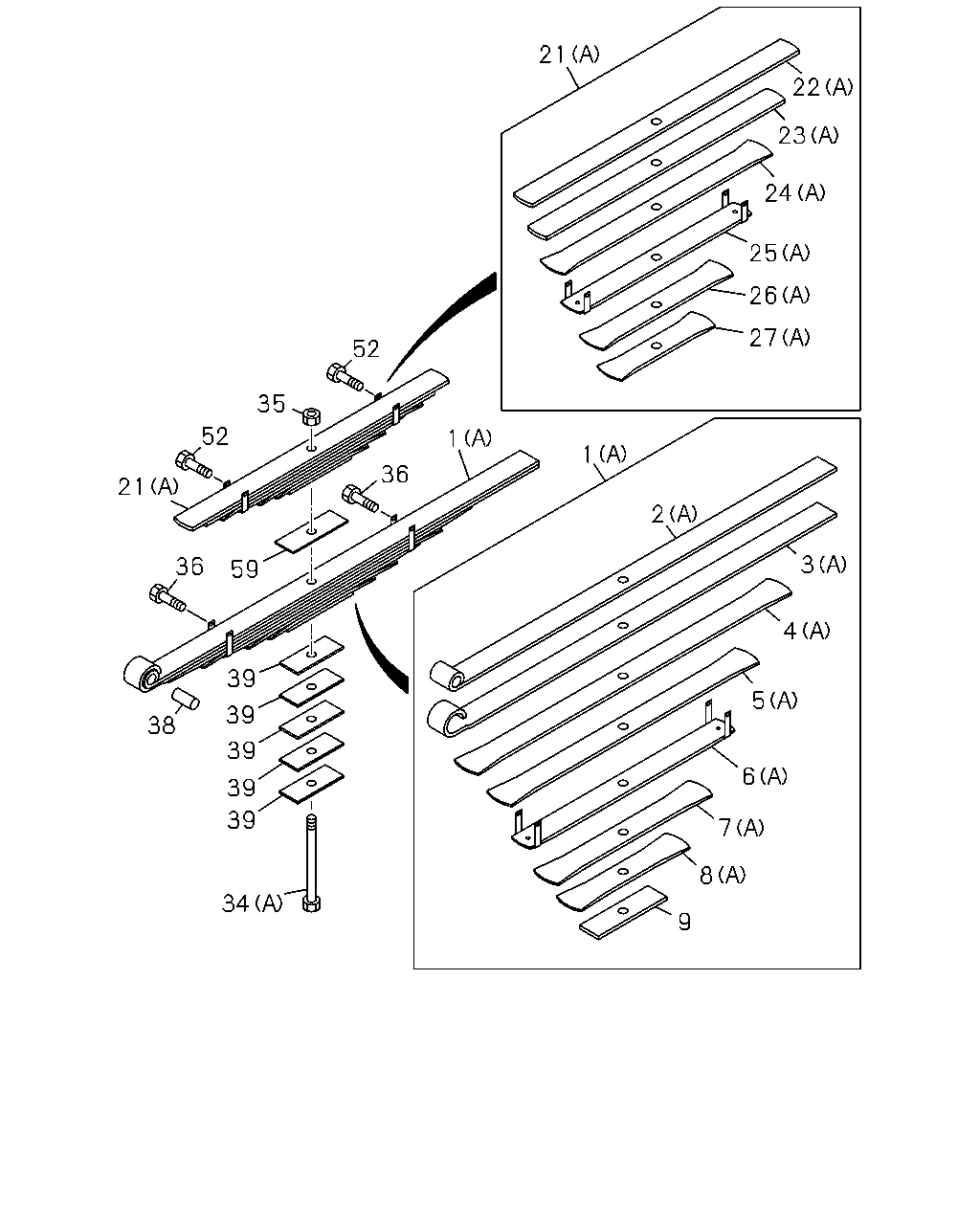

çizim 66599
21 22 23 24 25 26 27 52 35 52 1 1 36 21 2 3 36 59 4 39 5 39 38 39 6 39 39 7 8 34 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51310-721-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51410-094-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51411-094-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51412-094-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51413-094-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B), W/CLIP ASM PART: B = 1-51300-522-1 		1-51414-094-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A), W/CLIP ASM PART: A = 1-51300-352-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51415-094-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51416-094-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A) ASM PART: A = 1-51300-352-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B) ASM PART: B = 1-51300-522-1 		1-51417-094-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51300-352-0 		1-51318-721-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51340-450-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51340-612-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51341-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51341-612-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51342-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51342-612-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51343-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51343-612-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(A), W/CLIP ASM PART: A = 1-51300-352-0 		1-51344-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
(B), W/CLIP ASM PART: B = 1-51300-522-1 		1-51344-612-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51345-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51345-612-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(A) ASM PART: A = 1-51300-352-0 		1-51346-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
(B) ASM PART: B = 1-51300-522-1 		1-51346-612-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=240 ASM PART: A = 1-51300-352-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=235 ASM PART: B = 1-51300-522-1 		1-51356-140-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
BEST VALUE PARTS ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-87610-164-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: B = 1-51300-522-1 		1-51377-118-0 03 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 1-51300-352-0 		1-51377-118-0 05 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-352-0, B = 1-51300-522-1 		1-51377-118-0 01 1 -
