1 |

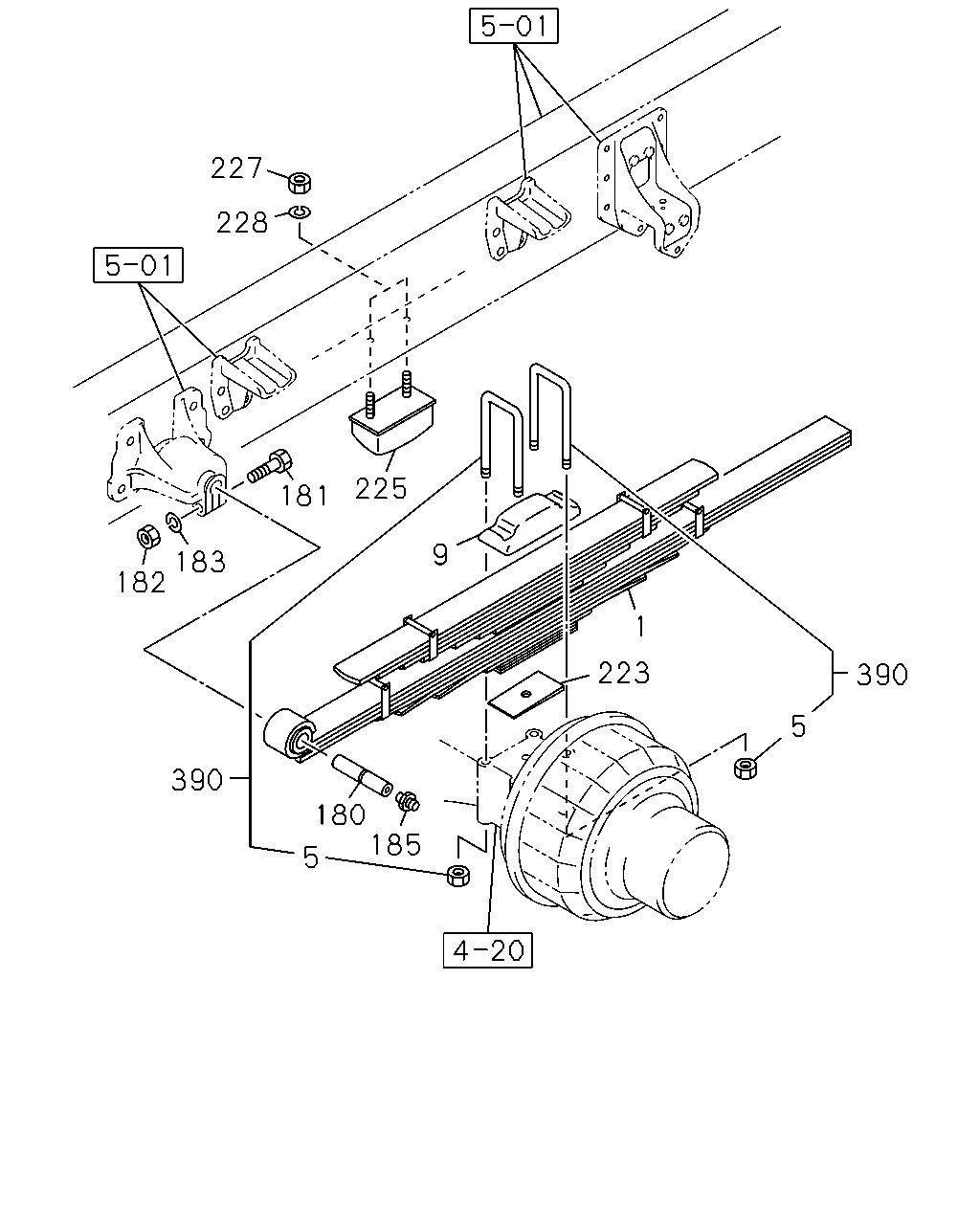

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
SUSPENSION HEAVY DUTY VAR2(F41)
|
1-51300-522-1 |
02 |
1 |
9601-0308 |
● |
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
|
1-51300-522-1 |
02 |
1 |
0309- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. SUSPENSION HEAVY DUTY VAR2(F41)
|
1-51300-352-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
5 |
NUT; U-BOLT,RR SPR
M24
|
9-99112-824-0 |
08 |
1 |
9601-0308 |
● |
● |
| |
5 |
NUT; U-BOLT,RR SPR
M24
|
9-99112-824-0 |
08 |
1 |
0309-0512 |
|
● |
| |
5 |
NUT; U-BOLT,RR SPR
M24
|
0-91112-824-0 |
08 |
1 |
0601- |
|
● |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-030-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-030-0 |
02 |
1 |
0309- |
|
● |
| |
180 |
PIN; RR SPR
|
1-51361-020-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
180 |
PIN; RR SPR
|
1-51361-020-0 |
02 |
1 |
0309- |
|
● |
| |
181 |
BOLT; SPR & SHACKLE
M14X80
|
0-10806-480-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
181 |
BOLT; SPR & SHACKLE
M14X80
|
0-10806-480-0 |
02 |
1 |
0309-0512 |
|
● |
| |
181 |
BOLT; SPR & SHACKLE
M14X80
|
0-10856-480-0 |
02 |
1 |
0601- |
|
● |
| |
182 |
NUT; PIN,RR SPR
M14
|
9-99110-414-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
182 |
NUT; PIN,RR SPR
M14
|
9-99110-414-0 |
02 |
1 |
0309-0512 |
|
● |
| |
182 |
NUT; PIN,RR SPR
M14
|
0-91110-514-0 |
02 |
1 |
0601- |
|
● |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=14.2
|
9-09150-514-0 |
02 |
1 |
0309-0603 |
|
● |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=14.2
|
0-91510-514-0 |
02 |
1 |
0604- |
|
● |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
0309-0512 |
|
● |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0601- |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-131-0 |
02 |
1 |
9601-9803 |
● |
|
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W)
|
1-51377-131-0 |
02 |
1 |
9601-9803 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-368-1 |
02 |
1 |
9804-0308 |
● |
|
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W)
|
1-51377-368-1 |
02 |
1 |
9804-0308 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
6SD1 STD ENG(37L)
WHEEL BASE 4600MM(46W)
|
1-51377-368-1 |
02 |
1 |
9804-0308 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W)
|
1-51377-368-1 |
02 |
1 |
0309-1212 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
|
1-51377-344-0 |
02 |
1 |
9601-9803 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W)
|
1-51377-371-0 |
02 |
1 |
9804-0004 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W)
|
1-51377-371-0 |
02 |
1 |
9804-0004 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
6HH1 STD ENG(65L)
WHEEL BASE 4600MM(46W)
|
1-51377-371-1 |
02 |
1 |
0005-0308 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W)
|
1-51377-371-1 |
02 |
1 |
0005-0308 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W)
|
1-51377-327-0 |
02 |
1 |
9601-9803 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W)
|
1-51377-370-0 |
02 |
1 |
9804-0004 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W)
|
1-51377-370-0 |
02 |
1 |
0005-1306 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W)
|
8-98220-147-0 |
02 |
1 |
1307- |
|
● |
| |
225 |
RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-53366-142-0 |
02 |
1 |
9601-9701 |
● |
● |
| |
225 |
RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-53366-142-0 |
01 |
1 |
9702-9803 |
● |
● |
| |
225 |
RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-53366-142-0 |
01 |
1 |
9702-9803 |
● |
● |
| |
225 |
RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-53366-045-0 |
02 |
1 |
9804-0308 |
● |
● |
| |
225 |
RUBBER; CUSHION,RR SPR
|
1-53366-045-1 |
02 |
1 |
0309-0906 |
|
● |
| |
225 |
RUBBER; CUSHION,RR SPR
|
1-53366-045-1 |
02 |
1 |
0907- |
|
● |
| |
225 |
RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-53366-081-0 |
02 |
1 |
9601-0308 |
● |
● |
| |
227 |
NUT; CUSHION RUBBER
M12
|
9-99110-512-0 |
04 |
1 |
9601-9611 |
● |
● |
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9612-0308 |
● |
● |
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0309-0602 |
|
● |
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0603- |
|
● |
| |
228 |
WASHER; LK,CUSHION RUBBER
ID=12.2
|
9-09150-512-0 |
04 |
1 |
9601-9611 |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
L=490
|
1-87870-036-4 |
04 |
1 |
9601-0308 |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
L=490
|
1-87870-036-4 |
04 |
1 |
0309- |
|
● |
