0-60A — ENGINE ELECTRICAL CONTROL PARTS
(#2326) — 41 parça
Tümü
A - 6RB1 STD ENG
B - 6RA1TC ENG
C - 6RB1TC ENG
◀

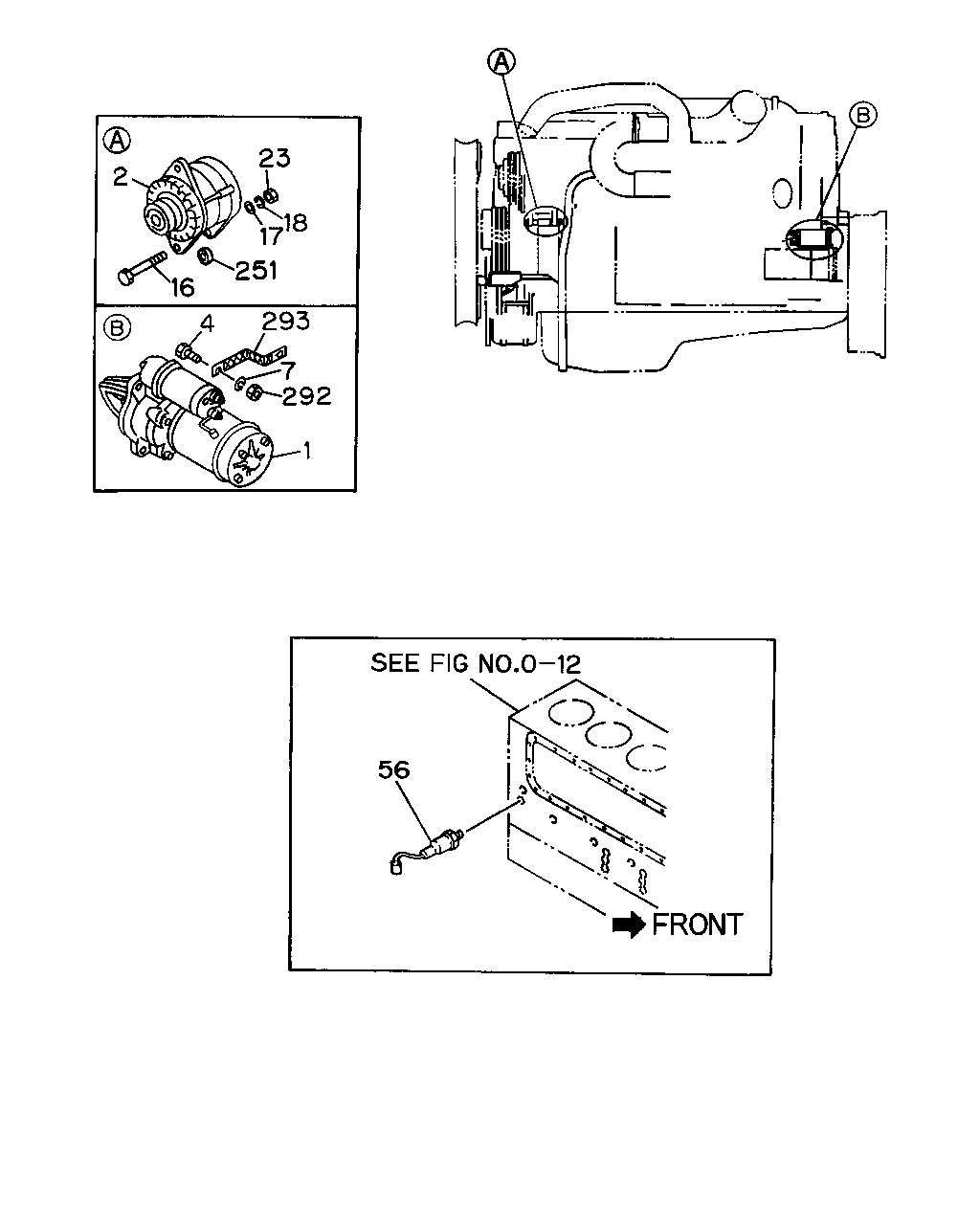

[060A] NO.2 (25 parça)

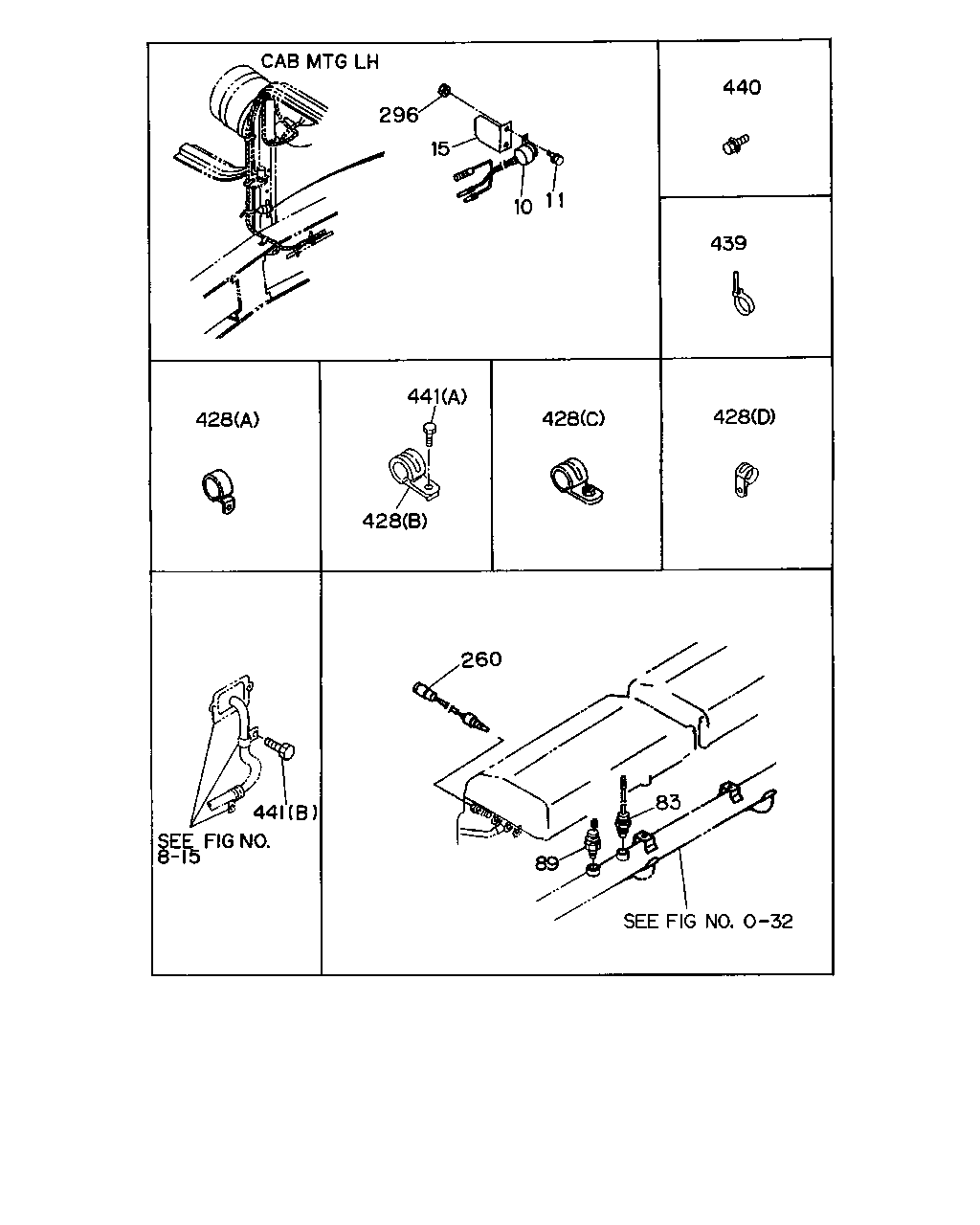

[060A] NO.1 (16 parça)
▶
296
15
10
11
440
439
428
428
441
428
428
441
260
83
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
RELAY; STARTER
1-81171-060-0
01
1
9002-9103
●
●
●
10
RELAY; STARTER
NIKKO
1-81171-071-0
01
1
9104-
●
●
●
11
BOLT; RELAY STARTER
M8X20 W/LK WASHER
9-01900-820-0
02
1
9002-9204
●
●
●
11
BOLT; RELAY STARTER
M8X20 W/LK WASHER
0-50040-820-0
02
1
9205-9302
●
●
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28080-820-0
02
1
9303-
●
●
●
15
PROTECTOR; HEAT,RELAY,STARTER
1-81179-003-0
01
1
9002-
●
●
●
83
THERMOMETER UNIT
1-83161-019-1
01
1
9002-9306
●
●
●
89
SWITCH; OVER HEAT WARNING
1-82450-013-0
01
1
9002-
●
●
●
260
SENSOR; WATER TEMP
1-81510-050-0
01
1
9002-
●
●
296
NUT; RELAY,STARTER
M8
9-09110-408-0
02
1
9002-
●
●
●
428
CLIP; HARNESS
(A) ID=27 L=24 H=23
1-09700-401-0
01
1
9002-
●
●
●
428
CLIP; HARNESS
AUTO CAB TILT<WV2> (C) ID=35 L=35
1-09700-726-0
01
1
9002-
●
●
●
428
CLIP; HARNESS
AUTO CAB TILT<WV2> (C) ID=35 L=35 W/NUT
1-09700-727-0
01
1
9002-
●
●
●
428
CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=35 L=35
1-09700-885-2
01
1
9002-9407
●
●
●
428
CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (B) ID=27 L=32
1-09700-884-0
01
1
9002-9407
●
●
●
428
CLIP; HARNESS
(B) ID=27 L=32
1-09700-884-0
01
1
9408-
●
428
CLIP; HARNESS
EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> (D) ID=27 L=32
1-09700-712-1
01
1
9002-
●
●
●
428
CLIP; HARNESS
EXZ&LHD(EX*6**) (D) ID=27 L=32
1-09700-712-1
03
1
9002-9306
●
439
CLIP; BAND AXLE HARNESS RR
L=250
5-09707-030-0
01
1
9002-
●
●
●
440
BOLT; CAB GROMMET
M6X18 W/LK WASHER
9-01900-618-0
02
1
9002-9204
●
●
●
440
BOLT; CAB GROMMET
M6X18 W/LK WASHER
0-50040-618-0
02
1
9205-9302
●
●
●
440
BOLT; CAB GROMMET
M6X20 FLANGE
0-28080-620-0
02
1
9303-
●
●
●
441
BOLT; HARNESS TO FRAME
EXC. NYLON TUBE AIR PIPING<Z29> (A) M6X22 FLANGE
0-28210-622-0
02
1
9002-9204
●
●
●
441
BOLT; HARNESS TO FRAME
EXC. NYLON TUBE AIR PIPING<Z29> (A) M6X22 FLANGE
0-28280-622-0
02
1
9205-
●
●
●
441
BOLT; HARNESS TO FRAME
(B) M6X22 W/LK&PL WASHER
8-94122-770-0
01
1
9309-
●
56
1
292
7
293
4
16
251
17
18
23
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.4KW NIKKO
1-81100-274-1
01
1
9002-
●
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-420-2
01
1
9002-
●
●
●
4
BOLT; STARTER
M14X55
9-91056-455-0
01
1
9002-9005
●
●
●
4
BOLT; STARTER
M14X55
0-10806-455-0
01
1
9006-
●
●
●
7
NUT; STARTER
M14
9-99110-414-0
03
1
9002-
●
●
●
16
BOLT; GEN
M14X128
9-09801-203-0
01
1
9002-
●
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9002-
●
●
●
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
9002-
●
●
●
23
NUT; GEN
M14
9-99110-414-0
01
1
9002-
●
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-092-2
01
1
9002-9306
●
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-140-0
01
1
9307-9502
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-169-0
01
1
9503-
●
251
SPACER; GEN
1-19719-017-0
01
1
9002-
●
●
●
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
03
1
9002-
●
●
●
293
CABLE; STARTER EARTH
L=335
1-82650-122-0
01
1
9002-9012
●
●
●
293
CABLE; STARTER EARTH
L=335
1-82650-237-0
01
1
9101-
●
●
●
