◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#23258) — 169 parça

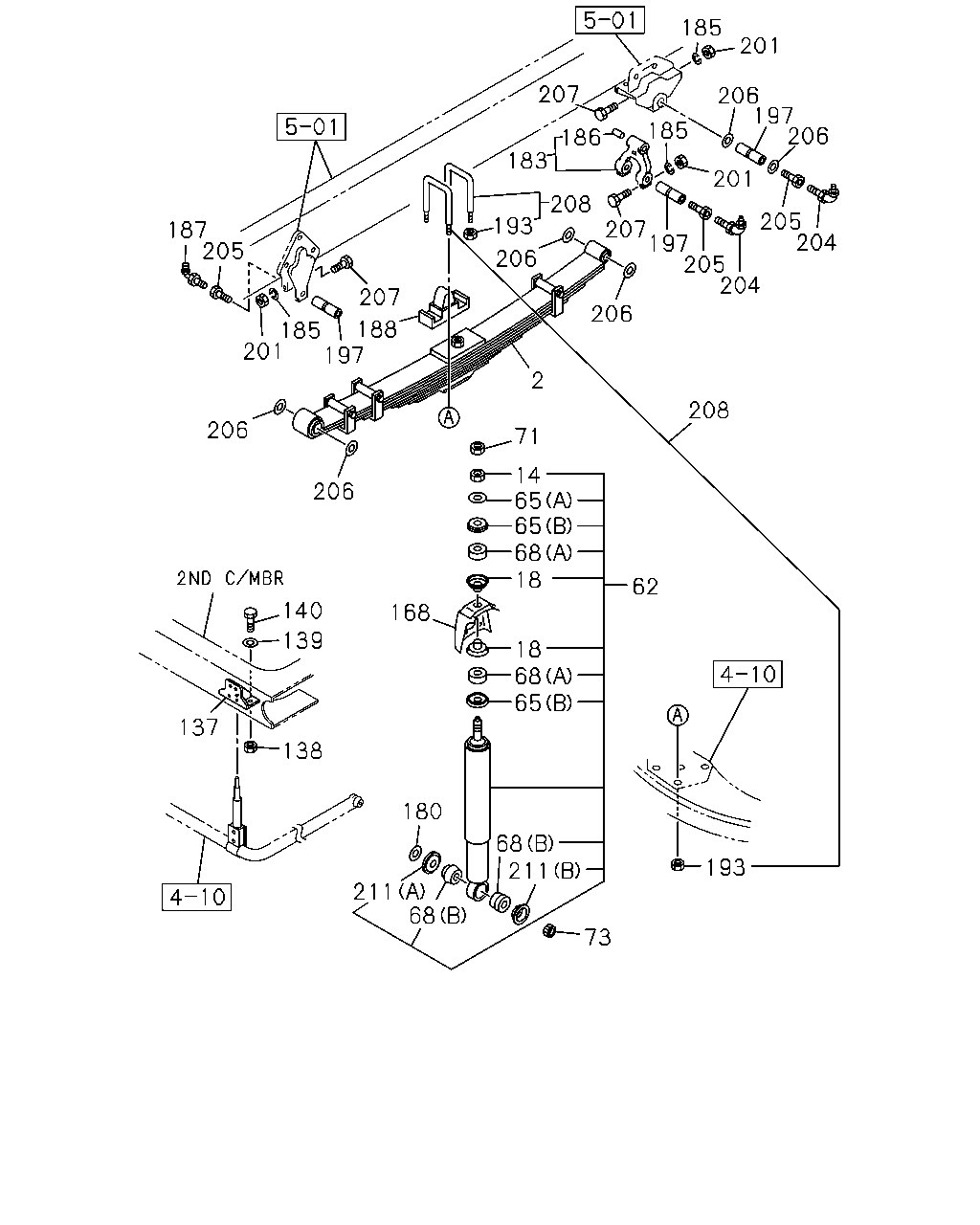

çizim 16431
185 201 207 206 197 206 185 186 183 201 208 205 204 193 207 197 205 204 187 205 206 207 206 185 188 201 197 2 208 206 71 14 65 65 68 18 206 62 140 168 139 18 68 65 137 138 180 68 211 193 211 68 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 9601-0308 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 9601-0308 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 9-LEAF 		1-51130-349-0 02 1 9601-0308 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 9-LEAF 		1-51130-349-0 02 1 0309- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 9601-0308 ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-0308 ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0309- ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-9803 ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9804-0308 ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-433-1 02 1 9601-9803 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 9804-0308 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 9804-0308 ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 0309- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-9803 ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 9804-0308 ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0309- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-9803 ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-9803 ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9804-0308 ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0309- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-0308 ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0309- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-0308 ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0309-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9601-0308 ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0309-0311 ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9601-0308 ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-510-0 08 1 9601-9606 ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 9607-0308 ● ●
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9601-9606 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28081-030-0 08 1 9601-9606 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X35 FLANGE 		0-28681-035-0 08 1 9607-0001 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28681-030-0 08 1 0002-0308 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-0308 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0309- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9601-0308 ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0309-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9601-0308 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0309- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-0308 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0309-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-0308 ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0309-0902 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-0308 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0309-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 9601-0308 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0309- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-0308 ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0309-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9601-0308 ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0309- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-0308 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0309-0512 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-0308 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0309-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-0308 ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0309-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-0308 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0309- ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-0308 ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0309- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-0308 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0309-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 9601-0308 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0309- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-0308 ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0309- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-0308 ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0309- ●

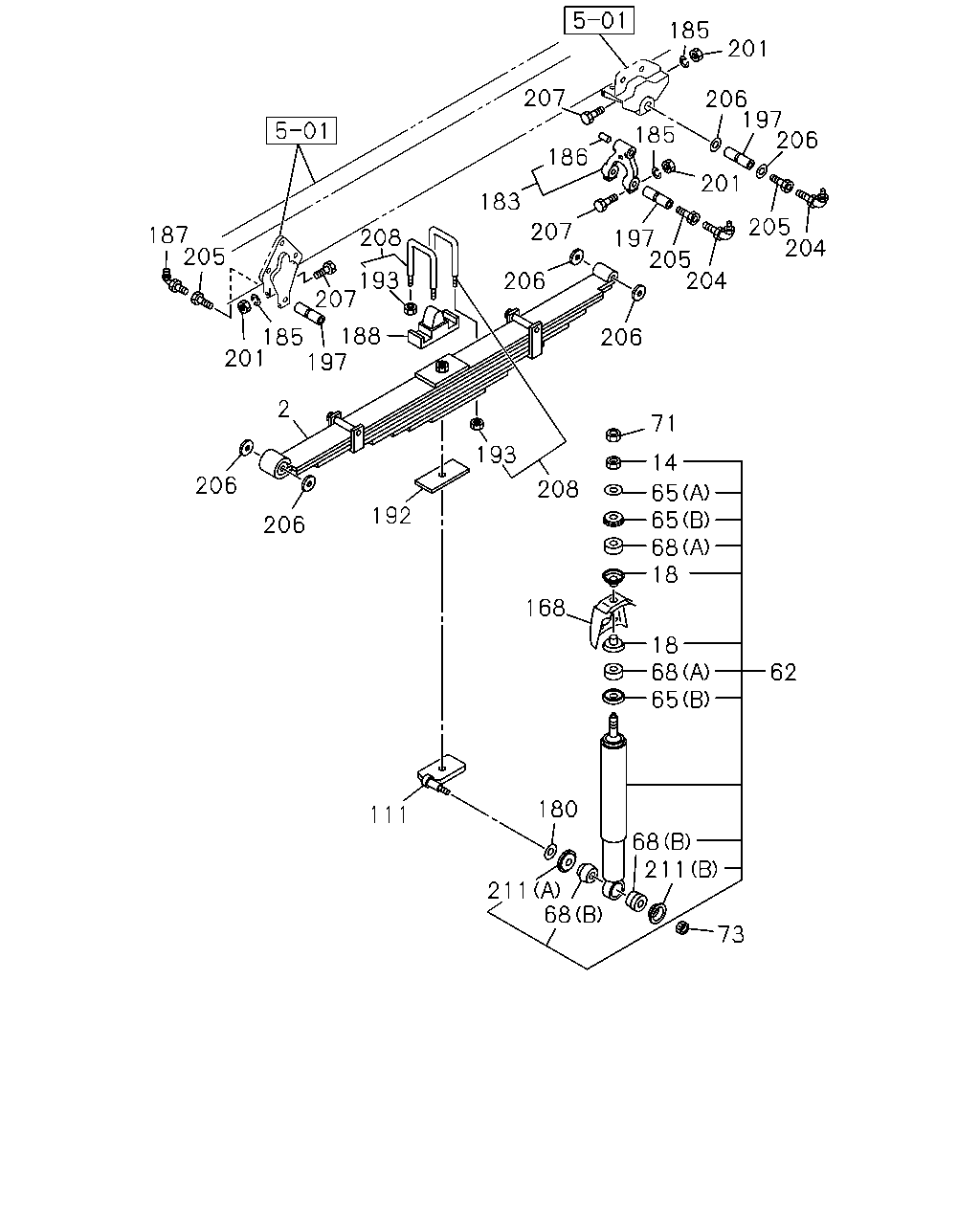

çizim 17748
185 201 207 206 197 206 185 186 201 183 205 204 207 187 205 208 197 205 204 193 207 206 185 188 201 197 206 2 71 193 14 206 208 65 65 68 18 192 206 168 18 68 65 62 180 111 68 211 211 68 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 9601-0308 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 9601-0308 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 9-LEAF 		1-51130-349-0 02 1 9601-0308 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 9-LEAF 		1-51130-349-0 02 1 0309- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 9601-0308 ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-0308 ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0309- ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-9803 ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9804-0308 ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-433-1 02 1 9601-9803 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 9804-0308 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 9804-0308 ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 0309- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-9803 ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 9804-0308 ● ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0309- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-9803 ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-9803 ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9804-0308 ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0309- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-0308 ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0309- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-0308 ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0309-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9601-0308 ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0309-0311 ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-722-1 01 1 9601-0308 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0309-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-483-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-723-1 01 1 9601-0308 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0309-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-484-0 01 1 1005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-0308 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0309- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9601-0308 ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0309-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9601-0308 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0309- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-0308 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0309-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-0308 ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0309-0902 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-0308 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0309-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 9601-0308 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0309- ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 9601-0308 ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0309- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-0308 ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0309-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9601-0308 ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0309- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-0308 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0309-0512 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-0308 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0309-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-0308 ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 0309-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-0308 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0309- ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-0308 ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0309- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-0308 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0309-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 9601-0308 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0309- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-0308 ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0309- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-0308 ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
